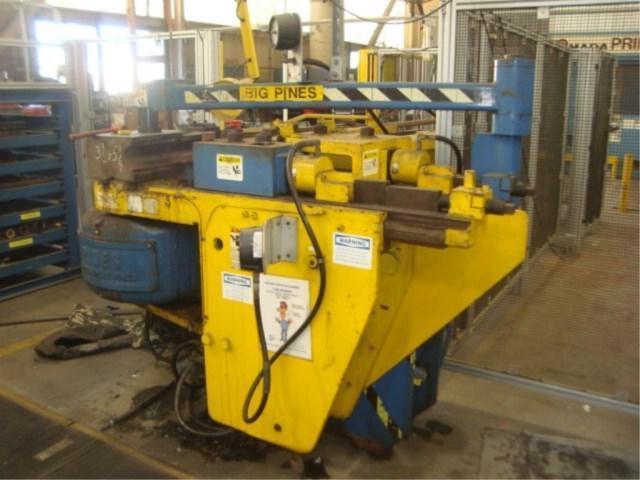

6" PINES #4 HORIZONTAL ROTARY HYDRAULIC TUBE & PIPE BENDER: STOCK# 12706

Stock #: 12706

Equipped With

SERIAL ......................... #11490-85141
MODEL .......................... #4
YEAR NEW ....................... 1985
NON-FERROUS TUBE  .............. 6" OD X .25" WALL
STEEL TUBE  .................... 6" OD X .165" WALL
STEEL PIPE SCHEDULE 80 ......... 4" OD X .25 WALL
STAINLESS TUBE  ................ 4-1/2" OD X .25" WALL
STEEL BAR (ROUND)  ............. 3-1/2" DIA
STEEL BAR (SQUARE) ............. 3-1/8"
MAXIMUM RADIUS (STANDARD) ...... 24"
MAXIMUM BEND ANGLE ............. 180 DEGREES + OVERBEND
MAXIMUM LENGTH OVER MANDREL .... 15'6"
BENDING ARM SPEED .............. 3 RPM
OPERATING PRESSURE ............. 2,000 PSI

EQUIPPED WITH:
EXTENDED BED
LONG STROKE MANDREL EXTRACTOR CYLINDER
WIPER DIE HOLDER & OVERHEAD TIE-BAR
PRESSURE DIE ASSIST
DIGITAL DIAL-A-BEND CONTROL
VICKERS HYDRAULICS & LINCOLN LUBE SYSTEM
20 HORSEPOWER HYDRAULIC MOTOR
