Overview

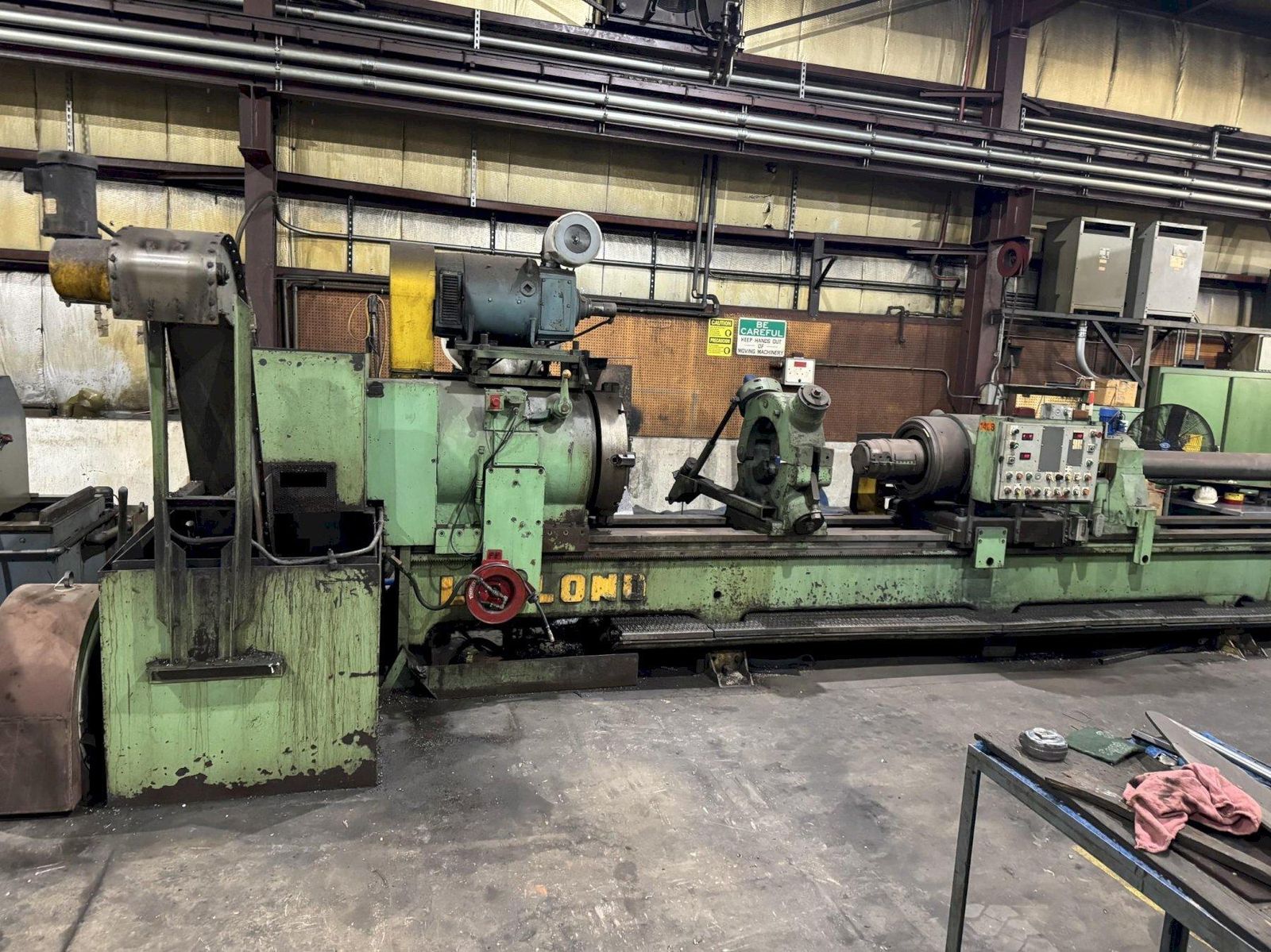

LeBlonde 6GSR-4A-52 Gun Drill / Deep Hole Bore

Boring head sizes ..... 8”-9” 9”-10” 11-13”

Drill head ............ 6.090”

Chuck Size ............ 29” with a 14” hole

Steady Rest ........... 7.5” - 18”

Bore Length ........... 96” part mounted to chuck face with 10”s of clearance between boring head and part.

Spindle Motor ......... 75 HP

Spindle speed and Axis feed rate are servo controlled.

13" x 96" x 75 HP LEBLOND MODEL #6GSR-4A-52 GUN DRILL: STOCK #20746

Brand
LEBLOND

Type
Drills, Gun

Stock No.
20746

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

13" x 96" x 75 HP LEBLOND MODEL #6GSR-4A-52 GUN DRILL: STOCK #20746

Stock #: 20746

Equipped With

LeBlonde 6GSR-4A-52 Gun Drill / Deep Hole Bore


Boring head sizes ..... 8”-9” 9”-10” 11-13”
Drill head ............ 6.090”
Chuck Size ............ 29” with a 14” hole
Steady Rest ........... 7.5” - 18”
Bore Length ........... 96” part mounted to chuck face with 10”s of clearance between boring head and part.
Spindle Motor ......... 75 HP


Spindle speed and Axis feed rate are servo controlled.

Overview

13" x 96" x 75 HP LEBLOND MODEL #6GSR-4A-52 GUN DRILL: STOCK #20746
