Overview

SERIAL ..................... 3F675

MODEL ...................... REGAL

NEW IN ..................... 1988

SWING OVER WAYS ............ 22"

SWING OVER CROSS SLIDE ..... 14-1/2"

DISTANCE BETWEEN CENTERS ... 96"

SPINDLE SPEEDS ............. (12) 18 TO 720 RPM

FEEDS....................... (48) .0036 TO .205 IPR

THREADS (INCH) ............. 2 TO 112 TPI

DIAMETER OF SPINDLE HOLE ... 2-1/4"

CHUCK ...................... 18" 3-JAW

HARD WAYS .................. YES

REMOVABLE CHIP PANS ........ YES

THREAD DIAL ................ YES

COOLANT .................... YES
MOTOR ...................... 10 HORSEPOWER

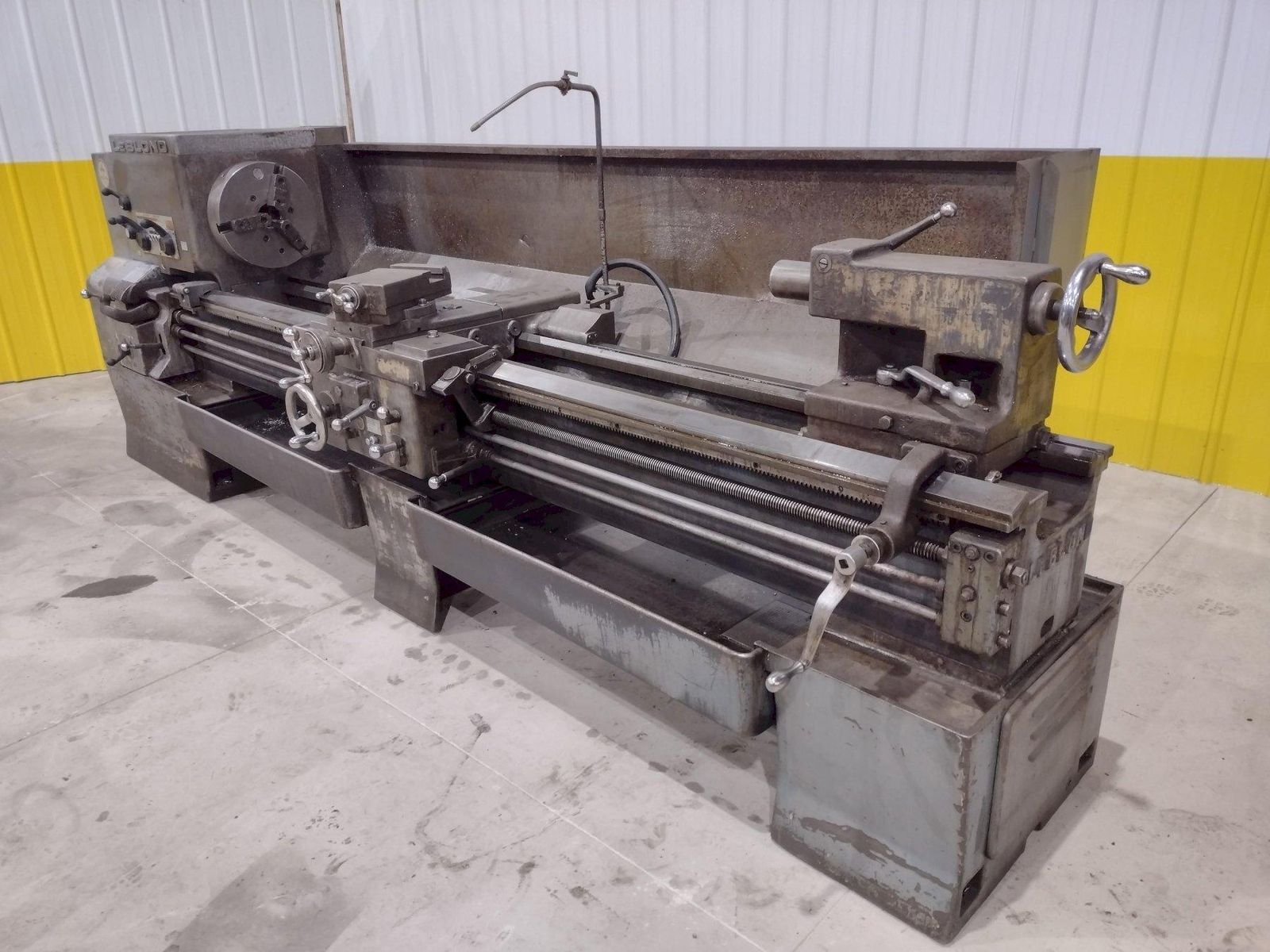

22" X 96" LEBLOND REGAL ENGINE LATHE: STOCK #20272

Brand
LEBLOND

Type
Lathes, Engine

Stock No.
20272

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

22" X 96" LEBLOND REGAL ENGINE LATHE: STOCK #20272

Stock #: 20272

Equipped With

SERIAL ..................... 3F675

MODEL ...................... REGAL
NEW IN ..................... 1988
SWING OVER WAYS ............ 22"
SWING OVER CROSS SLIDE ..... 14-1/2"
DISTANCE BETWEEN CENTERS ... 96"
SPINDLE SPEEDS ............. (12) 18 TO 720 RPM
FEEDS....................... (48) .0036 TO .205 IPR
THREADS (INCH) ............. 2 TO 112 TPI
DIAMETER OF SPINDLE HOLE ... 2-1/4"
CHUCK ...................... 18" 3-JAW
HARD WAYS .................. YES
REMOVABLE CHIP PANS ........ YES
THREAD DIAL ................ YES
COOLANT .................... YES
MOTOR ...................... 10 HORSEPOWER
