Machine Information

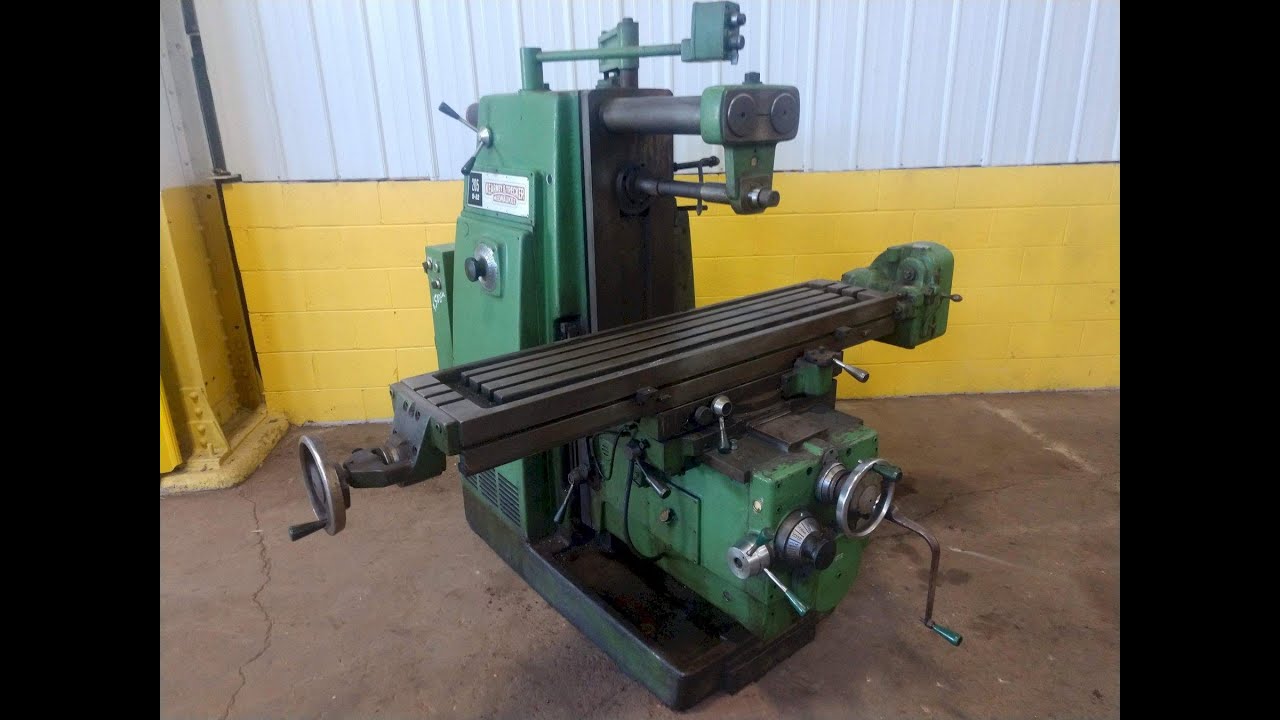

KEARNEY & TRECKER MODEL #205 S-12 HORIZONTAL MILL WITH VERTICAL HEAD ATTACHMENT: STOCK #12910

Stock #: 12910

Equipped With

SERIAL ....................... 16-9364
MODEL ........................ 205-S12
AREA OF TABLE ................ 56-1/2" X 12"
SPINDLE SPEEDS ............... (24) 20 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS ... (16) 1/4 TO 32 IPM
VERTICAL FEEDS ............... (16) 1/8 TO 16 IPM
LONGITUDINAL TRAVEL .......... 28"
CROSS TRAVEL ................. 12"
VERTICAL KNEE TRAVEL ......... 14"
VERTICAL HEAD TRAVEL ......... 4"
TAPER IN SPINDLE ............. #50
DISTANCE SPINDLE TO TABLE .... 0" MIN, 19-7/8" MAX
DEPTH OF THROAT .............. 14"
VERTICAL HEAD ATTACHMENT ..... *** YES ***
COOLANT ...................... YES
MAIN DRIVE MOTOR ............. 5 HORSEPOWER
