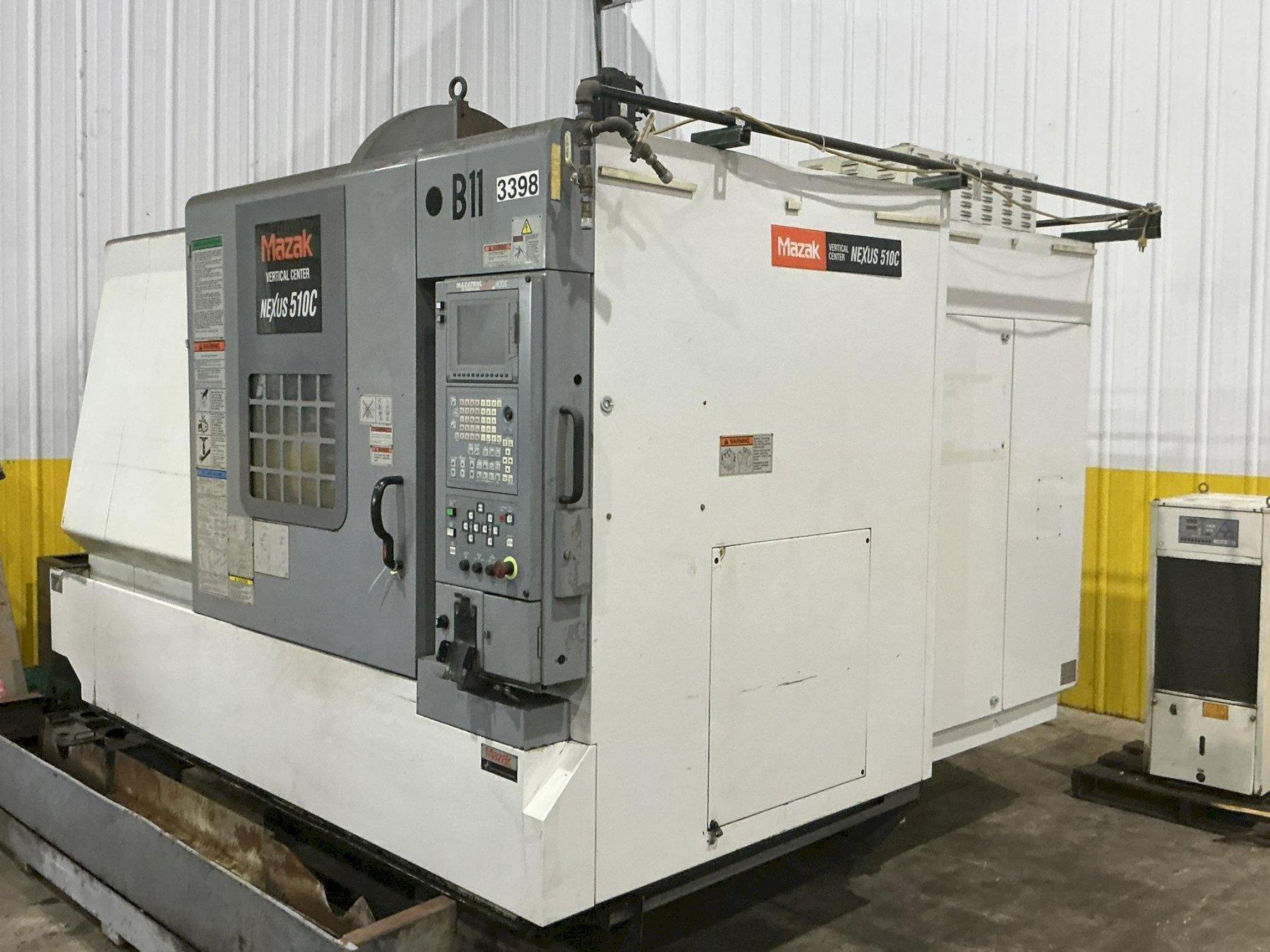

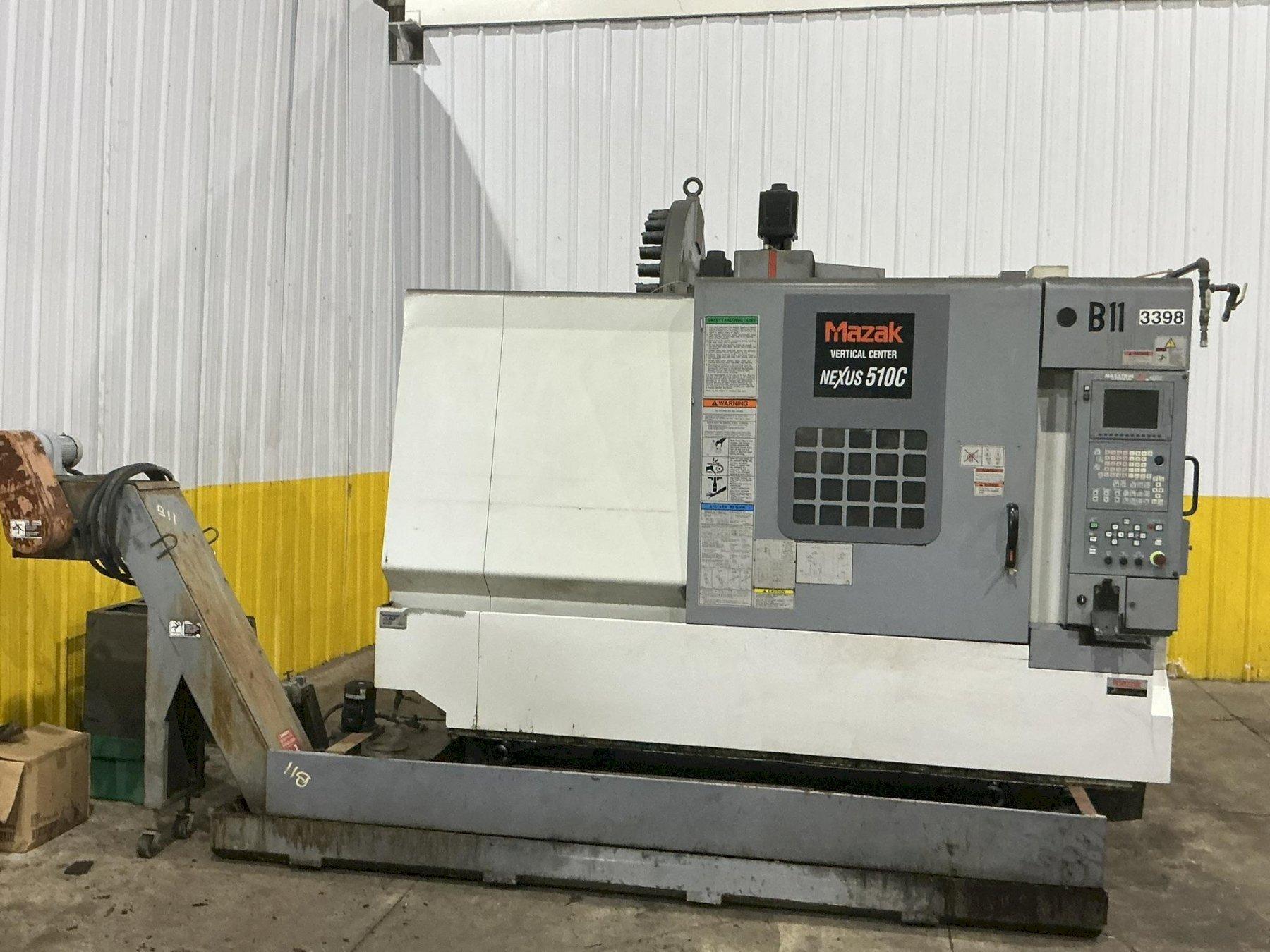

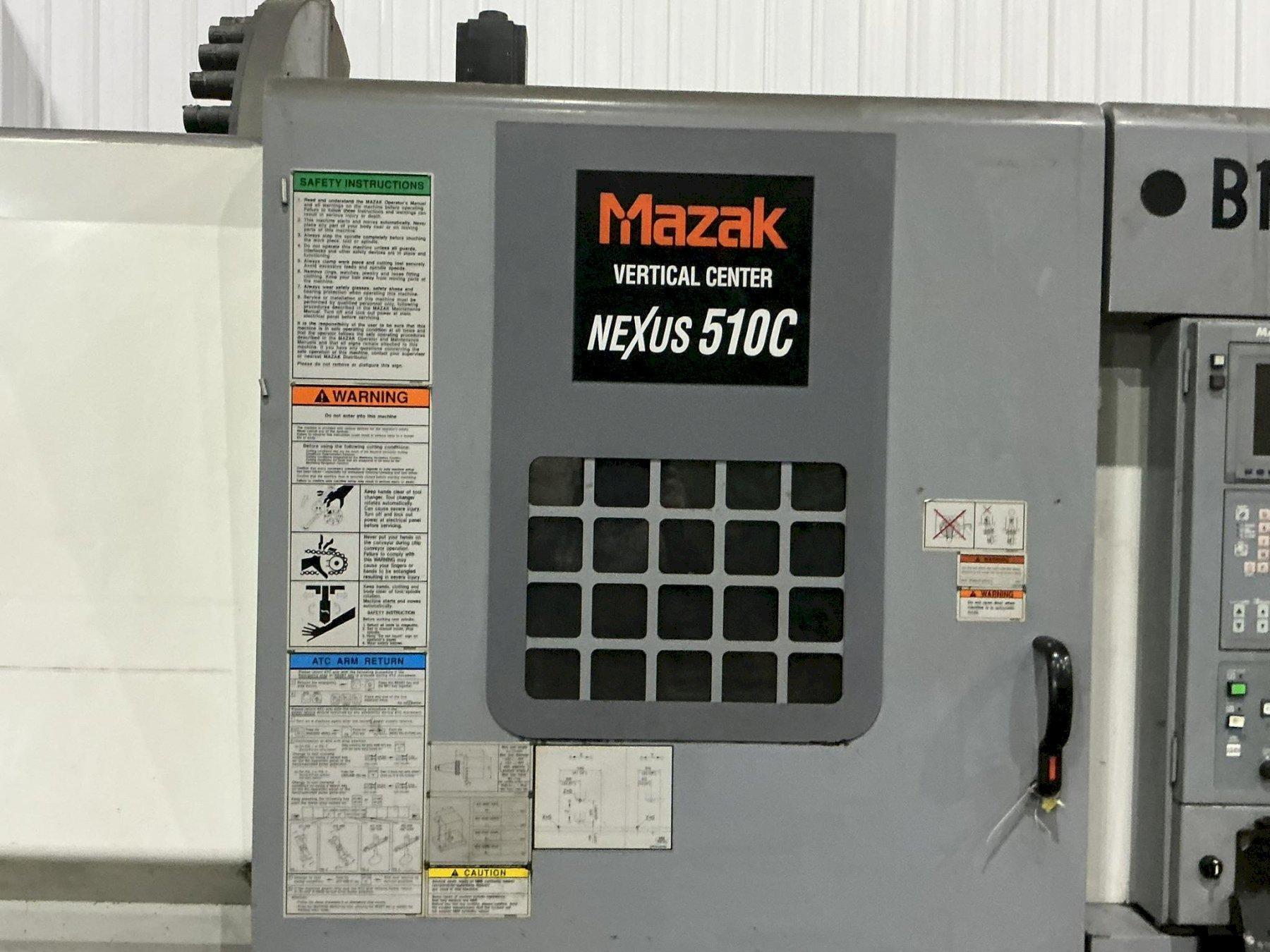

2003 MAZAK NEXUS 510C CNC VERTICAL MACHINING CENTER: STOCK #13486

Stock #: 13486

Equipped With

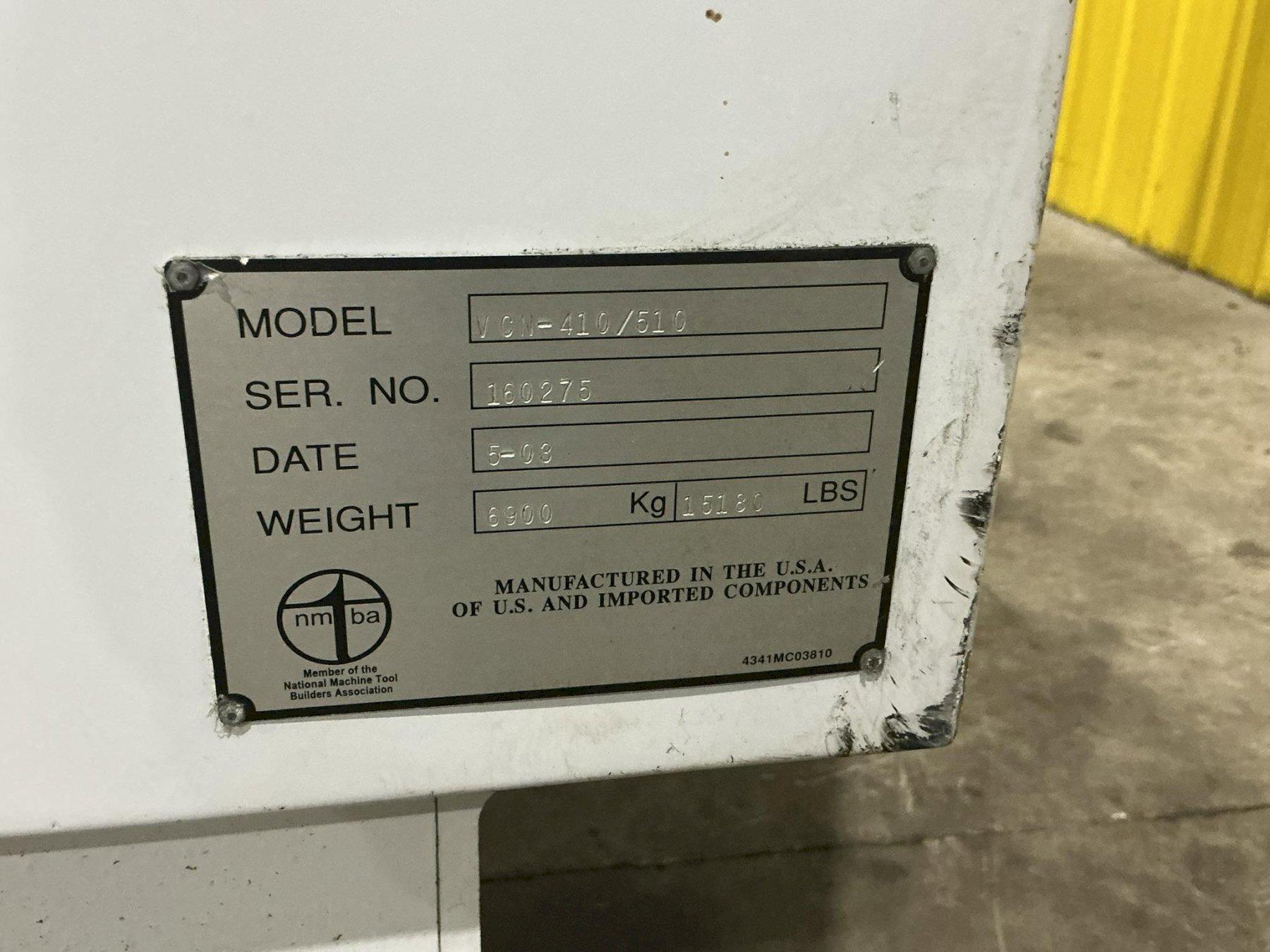

SERIAL ....................................... 160275
MODEL ........................................ VCN-410/510
YEAR ......................................... 2003

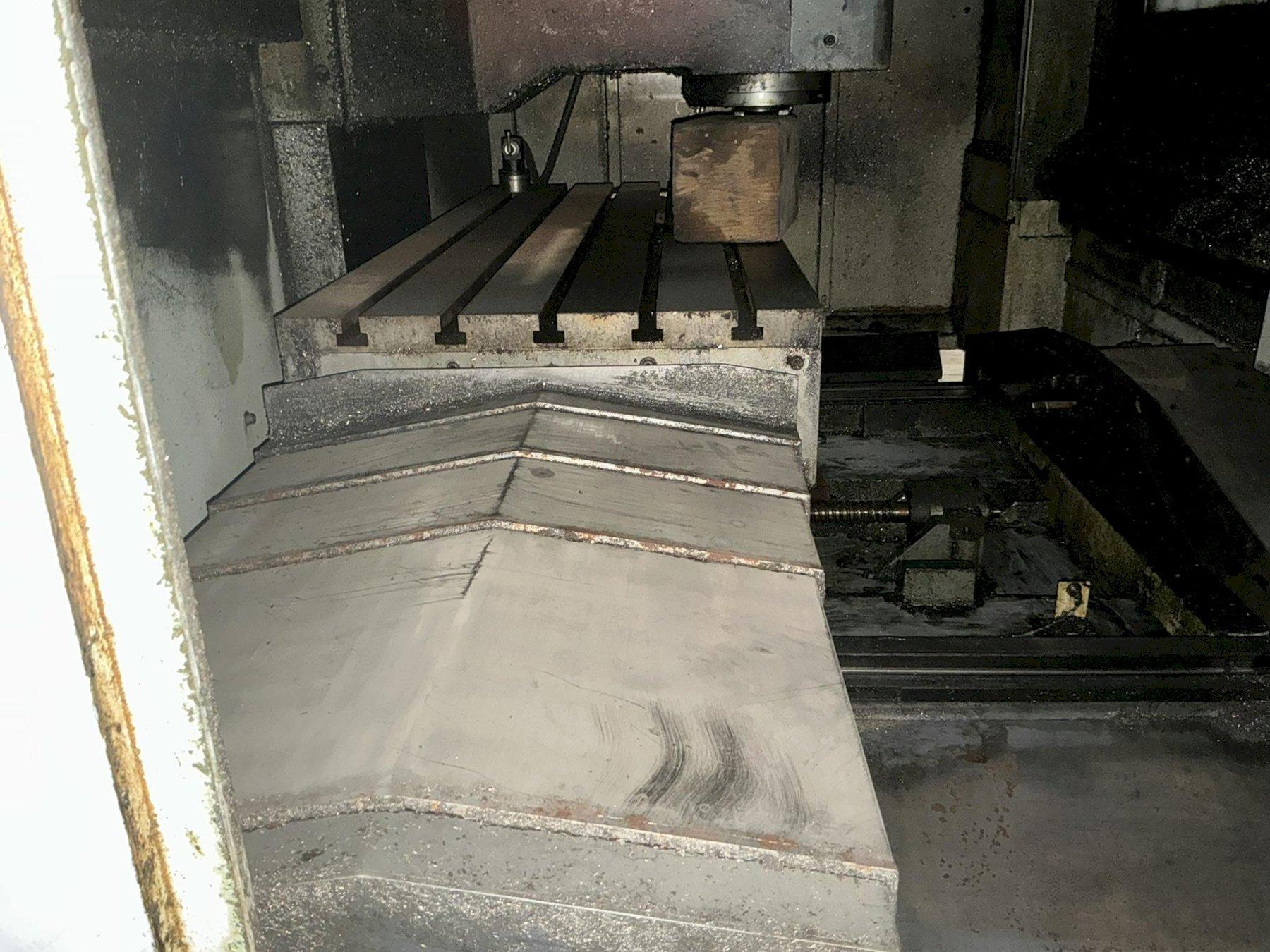

TABLE SIZE ................................... 51.18” x 21.65”
NUMBER OF T-SLOTS ............................ (3)
MAX TABLE LOAD CAPACITY....................... 2,640 (EVENLY DISTRIBUTED)

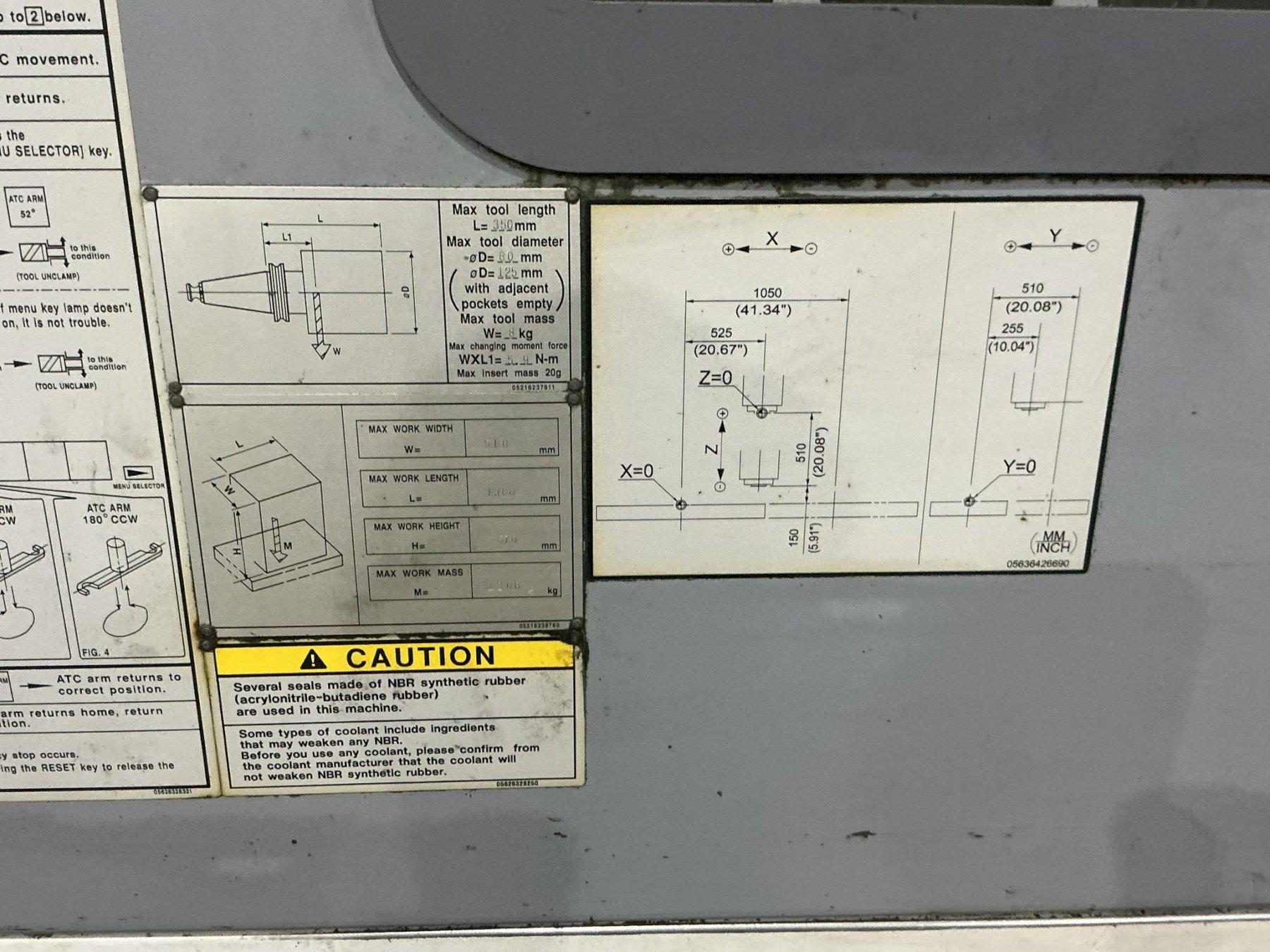

X AXIS TRAVEL ................................ 41.34”
Y AXIS TRAVEL ................................ 20.08”
Z AXIS TRAVEL ................................ 20.08’
DISTANCE (TABLE TOP TO SPINDLE NOSE) ......... 5.90"-25.98”
DISTANCE (COLUMN SURFACE TO SPINDLE CENTER) .. 22.67”
MAX SPINDLE SPEED ............................ 12,000 R.P.M.
SPINDLE TAPER ................................ Cat 40

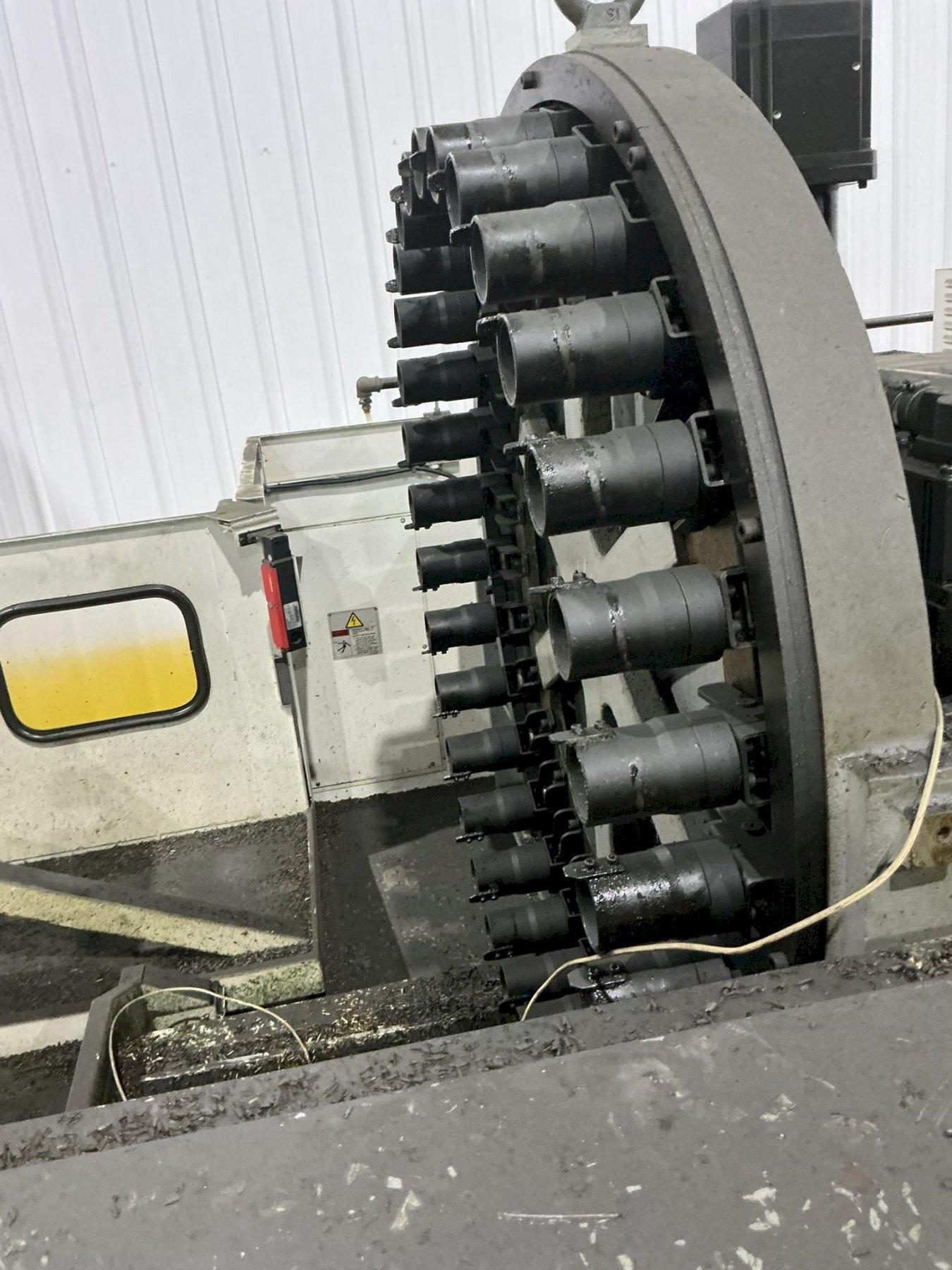

SIDE MOUNT TOOL CHANGER CPACITY .............. 30 TOOLS
MAX TOOL DIAMETER ............................ 3.15”
MAX TOOL LENGTH .............................. 13.78”
MAX TOOL WEIGHT .............................. 17.64 LBS

EQUIPPED WITH:

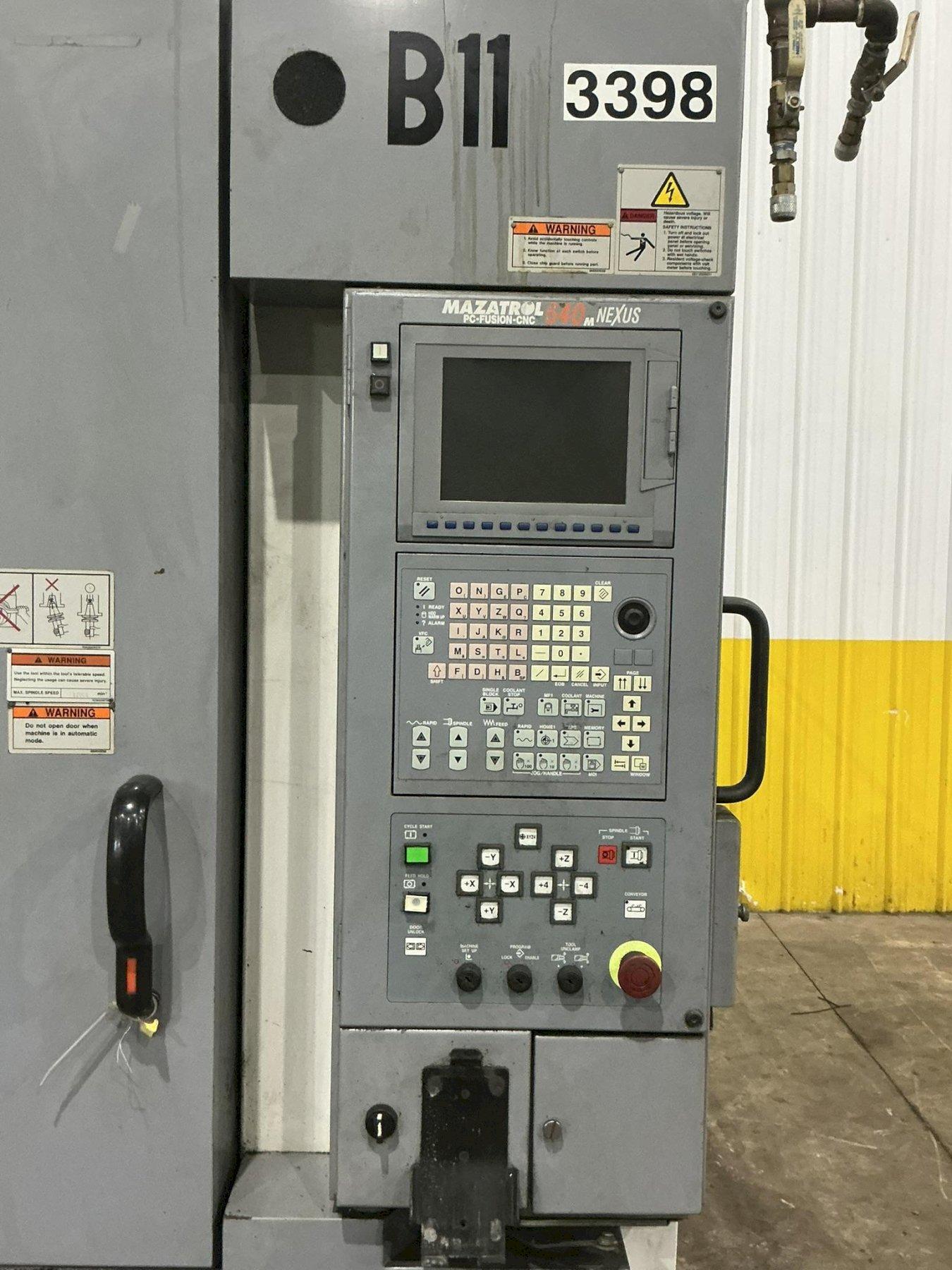

MAXATROL Fusion-CNC 640M NEXUS
“MPG” MANUAL PULSE GENERATOR
REINSHAW TOOL LENGTH / DIAMETER MEASUREMENT
WORK LIGHT

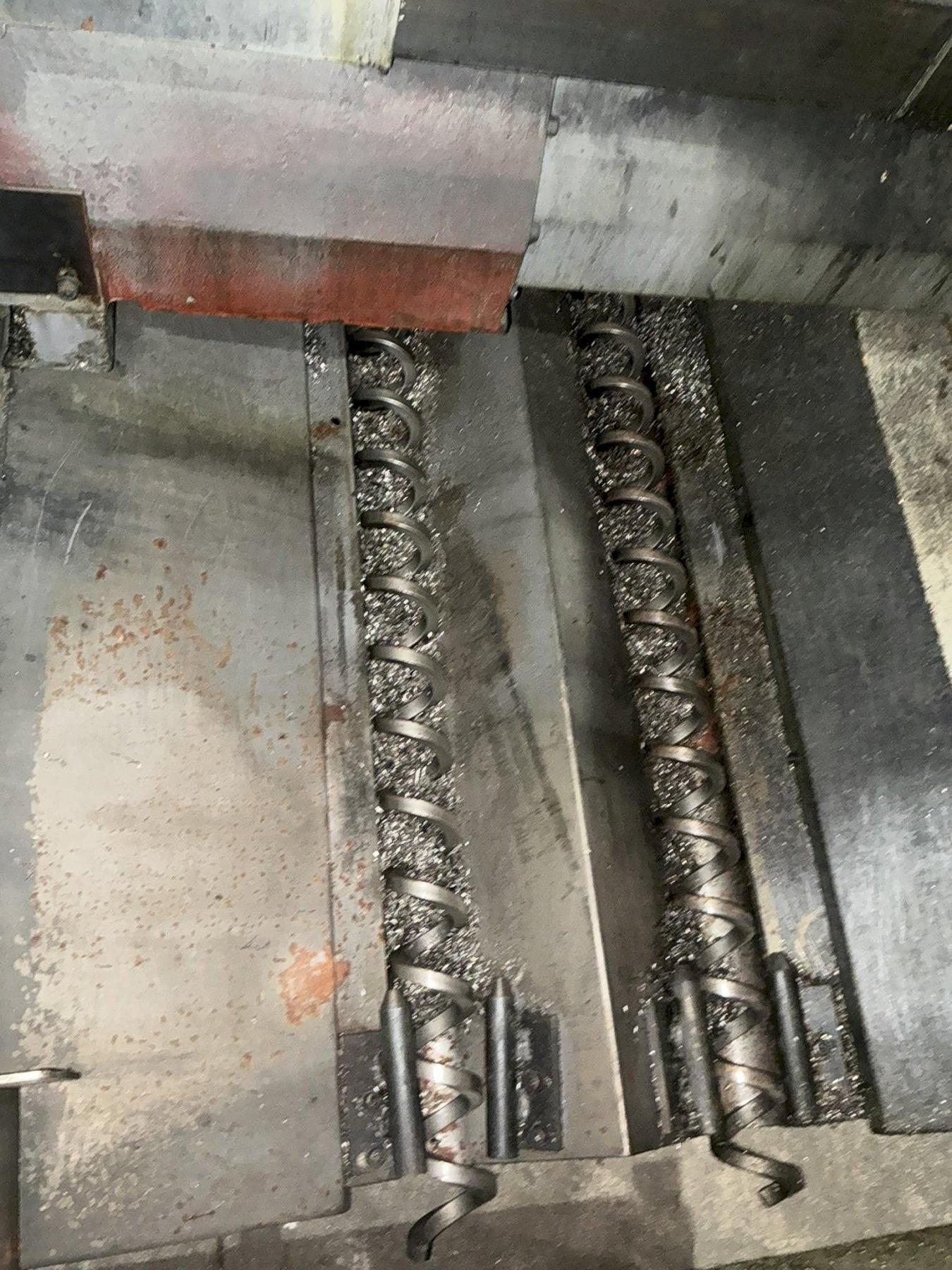

BELT TYPE CHIP CONVEYOR

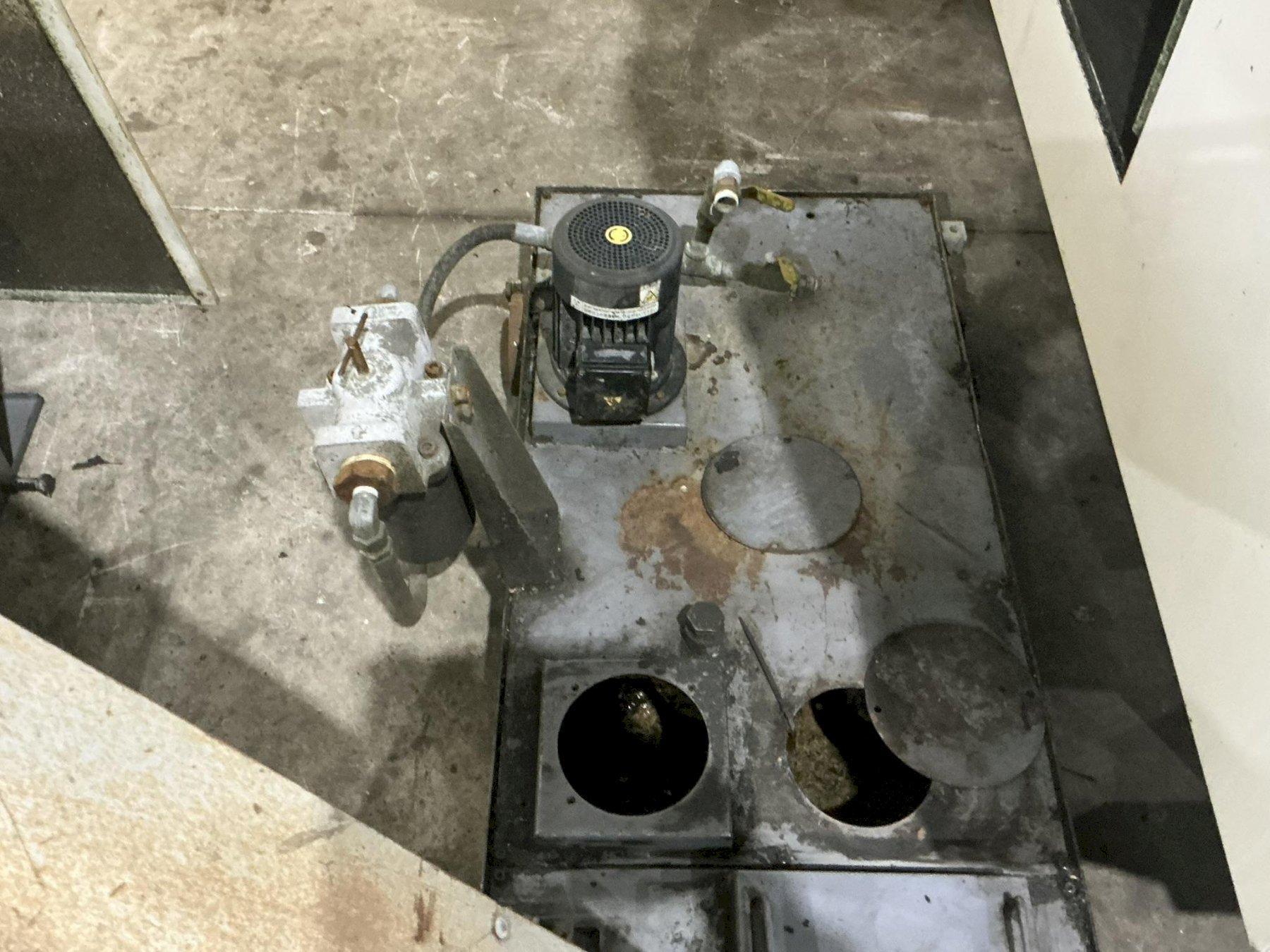

COOLANT TANK 66.04 GALLONS
25 HP MAIN SPINDLE MOTOR
LEVELING PADS







Buy Machines

2003 MAZAK NEXUS 510C CNC VERTICAL MACHINING CENTER: STOCK #13486

Stock # 13486

Share Machine
Print Details

Machine Specifications

SERIAL ....................................... 160275
MODEL ........................................ VCN-410/510
YEAR ......................................... 2003
TABLE SIZE ................................... 51.18” x 21.65”
NUMBER OF T-SLOTS ............................ (3)
MAX TABLE LOAD CAPACITY....................... 2,640 (EVENLY DISTRIBUTED)
X AXIS TRAVEL ................................ 41.34”
Y AXIS TRAVEL ................................ 20.08”
Z AXIS TRAVEL ................................ 20.08’
DISTANCE (TABLE TOP TO SPINDLE NOSE) ......... 5.90"-25.98”
DISTANCE (COLUMN SURFACE TO SPINDLE CENTER) .. 22.67”
MAX SPINDLE SPEED ............................ 12,000 R.P.M.
SPINDLE TAPER ................................ Cat 40
SIDE MOUNT TOOL CHANGER CPACITY .............. 30 TOOLS
MAX TOOL DIAMETER ............................ 3.15”
MAX TOOL LENGTH .............................. 13.78”
MAX TOOL WEIGHT .............................. 17.64 LBS

EQUIPPED WITH:
MAXATROL Fusion-CNC 640M NEXUS
“MPG” MANUAL PULSE GENERATOR
REINSHAW TOOL LENGTH / DIAMETER MEASUREMENT
WORK LIGHT
BELT TYPE CHIP CONVEYOR
COOLANT TANK 66.04 GALLONS
25 HP MAIN SPINDLE MOTOR
LEVELING PADS







Specifications

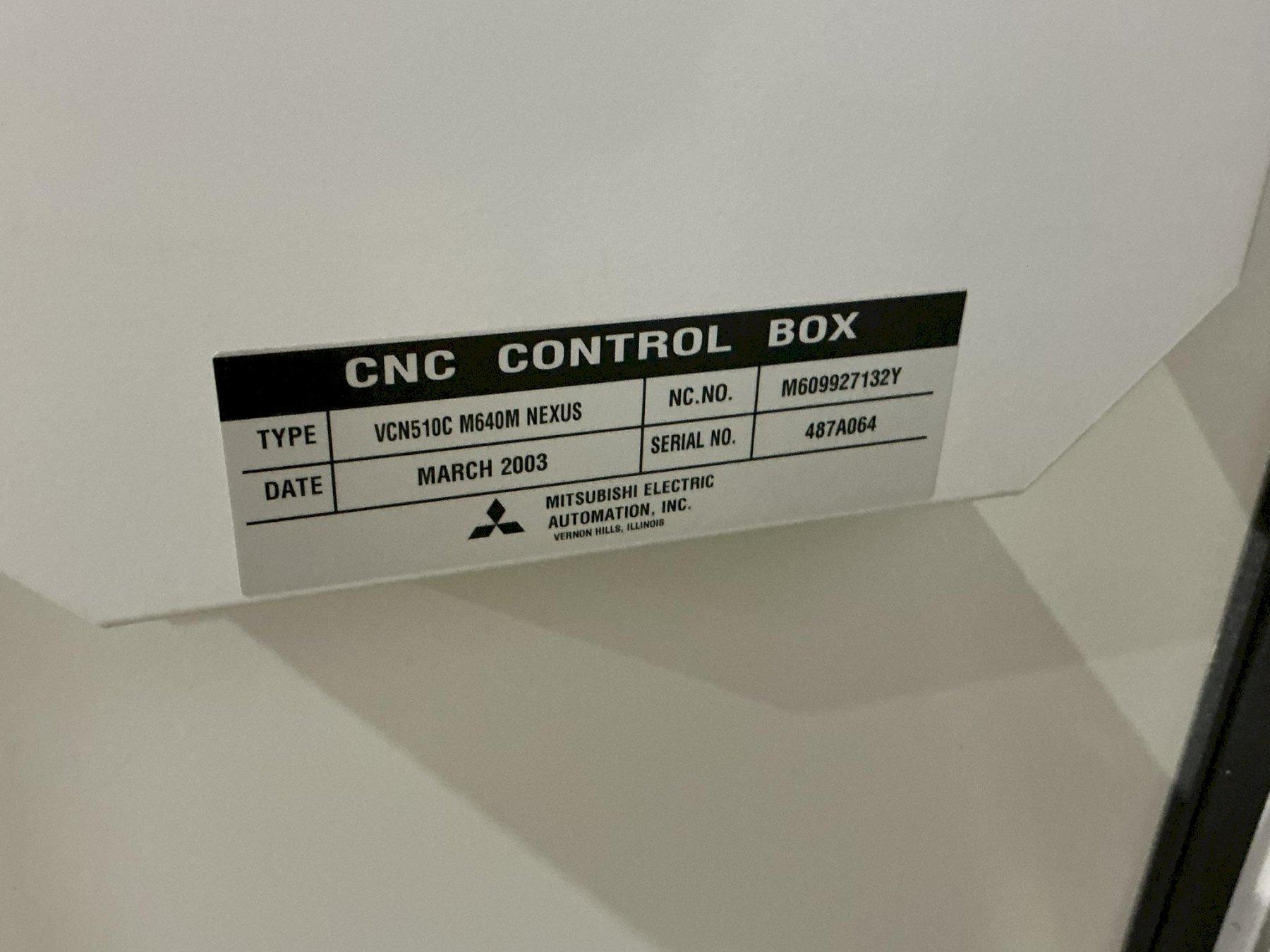

Type of CNC Control Mazatrol PC-Fusion-CNC 640M NEXUS
Dimensions 118” L x 112” W x 114” H (less conveyor)
Weight 15500 pounds
