SERIAL ................. 10204115

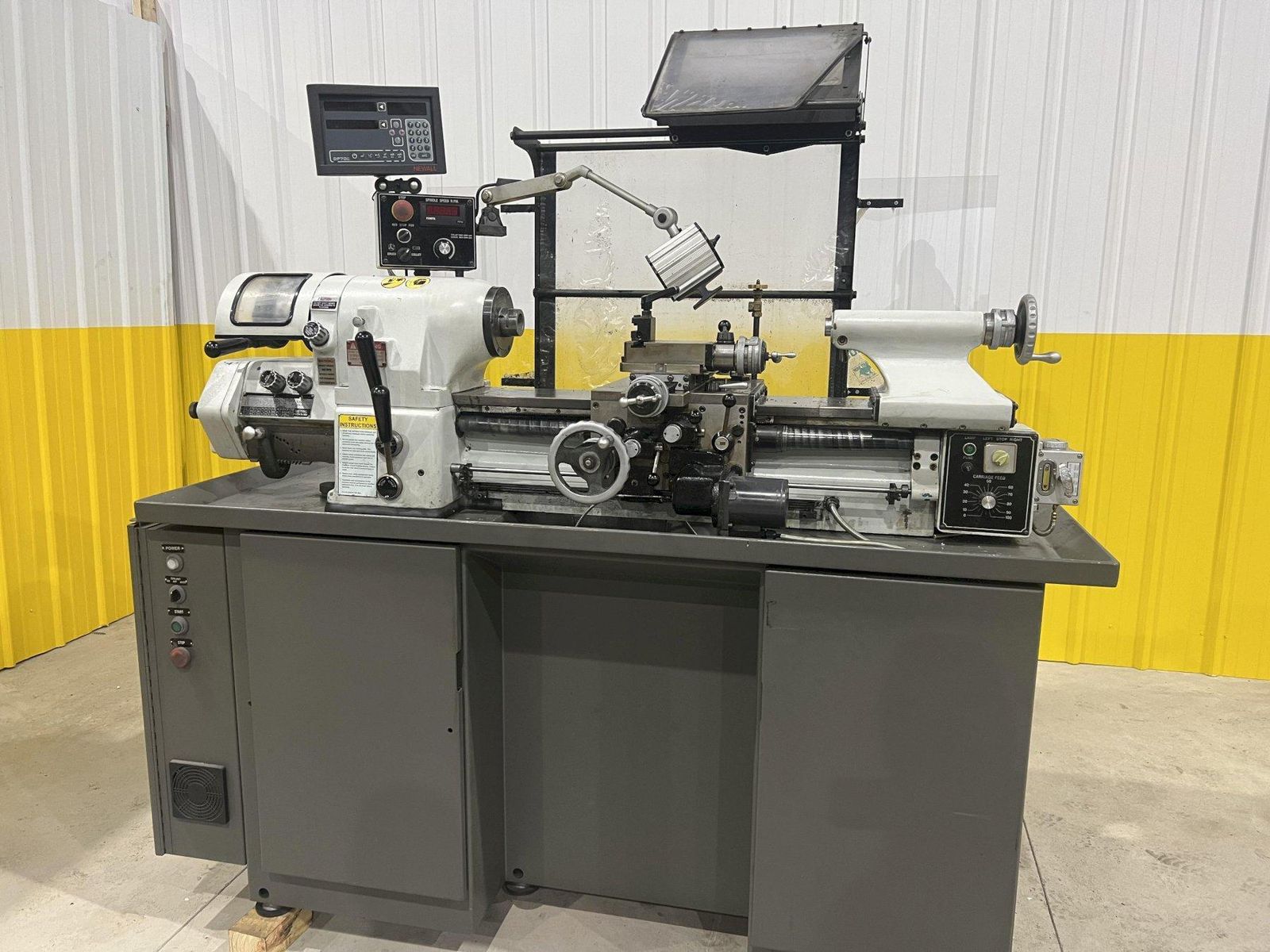

MODEL .................. TL-618EVS
CAPACITY ............... 6" X 18"
SWING .................. 6"
CENTERS ................ 18"
SWING OVER CROSS ....... 9"
SPINDLE HOLE ........... 1.25"
SPINDLE SPEEDS ......... O TO 4,000 RPM, VARIABLE
CROSS SLIDE TRAVEL ..... 6"
COMPOUND SLIDE TRAVEL .. 3"
POWER CARRIAGE FEED .... 5/16" TO 7" / MINUTE
POWER CROSS SLDE FEED .. 3/16" TO 4" / MINUTE
INCH THREADS ........... (36) 11 TO 118 TPI
METRIC THREADS ......... (36) .275 TO 2.7 MM
SPINDLE NOSE ........... 5C TAPER
TAILSTOCK QUILL ........ 1-3/8" DIAMETER
TAILSTOCK TAPER ........ #2MT
TAILSTOCK TRAVEL ....... 3-3/4"
DIGIAL READ OUT ........ NEWALL 2 AXIS
SPINDLE MOTOR .......... 3 HP
| Specifications | ||
|---|---|---|
| Dimensions | 73" x 30" x 67" | |
| Weight | 2530 pounds | |
Brand
GMC
Type
Lathes, Toolroom
Stock No.
20291
 |
419-269-2000 |
Stock #: 20291
SERIAL ................. 10204115
MODEL .................. TL-618EVS
CAPACITY ............... 6" X 18"
SWING .................. 6"
CENTERS ................ 18"
SWING OVER CROSS ....... 9"
SPINDLE HOLE ........... 1.25"
SPINDLE SPEEDS ......... O TO 4,000 RPM, VARIABLE
CROSS SLIDE TRAVEL ..... 6"
COMPOUND SLIDE TRAVEL .. 3"
POWER CARRIAGE FEED .... 5/16" TO 7" / MINUTE
POWER CROSS SLDE FEED .. 3/16" TO 4" / MINUTE
INCH THREADS ........... (36) 11 TO 118 TPI
METRIC THREADS ......... (36) .275 TO 2.7 MM
SPINDLE NOSE ........... 5C TAPER
TAILSTOCK QUILL ........ 1-3/8" DIAMETER
TAILSTOCK TAPER ........ #2MT
TAILSTOCK TRAVEL ....... 3-3/4"
DIGIAL READ OUT ........ NEWALL 2 AXIS
SPINDLE MOTOR .......... 3 HP
