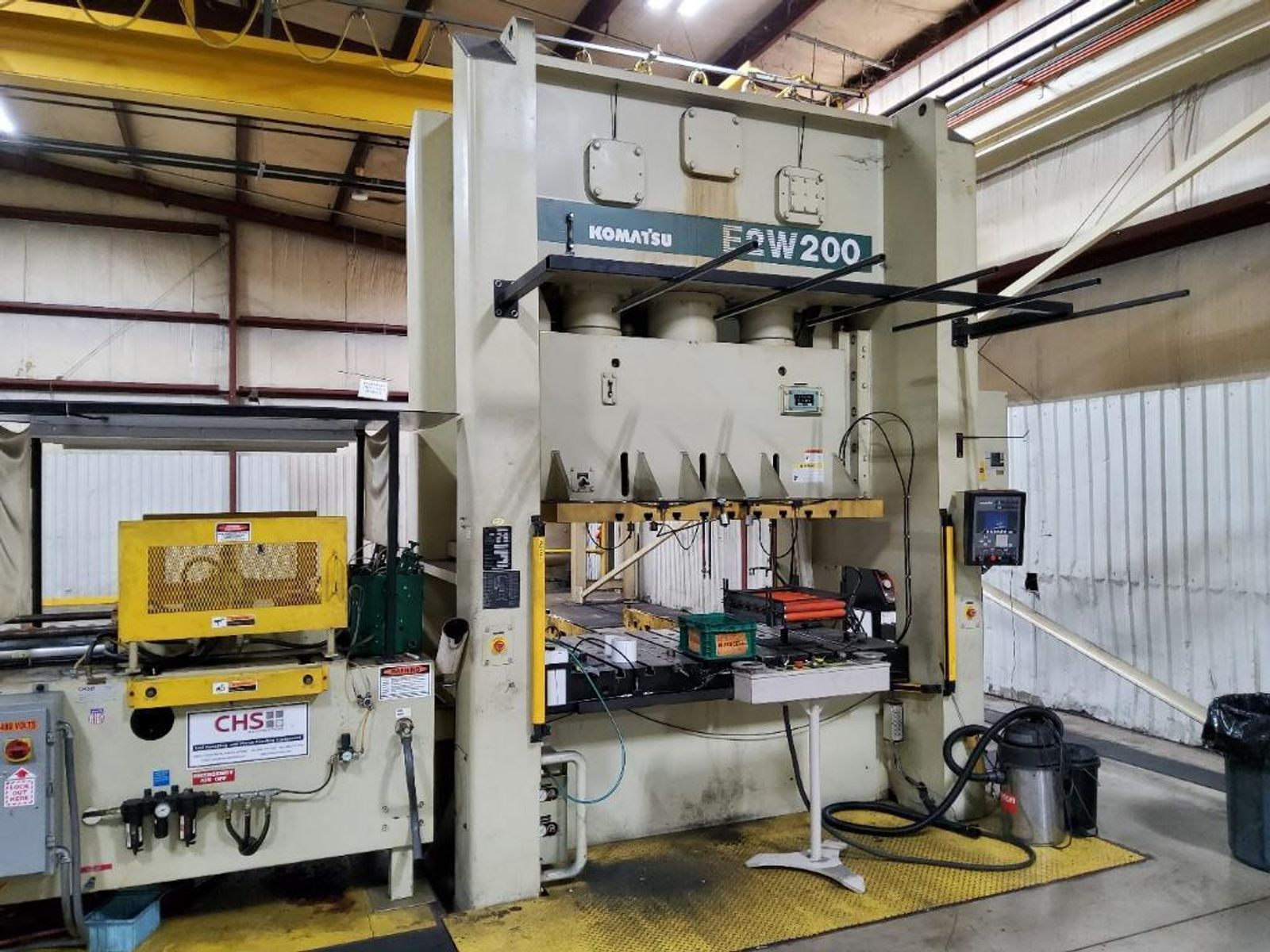

KOMATSU PRESS
SERIAL 10170
NEW 10/2007
MODEL E2W 200
CAPACITY 220 TON
STROKE 9.84" / 250 MM
ADJUSTMENT 4.72" / 120 MM
SHUT HEIGHT 19.68" / 500 MM
SPEED 30 TO 50 SPM
SLIDE 72.83" X 42.99" / 1850 X 1092 MM
BED 84.64" X 42.99" / 2150 X 1092 MM
BOLSTER THICKNESS 7.09" / 180 MM
CWP / CHS FEED LINE
COIL REEL
STRAIGHTENER 24" X .018" TO .078"
THREADING TABLE
AIR GRIP FEEDER
Brand
KOMATSU
Type
Presses, Mechanical
Stock No.
20632
 |
