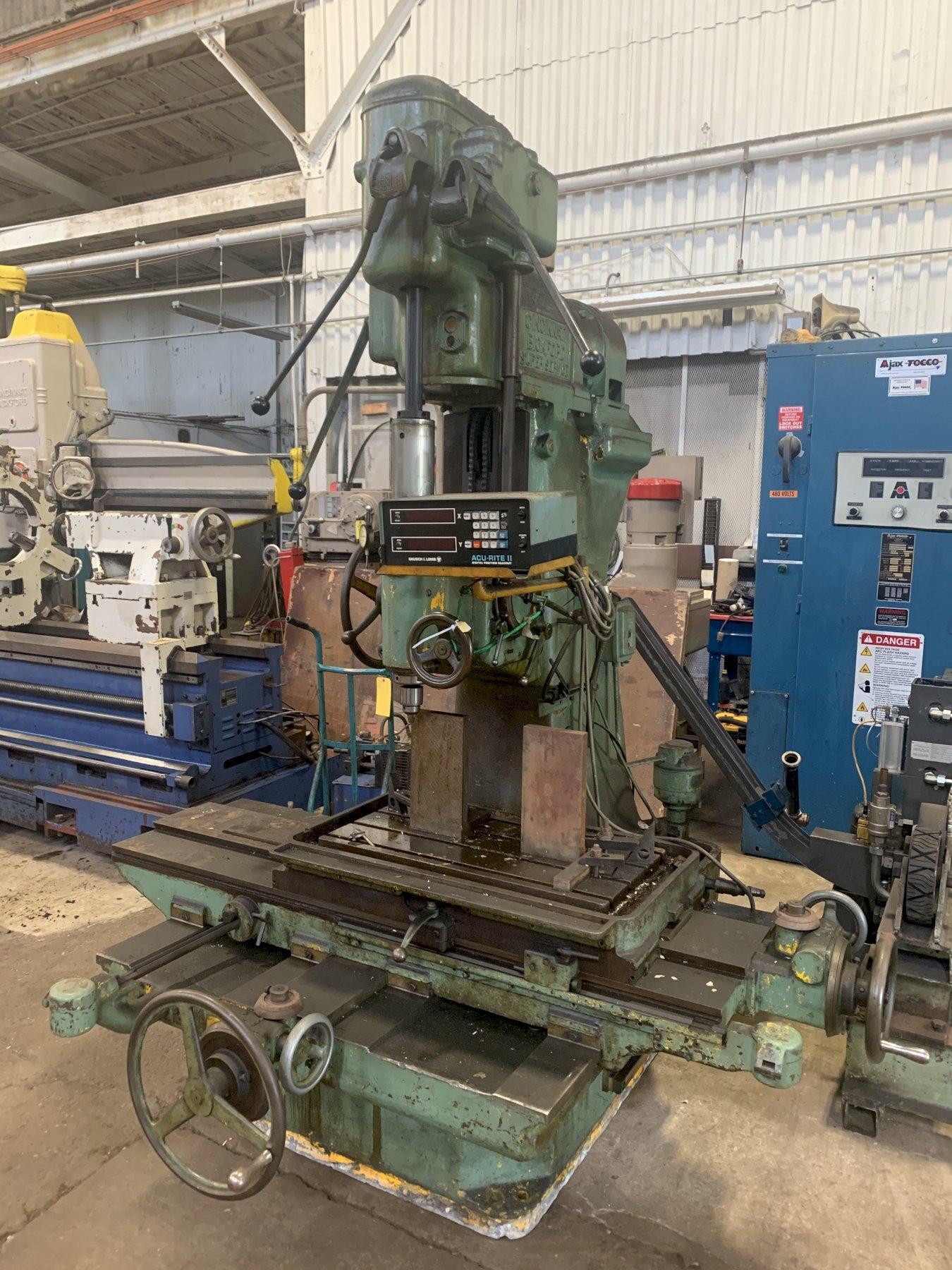

28" CINCINNATI BICKFORD SUPER SERVICE LAYOUT TABLE DRILL PRESS: STOCK #11915

Stock #: 11915

Equipped With

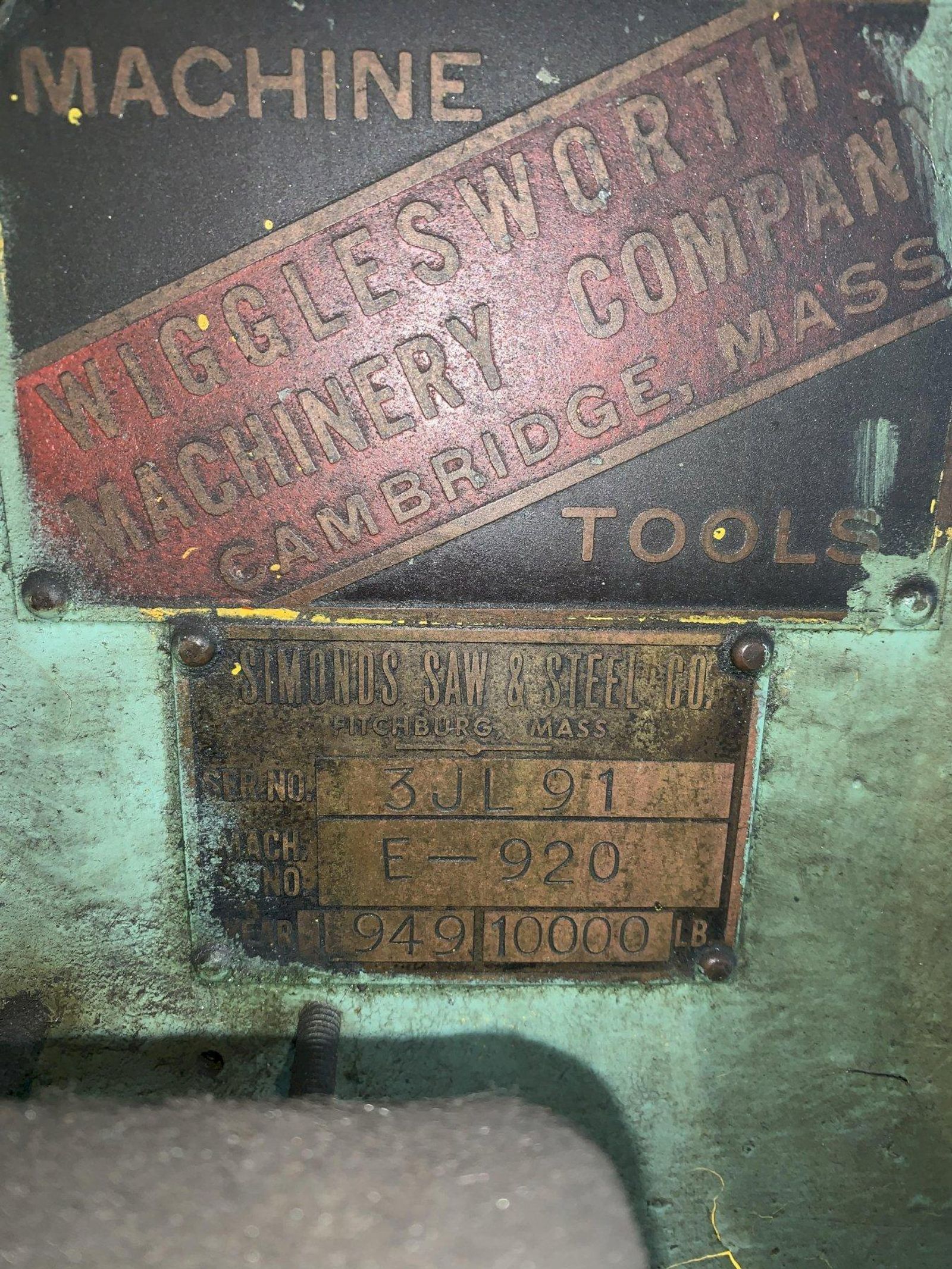

SERIAL ................................. 3JL91
MODEL .................................. 28" BOX COLUMN
DEPTH OF THROAT ........................ 14-1/2"
COMPOUND TABLE AREA .................... 18" X 28"
LONGITUDINAL TABLE TRAVEL .............. 20"
CROSS TABLE TRAVEL ..................... 11-1/2"
SPINDLE DIAMETER ....................... 4"
SPINDLE BORE ........................... No.4 MT
SPINDLE POWER FEED STROKE .............. 10-1/2"
SPINDLE HAND FEED STROKE ............... 11-1/8"
SPINDLE SPEEDS ......................... (12) 90 TO 1500 RPM
SPINDLE FEEDS .......................... (9) .005 TO .043 IPR
MOTOR .................................. 5 HORSEPOWER



Buy Machines

28" CINCINNATI BICKFORD SUPER SERVICE LAYOUT TABLE DRILL PRESS: STOCK #11915

Stock # 11915

Share Machine
Print Details

Machine Specifications

SERIAL ................................. 3JL91
MODEL .................................. 28" BOX COLUMN
DEPTH OF THROAT ........................ 14-1/2"
COMPOUND TABLE AREA .................... 18" X 28"
LONGITUDINAL TABLE TRAVEL .............. 20"
CROSS TABLE TRAVEL ..................... 11-1/2"
SPINDLE DIAMETER ....................... 4"
SPINDLE BORE ........................... No.4 MT
SPINDLE POWER FEED STROKE .............. 10-1/2"
SPINDLE HAND FEED STROKE ............... 11-1/8"
SPINDLE SPEEDS ......................... (12) 90 TO 1500 RPM
SPINDLE FEEDS .......................... (9) .005 TO .043 IPR
MOTOR .................................. 5 HORSEPOWER

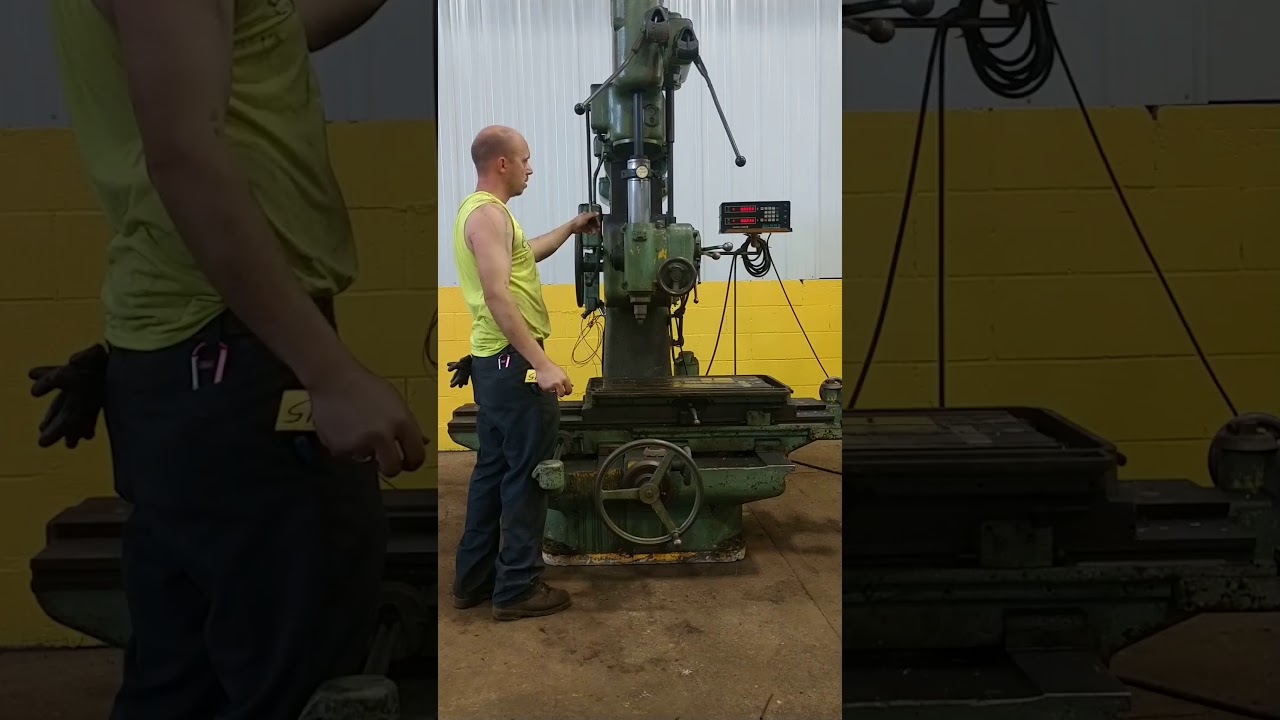

Videos
Specifications
Weight 8300 pounds
