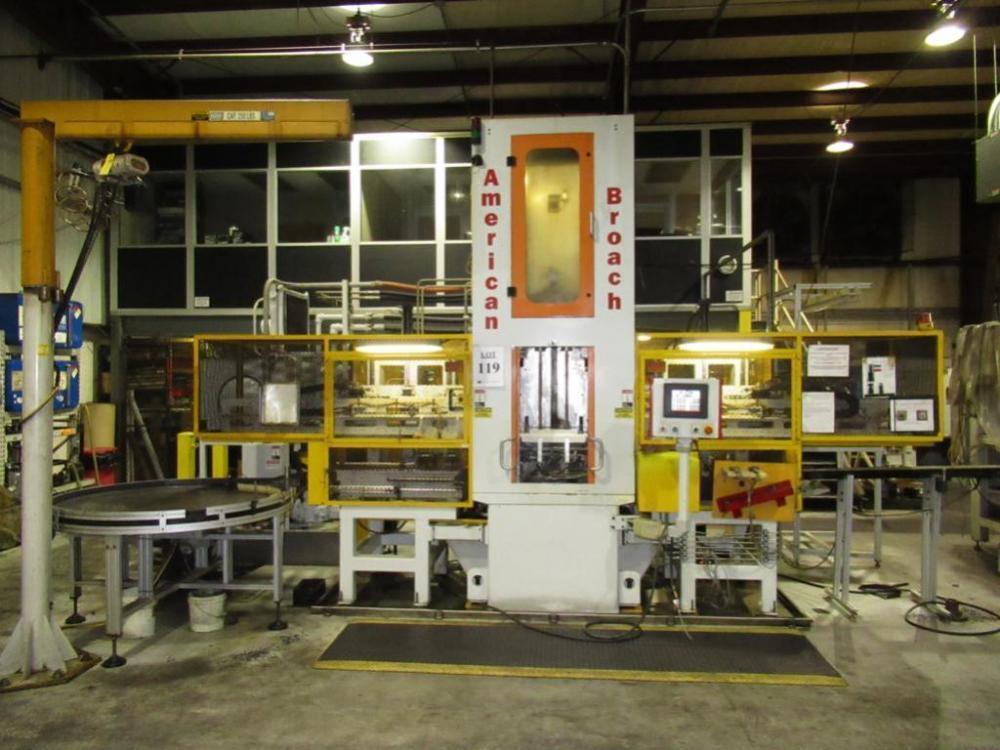

15 TON X 48" AMERICAN BROACH BROACHING MACHINE: STOCK #11879

Stock #: 11879

Equipped With

SERIAL NO. 104918
YEAR NEW: 2011
MODEL: 15X48VTU

Tonnage: 15
Stroke: 48"
Hydraulic Reservoir Capacity: 200 Gallons
Coolant System Capacity: 165 Gallons
Max System Operating Temperature: 140 Degrees F
Max. System Pressure: 1,500 PSI/ 103.5 Bar
Pump #1 Operating Pressure: 750 PSI/ 52 Bar @ 42 GPM/ 159 IPM
Pump #2 Operating Pressure: 700 PSI/ 48 Bar @ 21 GPM/80 IPM
Pump #3 Operating Pressure: 900 PSI/ 62 Bar @ 18 GPM/ 68 IPM
Pump #4 Operating Pressure: 100 PSI/ 7 Bar @ 21 GPM/ 80 IPM
Voltage: 480V Three Phase
Full Load Amps: 70

Equipped with

- Allen Bradley PLC Control
- Parts Loading Conveyor
- 2 Parts Loading Robots
- 2 Pneumatic Part Clamp Fixtures
- Parts Unload Conveyor
- Oil Coolers
- Coolant System
- Box Way Engagement
- Multi Station Lifting Tables
- Cast Iron Construction
- Chip Conveyor
- Extra Broaches
