Machine Information

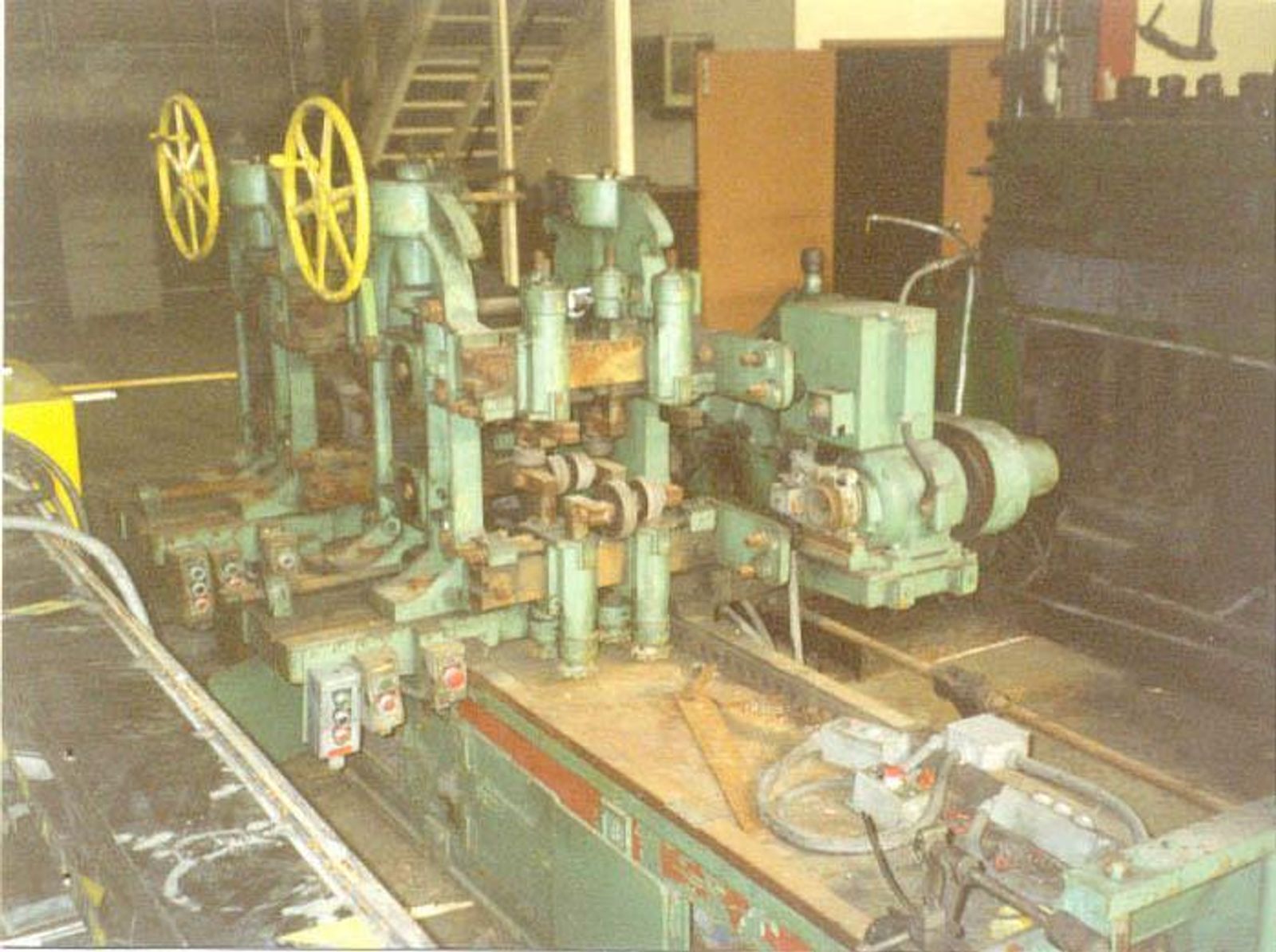

9" SUTTON 2-STAND STRAIGHTENING/CONTOUR CORRECTING MACHINE: STOCK#15000

Stock #: 15000

Equipped With

SERIAL .................... #1058
JOB ....................... #M-14415
MATERIAL .................. EXTRUDED ALUMINUM SHAPES THAT CAN BE

ENCOMPASSED BY A 9" DIA. CIRCLE.

MATERIAL DIRECTION ........ LEFT TO RIGHT
NUMBER OF STANDS .......... 2
SHAFT DIAMETER ............ 3"
DISTANCE BETWEEN STANDS ... 18"
VERTICAL ADJUSTMENT ....... 5"
THRU-PUT SPEEDS ........... 44 TO 275 FPM
BASE LENGTH ............... 11 6"
DOUBLE SIDE PASS ROLLS
(2) 3/1.5 HORSEPOWER 2-SPEED DRIVE MOTORS

Buy Machines

9" SUTTON 2-STAND STRAIGHTENING/CONTOUR CORRECTING MACHINE: STOCK#15000

Stock # 15000

Share Machine
Print Details

Machine Specifications

SERIAL .................... #1058
JOB ....................... #M-14415
MATERIAL .................. EXTRUDED ALUMINUM SHAPES THAT CAN BE

ENCOMPASSED BY A 9" DIA. CIRCLE.

MATERIAL DIRECTION ........ LEFT TO RIGHT
NUMBER OF STANDS .......... 2
SHAFT DIAMETER ............ 3"
DISTANCE BETWEEN STANDS ... 18"
VERTICAL ADJUSTMENT ....... 5"
THRU-PUT SPEEDS ........... 44 TO 275 FPM
BASE LENGTH ............... 11 6"
DOUBLE SIDE PASS ROLLS
(2) 3/1.5 HORSEPOWER 2-SPEED DRIVE MOTORS
