Machine Information

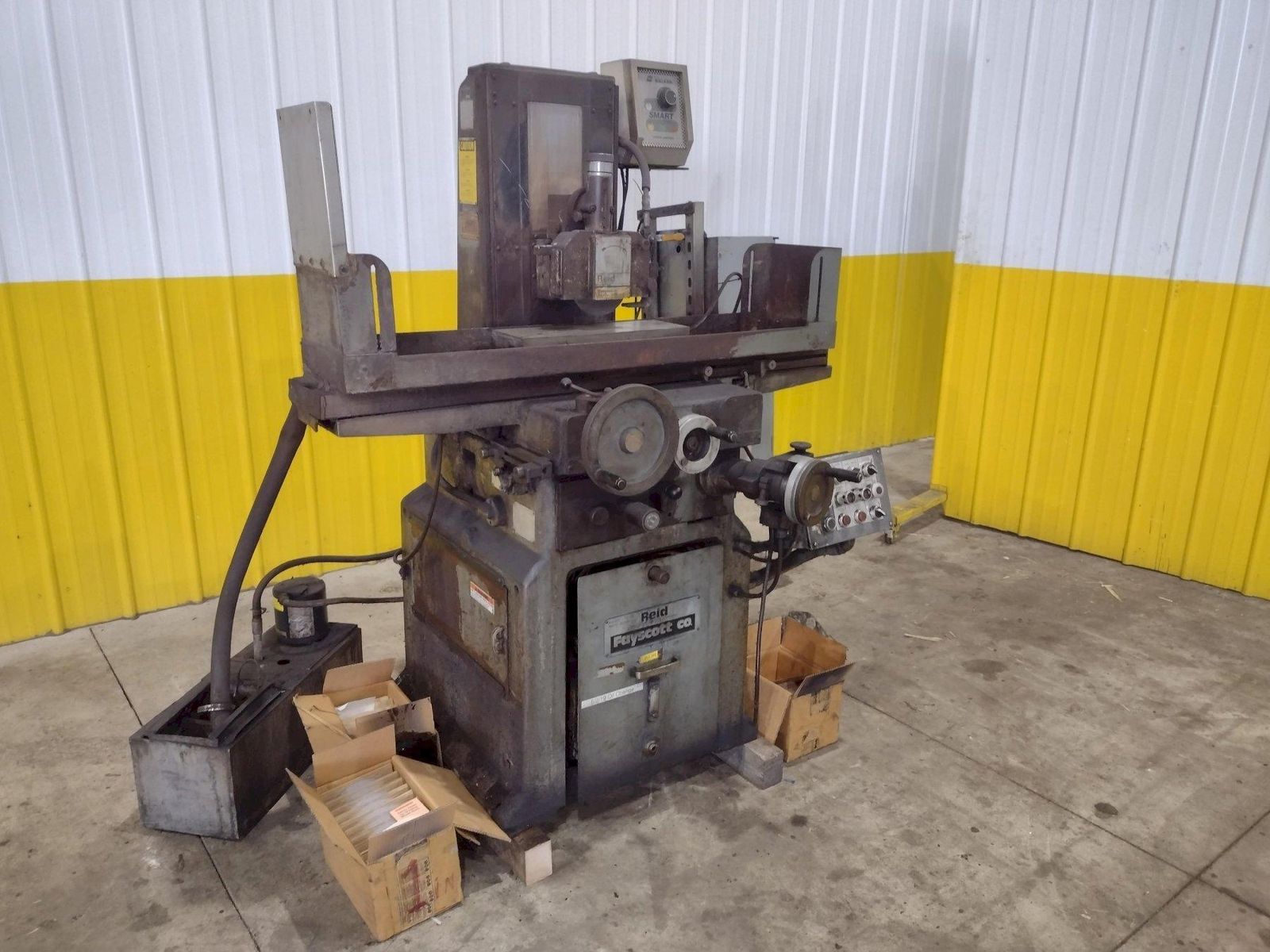

6" X 18" REID MODEL #618 HYD-DF 3 AXIS AUTOMATIC HYRAULIC HORIZONTAL SURFACE GRINDER: STOCK 22663

Stock #: 22663

Equipped With

SERIAL 20591
MODEL 618 HYD-DF
Worktable size ............................ 6" x 18"
Weight of work w/7" wheel .................. 15"
Wheel size ................................. 7" x 1.25" x 1/2"
Table travel ............................... 22"
Cross travel ............................... 7.5"
Table feed: Hydraulic ...................... 10' to 130' FPM
  Manual, One Rev. Of Handwheel  ........... 2.25"
Crossfeed Travel, Hydraulic ...............  0.005" to .250"
  Manual, Pne Rev. Of Handwheel ............ 0.100"
Auto Incremental Downfeed Increments ....... 0.0001" to .005"

Dimensions ......................... 76" x 53" x 68"H
Weight ............................. 2500 Lbs.

Automatic Power Incremental Downfeed of Grinding Wheel,
 with a Selector Switch, for Surface & Plunge
Hydraulic Longitudinal & Cross Feeds
Bijur Automatic Lubrication System
Self-Contained Hydraulic System (10 Gals. Cap.)
"Pope" Super-Precision Direct Drive Spindle with 1 H.P./3/60/230-460 Volt

Over-The-Wheel Dresser with Micrometer Adjustment
6" X 18" Fine-Division Cross Pole Electro-Magnetic Chuck
Magnetool Variable Hold Neutrofier Control
Coolant System with Tank & Pump
