Overview

Serial: 850953-4
Model: KGS-300AHD
Year New: 1985
Table Working Surface: 12" x 24-4/5"

Max Chuck Size: 12' x 24'

Max Table Movement (Manual): 12-1/5" x 25-3/5"

Max Table Travel Powered: 11" x 23.5'

Auto Longitudinal Feed Rate: 13-77 FPM Variable

Max Distance Spindle / Wheel to Table: 16" Max Spindle Center to Table

Max Wheel Size : 12" x 1.25" x 5" Hole

Wheel Speed: 1740 RPM

Auto Wheelhead Downfeed Increments: .00025 - .0020"

Hand Wheelhead Downfeed Increments: .01" Per rev / .001" Per Grad

Hydraulic Motor: 2 HP

Spindle Drive: 3 HP

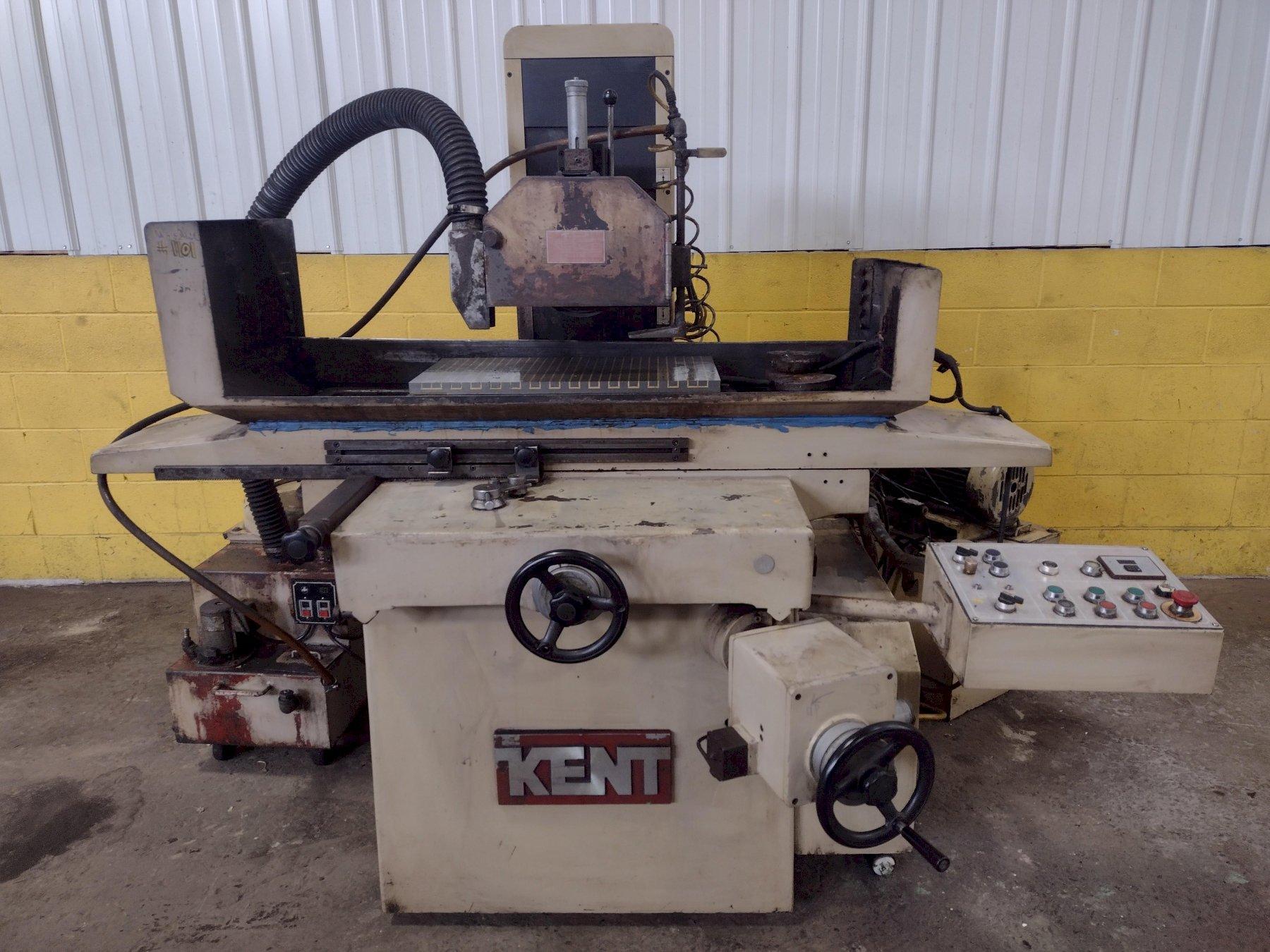

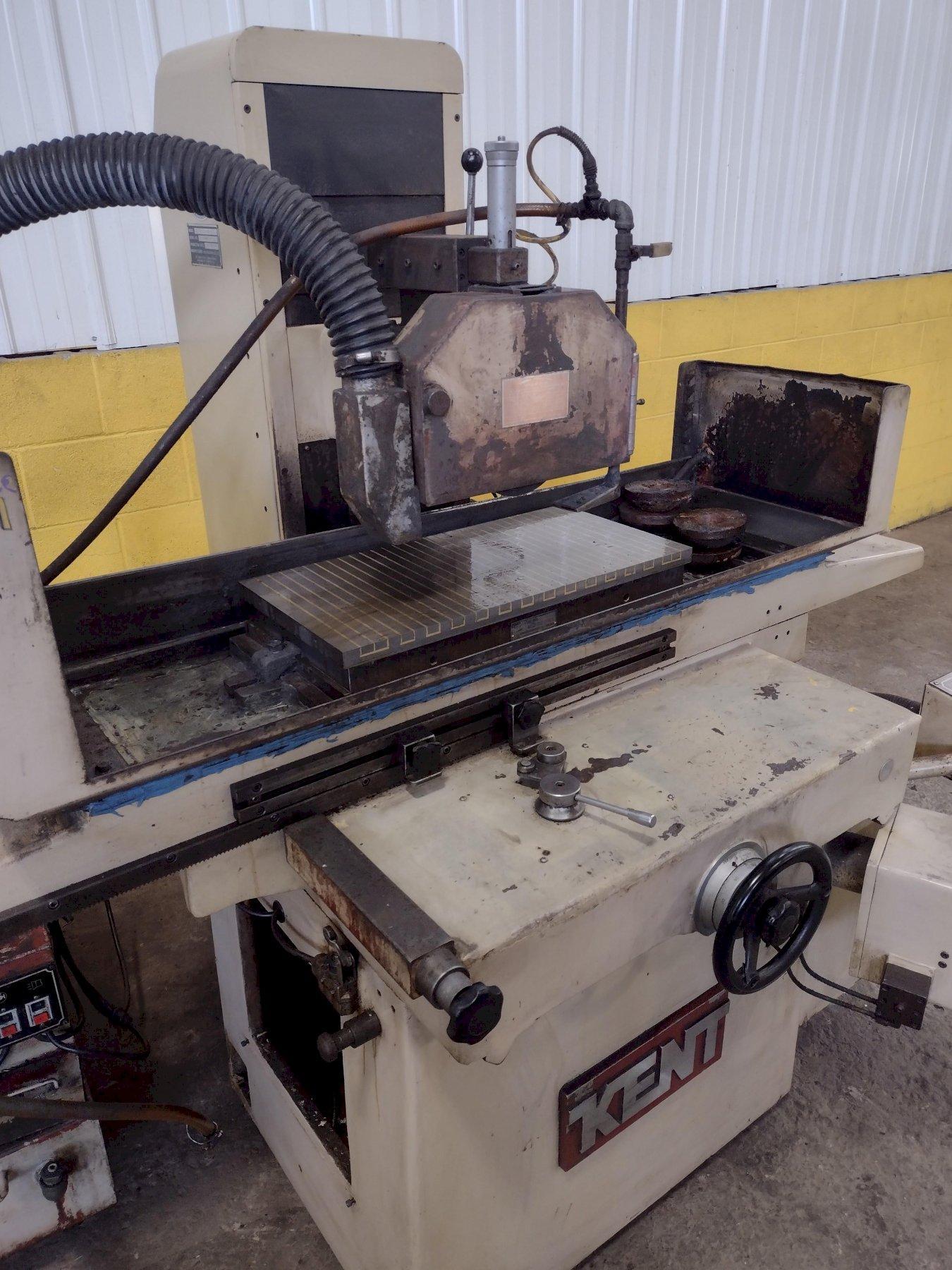

12" x 24" KENT MODEL #KGS-300AHD HORIZONTAL SURFACE GRINDER: STOCK #16380

Brand
Not Specified

Type
Grinders, Surface, Recip.

Stock No.
16380

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

12" x 24" KENT MODEL #KGS-300AHD HORIZONTAL SURFACE GRINDER: STOCK #16380

Stock #: 16380

Equipped With

Serial: 850953-4
Model: KGS-300AHD
Year New: 1985
Table Working Surface: 12" x 24-4/5"
Max Chuck Size: 12' x 24'
Max Table Movement (Manual): 12-1/5" x 25-3/5"
Max Table Travel Powered: 11" x 23.5'
Auto Longitudinal Feed Rate: 13-77 FPM Variable
Max Distance Spindle / Wheel to Table: 16" Max Spindle Center to Table
Max Wheel Size : 12" x 1.25" x 5" Hole
Wheel Speed: 1740 RPM
Auto Wheelhead Downfeed Increments: .00025 - .0020"
Hand Wheelhead Downfeed Increments: .01" Per rev / .001" Per Grad
Hydraulic Motor: 2 HP
Spindle Drive: 3 HP

Overview

12" x 24" KENT MODEL #KGS-300AHD HORIZONTAL SURFACE GRINDER: STOCK #16380
