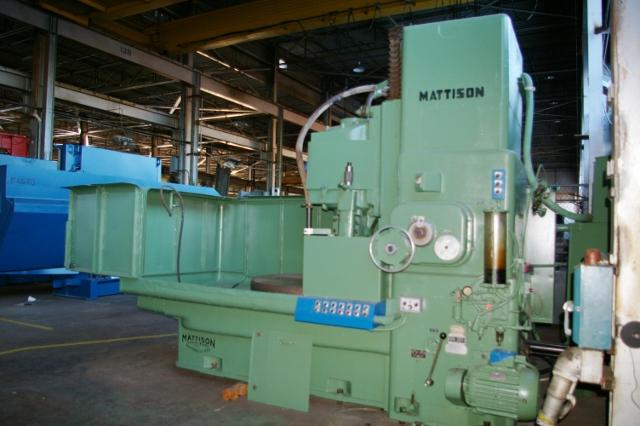

54" MATTISON ROTARY SURFACE GRINDER: STOCK #11082

Stock #: 11082

Equipped With

MODEL 48
MAGNETIC CHUCK DIAMETER ------------------- 54"
MAXIMUM SWING INSIDE GUARDS --------------- 60"
MAXIMUM GRINDING DIAMETER ----------------- 48"
MAXIMUM HEIGHT UNDER WHEEL ---------------- 24"
TABLE SPEED RANGE ------------------------- 7 TO 28 RPM
WHEEL SIZE, SEGMENTAL --------------------- 24"
MAIN DRIVE MOTOR -------------------------- 100 HP 480/3/60


EQUIPPED WITH ---
HYDRAULIC TABLE INFEED
WHEEL DRESSER
SEGMENTED WHEEL
TILT HEAD MECHANISM
AUTOMATIC LUBRICATION
COOLANT SYSTEM
54" MAGNETIC CHUCK & CHUCK CONTROL

Buy Machines

54" MATTISON ROTARY SURFACE GRINDER: STOCK #11082

Stock # 11082

Share Machine
Print Details

Machine Specifications

MODEL 48
MAGNETIC CHUCK DIAMETER ------------------- 54"
MAXIMUM SWING INSIDE GUARDS --------------- 60"
MAXIMUM GRINDING DIAMETER ----------------- 48"
MAXIMUM HEIGHT UNDER WHEEL ---------------- 24"
TABLE SPEED RANGE ------------------------- 7 TO 28 RPM
WHEEL SIZE, SEGMENTAL --------------------- 24"
MAIN DRIVE MOTOR -------------------------- 100 HP 480/3/60


EQUIPPED WITH ---
HYDRAULIC TABLE INFEED
WHEEL DRESSER
SEGMENTED WHEEL
TILT HEAD MECHANISM
AUTOMATIC LUBRICATION
COOLANT SYSTEM
54" MAGNETIC CHUCK & CHUCK CONTROL

Specifications
Dimensions 204"-084"-150"
Weight 36000 pounds
