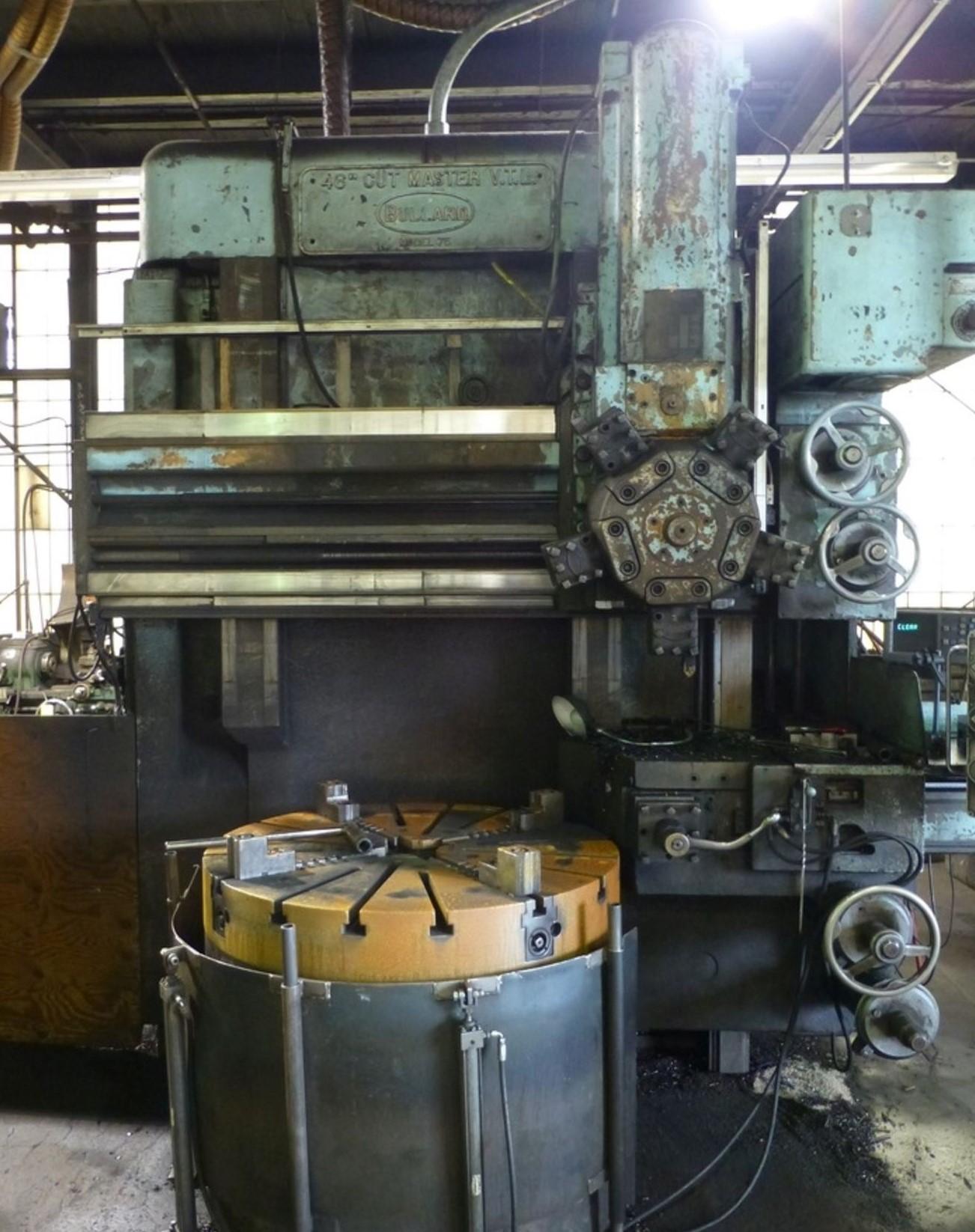

46" BULLARD 4 JAW MODEL CUTMASTER (VTL) VERTICAL TURRET LATHE: STOCK 13409

Stock #: 13409

Equipped With

SERIAL ........................................ 30002
MODEL ......................................... 75
DIMENSIONS (
PENDANT REMOVED) .................. 132"L x 113"W x 134"H (),                        DIMENSIONS (PENDANT IN PLACE) ................. 132"L x 113"W x 156"H
WEIGHT ........................................ 50,000 LBS OR 25 TON
4-JAW CHUCK ................................... 46" INDEPENDENTLY ADJUSTABLE
MAX SWING HEAD UP ............................. 50"
MAX SWING HEAD DOWN ........................... 58"
MAX UNDER RAIL ................................ 40"
VERTICAL STROKE TURRET HEAD ................... 30"
VERTICAL TRAVEL SIDE HEAD ..................... 38" (APPROX)
HORIZONTAL TRAVEL SIDE HEAD ................... 26"
MAX DISTANCE TABLE TOP TO BOTTOM SIDE HEAD .... 28" (APPROX)
TABLE SPEEDS .................................. 6.8 TO 250 RPM (20 TOTAL SPEEDS)
FEEDS ......................................... .0026 TO .5000 TPR
MAIN MOTOR .................................... 40 HORSEPOWER
PHASE ......................................... 3 PH
POWER ......................................... 440 VOLT
SQUARE BULLARD TURNING TOOL HOLDERS ........... 5 INCLUDED
PENDANT CONTROL ............................... YES
RAPID TRAVERSE ................................ YES
ACV-RITE DRO .................................. YES
