Machine Information

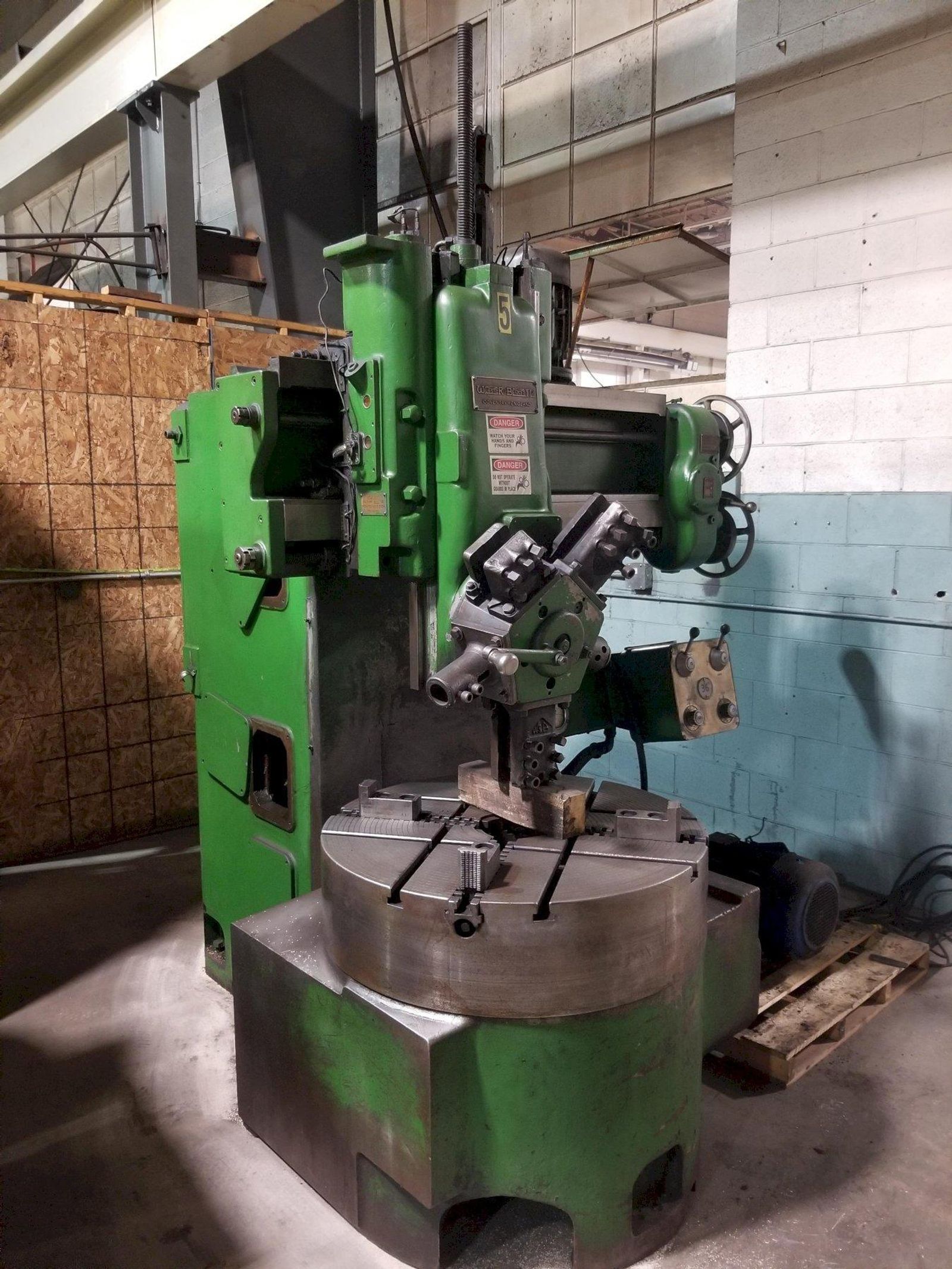

36" WEBSTER & BENNETT 4 JAW VTL VERTICAL TURRET LATHE: STOCK 18223

Stock #: 18223

Equipped With

DIAMETER OF TABLE..................... 36"
SWING................................. 48"
HEIGHT UNDER CROSS RAIL............... 23"
VERTICAL TRAVEL OF TURRET............. 22"
TABLE SPEEDS (12)..................... 13.5 TO 300 RPM
FEED RATES (12)....................... 0.005 TO 0.250 IPR
CHUCK ................................ 36" 4-JAW WITH JAWS
TURRET ............................... 5-POSITION
MAIN DRIVE MOTOR...................... 30 HP
