Machine Information

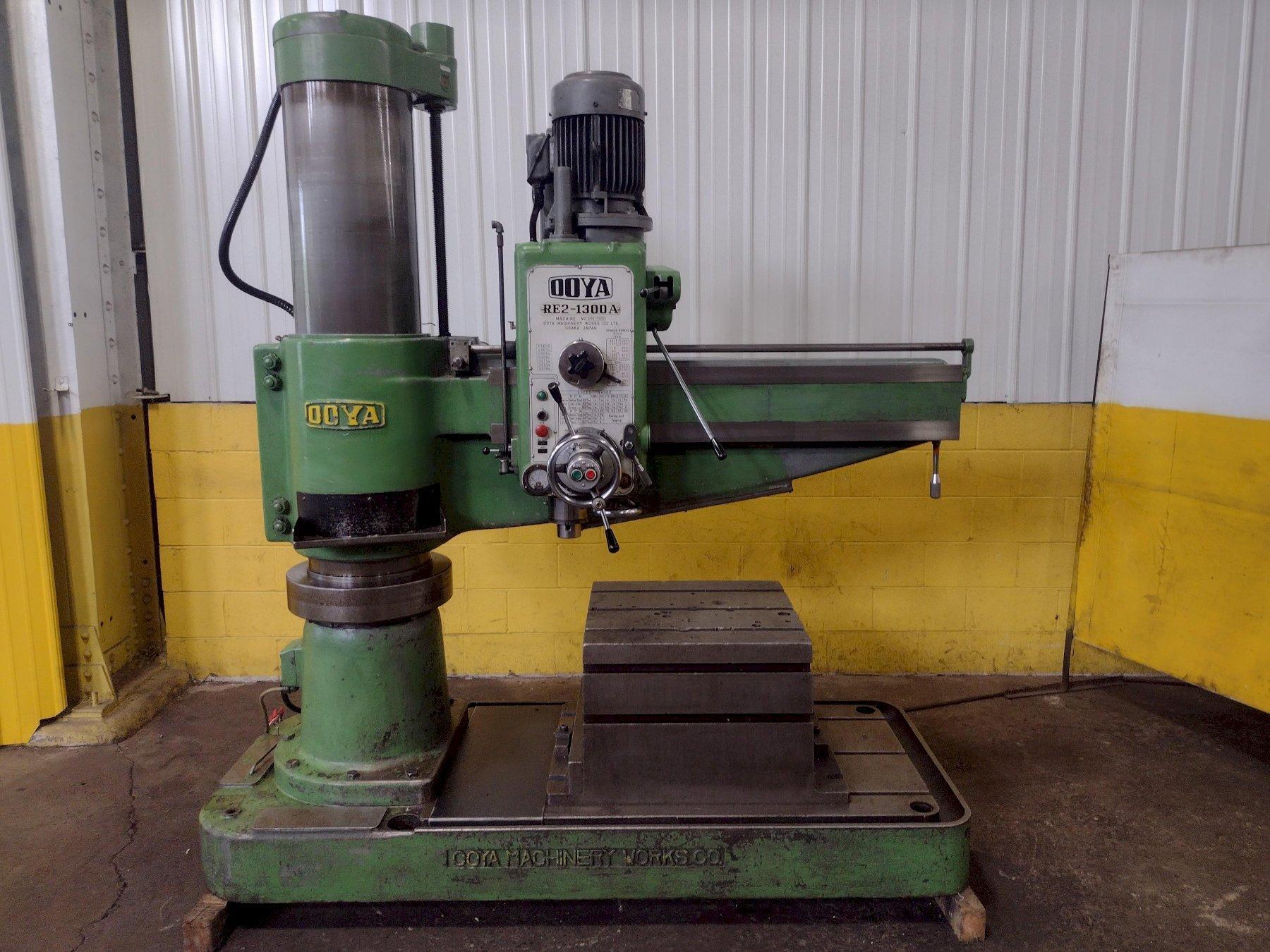

4' X 13" OOYA MODEL #RE2-1300A POWER RADIAL DRILL: STOCK 16747

Stock #: 16747

Equipped With

SERIAL ................................. OA8-1989
MODEL .................................. RE2-1300A
DIAMETER OF COLUMN ..................... 13-3/8"
LENGTH OF ARM .......................... 48"
AREA OF BASE ........................... 54" X 29", T SLOTS
SPINDLE SPEEDS ......................... (12) 32 TO 1985 RPM
FEEDS .................................. (6) .003 TO .039 IPR
SPINDLE TRAVEL ......................... 11-13/16"
TAPER IN SPINDLE ....................... #4 MT
DISTANCE SPINDLE TO BASE ............... 52-1/2" MAXIMUM, 14-1/8" MINIMUM
DISTANCE COLUMN TO SPINDLE ............. 52" MAXIMUM, 10-1/2" MINIMUM
POWER  COLUMN CLAMP .................... YES
POWER ELEVATION ........................ YES
COOLANT ................................ YES
MOTOR .................................. 7-1/2 HORSEPOWER

Buy Machines

4' X 13" OOYA MODEL #RE2-1300A POWER RADIAL DRILL: STOCK 16747

Stock # 16747

Share Machine
Print Details

Machine Specifications

SERIAL ................................. OA8-1989
MODEL .................................. RE2-1300A
DIAMETER OF COLUMN ..................... 13-3/8"
LENGTH OF ARM .......................... 48"
AREA OF BASE ........................... 54" X 29", T SLOTS
SPINDLE SPEEDS ......................... (12) 32 TO 1985 RPM
FEEDS .................................. (6) .003 TO .039 IPR
SPINDLE TRAVEL ......................... 11-13/16"
TAPER IN SPINDLE ....................... #4 MT
DISTANCE SPINDLE TO BASE ............... 52-1/2" MAXIMUM, 14-1/8" MINIMUM
DISTANCE COLUMN TO SPINDLE ............. 52" MAXIMUM, 10-1/2" MINIMUM
POWER  COLUMN CLAMP .................... YES
POWER ELEVATION ........................ YES
COOLANT ................................ YES
MOTOR .................................. 7-1/2 HORSEPOWER
