Machine Information

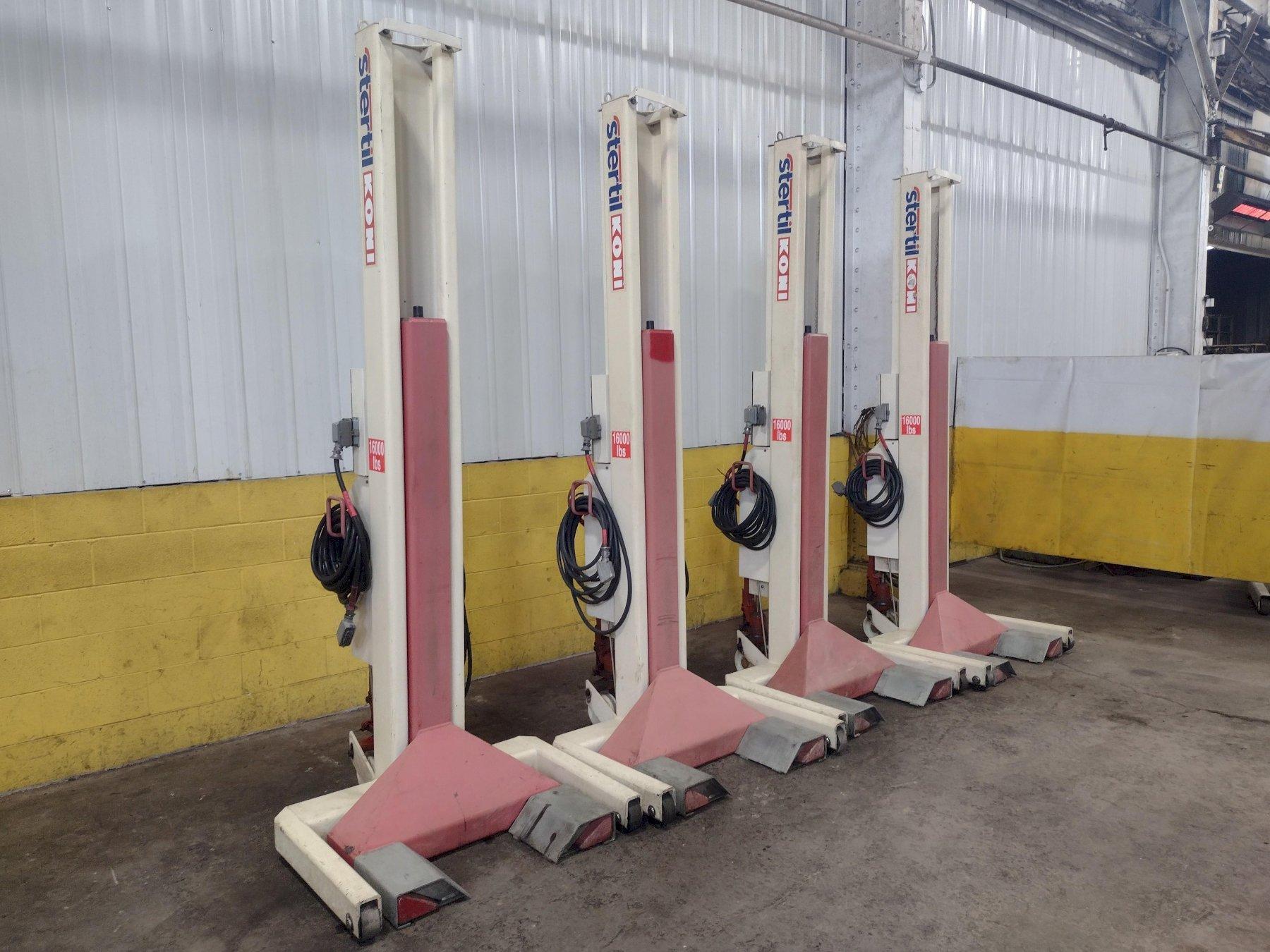

(4) 16,000 LBS STERTIL-KONI MODEL ST-1072 HEAVY DUTY MOBILE COLUMN LIFT JACKS: STOCK #16441

Stock #: 16441

Equipped With

SERIAL .................
MODEL .................. ST-1072
YEAR ...................
TOTAL NUMBER OF JACKS .. 4
JACK CONFIGERATION ..... 1 MASTER, 3 SLAVES
OPERATING MODES ........ SINGLE, PAIR, ALL
CAPACITY ............... 16,000 LBS EACH
TOTAL CAPACITY ......... 64,000 LBS
MAX LIFT HEIGHT ........ 68-7/8"
LIFTING SPEED .......... 50" PER MIN
LIFTING TIME ........... 83 SECONDS
LOWERING TIME .......... 60 SECONDS
LOWERED COLUMN HEIGHT .. 113"
RAISE HEIGHT ........... 143" MAX
WIDTH OF FRAME LEGS .... 44"
LIFTING FORKS .......... 12" WIDE X 22" CENTER TO CENTER
INTERCONNECTION CABLE .. WIRED
PORTABLE ............... WHEELED BASES

Buy Machines

(4) 16,000 LBS STERTIL-KONI MODEL ST-1072 HEAVY DUTY MOBILE COLUMN LIFT JACKS: STOCK #16441

Stock # 16441

Share Machine
Print Details

Machine Specifications

SERIAL .................
MODEL .................. ST-1072
YEAR ...................
TOTAL NUMBER OF JACKS .. 4
JACK CONFIGERATION ..... 1 MASTER, 3 SLAVES
OPERATING MODES ........ SINGLE, PAIR, ALL
CAPACITY ............... 16,000 LBS EACH
TOTAL CAPACITY ......... 64,000 LBS
MAX LIFT HEIGHT ........ 68-7/8"
LIFTING SPEED .......... 50" PER MIN
LIFTING TIME ........... 83 SECONDS
LOWERING TIME .......... 60 SECONDS
LOWERED COLUMN HEIGHT .. 113"
RAISE HEIGHT ........... 143" MAX
WIDTH OF FRAME LEGS .... 44"
LIFTING FORKS .......... 12" WIDE X 22" CENTER TO CENTER
INTERCONNECTION CABLE .. WIRED
PORTABLE ............... WHEELED BASES

Specifications
Dimensions 44" X 44" X 113" HIGH, & 1050 LBS EACH
