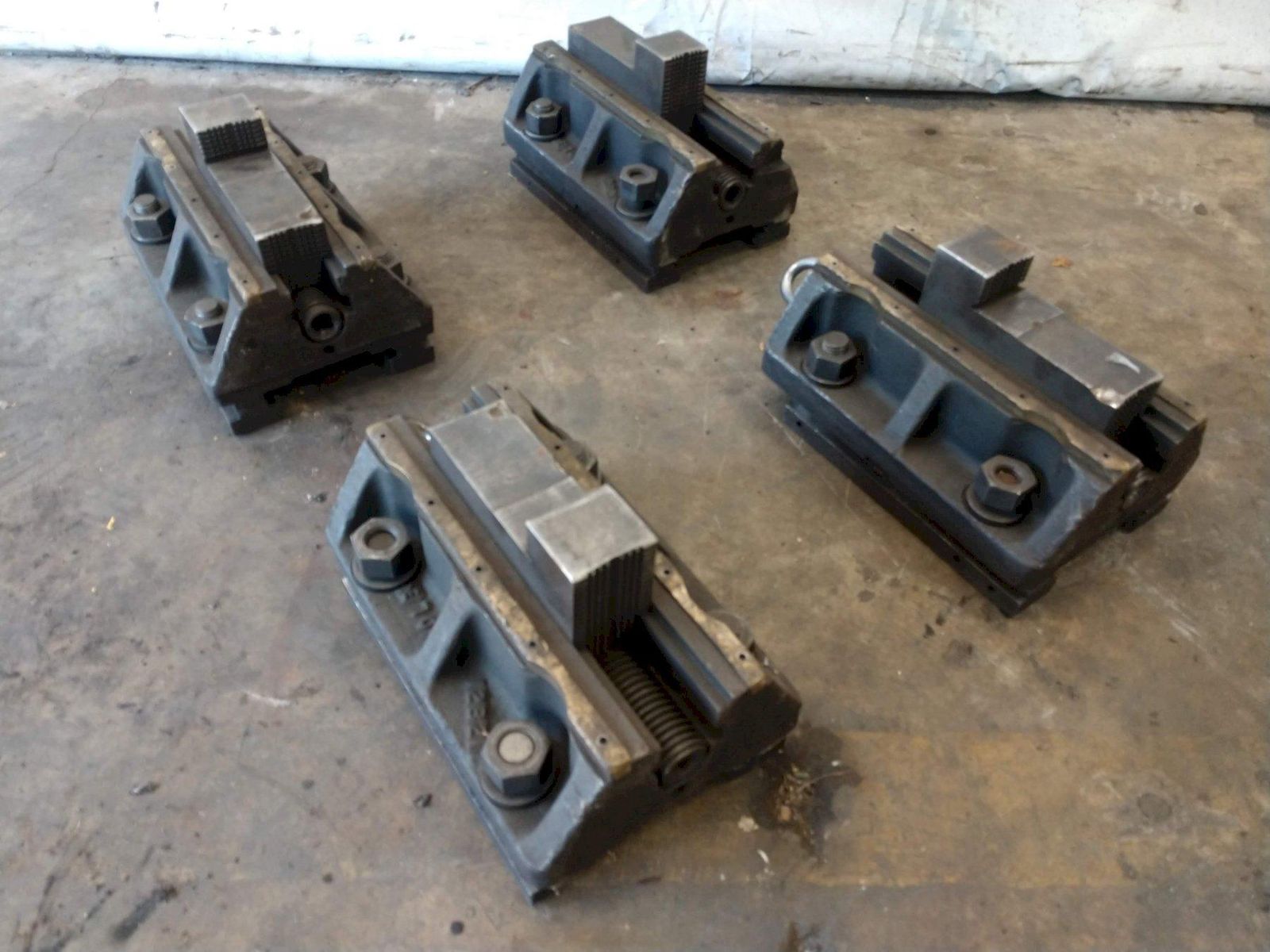

(4) 12" HEAVY DUTY BORING MILL CHUCK JAWS: STOCK #13206

Stock #: 13206

Equipped With

OVERALL LENGTH ........................................... 12”
OVERALL WIDTH ............................................ 8”
OVERALL HEIGHT, TOP OF BODY .............................. 4”
OVERALL HEIGHT, TOP OF JAW ............................... 6”
LENGTH OF HARD JAW ....................................... 7”
WIDTH OF HARD JAR ........................................ 2-1/8”
STROKE OF JAW ............................................ 10”
MOUNTING HOLE DIAMETER(4) ................................ 7/8”
ADJUSTING SCREW DIAMETER ................................. 1-3/8”
CENTERLINE BETWEEN MOUNTING HOLES, FRONT TO BACK ......... 7-1/4”
CENTERLINE BETWEEN MOUNTING HOLES, SIDE TO SIDE .......... 6”
WEIGHT EACH .............................................. 82 lbs
TOTAL WIEGHT ............................................. 328 lbs
