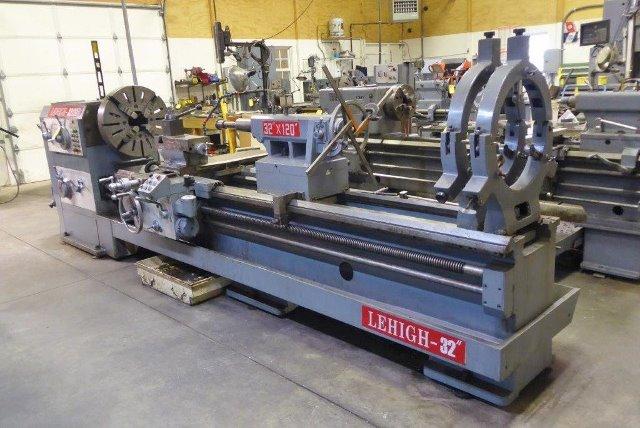

32/44" X 120" LEHIGH #32120B HEAVY DUTY GAP BED ENGINE LATHE: STOCK #11073

Stock #: 11073

Equipped With

NEW ....................................... 2001

SWING OVER BED ---------------------------- 33"

SWING OVER CROSS SLIDE -------------------- 22"

SWING IN GAP ------------------------------ 44"

DISTANCE BETWEEN CENTERS ------------------ 120"

SPINDLE SPEEDS -------- ( 18 ) ------------ 6 TO 800 RPM

SPINDLE BORE ------------------------------ 5-1/8"

SPINDLE NOSE ------------------------------ D1-11" CAMLOCK

FEEDS, LONGITUDINAL --- ( 72 ) ------------ .004 TO .095 IPR

FEEDS, CROSS ---------- ( 72 ) ------------ .002 TO .048 IPR

THREADS, INCH --------- ( 43 ) ------------ 1/16 TO 19 TPI

  ALSO METRIC & MODULE THREADING, INCH LEAD SCREW AND GRADUATIONS

MAIN DRIVE MOTOR -------------------------- 20 HP A.C.

COOLANT MOTOR ----------------------------- 1/3 HP A.C.

RAPID TRAVERSE MOTOR ---------------------- 1 HP A.C.



FULLY CLUTCHED HEADSTOCK             4 WAY RAPID TRAVERSE

25" 4 JAW CHUCK                      22" WIDE BED

TAPER ATTACHMENT                     (1) 3 POINT STEADY REST 16" CAPACITY

NEWALL C80 2 AXIS DIGITAL READOUT    (1) 3 POINT STEADY REST 16" CAPACITY

QUICK CHANGE TOOL POST               HARDENED AND GROUND BED

CHIP PAN AND COOLANT SYSTEM

Buy Machines

32/44" X 120" LEHIGH #32120B HEAVY DUTY GAP BED ENGINE LATHE: STOCK #11073

Stock # 11073

Share Machine
Print Details

Machine Specifications

NEW ....................................... 2001

SWING OVER BED ---------------------------- 33"

SWING OVER CROSS SLIDE -------------------- 22"

SWING IN GAP ------------------------------ 44"

DISTANCE BETWEEN CENTERS ------------------ 120"

SPINDLE SPEEDS -------- ( 18 ) ------------ 6 TO 800 RPM

SPINDLE BORE ------------------------------ 5-1/8"

SPINDLE NOSE ------------------------------ D1-11" CAMLOCK

FEEDS, LONGITUDINAL --- ( 72 ) ------------ .004 TO .095 IPR

FEEDS, CROSS ---------- ( 72 ) ------------ .002 TO .048 IPR

THREADS, INCH --------- ( 43 ) ------------ 1/16 TO 19 TPI

  ALSO METRIC & MODULE THREADING, INCH LEAD SCREW AND GRADUATIONS

MAIN DRIVE MOTOR -------------------------- 20 HP A.C.

COOLANT MOTOR ----------------------------- 1/3 HP A.C.

RAPID TRAVERSE MOTOR ---------------------- 1 HP A.C.



FULLY CLUTCHED HEADSTOCK             4 WAY RAPID TRAVERSE

25" 4 JAW CHUCK                      22" WIDE BED

TAPER ATTACHMENT                     (1) 3 POINT STEADY REST 16" CAPACITY

NEWALL C80 2 AXIS DIGITAL READOUT    (1) 3 POINT STEADY REST 16" CAPACITY

QUICK CHANGE TOOL POST               HARDENED AND GROUND BED

CHIP PAN AND COOLANT SYSTEM

Specifications
Swing 33 inches
Gap Swing 44 inches
Centers 120 inches
Spindle Bore 5.125 inches
RPM 800
Power 20 horsepower
Taper YES
Weight 14860 pounds
Dimensions 220 X 68 X 89
