Machine Information

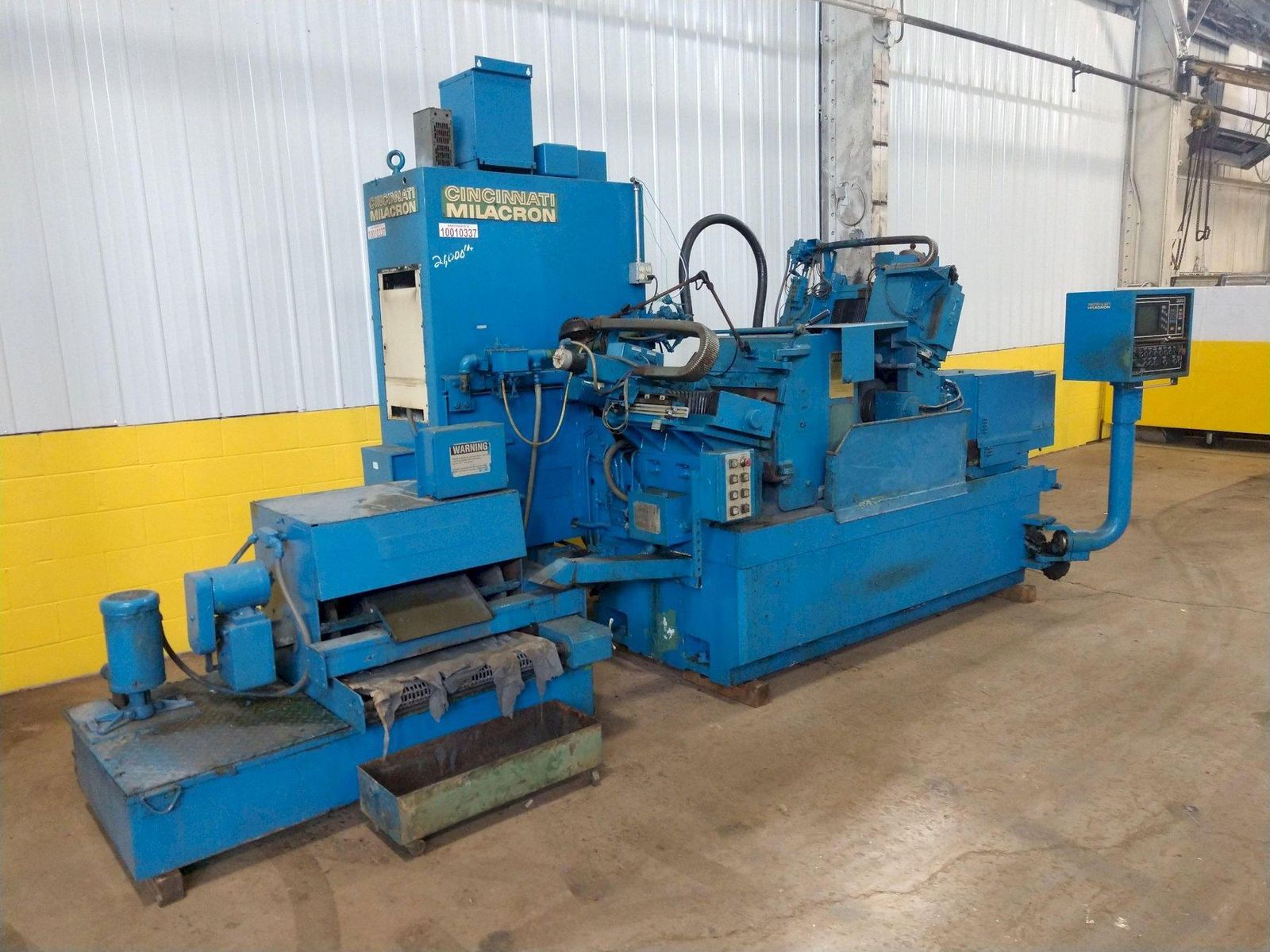

3" CINCINNATI MODEL #220-8 CENTERLESS GRINDER: STOCK 12532

Stock #: 12532

Equipped With

SERIAL ................ 916322089-0105
MODEL ................. 220-8 CANTILEVER CENTERLESS
CAPACITY .............. 0.063" TO 3.000″ THROUGHFEED
WORK DIAMETER ......... 4.750″
WHEELHEAD ............. 17″ TO 24"
COLLET HOLE DIAMETER .. 12″
GRINDING WHEEL WIDTH .. 3" TO 8″
GRINDING WHEEL SPEED .. 6500 ft/min.
MOTOR .................  20 HP

I.D. Regulating Wheel 5″
No. Regulating Wheel Speeds Infinite
Low Wheel Speeds 15-56 RPM
High Wheel Speeds 56-300 RPM
Regulating Wheel Motor 1-1/2HP @ 1200 RPM

Max. Lower Side Travel 6.375″
Max. Upper Side Travel 2.875″
MAGNETIC SEPARATOR

3" CINCINNATI MODEL #220-8 CENTERLESS GRINDER: STOCK 12532

Stock # 12532

Request a Quote

Share Machine

Print Details

Make an Offer





















Download Images

View All Images

Machine Specifications

SERIAL ................ 916322089-0105
MODEL ................. 220-8 CANTILEVER CENTERLESS
CAPACITY .............. 0.063" TO 3.000″ THROUGHFEED
WORK DIAMETER ......... 4.750″
WHEELHEAD ............. 17″ TO 24"
COLLET HOLE DIAMETER .. 12″
GRINDING WHEEL WIDTH .. 3" TO 8″
GRINDING WHEEL SPEED .. 6500 ft/min.
MOTOR ................. 20 HP

I.D. Regulating Wheel 5″
No. Regulating Wheel Speeds Infinite
Low Wheel Speeds 15-56 RPM
High Wheel Speeds 56-300 RPM
Regulating Wheel Motor 1-1/2HP @ 1200 RPM

Max. Lower Side Travel 6.375″
Max. Upper Side Travel 2.875″
MAGNETIC SEPARATOR
