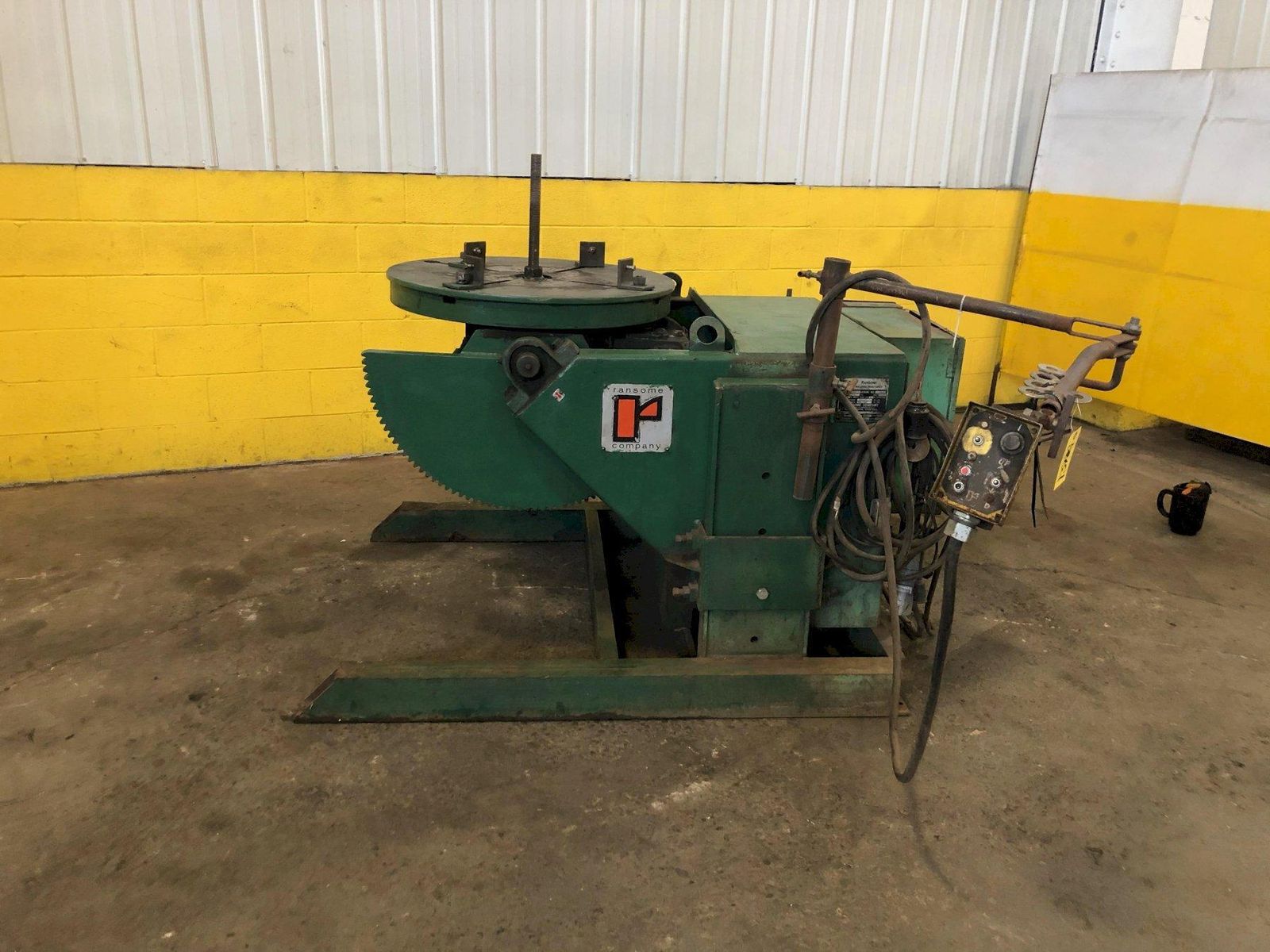

2500 LB RANSOME MODEL #25P2Y WELDING POSITIONER: STOCK #13729

Stock #: 13729

Equipped With

SERIAL .......................... 1623888
MODEL ........................... 25P
YEAR NEW ........................ 1978
LOAD CAPACITY ................... 2,500 lbs
TABLE DIAMETER .................. 32"
ROTATIONAL SPEED (VARIABLE) ..... 0.08 TO -1.55 rpm
ROTATIONAL TORQUE ............... 15,000 IN LBS
TILT TORGUE ..................... 30,000 IN LBS
TILT RANGE DEGREE ............... 0 TO 135°
DISTANCE FROM FLOOR TO TABLE .... 34 TO 52" MAXIMUM
TABLE HEIGHT ADJUSTMENT ......... 4 @ 6"
POWER TILT ...................... YES
PENDENT CONTROL ................. YES
TILT MOTOR ...................... 3/4 HORSEPOWER
ROTATION MOTOR .................. 3/4 HORSEPOWER



Buy Machines

2500 LB RANSOME MODEL #25P2Y WELDING POSITIONER: STOCK #13729

Stock # 13729

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 1623888
MODEL ........................... 25P
YEAR NEW ........................ 1978
LOAD CAPACITY ................... 2,500 lbs
TABLE DIAMETER .................. 32"
ROTATIONAL SPEED (VARIABLE) ..... 0.08 TO -1.55 rpm
ROTATIONAL TORQUE ............... 15,000 IN LBS
TILT TORGUE ..................... 30,000 IN LBS
TILT RANGE DEGREE ............... 0 TO 135°
DISTANCE FROM FLOOR TO TABLE .... 34 TO 52" MAXIMUM
TABLE HEIGHT ADJUSTMENT ......... 4 @ 6"
POWER TILT ...................... YES
PENDENT CONTROL ................. YES
TILT MOTOR ...................... 3/4 HORSEPOWER
ROTATION MOTOR .................. 3/4 HORSEPOWER
