Machine Information

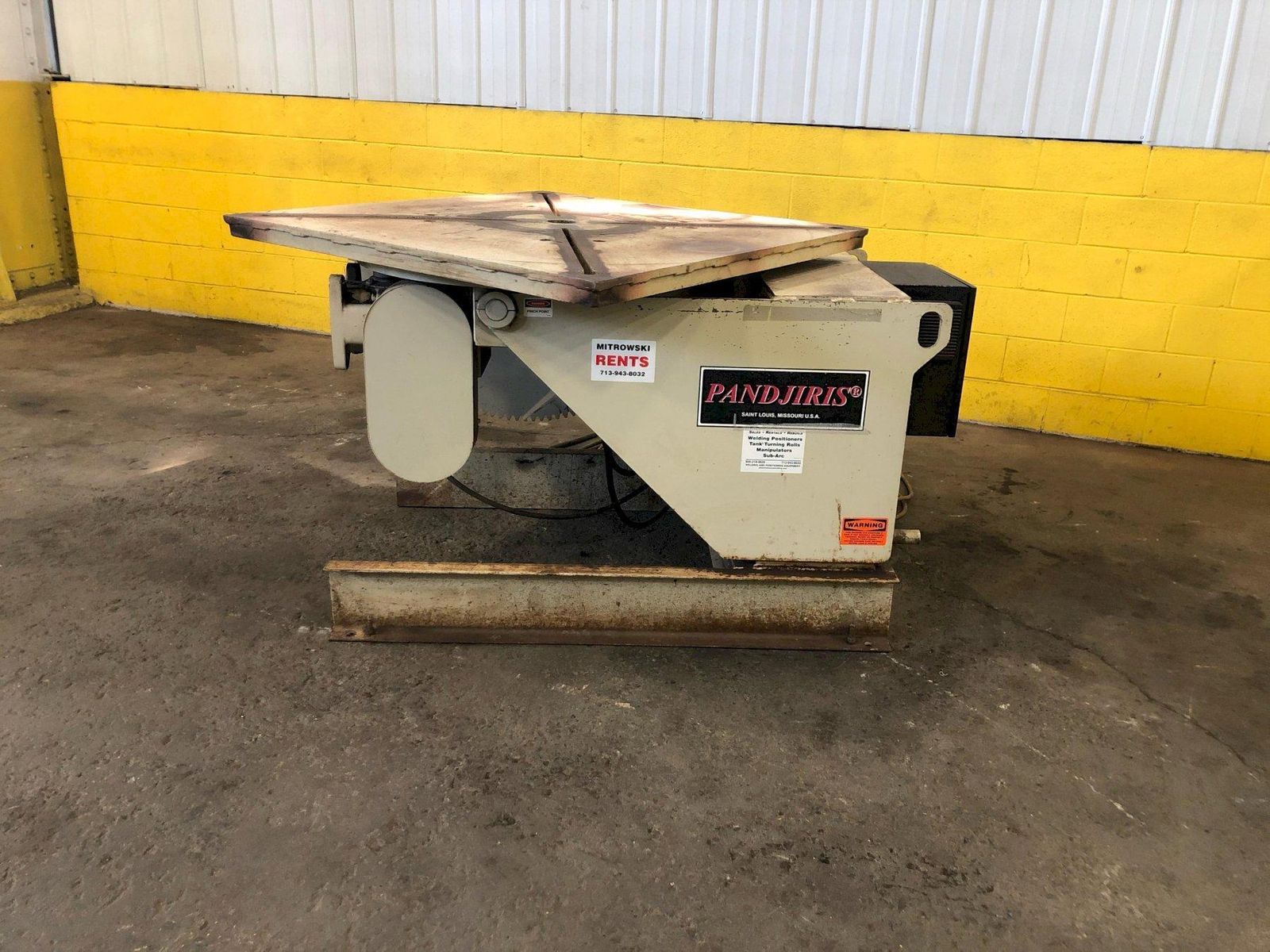

2500 LB PANDJIRIS MODEL #45-12AB WELDING POSITIONER: STOCK #13731

Stock #: 13731

Equipped With

MODEL ..................... 45-12AB
CAPACITY .................. 4500 LBS
TABLE SIZE ................ 48" X 48"

Rotational motor size ..... 1-1/2 H.P. motor.
Rotation speed ............ Variable from .03 to .97 RPM.
Rotation torque ........... 54,000 inch pounds.
Swing radius .............. 34-15/32" @ 90° tilt.
Tilt range ................ 0 through 135 degrees, motorized.
Tilt motor size ........... 1-1/2 H.P. AC Brakemotor.
Tilt Speed ................ 135 degrees in 30 seconds.
Tilt Torque ............... 79,875 inch pounds inherent.

The Model 45-12 MVRMTFB Positioner has a motorized variable speed rotation with Forward-StopReverse switch and dynamic braking. The rotation speed is variable from 0.03 to .97 RPM with motorized tilt infinitely variable through 135 degrees. A 48" square table with fixed height at 38-3/4" to allow full tilting capability is standard. All wiring conforms to National Electrical Code Standards. The positioner operates on 230/460 volt, three phase, 60 cycle input power, draws 20.2 Amps at 230V. W hen ordering specify 230 or 460 volts. A field changeable plug-in hand pendant includes "Forward-Stop-Reverse-W eld/Rapid" buttons and a speed adjustment potentiometer on 25' of cable as standard.



Buy Machines

2500 LB PANDJIRIS MODEL #45-12AB WELDING POSITIONER: STOCK #13731

Stock # 13731

Share Machine
Print Details

Machine Specifications

MODEL ..................... 45-12AB
CAPACITY .................. 4500 LBS
TABLE SIZE ................ 48" X 48"

Rotational motor size ..... 1-1/2 H.P. motor.
Rotation speed ............ Variable from .03 to .97 RPM.
Rotation torque ........... 54,000 inch pounds.
Swing radius .............. 34-15/32" @ 90° tilt.
Tilt range ................ 0 through 135 degrees, motorized.
Tilt motor size ........... 1-1/2 H.P. AC Brakemotor.
Tilt Speed ................ 135 degrees in 30 seconds.
Tilt Torque ............... 79,875 inch pounds inherent.

The Model 45-12 MVRMTFB Positioner has a motorized variable speed rotation with Forward-StopReverse switch and dynamic braking. The rotation speed is variable from 0.03 to .97 RPM with motorized tilt infinitely variable through 135 degrees. A 48" square table with fixed height at 38-3/4" to allow full tilting capability is standard. All wiring conforms to National Electrical Code Standards. The positioner operates on 230/460 volt, three phase, 60 cycle input power, draws 20.2 Amps at 230V. W hen ordering specify 230 or 460 volts. A field changeable plug-in hand pendant includes "Forward-Stop-Reverse-W eld/Rapid" buttons and a speed adjustment potentiometer on 25' of cable as standard.



Specifications
Dimensions 54 X 67 X 39 TO 57 HIGH
Weight 3000 pounds
