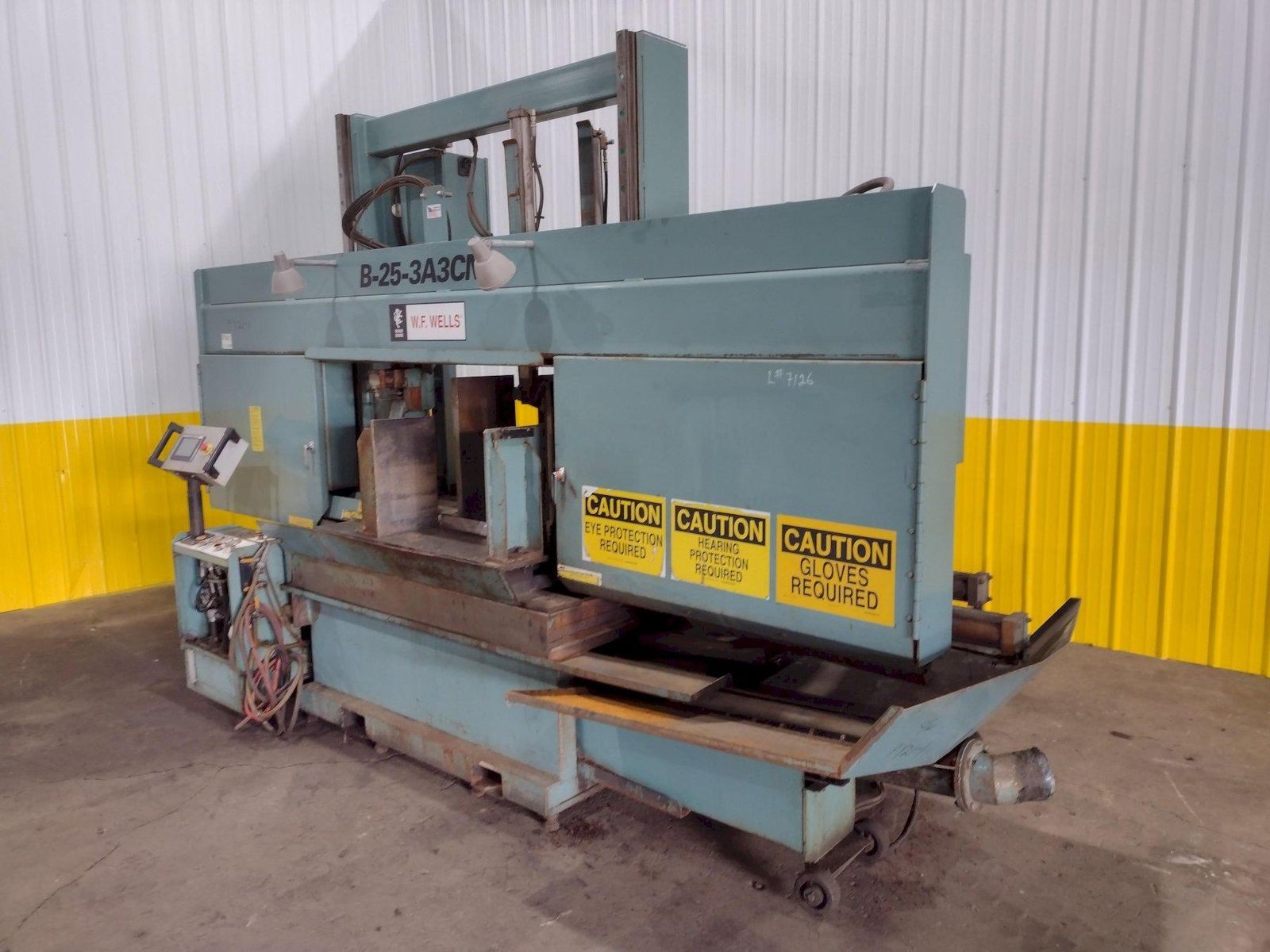

25" x 40" WF WELLS MODEL #B-25-3A3-CNC HORIZONTAL DUAL POST AUTOMATIC SAW: STOCK 19077

Stock #: 19077

Equipped With

SERIAL .................. BA1116
NEW ..................... 2011
MODEL ................... B-25-3A3 CNC

Capacity ................ 25” High x 40” Wide, 25.5” Round
Weight Capacity.......... 14,000 lbs
Blade Speed ............. 60 TO 500 SFPM
Blade Size .............. 2″ X .063″ X 26′-6″, 2⅝ optional
Blade Guide ............. Spring Tensioned Carbide Blocks with Idle Roller Back-up
Blade Tension ........... Hydraulic
Bandwheel Size .......... 26”
Vise .................... Hydraulic
Blade Drive ............. 15 HP, AC Vector Drive
Sawing Force ............ 0 TO 1,000 lbs
Coolant Capacity ........ 15 Gallons
Hydraulic Capacity ...... 20 Gallons
Hydraulic Drive ......... 5 HP Motor
Work Height ............. 35″
Outfeed Table ........... 12″ X 41″
Vise Jaw Height ......... 17″
Barfeed Projection ...... 0  TO 36″ CNC Controlled
Projection Accuracy ..... +/- .002″
Shuttle Indexes ......... Unlimited
Remnant End ............. 14″

Hydraulic Positioned Guide Arm
Powered Blade Brush
Blade Break/Stall Switch
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
