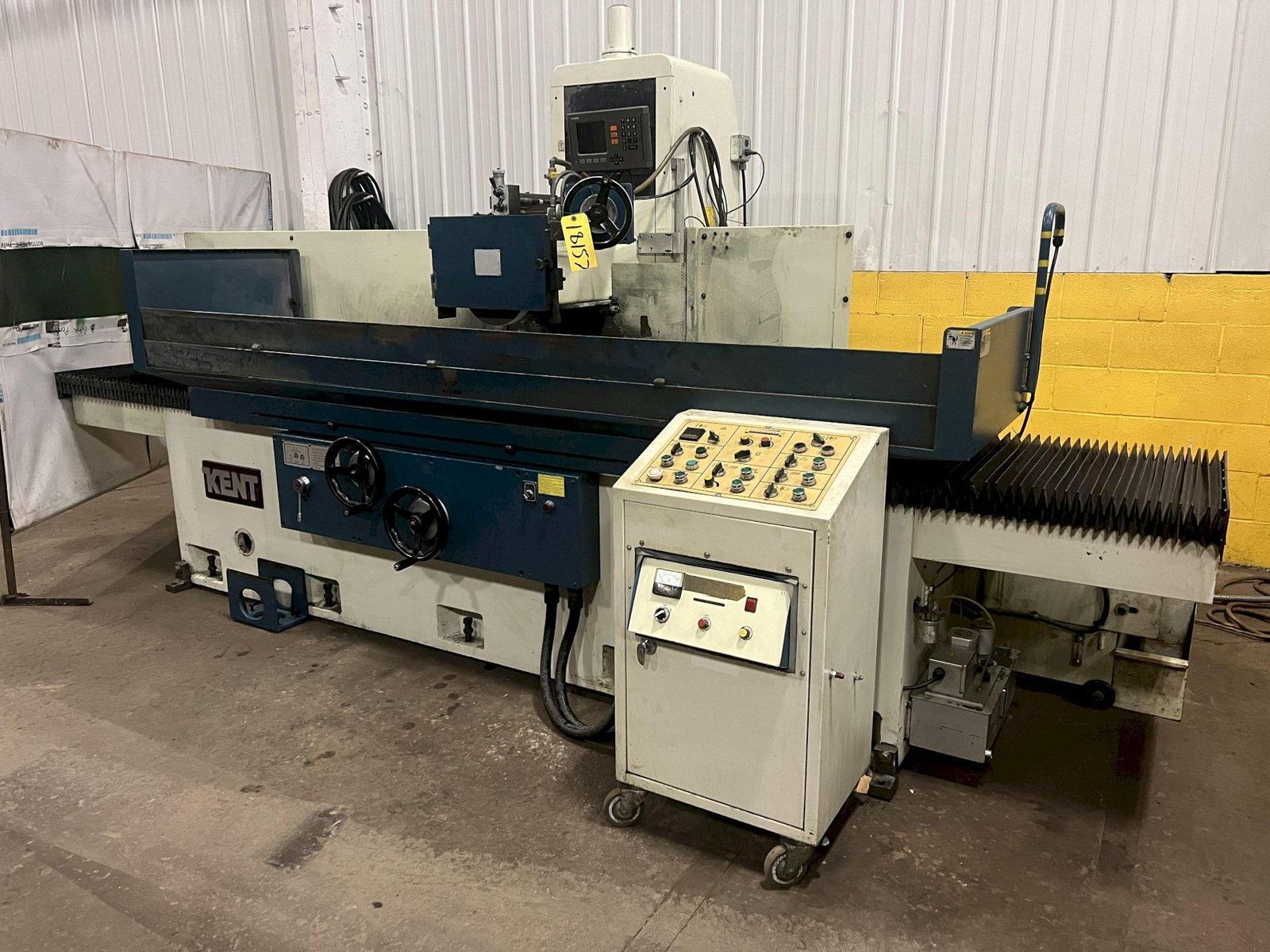

24" x 60" KENT MODEL #KGS-615AHD HYDRAULIC HORIZONTAL SURFACE GRINDER, NEW 2006: STOCK #18157

Overview

24" x 60" KENT MODEL #KGS-615AHD HYDRAULIC HORIZONTAL SURFACE GRINDER, NEW 2006: STOCK #18157

SERIAL ........................ 2270079

MODEL ......................... KGS-615AHD

YEAR NEW ...................... 2006
NEW CHUCK & UPDATED CONTROL ... 2020

GRINDING CAPACITY ............. 26" X 63"
MAGNETIC CHUCK SIZE ........... 24" X 60"

LONGITUDINAL TABLE TRAVEL ..... 63"

CROSSFEED TABLE TRAVEL ........ 26"

SPINDLE CENTER TO TABLE ...... 23.6"
TABLE SPEED (VARIABLE) ........ 13 TO 70 FPM

GRINDING WHEEL SIZE ........... 14" X 2" X 5"

SPINDLE SPEED ................. 1740 RPM

POWER ELEVATION ............... YES

AUTO INCREMENTAL DOWNFEED ..... YES

AUTO CROSS FEED ............... YES

OVER THE WHEEL DRESSER ........ YES

COOLANT ....................... YES

AUTO LUBE SYSTEM .............. YES

SPINDLE MOTOR ................. 10 HORSEPOWER

HYDRAULIC MOTOR ............... 5 HORSEPOWER

24" x 60" KENT MODEL #KGS-615AHD HYDRAULIC HORIZONTAL SURFACE GRINDER, NEW 2006: STOCK #18157

Brand
KENT

Type
Grinders, Surface, Recip.

Stock No.
18157

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

24" x 60" KENT MODEL #KGS-615AHD HYDRAULIC HORIZONTAL SURFACE GRINDER, NEW 2006: STOCK #18157

Stock #: 18157

Equipped With

24" x 60" KENT MODEL #KGS-615AHD HYDRAULIC HORIZONTAL SURFACE GRINDER, NEW 2006: STOCK #18157
SERIAL ........................ 2270079
MODEL ......................... KGS-615AHD
YEAR NEW ...................... 2006
NEW CHUCK & UPDATED CONTROL ... 2020
GRINDING CAPACITY ............. 26" X 63"
MAGNETIC CHUCK SIZE ........... 24" X 60"

LONGITUDINAL TABLE TRAVEL ..... 63"
CROSSFEED TABLE TRAVEL ........ 26"
SPINDLE CENTER TO TABLE  ...... 23.6"
TABLE SPEED (VARIABLE) ........ 13 TO 70 FPM
GRINDING WHEEL SIZE ........... 14" X 2" X 5"
SPINDLE SPEED ................. 1740 RPM
POWER ELEVATION ............... YES
AUTO INCREMENTAL DOWNFEED ..... YES
AUTO CROSS FEED ............... YES
OVER THE WHEEL DRESSER ........ YES
COOLANT ....................... YES
AUTO LUBE SYSTEM .............. YES
SPINDLE MOTOR ................. 10 HORSEPOWER
HYDRAULIC MOTOR ............... 5 HORSEPOWER
