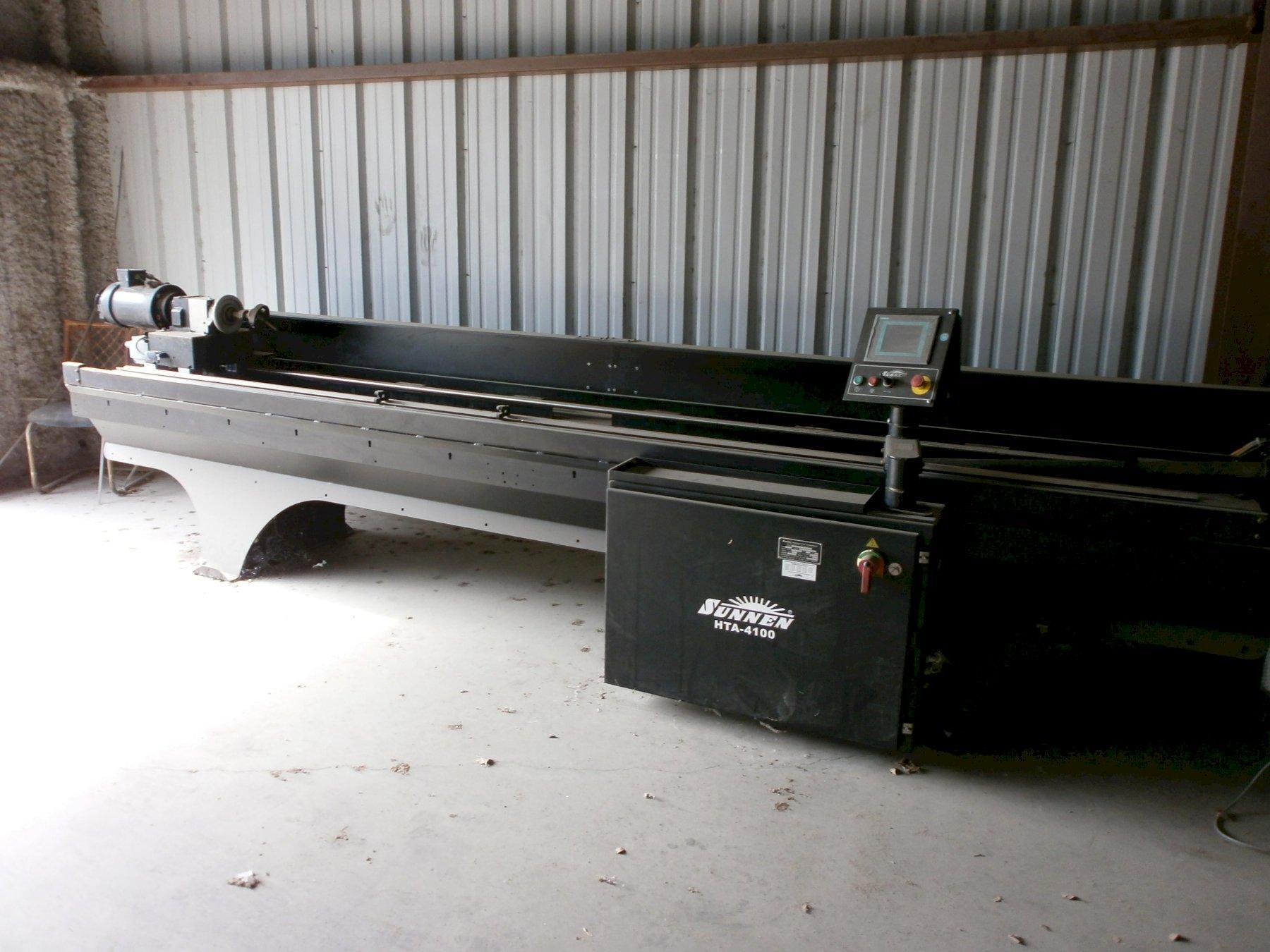

24” X 13’ (4M) SUNNEN #HTA-4100 HORIZONTAL HONE, NEW 2011: STOCK #13002

Stock #: 13002

Equipped With

MODEL ........................ HTA-4100
YEAR ......................... 2011
DIAMETER RANGE (I.D.) ........ 2.5-21"
DIAMETER RANGE (O.D.) ........ 24" MAX
STROKE ....................... 13.12'
SPINDLE SPEEDS ............... 20-300 RPM
SPINDLE POWER ................ 3 HP

Ideal for resurfacing and repair work where light-duty stock removal is needed ... up to 0.030 inches (0,76 mm).

Electromechanical stroker and spindle, features a Siemens servo stroker motor with belt drive for quiet and precise operation combined with a 3 Hp (2,24 kW) spindle unit.


Powerful Siemens PLC with color touch screen controls electrical functions of the system in conjunction with standard push buttons and a joystick.


Auto tensioning system includes a programmable auto tool feed that is standard. The abrasives can be fed up manually as well.


Works with Sunnen portable tooling for precise, accurate and consistent bore sizing. Bore diameter range: 2.5 - 21 inches (64 - 533 mm).

Buy Machines

24” X 13’ (4M) SUNNEN #HTA-4100 HORIZONTAL HONE, NEW 2011: STOCK #13002

Stock # 13002

Share Machine
Print Details

Machine Specifications

MODEL ........................ HTA-4100
YEAR ......................... 2011
DIAMETER RANGE (I.D.) ........ 2.5-21"
DIAMETER RANGE (O.D.) ........ 24" MAX
STROKE ....................... 13.12'
SPINDLE SPEEDS ............... 20-300 RPM
SPINDLE POWER ................ 3 HP

Ideal for resurfacing and repair work where light-duty stock removal is needed ... up to 0.030 inches (0,76 mm).

Electromechanical stroker and spindle, features a Siemens servo stroker motor with belt drive for quiet and precise operation combined with a 3 Hp (2,24 kW) spindle unit.


Powerful Siemens PLC with color touch screen controls electrical functions of the system in conjunction with standard push buttons and a joystick.


Auto tensioning system includes a programmable auto tool feed that is standard. The abrasives can be fed up manually as well.


Works with Sunnen portable tooling for precise, accurate and consistent bore sizing. Bore diameter range: 2.5 - 21 inches (64 - 533 mm).

Specifications
Power Stroking yes
