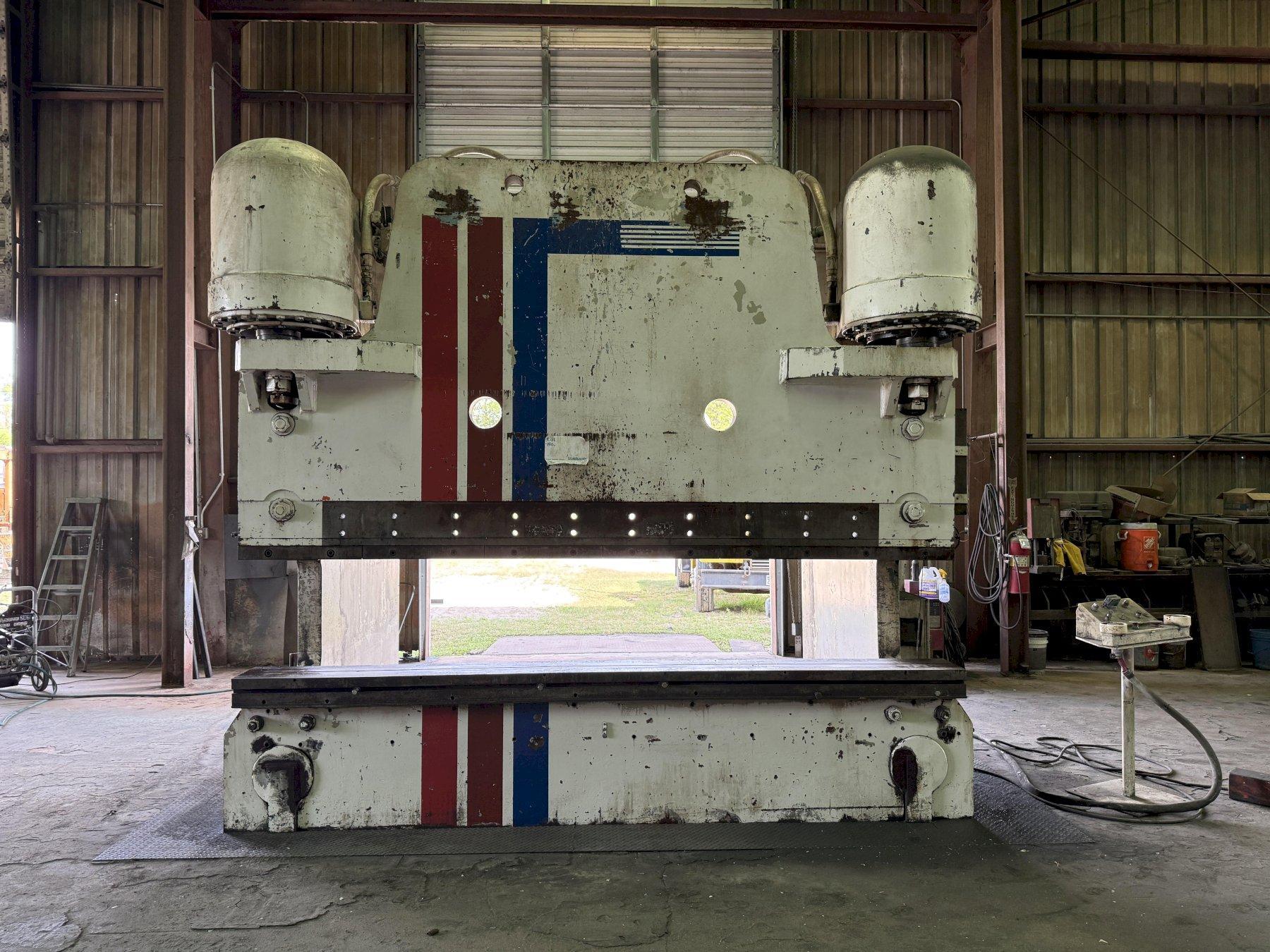

MACRODYNE PRESS:
SERIAL ......................... 131513
YEAR NEW ....................... 2013
MODEL .......................... MPFG400/400
FRAME SIZE ..................... 800 TON
MAIN PRESSING RAM CAPACITY ..... 400 TON
SIDE RAM - HOLD DOWN CAPACITY .. 200 TON EACH
STROKE MAIN & SIDE RAMS ........ 32"
DAYLIGHT ....................... 56"
BED SIZE ....................... 48" X 36"
CONTROLS ....................... YES
MOTOR .......................... 200 HP
INCLUDES:
CLOSED-DIE, WEDGE TYPE HOT FORGING DIE
HEATING INDUCTION SERVICES SYSTEM:
SERIAL .........................
YEAR NEW ....................... 2013
QUENCH & EXIT CONVEYOR SYSTEM:
Macrodyne Closed Forging Presses have repeatability and accuracy, as well as the ability to control tonnages and forming pressure that is essential for an efficient and successful production. Our presses offer versatility and can be used to produce a variety of closed forged parts by interchanging tools. They can produce complex and difficult shapes with a wide range of materials, such as carbon, steel, aluminum, copper, etc.
Brand
MACRODYNE
Type
Forging Presses
Stock No.
20205
 |
419-269-2000 |
Stock #: 20205
MACRODYNE PRESS:
SERIAL ......................... 131513
YEAR NEW ....................... 2013
MODEL .......................... MPFG400/400
FRAME SIZE ..................... 800 TON
MAIN PRESSING RAM CAPACITY ..... 400 TON
SIDE RAM - HOLD DOWN CAPACITY .. 200 TON EACH
STROKE MAIN & SIDE RAMS ........ 32"
DAYLIGHT ....................... 56"
BED SIZE ....................... 48" X 36"
CONTROLS ....................... YES
MOTOR .......................... 200 HP
INCLUDES:
CLOSED-DIE, WEDGE TYPE HOT FORGING DIE
HEATING INDUCTION SERVICES SYSTEM:
SERIAL .........................
YEAR NEW ....................... 2013
QUENCH & EXIT CONVEYOR SYSTEM:
Macrodyne Closed Forging Presses have repeatability and accuracy, as well as the ability to control tonnages and forming pressure that is essential for an efficient and successful production. Our presses offer versatility and can be used to produce a variety of closed forged parts by interchanging tools. They can produce complex and difficult shapes with a wide range of materials, such as carbon, steel, aluminum, copper, etc.
