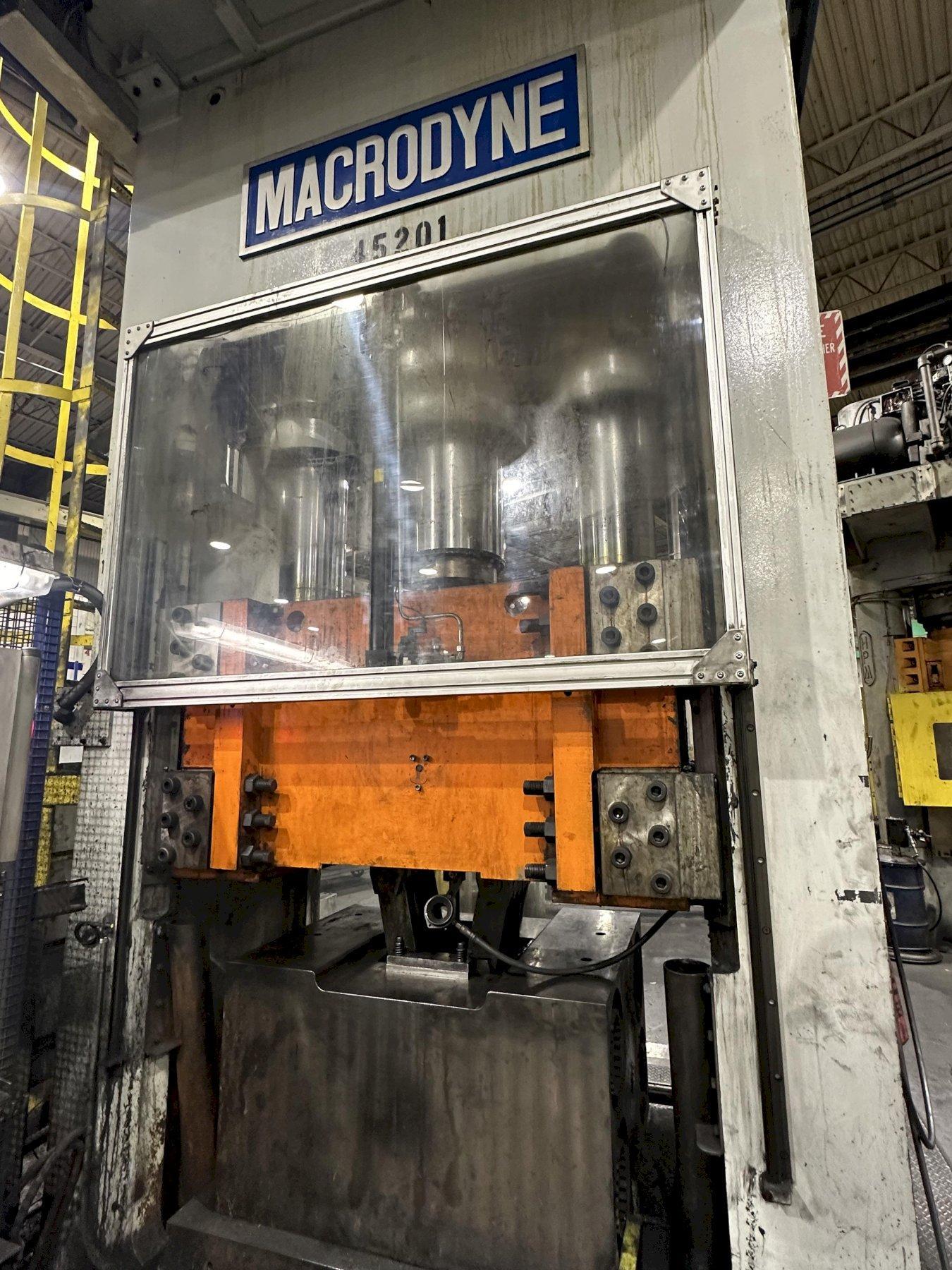

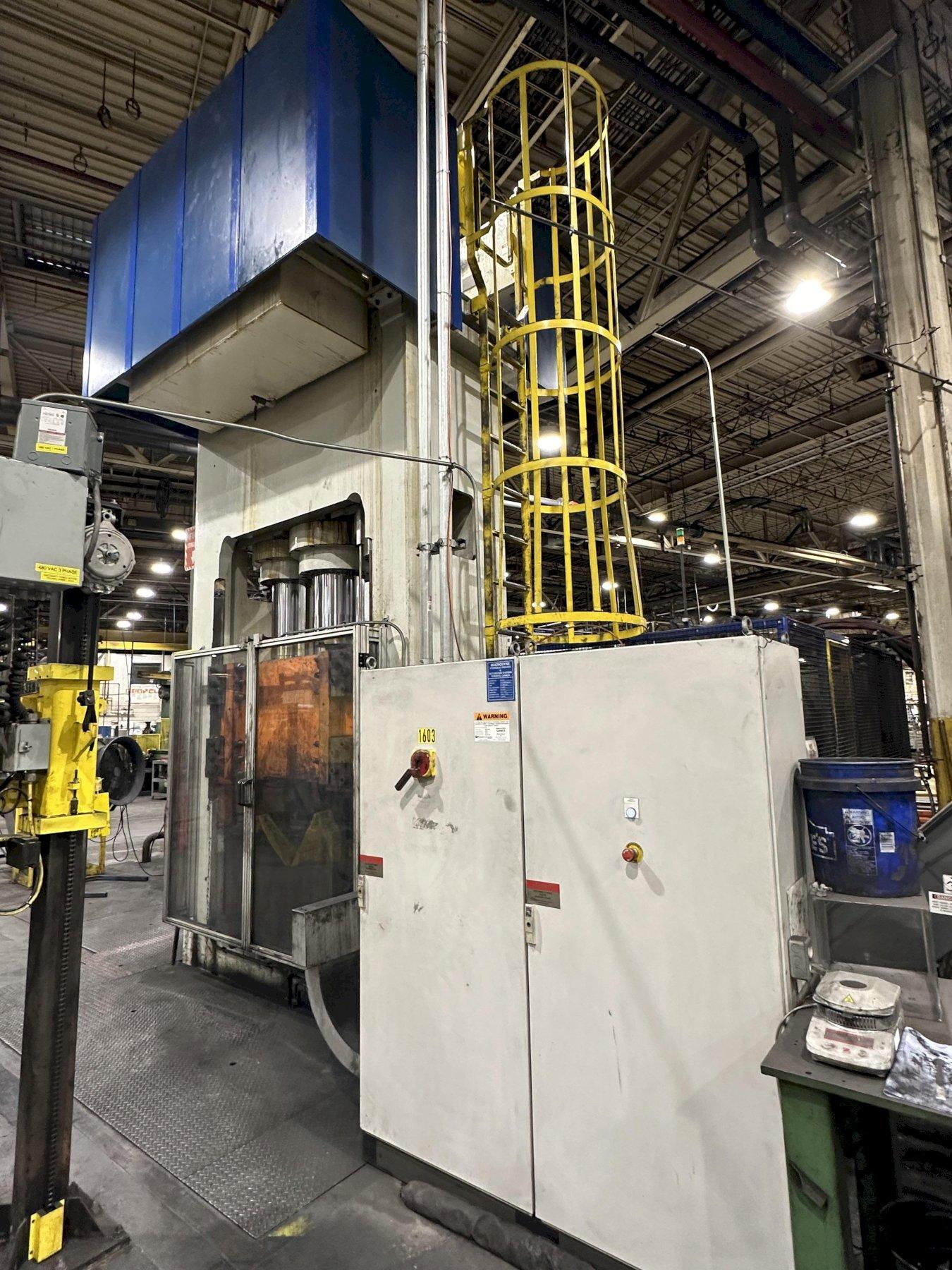

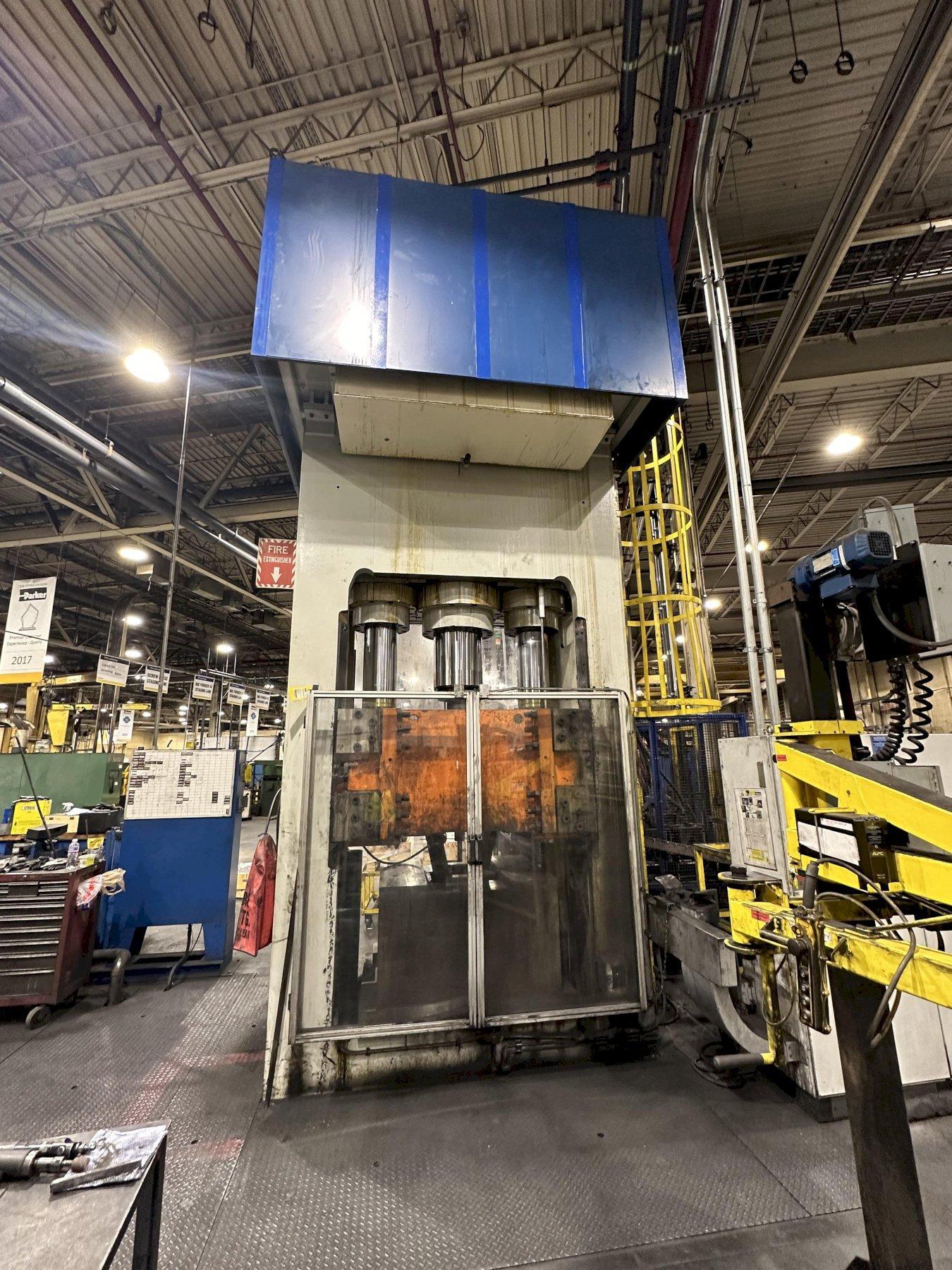

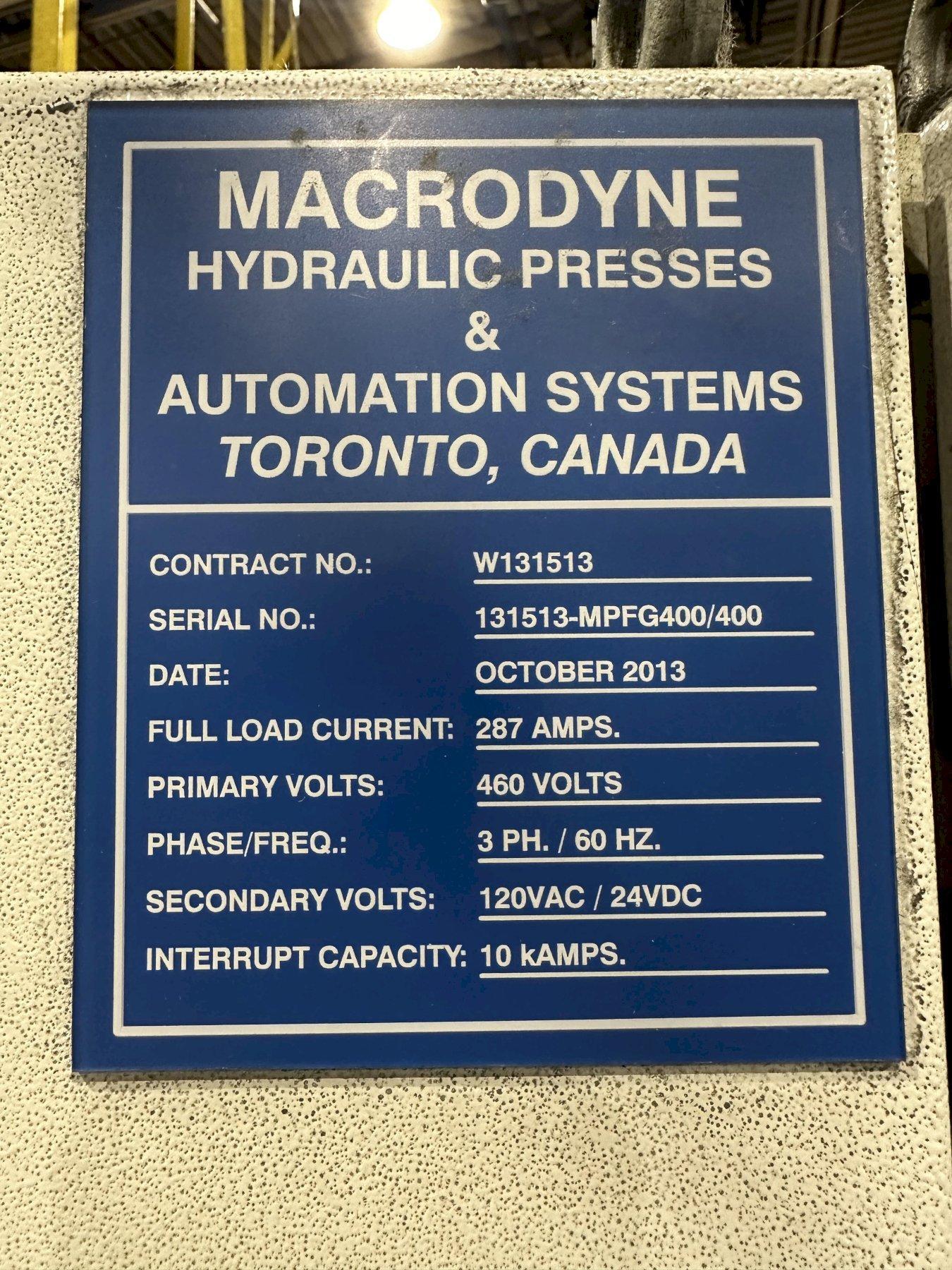

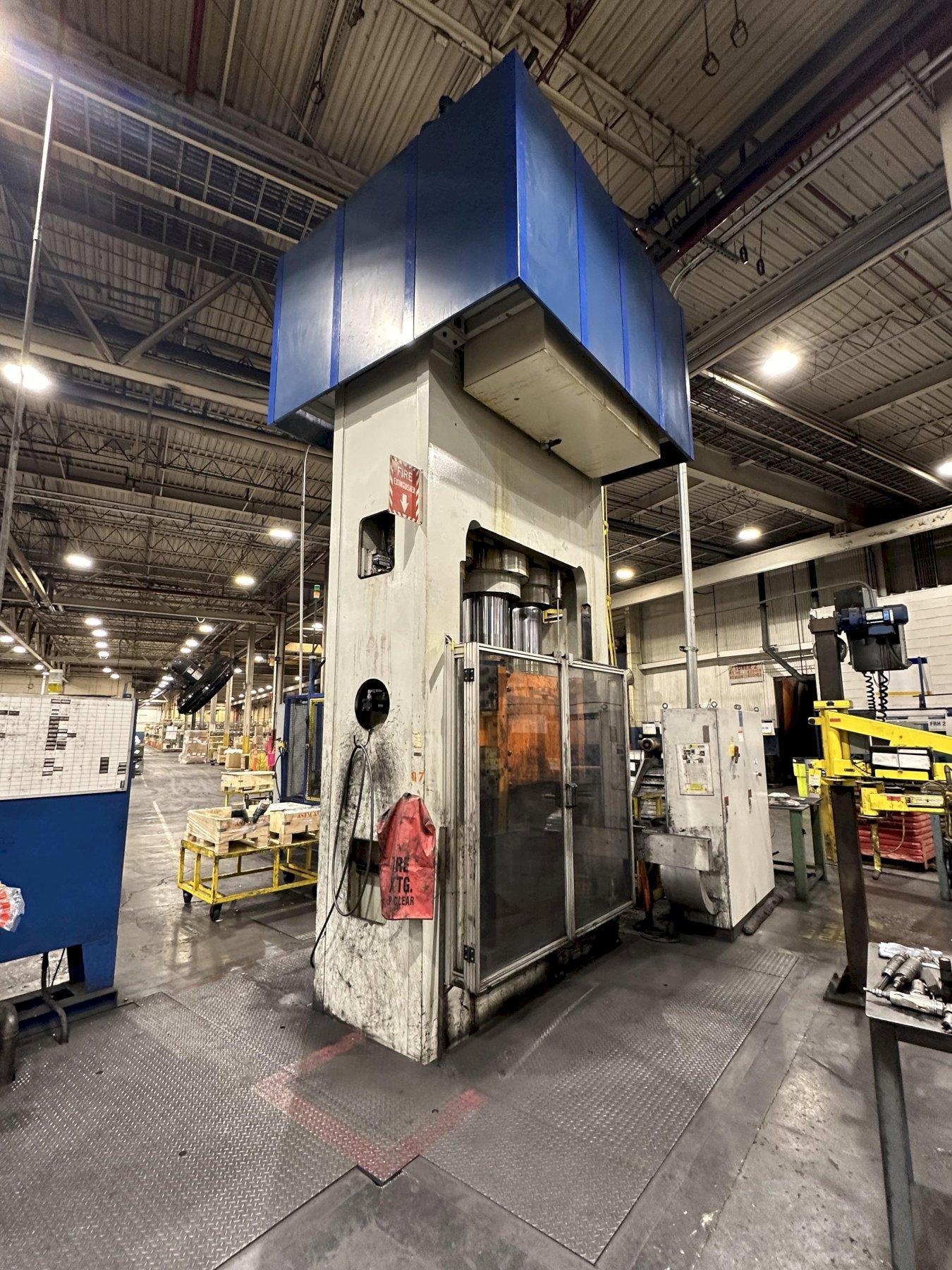

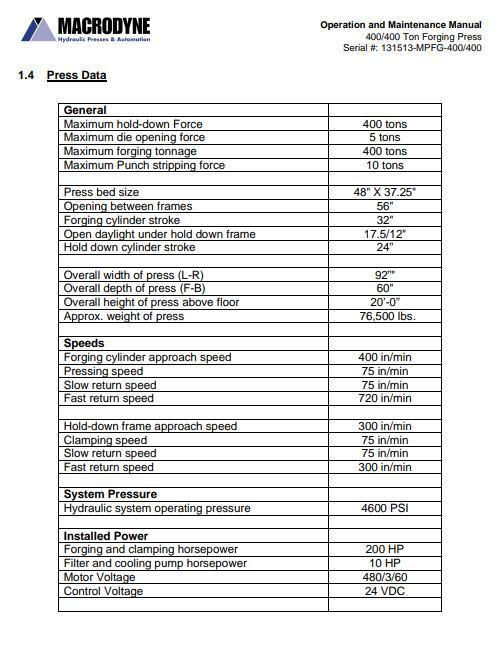

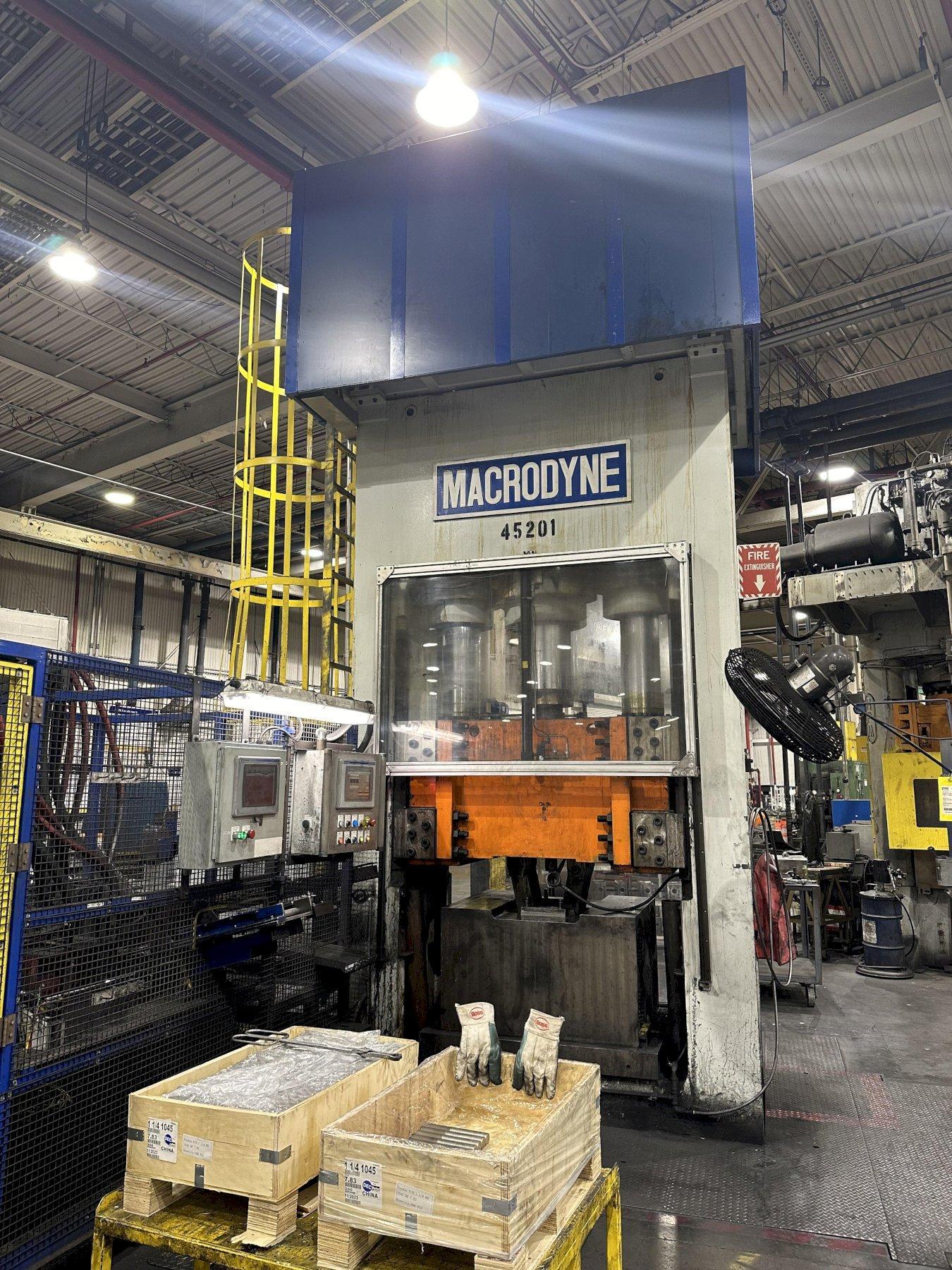

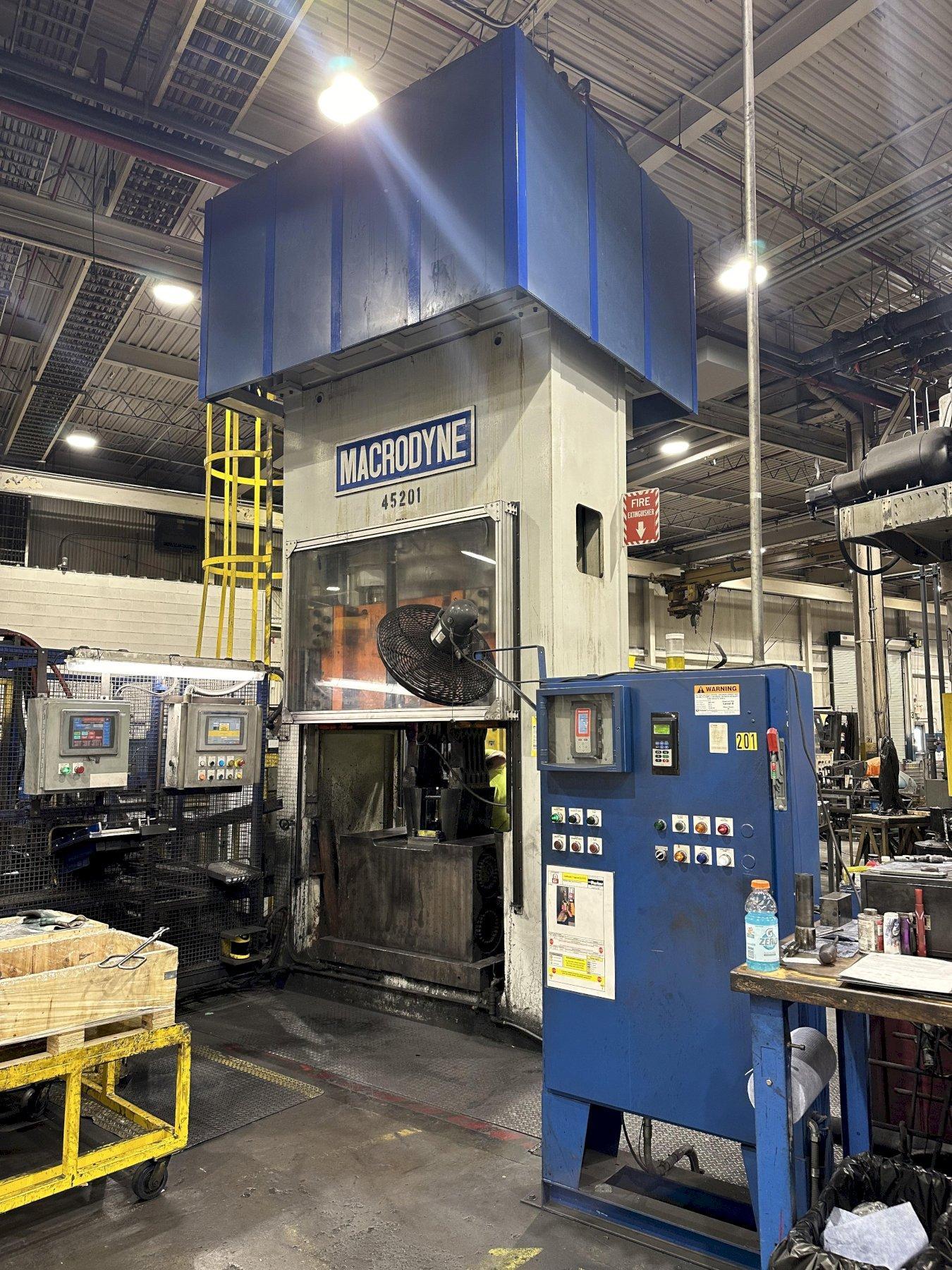

SERIAL ......................... 131513
YEAR NEW ....................... 2013

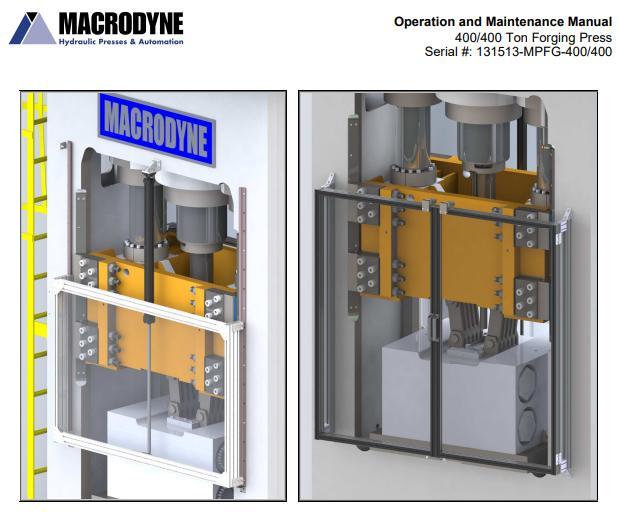

MODEL .......................... MPFG-400/400
FRAME SIZE ..................... 800 TON
OPENING BETWEEN FRAMES ......... 56"

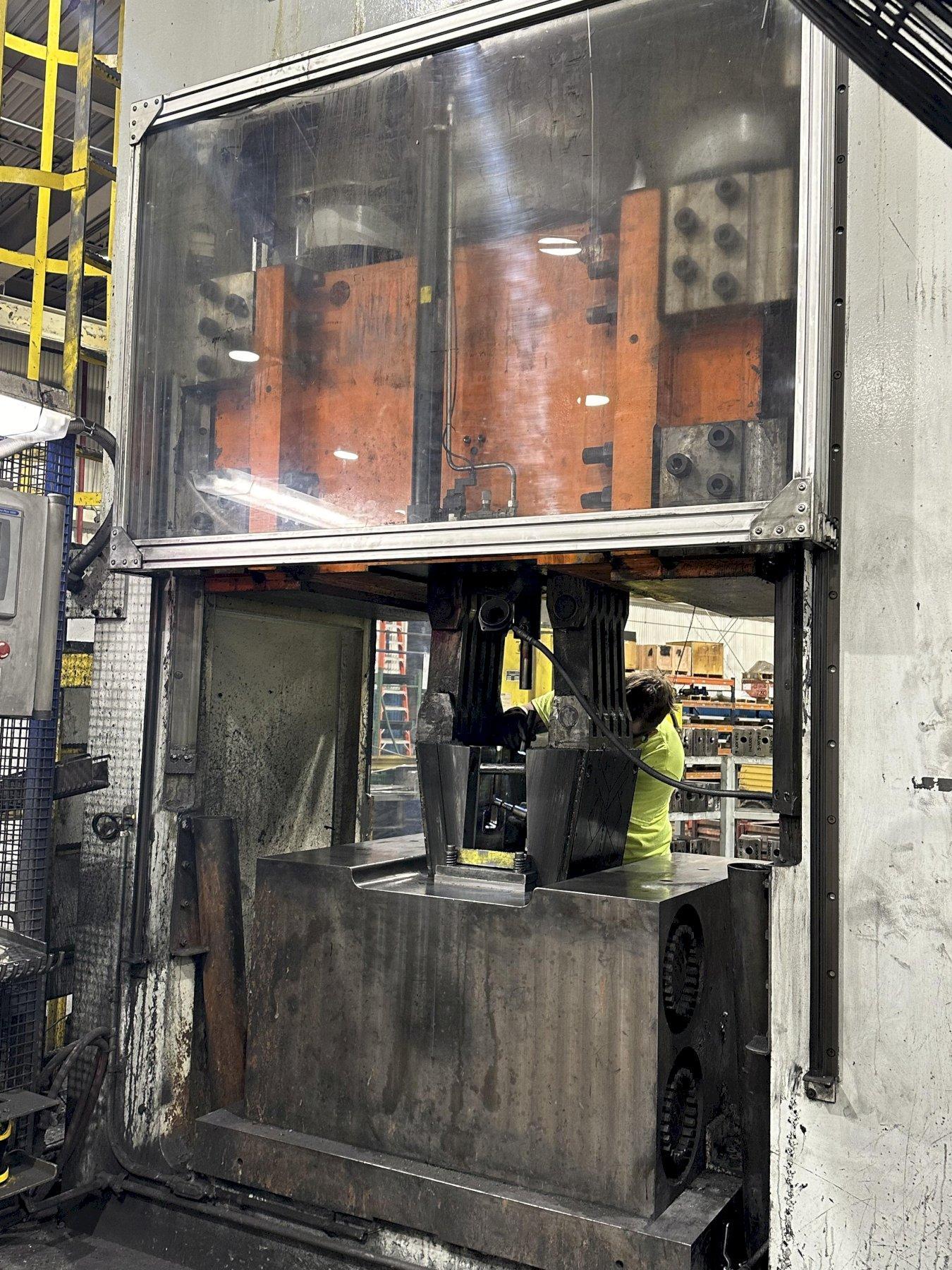

BED SIZE ....................... 48" X 37.25"

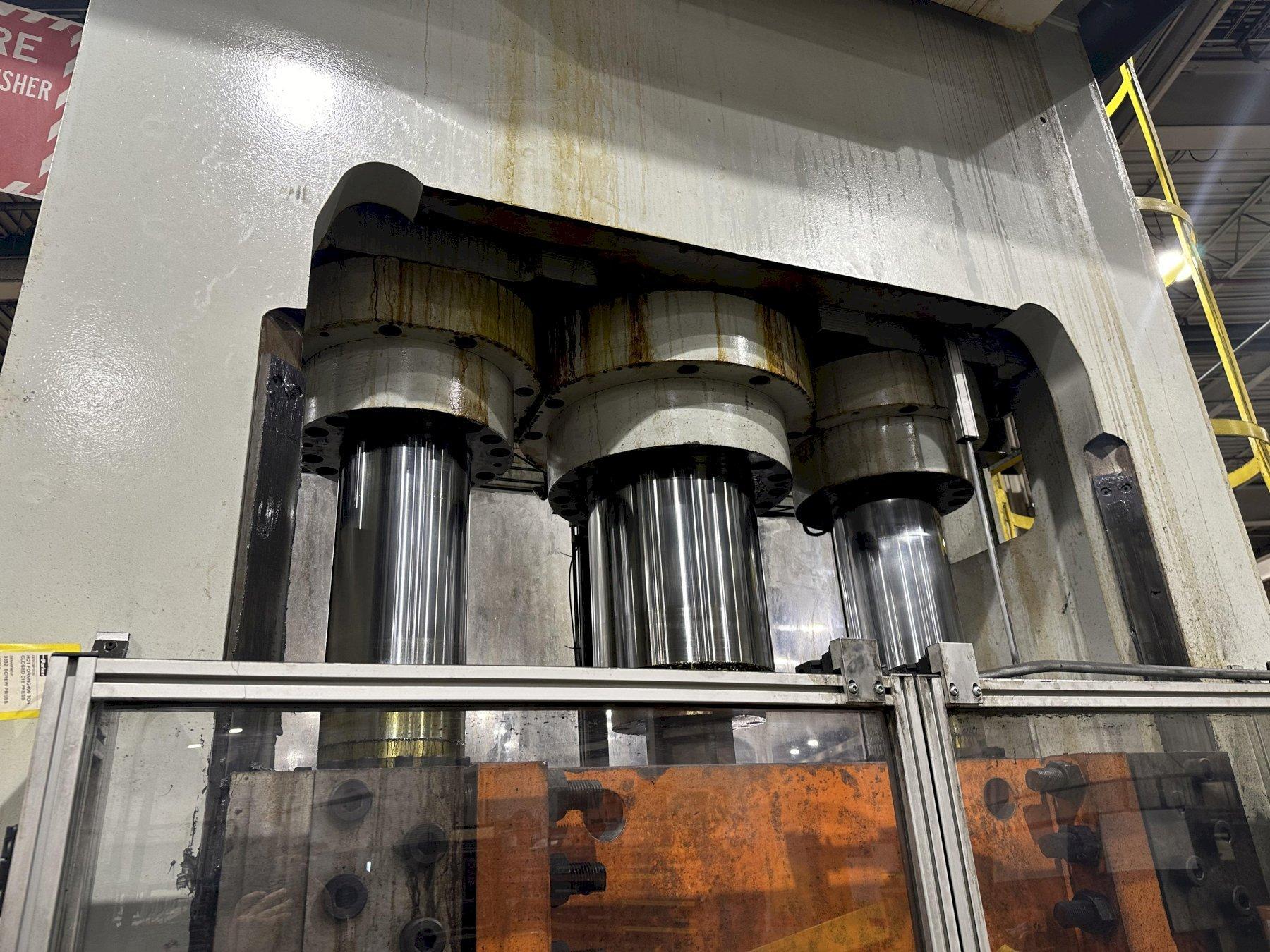

MAIN PRESSING RAM CAPACITY ..... 400 TON
MAIN RAM STROKE ................ 32"
MAIN PRESSING RAM SPEEDS:
APPROACH ....................... 400 IN/MIN
PRESSING ....................... 75 IN/MIN
SLOW RETURN .................... 75 IN/MIN
FAST RETURN .................... 720 IN/MIN
HOLD DOWN / SIDE RAM CAPACITY .. 400 TON - 200 TON EACH
SIDE RAMS STROKE ............... 24"
SIDE HOLD-DOWN RAMS SPEEDS:
APPROACH ....................... 300 IN/MIN
PRESSING ....................... 75 IN/MIN
SLOW RETURN .................... 75 IN/MIN
FAST RETURN .................... 300 IN/MIN

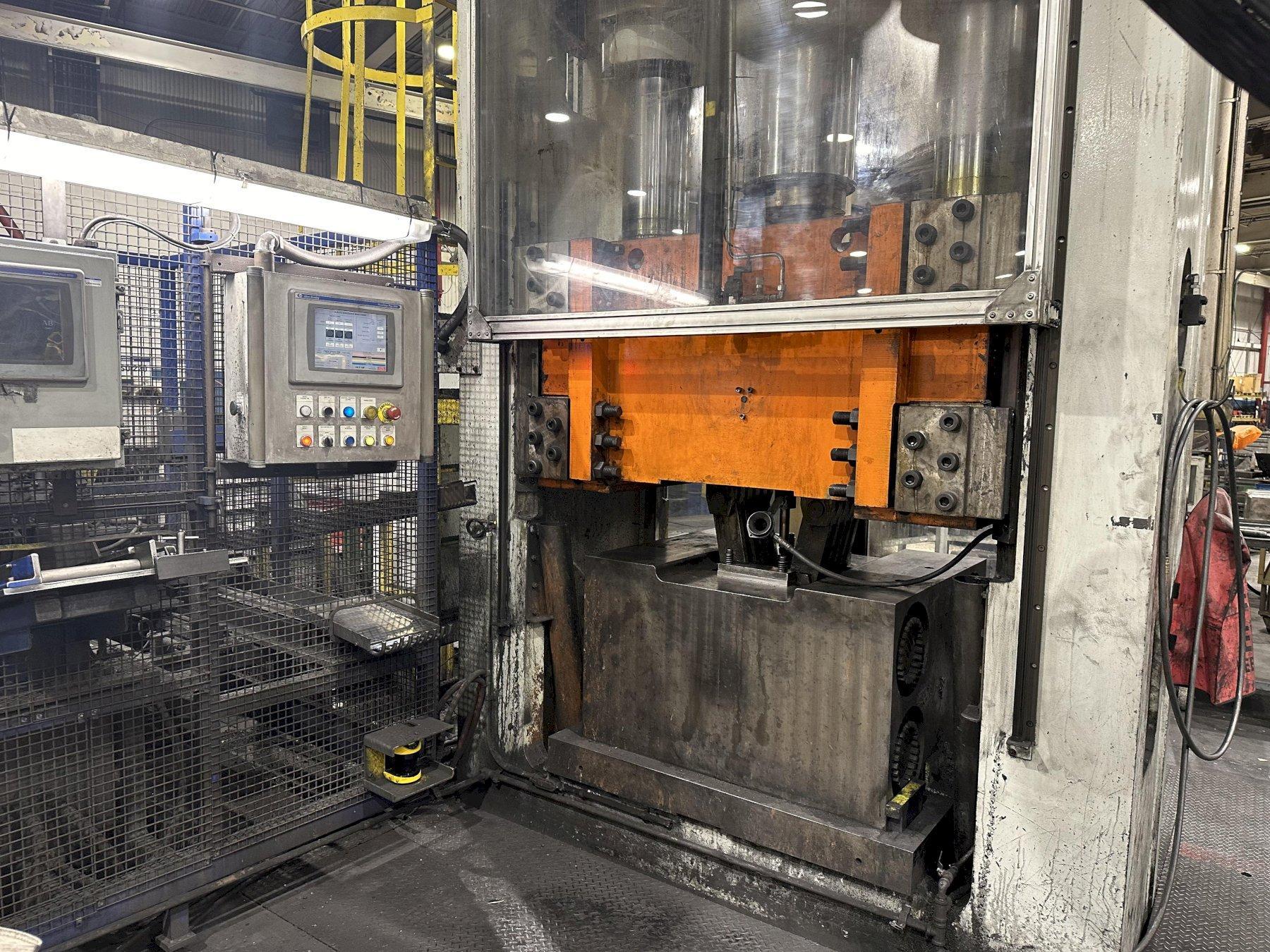

CONTROLS ....................... YES, ALLEN BRADLEY
HYDRAULIC OIL VOLUME ........... 350 GALLONS
MAIN PUMP MOTOR ................ 200 HP
FILTER & COOLING PUMP MOTOR .... 10 HP

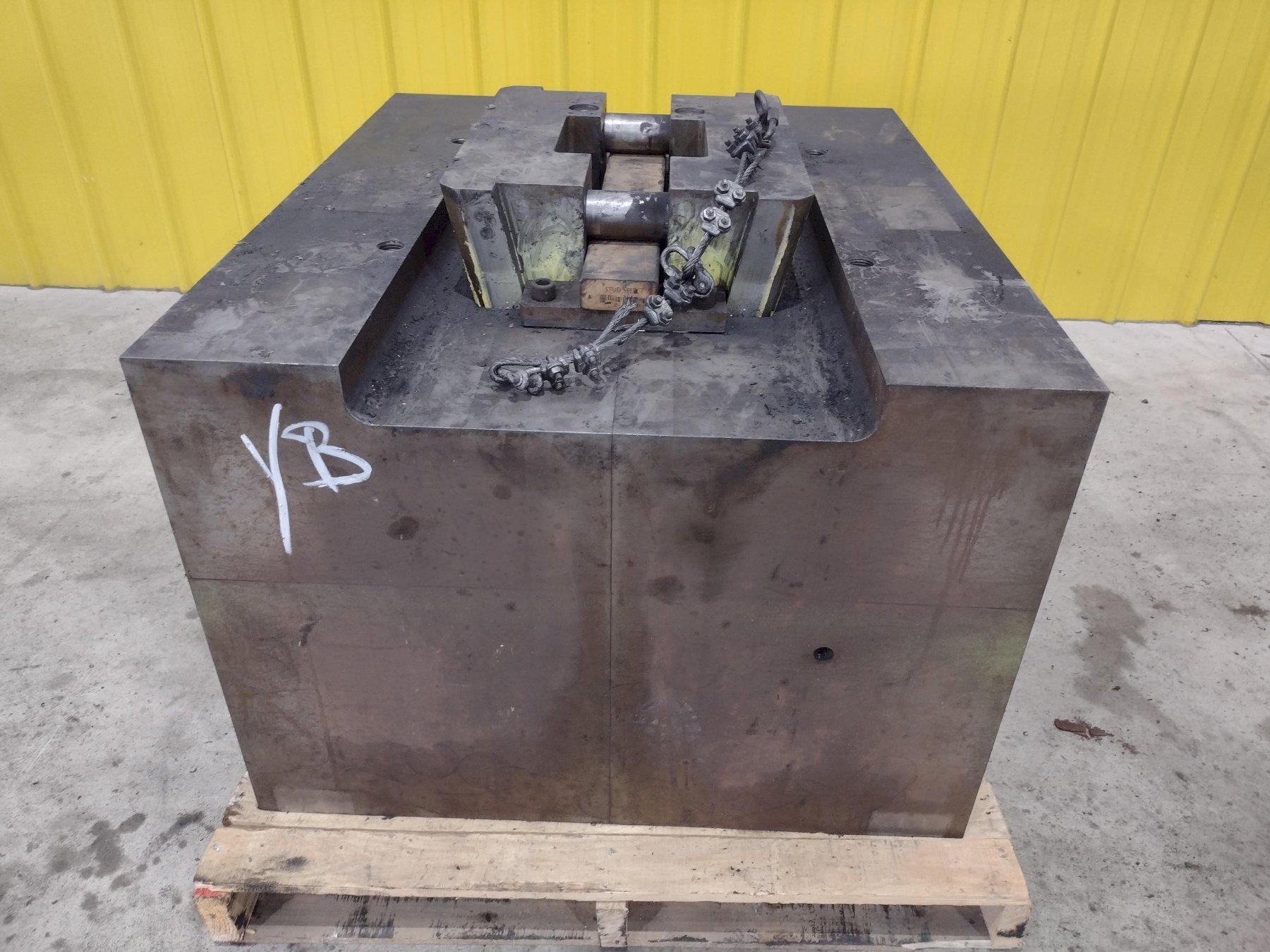

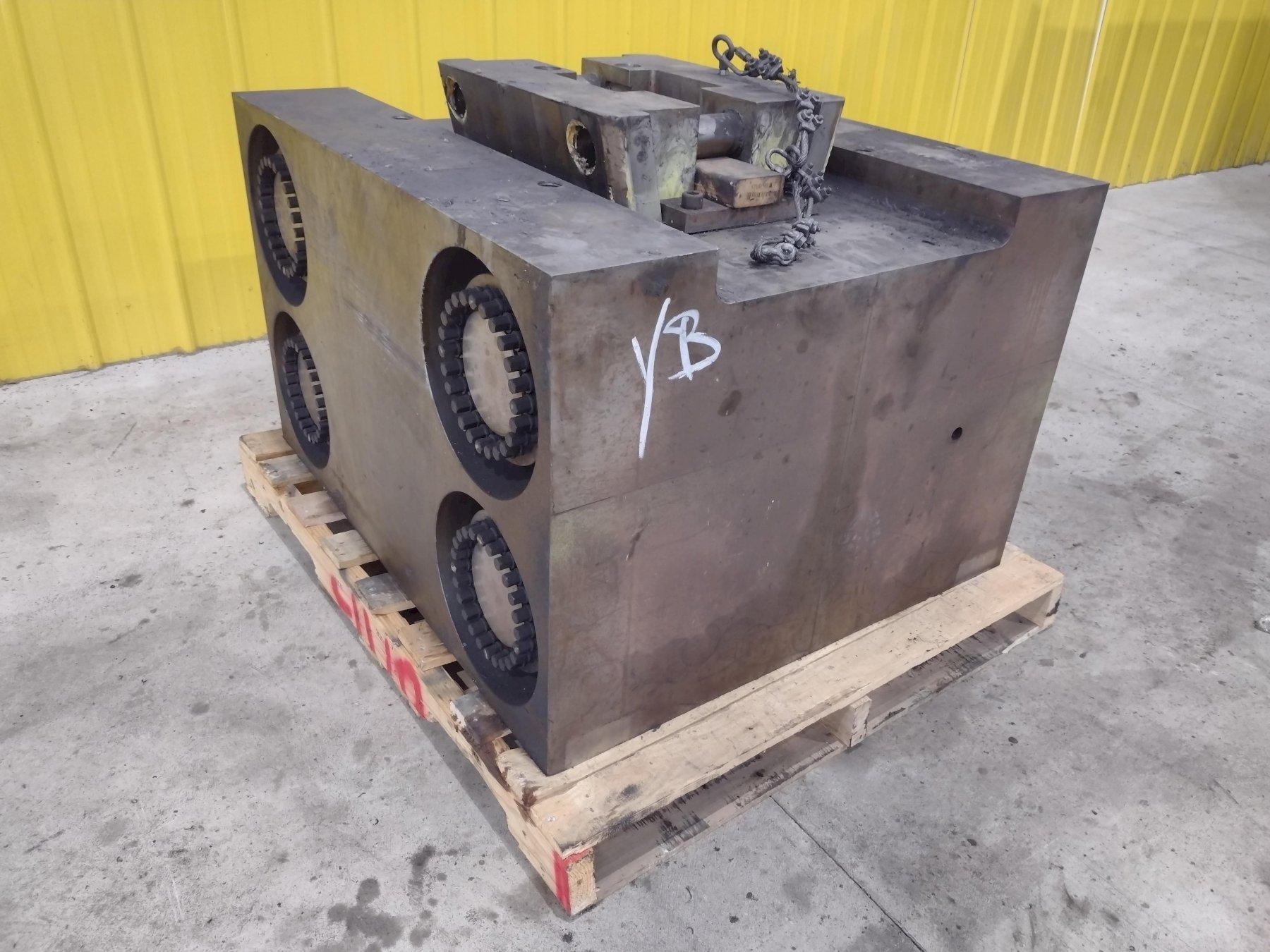

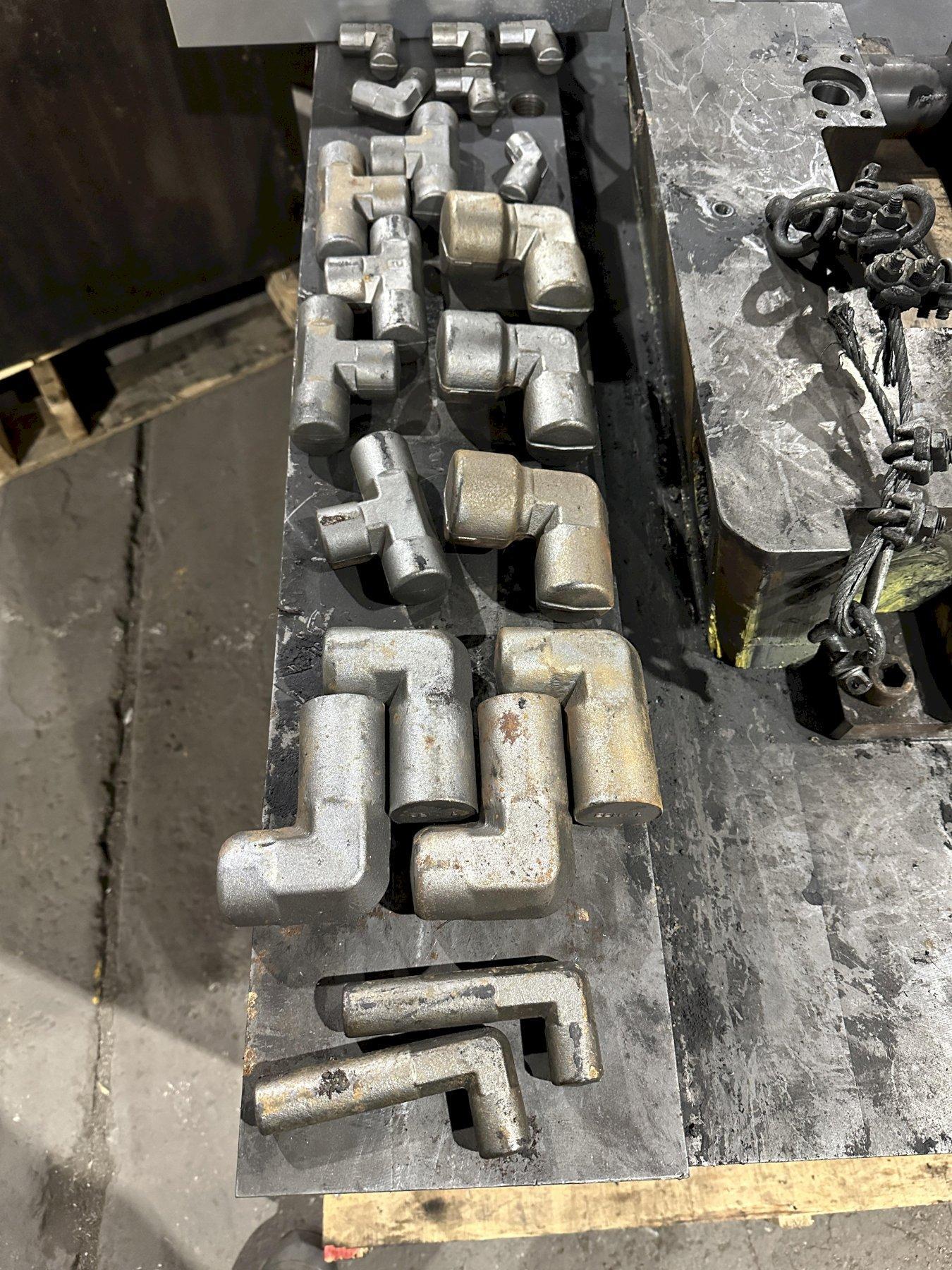

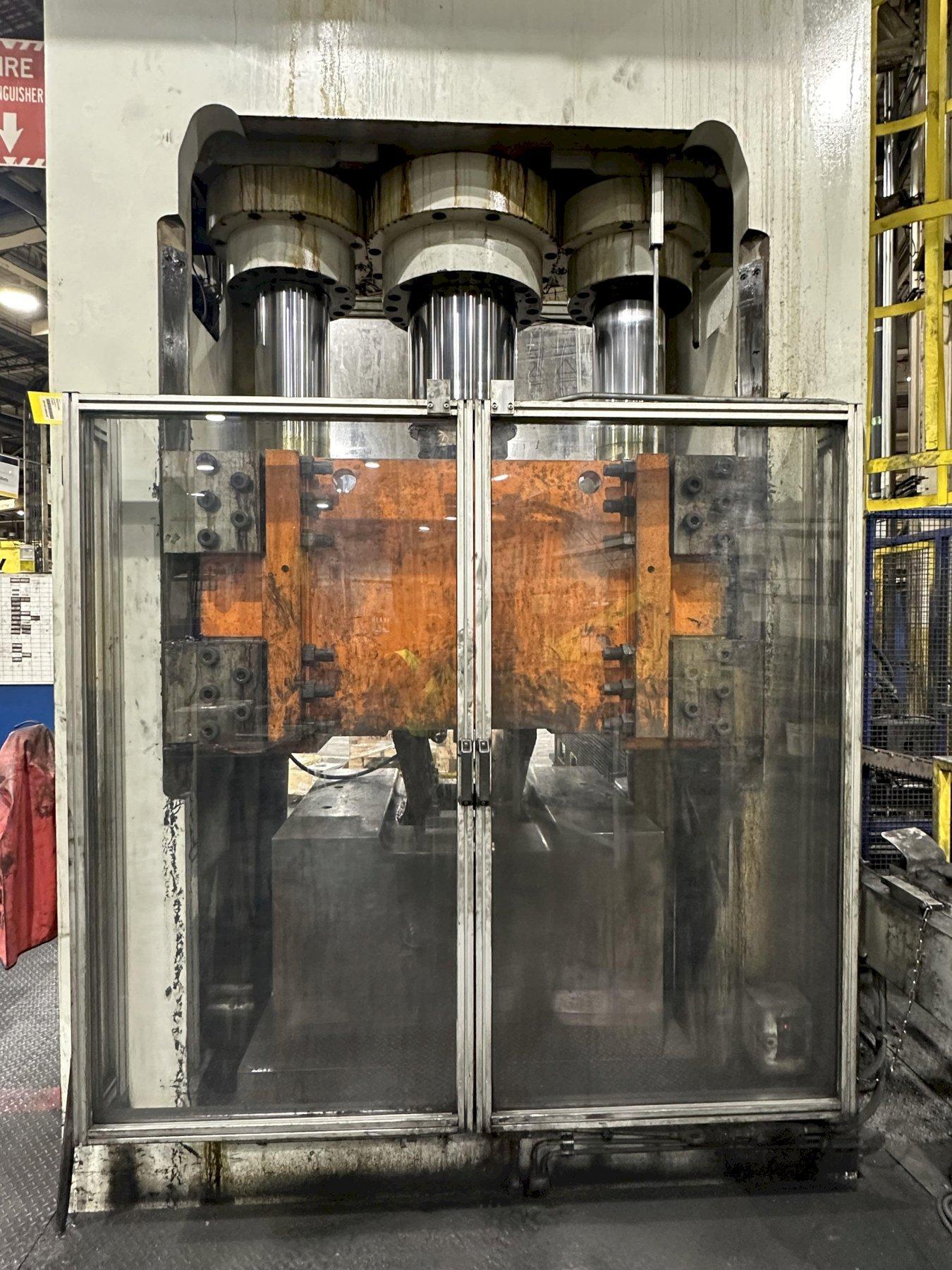

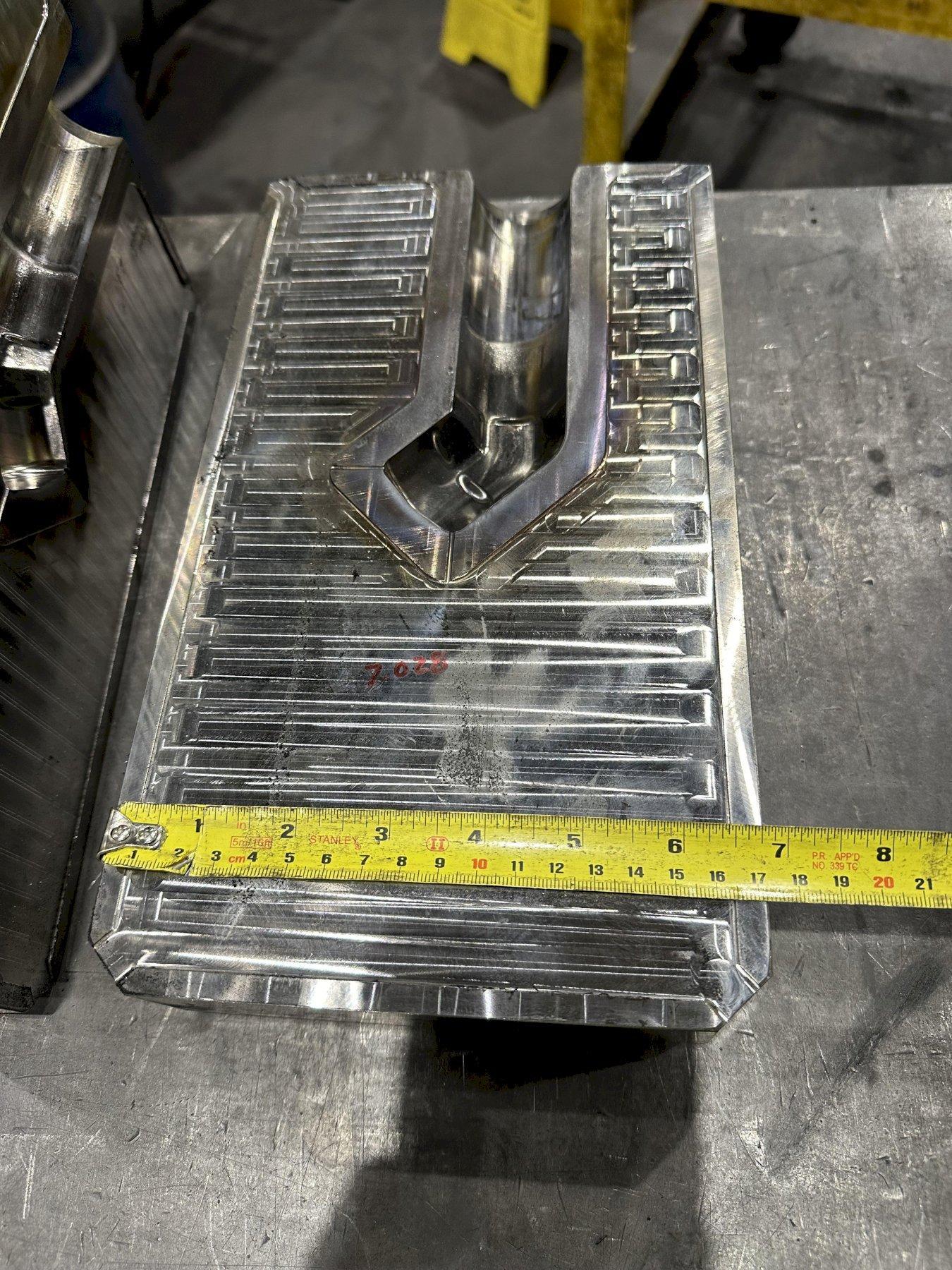

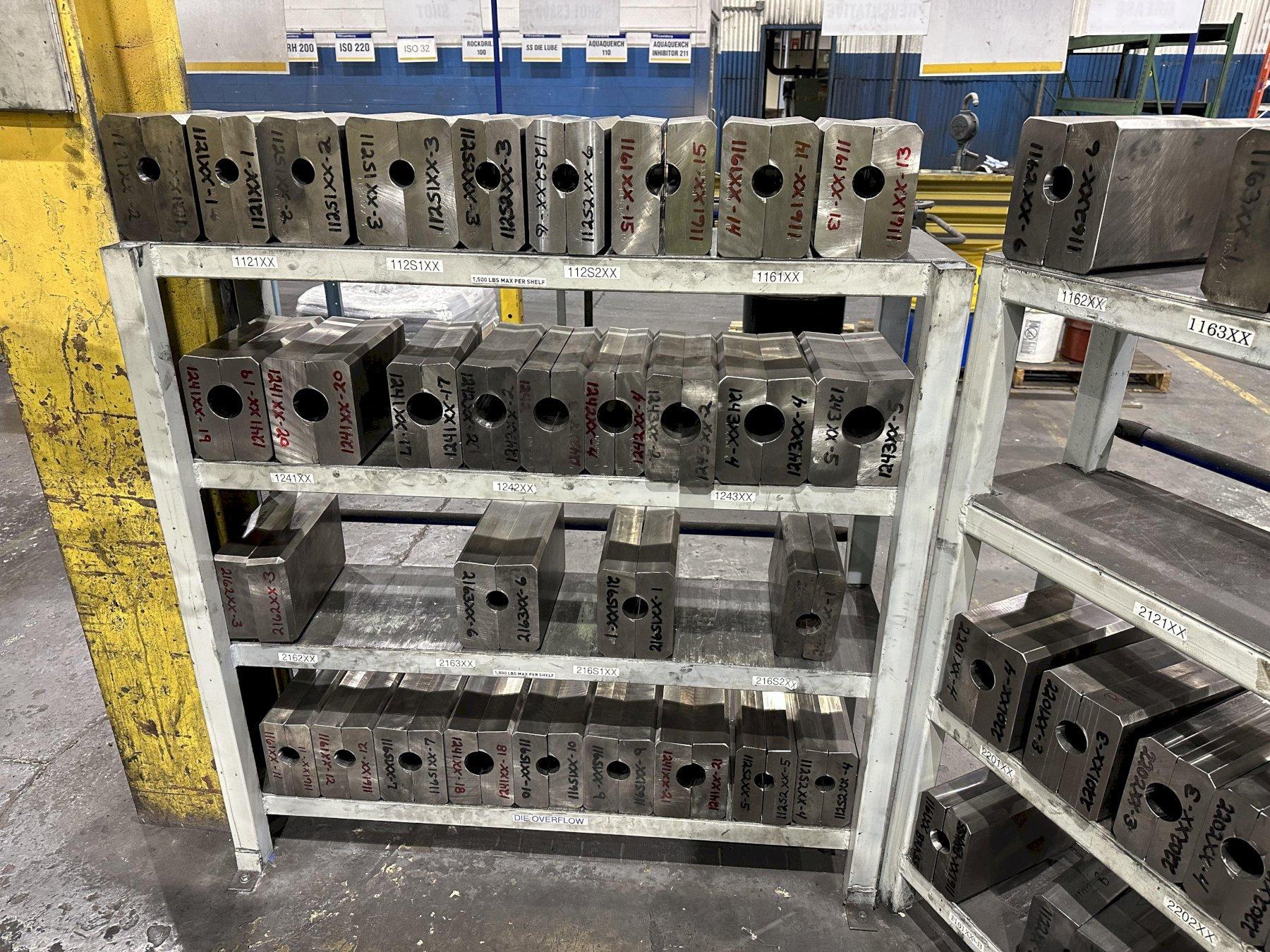

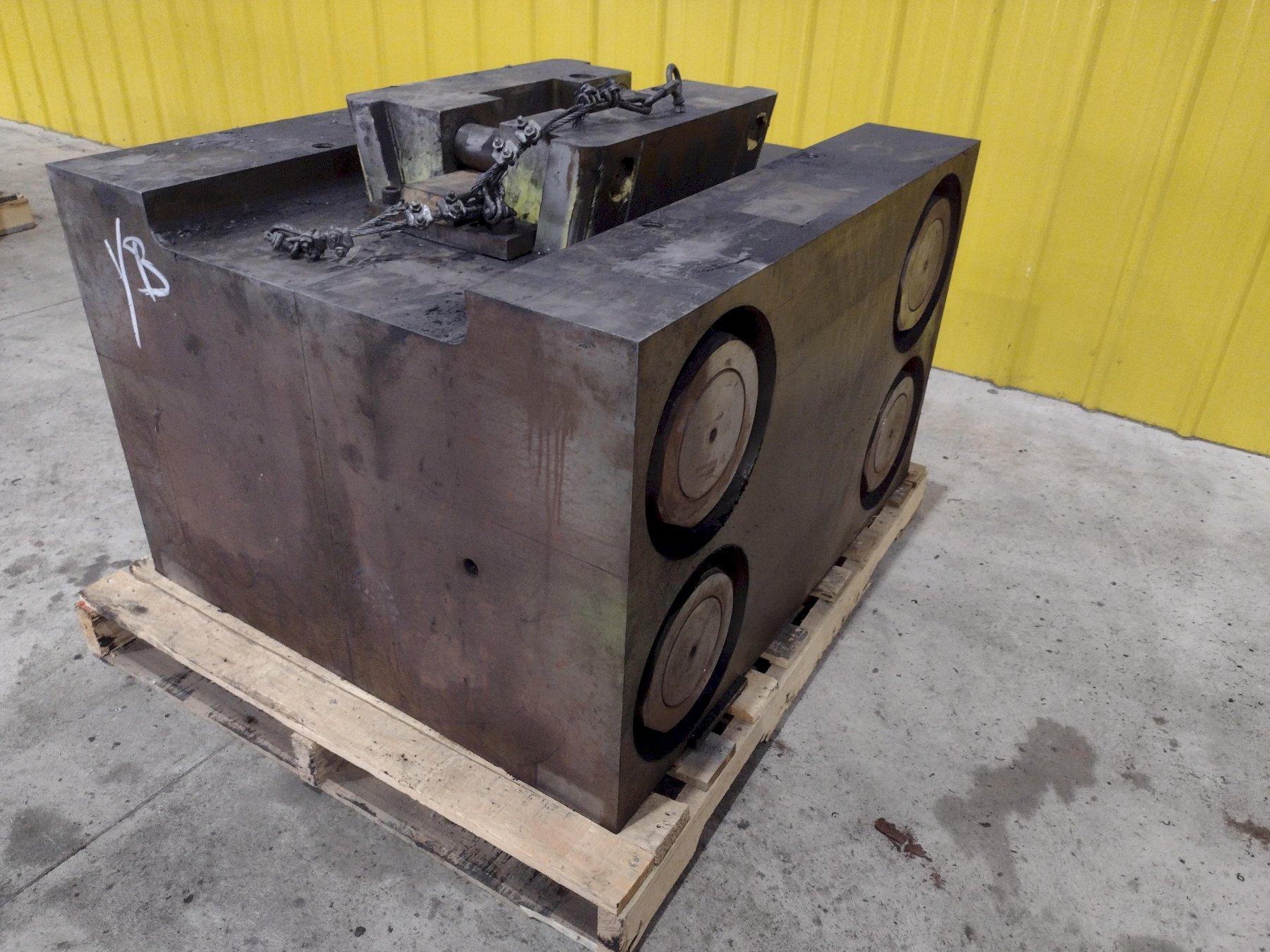

*** CURRENTLY USED FOR HOT FORGING WITH A WEDGE TYPE 2-PART CLOSED DIE ***
Brand
MACRODYNE
Type
Forging Presses
Stock No.
20204
 |
419-269-2000 |
Stock #: 20204
SERIAL ......................... 131513
YEAR NEW ....................... 2013
MODEL .......................... MPFG-400/400
FRAME SIZE ..................... 800 TON
OPENING BETWEEN FRAMES ......... 56"
BED SIZE ....................... 48" X 37.25"
MAIN PRESSING RAM CAPACITY ..... 400 TON
MAIN RAM STROKE ................ 32"
MAIN PRESSING RAM SPEEDS:
APPROACH ....................... 400 IN/MIN
PRESSING ....................... 75 IN/MIN
SLOW RETURN .................... 75 IN/MIN
FAST RETURN .................... 720 IN/MIN
HOLD DOWN / SIDE RAM CAPACITY .. 400 TON - 200 TON EACH
SIDE RAMS STROKE ............... 24"
SIDE HOLD-DOWN RAMS SPEEDS:
APPROACH ....................... 300 IN/MIN
PRESSING ....................... 75 IN/MIN
SLOW RETURN .................... 75 IN/MIN
FAST RETURN .................... 300 IN/MIN
CONTROLS ....................... YES, ALLEN BRADLEY
HYDRAULIC OIL VOLUME ........... 350 GALLONS
MAIN PUMP MOTOR ................ 200 HP
FILTER & COOLING PUMP MOTOR .... 10 HP
*** CURRENTLY USED FOR HOT FORGING WITH A WEDGE TYPE 2-PART CLOSED DIE ***
