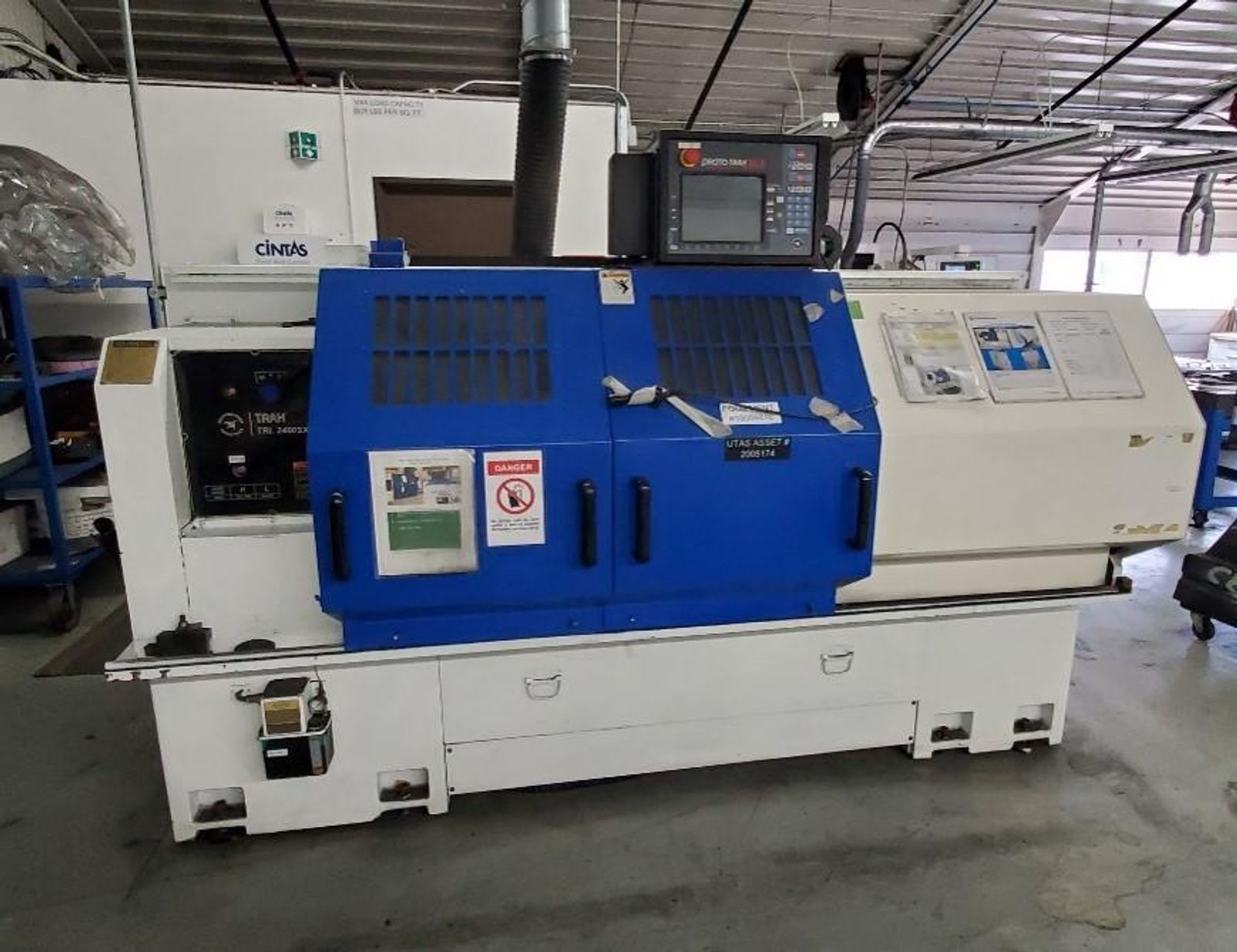

2012 SOUTHWEST INDUSTRIES TRAK 2460SX CNC LATHE, PROTO-TRAX SLX CONTROLS: STOCK #15644

Stock #: 15644

Equipped With

24" X 60" TRAK CNC/MANUAL FLAT BED LATHE
SERIAL ..................... 124CV447110
NEW ........................ 2012
MODEL ...................... TRAK 2460SX

SWING OVER BED ............. 24"
SWING OVER CROSS SLIDE ..... 14.5"
DISTANCE BETWEEN CENTERS ... 60"
CROSS SLIDE TRAVEL (X) ..... 12.5"
SPINDLE TAPER SIZE ......... D1-8"
SPINDLE SPEED LOW RANGE .... 40 - 670 RPM
SPINDLE SPEED HIGH RANGE ... 100 - 1800 RPM
SPINDLE BORE ............... 4.09"
WIDTH OF BED ............... 15.75
TAILSTOCK QUILL TRAVEL ..... 6.88"
TAILSTOCK QUILL DIAMETER ... 3"
TAILSTOCK QUILL TAPER  ..... #5 MT

EQUIPPED WITH:
- PROTOTRAK SLX CNC CONTROL
- 10.4" COLOR ACTIVE-MATRIX MONITOR
- TRAKing NETWORK OPTION

- HARDENED & GROUND BED WAYS
- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- REMOTE STOP/GO SWITCH
- COOLANT SYSTEM
- 15 HORSEPOWER SPINDLE DRIVE MOTOR

*** MACHINE COMING OUT OF AEROSPACE R&D FACILITY ***
*** LOW HOURS ***

Buy Machines

2012 SOUTHWEST INDUSTRIES TRAK 2460SX CNC LATHE, PROTO-TRAX SLX CONTROLS: STOCK #15644

Stock # 15644

Share Machine
Print Details

Machine Specifications

24" X 60" TRAK CNC/MANUAL FLAT BED LATHE
SERIAL ..................... 124CV447110
NEW ........................ 2012
MODEL ...................... TRAK 2460SX

SWING OVER BED ............. 24"
SWING OVER CROSS SLIDE ..... 14.5"
DISTANCE BETWEEN CENTERS ... 60"
CROSS SLIDE TRAVEL (X) ..... 12.5"
SPINDLE TAPER SIZE ......... D1-8"
SPINDLE SPEED LOW RANGE .... 40 - 670 RPM
SPINDLE SPEED HIGH RANGE ... 100 - 1800 RPM
SPINDLE BORE ............... 4.09"
WIDTH OF BED ............... 15.75
TAILSTOCK QUILL TRAVEL ..... 6.88"
TAILSTOCK QUILL DIAMETER ... 3"
TAILSTOCK QUILL TAPER  ..... #5 MT

EQUIPPED WITH:
- PROTOTRAK SLX CNC CONTROL
- 10.4" COLOR ACTIVE-MATRIX MONITOR
- TRAKing NETWORK OPTION

- HARDENED & GROUND BED WAYS
- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- REMOTE STOP/GO SWITCH
- COOLANT SYSTEM
- 15 HORSEPOWER SPINDLE DRIVE MOTOR

*** MACHINE COMING OUT OF AEROSPACE R&D FACILITY ***
*** LOW HOURS ***

Specifications
Dimensions 114" X 53" X 70"
Weight 7500
Live Tooling yes
