Machine Information

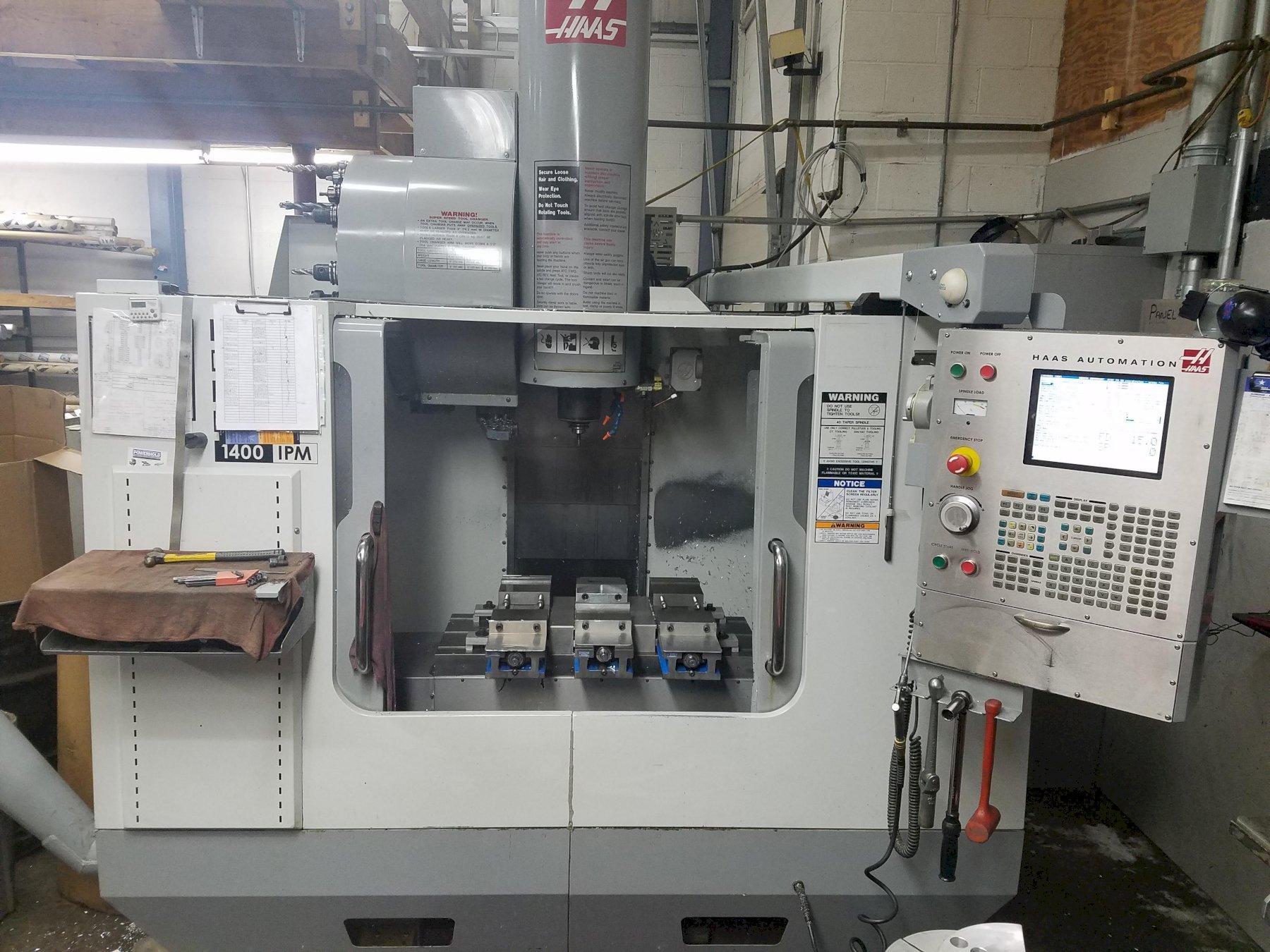

2007 HAAS MODEL #VF-2SS SUPER SPEED CNC VERTICAL MACHINING CENTER: STOCK 14124

Stock #: 14124

Equipped With

NEW 2007
MODEL VF-2SS

Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ TO 24″

Table:
Length: 36″
Width: 14″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Spindle:
Taper Size: CAT 40
Speed Range: 0 TO 12,000 RPM
Spindle Power: 30 HP
Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:
Capacity: 24 + 1
Max Tool Weight: 12 lbs
Max Tool Dia: 5″
Max Tool Length: 11″
Tool-to-Tool (avg.): 1.6 seconds
Chip to Chip (avg.): 2.2 seconds

Buy Machines

2007 HAAS MODEL #VF-2SS SUPER SPEED CNC VERTICAL MACHINING CENTER: STOCK 14124

Stock # 14124

Share Machine
Print Details
Download Images

Machine Specifications

NEW 2007
MODEL VF-2SS

Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ TO 24″

Table:
Length: 36″
Width: 14″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Spindle:
Taper Size: CAT 40
Speed Range: 0 TO 12,000 RPM
Spindle Power: 30 HP
Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:
Capacity: 24 + 1
Max Tool Weight: 12 lbs
Max Tool Dia: 5″
Max Tool Length: 11″
Tool-to-Tool (avg.): 1.6 seconds
Chip to Chip (avg.): 2.2 seconds

Specifications
Dimensions 89″ x 92″ x 104″ High
Weight 9200 pounds
