Machine Information

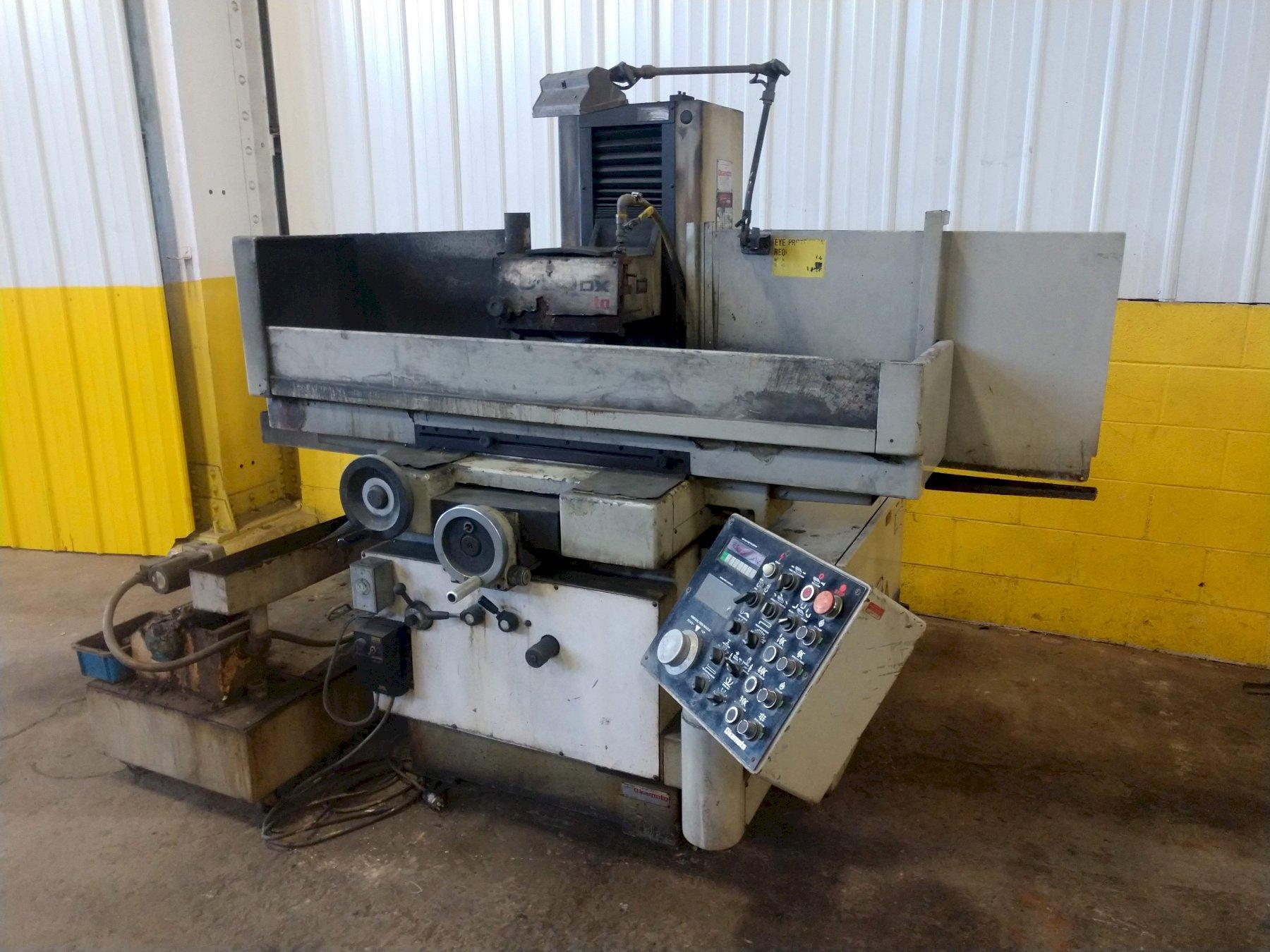

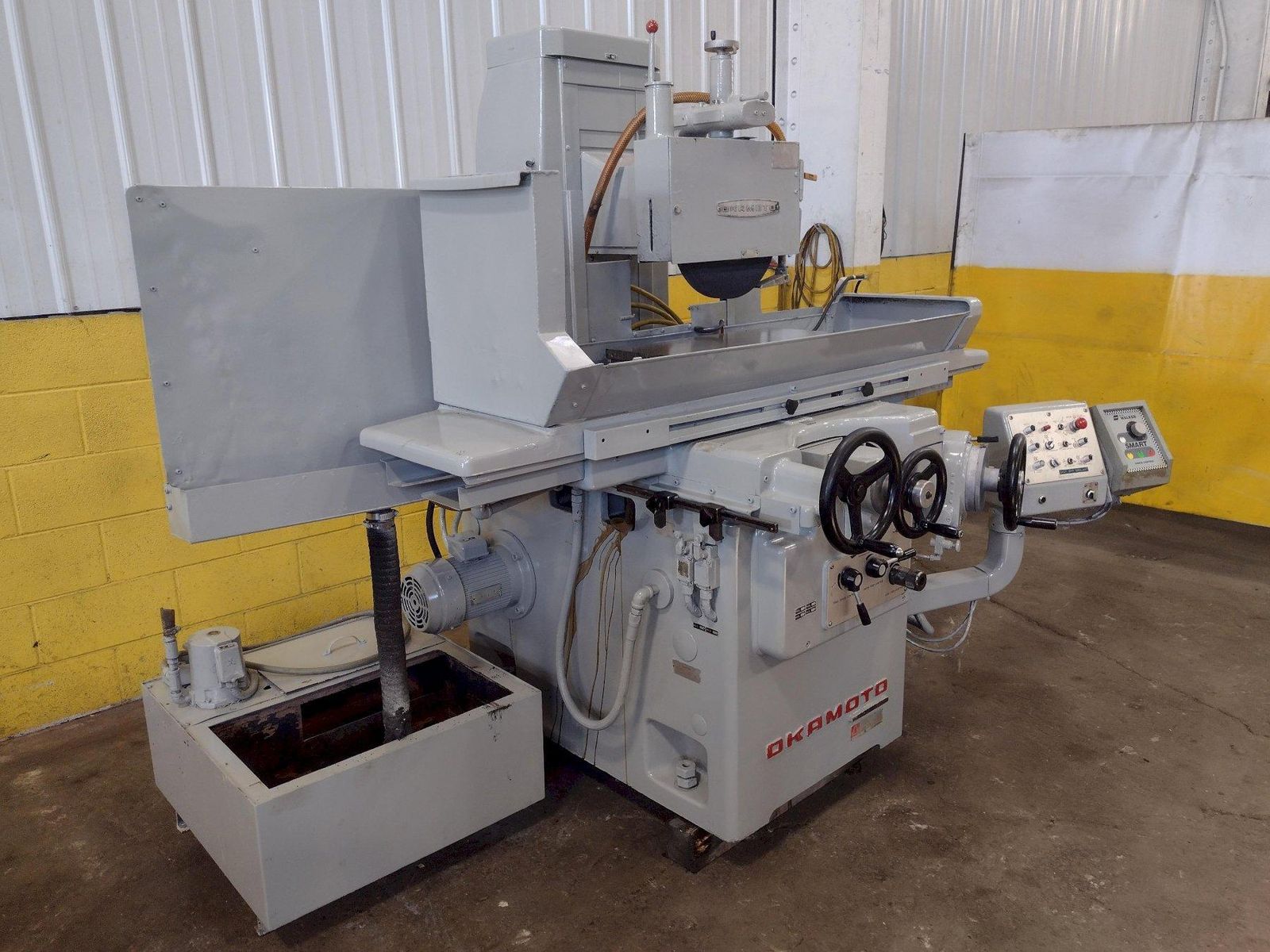

12" X 24" OKAMOTO MODEL ACCURGAR-125N HYDRAULIC HORIZONTAL SURFACE GRINDER: STOCK #14657

Stock #: 14657

Equipped With

SERIAL ............................ 6857
NEW ............................... 1992
MODEL ............................. 124N ACCUGAR
CAPACITY .......................... 12" X 24"
MAXIMUM UNDER WHEEL ............... 13.7"
HYDRAULIC TABLE FEED .............. 1 TO 100 FPM
LONGITUDINAL TABLE TRAVEL ......... 26"
AUTO CROSS TRAVEL ................. 13.6"
LONGITUDINAL FEEDS INTERMITTENT ... 0.02" TO 0.8"
LONGITUDINAL FEEDS CONTINUOUS ..... 4 TO 40 IPM
CROSS FEED RATE INTERMITTENT ...... 0.02" TO 0.8"
CROSS FEEDS RATE CONTINUOUS ....... 4 TO 40 IPM
INCREMENTAL DOWN FEED OF HEAD ..... YES
AUTO FEED PER TABLE STROKE ........ 0.0015" TO .0001"
AUTO FEED PER SADDLE REVERSE ...... 0.0015" TO .0001"
RAPID FEED RATE ................... 19 IPM
GRINDING WHEEL SIZE ............... 12" X 1-1/2" X 5"
OVER THE WHEEL DRESSER ............ YES
CHUCK VARIABLE HOLD ............... 12" X 24" X 3"
SPINDLE MOTOR ..................... 5 HORSEPOWER
HYDRAULIC MOTOR ................... 2 HORSEPOWER



Buy Machines

12" X 24" OKAMOTO MODEL ACCURGAR-125N HYDRAULIC HORIZONTAL SURFACE GRINDER: STOCK #14657

Stock # 14657

Share Machine
Print Details

Machine Specifications

SERIAL ............................ 6857

NEW ............................... 1992
MODEL ............................. 124N ACCUGAR
CAPACITY .......................... 12" X 24"
MAXIMUM UNDER WHEEL ............... 13.7"
HYDRAULIC TABLE FEED .............. 1 TO 100 FPM
LONGITUDINAL TABLE TRAVEL ......... 26"
AUTO CROSS TRAVEL ................. 13.6"
LONGITUDINAL FEEDS INTERMITTENT ... 0.02" TO 0.8"
LONGITUDINAL FEEDS CONTINUOUS ..... 4 TO 40 IPM
CROSS FEED RATE INTERMITTENT ...... 0.02" TO 0.8"
CROSS FEEDS RATE CONTINUOUS ....... 4 TO 40 IPM
INCREMENTAL DOWN FEED OF HEAD ..... YES
AUTO FEED PER TABLE STROKE ........ 0.0015" TO .0001"
AUTO FEED PER SADDLE REVERSE ...... 0.0015" TO .0001"
RAPID FEED RATE ................... 19 IPM
GRINDING WHEEL SIZE ............... 12" X 1-1/2" X 5"
OVER THE WHEEL DRESSER ............ YES
CHUCK VARIABLE HOLD ............... 12" X 24" X 3"
SPINDLE MOTOR ..................... 5 HORSEPOWER
HYDRAULIC MOTOR ................... 2 HORSEPOWER



Specifications
Weight 4925 pounds
COOLANT WEIGHT 225 pounds
