Machine Information

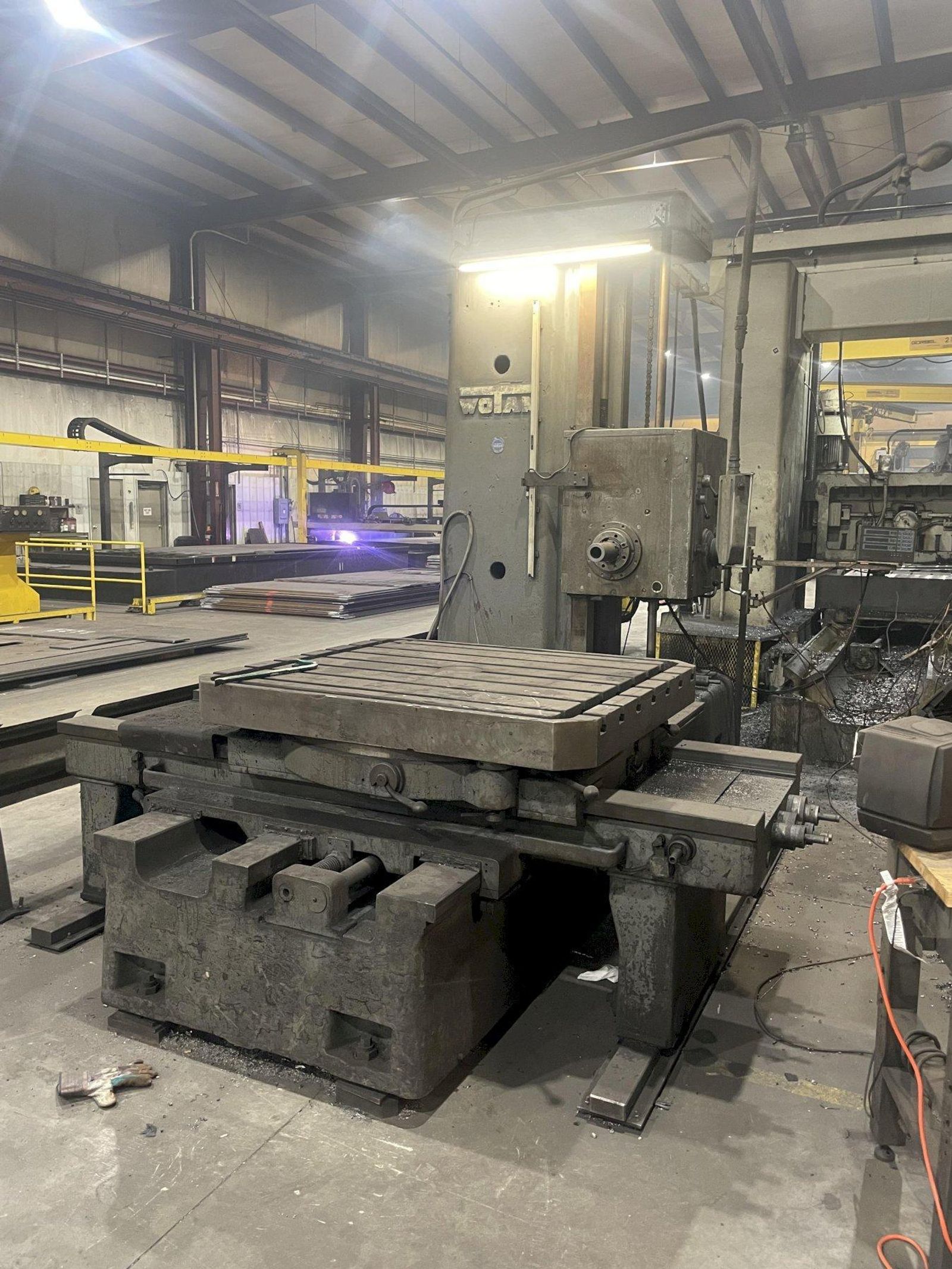

5" WOTAN MODEL #B-130 ROTARY TABLE & #50 TAPER HORIZONTAL BORING MILL: STOCK 15974

Stock #: 15974

Equipped With

SERIAL ....................... 54181
YEAR NEW ..................... 1972
MODEL ........................ B130
SPINDLE DIAMETER ............. 5-1/8"
SPINDLE TAPER ................ #50
SPINDLE QUILL TRAVEL ......... 40"
SPINDLE SPEEDS ............... (21) 14 TO 1,000 RPM
SPINDLE FEEDS ................ (27) .03 TO 12 mm/r
ROTARY TABLE SIZE ............ 48" X 56"
ROTARY TABLE T-SLOTTED ....... YES
ROTARY TABLE ROTATION ........ POWERED 360 DEGREES
ROTARY TABLE WEIGHT CAPACITY . 15,000 LBS
VERTICAL HEAD TRAVEL ......... 48"
TABLE CROSS TRAVEL ........... 72"
LONGINTUDINAL SADDLE TRAVEL .. 77"
RAPID TRAVERSE ............... YES, ALL DIRECTIONS
BED OUTRIGGERS ............... YES
PENDANT CONTROL .............. YES
#5 MT SPINDLE ADAPTOR ........ YES
MOTOR ........................ 20 HP

Buy Machines

5" WOTAN MODEL #B-130 ROTARY TABLE & #50 TAPER HORIZONTAL BORING MILL: STOCK 15974

Stock # 15974

Share Machine
Print Details

Machine Specifications

SERIAL ....................... 54181
YEAR NEW ..................... 1972
MODEL ........................ B130
SPINDLE DIAMETER ............. 5-1/8"
SPINDLE TAPER ................ #50
SPINDLE QUILL TRAVEL ......... 40"
SPINDLE SPEEDS ............... (21) 14 TO 1,000 RPM
SPINDLE FEEDS ................ (27) .03 TO 12 mm/r
ROTARY TABLE SIZE ............ 48" X 56"
ROTARY TABLE T-SLOTTED ....... YES
ROTARY TABLE ROTATION ........ POWERED 360 DEGREES
ROTARY TABLE WEIGHT CAPACITY . 15,000 LBS
VERTICAL HEAD TRAVEL ......... 48"
TABLE CROSS TRAVEL ........... 72"
LONGINTUDINAL SADDLE TRAVEL .. 77"
RAPID TRAVERSE ............... YES, ALL DIRECTIONS
BED OUTRIGGERS ............... YES
PENDANT CONTROL .............. YES
#5 MT SPINDLE ADAPTOR ........ YES
MOTOR ........................ 20 HP

Videos
Specifications
Dimensions 19' LONG X 9' WIDE X 11'6" HIGH
