Stock #: 16982
SERIAL 200806030
NEW 06/2008
MODEL S-1654
Model: BTM-40Travels: 40″ x 20″ x 27″ ZTable Size: 16″ x 54″Max. Table Load: 2,200 lbs.Spindle to Table: 28″ Max.Spindle Speed: 60 to 4,000 RPM (2-Speed)Manual Quill Travel: 6″Spindle Taper: 40 TaperQuill Diameter: 4 1/8″Spindle Motor: 7.5 HPFagor ControlHigh Quality, Heavily Ribbed CastingsHardened and Ground Box Ways with TurciteHardened and Ground Table SurfaceProgrammable Spindle SpeedsAuto Lube System and Flood Coolant
Stock # 16982
SERIAL 200806030
NEW 06/2008
MODEL S-1654

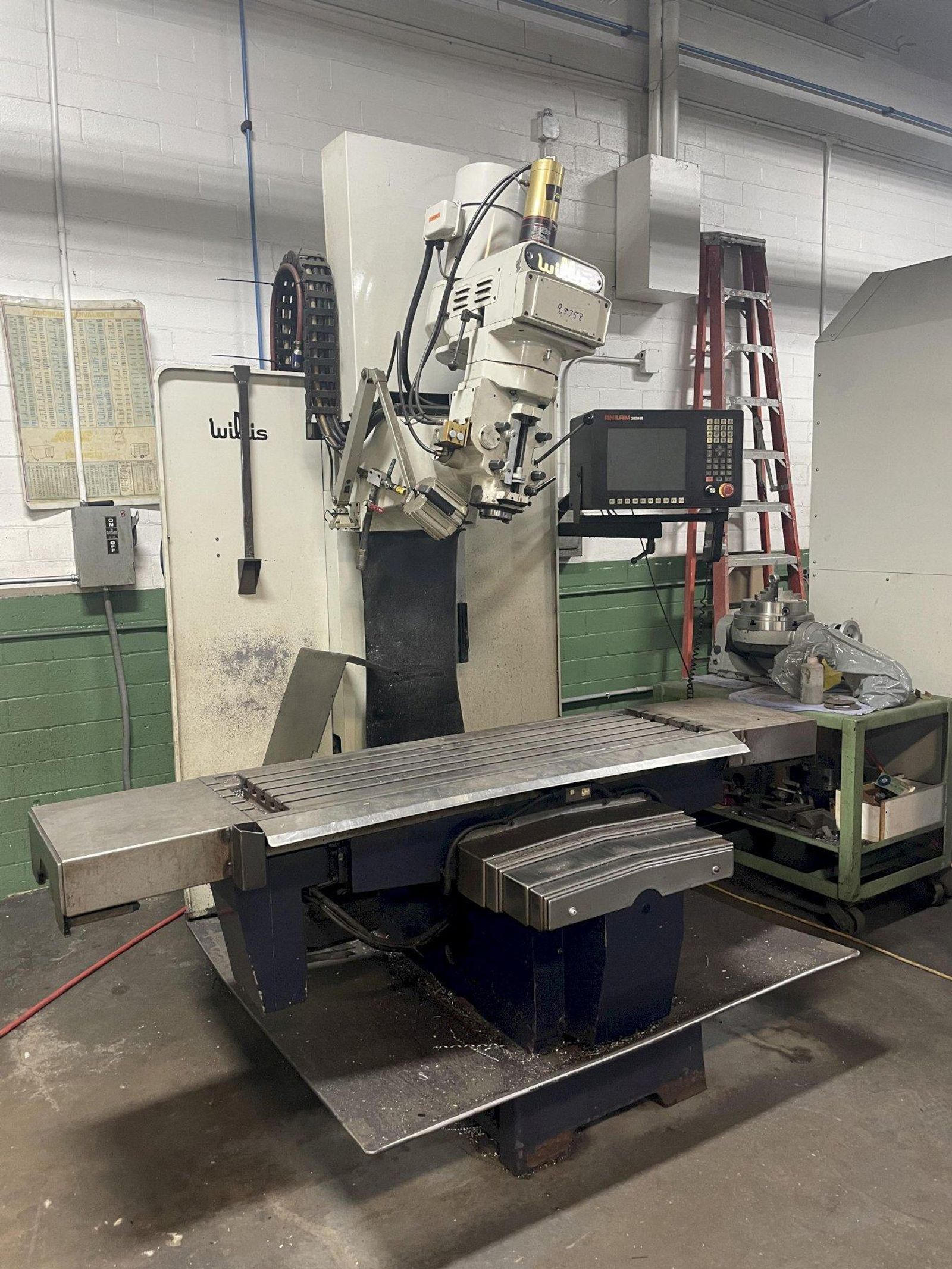

Model: BTM-40
Travels: 40″ x 20″ x 27″ Z
Table Size: 16″ x 54″
Max. Table Load: 2,200 lbs.
Spindle to Table: 28″ Max.
Spindle Speed: 60 to 4,000 RPM (2-Speed)
Manual Quill Travel: 6″
Spindle Taper: 40 Taper
Quill Diameter: 4 1/8″
Spindle Motor: 7.5 HP
Fagor Control
High Quality, Heavily Ribbed Castings
Hardened and Ground Box Ways with Turcite
Hardened and Ground Table Surface
Programmable Spindle Speeds
Auto Lube System and Flood Coolant
| Specifications | ||
|---|---|---|
| Weight | 5500 pounds | |
