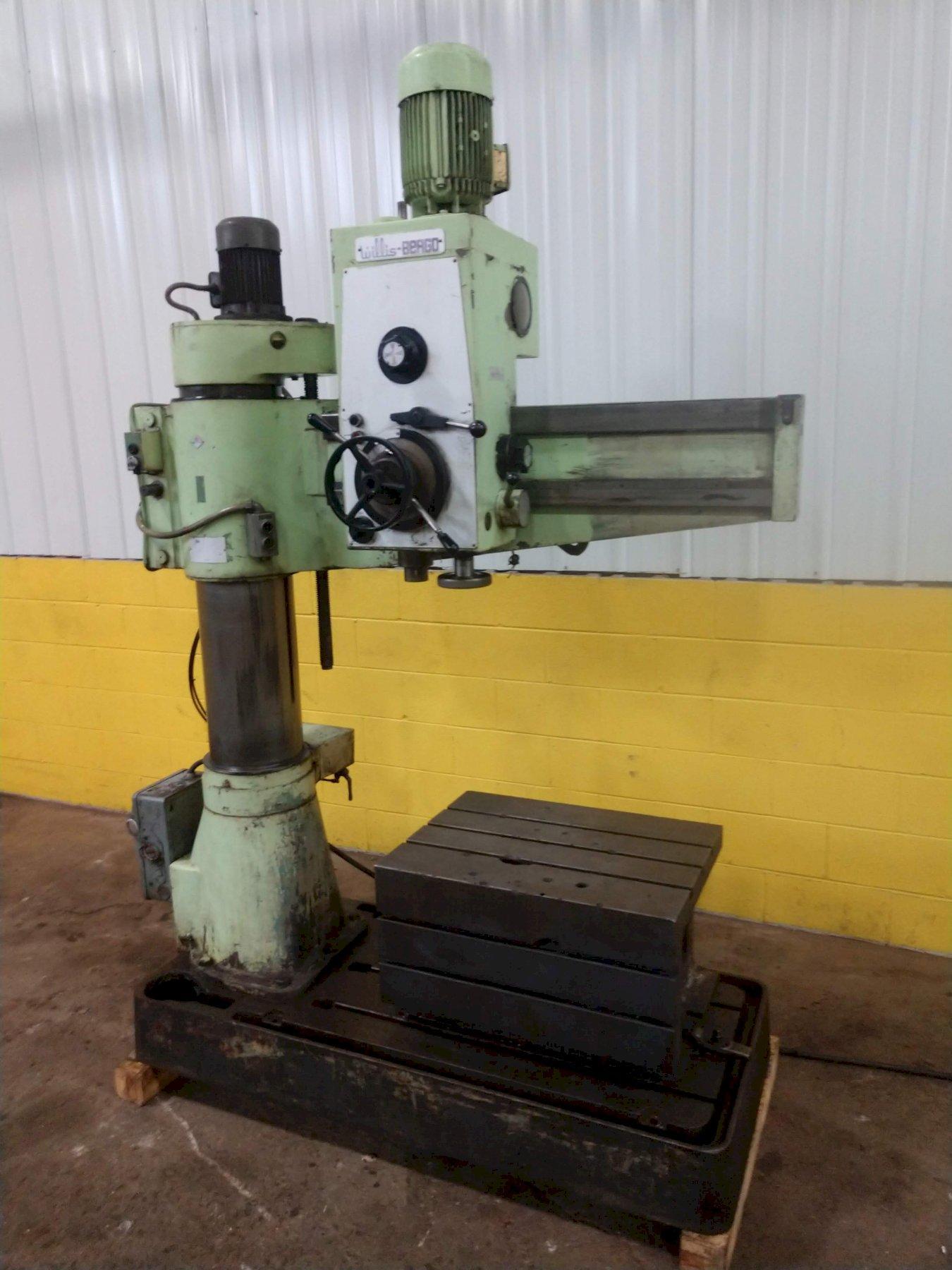

4' X 12" WILLIS-BERGO BERGONZI MODEL #TM50 RADIAL DRILL WITH BOX TABLE: STOCK#13167

Stock #: 13167

Equipped With

SERIAL ...................... B1/224/12354
MODEL ....................... TM50
AREA OF BASE ................ 52" X 25"
SPINDLE SPEEDS .............. (12) 38 TO 1520 RPM
FEEDS ....................... (5) .003,.006,.009,.013 & .021 IPR
TAPPING ..................... YES
DIAMETER OF SPINDLE ......... 3-3/8"
TAPER IN SPINDLE ............ #5 MT
SPINDLE TRAVEL .............. 11-7/8"
DRILLING CAPACITY ........... 2" MILD STEEL
DRILLING CAPACITY ........... 2-9/16" CAST IRON
TAPPING CAPACITY CAST IRON .. 2"
DISTANCE SPINDLE TO COLUMN .. 49"
DISTANCE SPINDLE TO BASE .... 12" MINIMUM TO 54" MAXIMUM
TRAVEL OF HEAD ON ARM ....... 37-1/2"
POWER ARM AND HEAD CLAMPING . YES
COOLANT ..................... YES
MOTOR ....................... 5 HORSEPOWER

Buy Machines

4' X 12" WILLIS-BERGO BERGONZI MODEL #TM50 RADIAL DRILL WITH BOX TABLE: STOCK#13167

Stock # 13167

Share Machine
Print Details

Machine Specifications

SERIAL ...................... B1/224/12354
MODEL ....................... TM50
AREA OF BASE ................ 52" X 25"
SPINDLE SPEEDS .............. (12) 38 TO 1520 RPM
FEEDS ....................... (5) .003,.006,.009,.013 & .021 IPR
TAPPING ..................... YES
DIAMETER OF SPINDLE ......... 3-3/8"
TAPER IN SPINDLE ............ #5 MT
SPINDLE TRAVEL .............. 11-7/8"
DRILLING CAPACITY ........... 2" MILD STEEL
DRILLING CAPACITY ........... 2-9/16" CAST IRON
TAPPING CAPACITY CAST IRON .. 2"
DISTANCE SPINDLE TO COLUMN .. 49"
DISTANCE SPINDLE TO BASE .... 12" MINIMUM TO 54" MAXIMUM
TRAVEL OF HEAD ON ARM ....... 37-1/2"
POWER ARM AND HEAD CLAMPING . YES
COOLANT ..................... YES
MOTOR ....................... 5 HORSEPOWER

Videos
Specifications
Weight 7000 pounds
