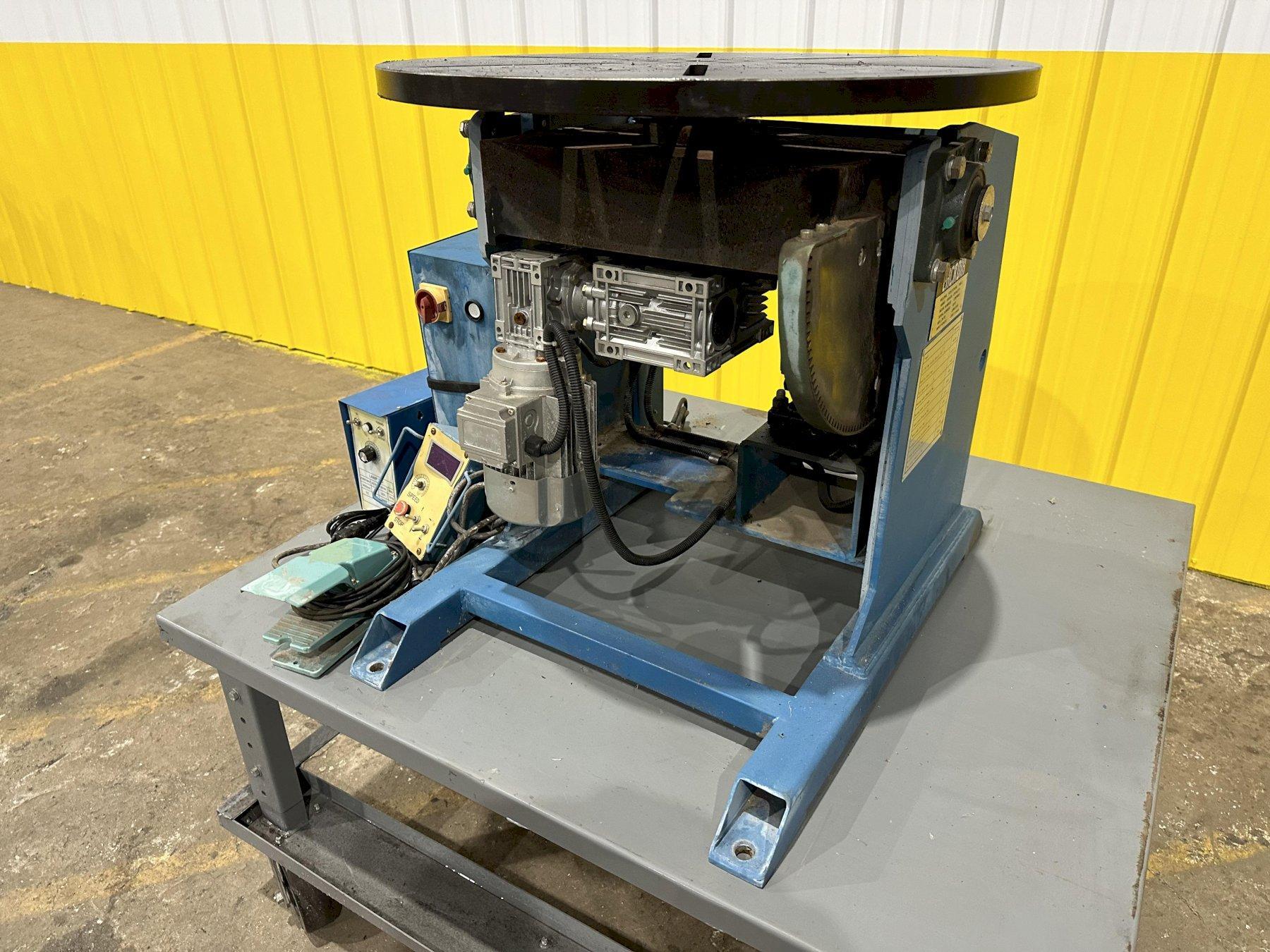

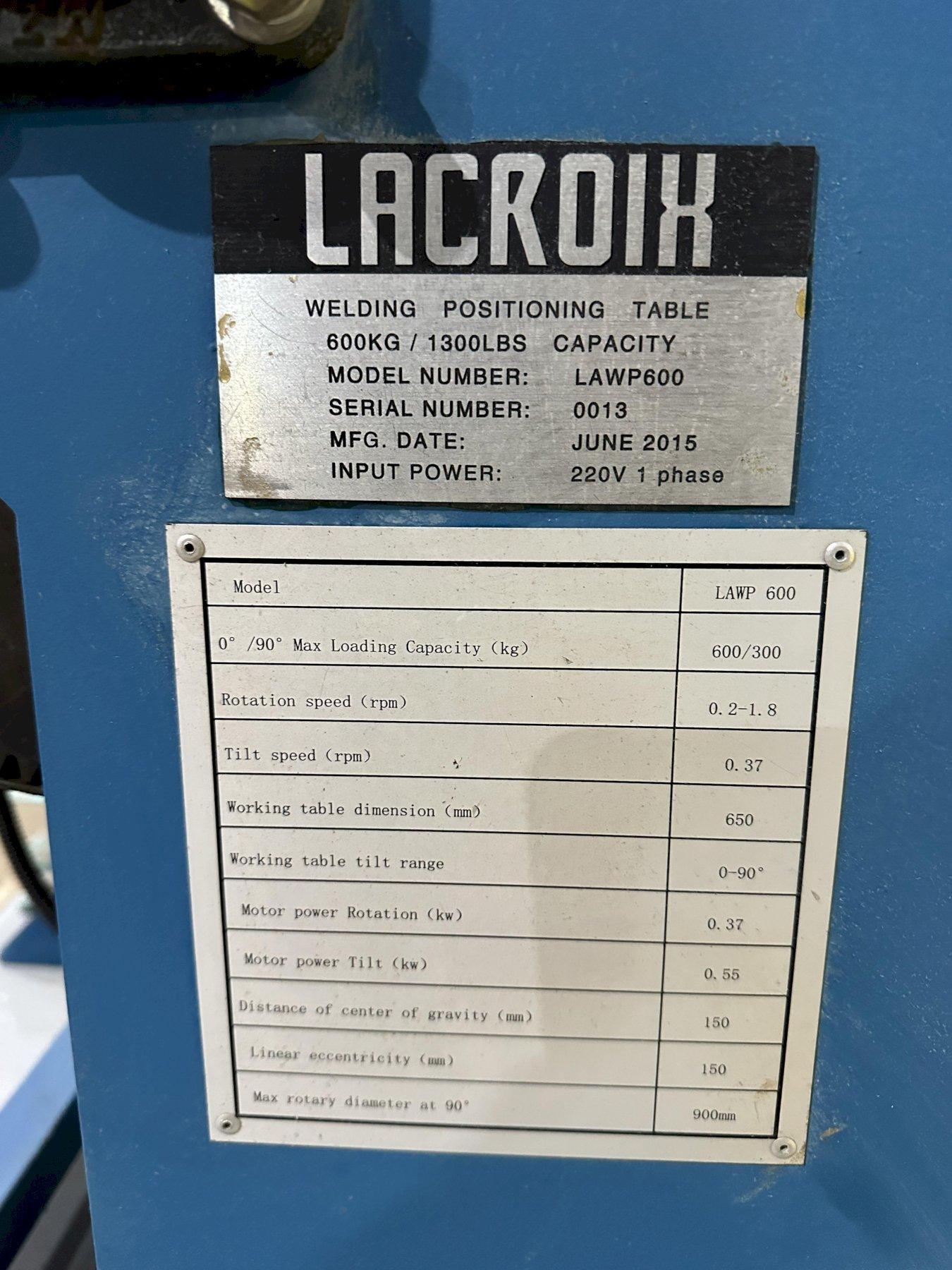

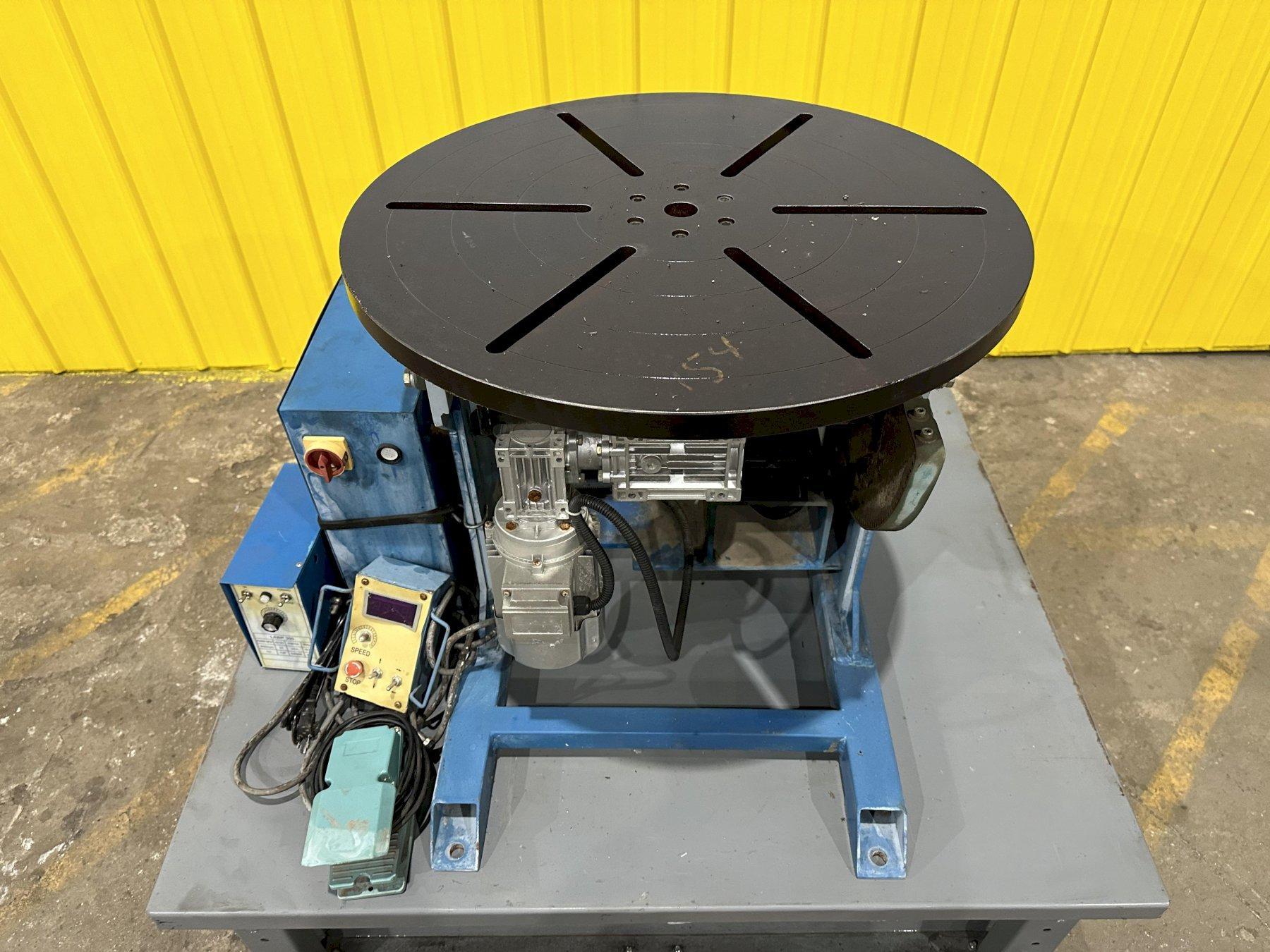

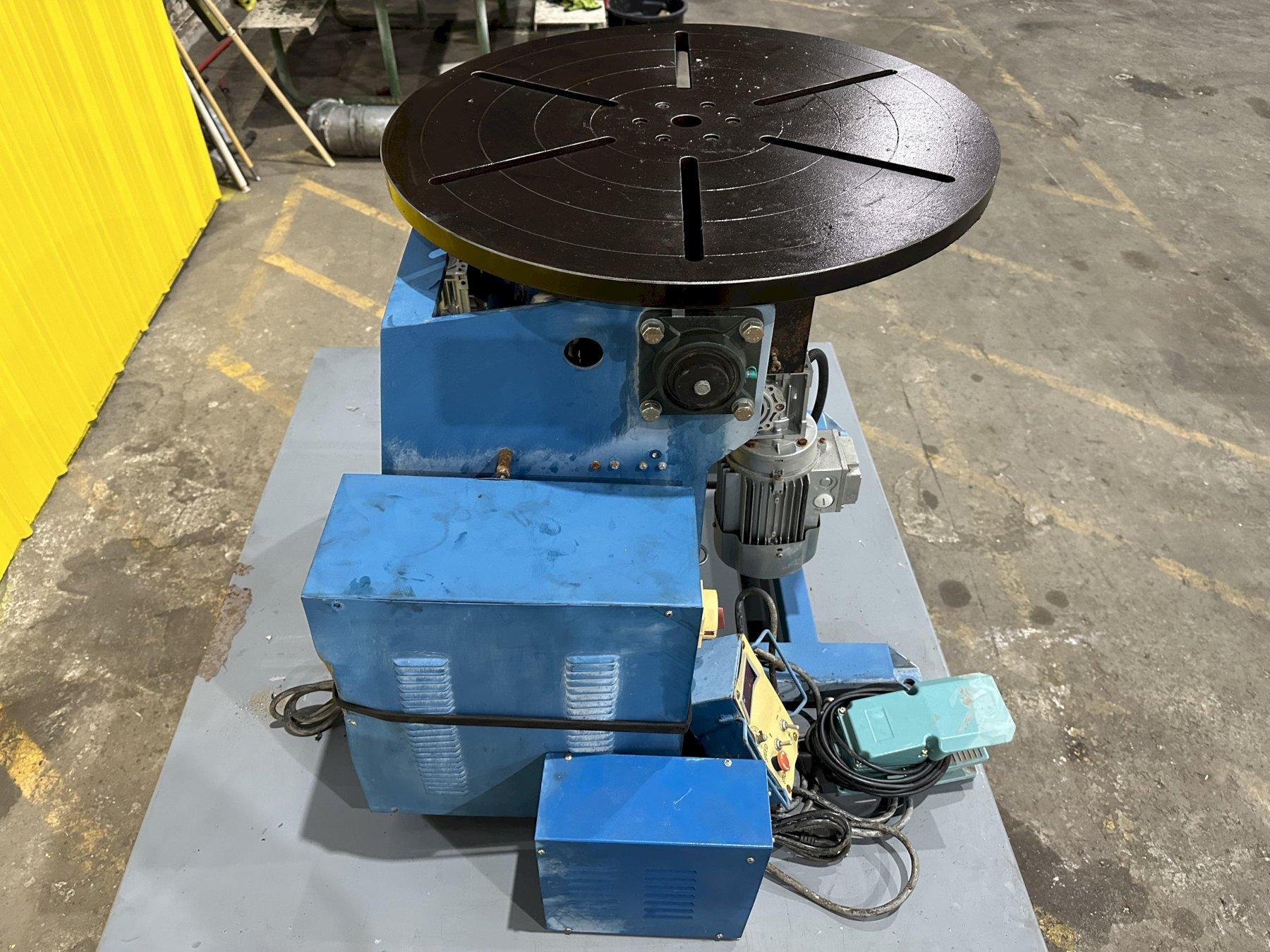

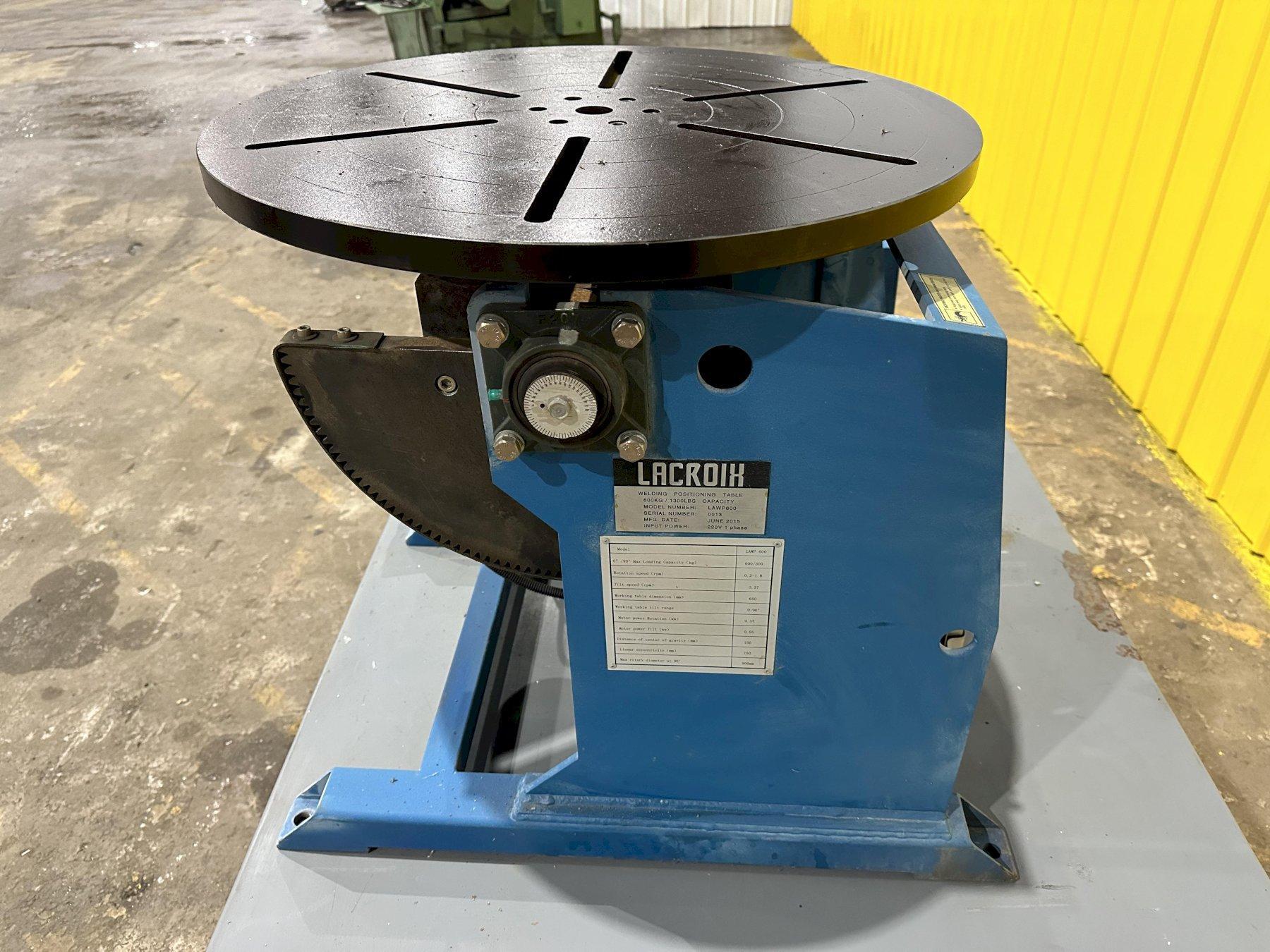

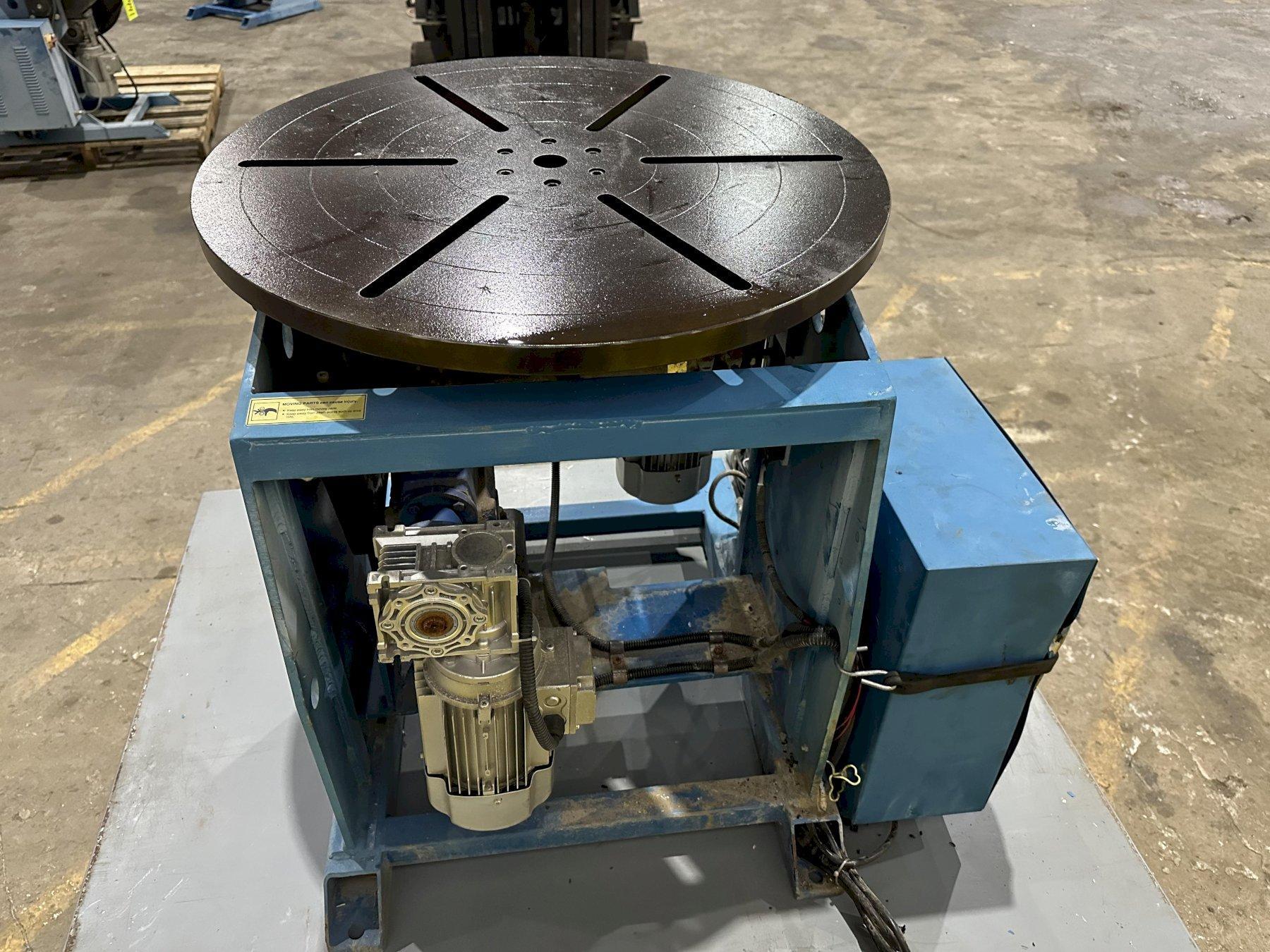

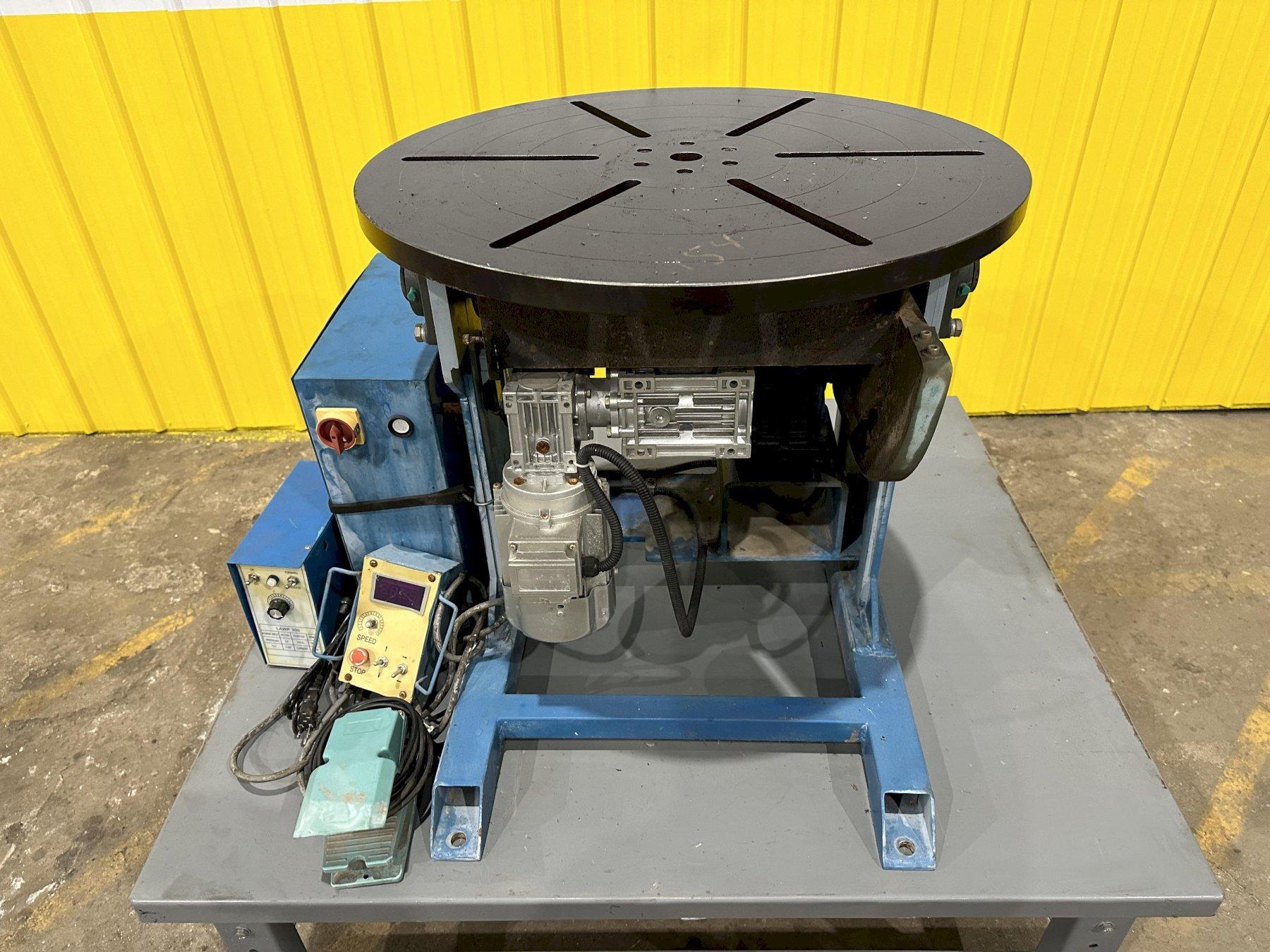

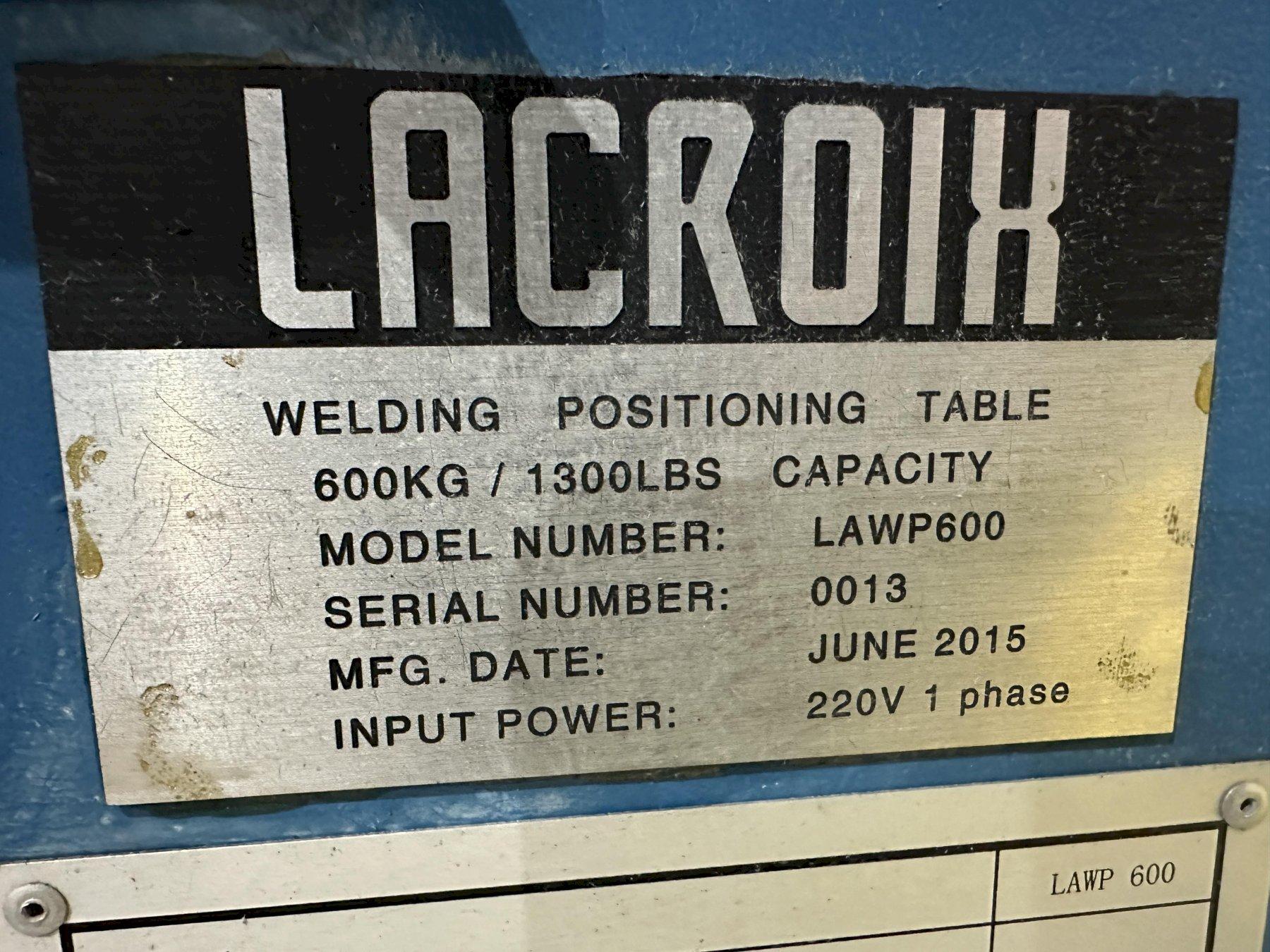

MODEL ........................... LAWP 600
SERIAL .......................... 0013
MFG. DATE ....................... JUNE 2015
0° / 90° MAX LOADING CAPACITY ... 1300/650 LBS (600/300 KG)
ROTATION SPEED .................. 0.2 -1.8 RPM
TILT SPEED ...................... 0.37 RPM
WORKIGG TABLE DIMENSION ......... 650 MM
WORKING TABLE TILT RANGE ........ 0-90°

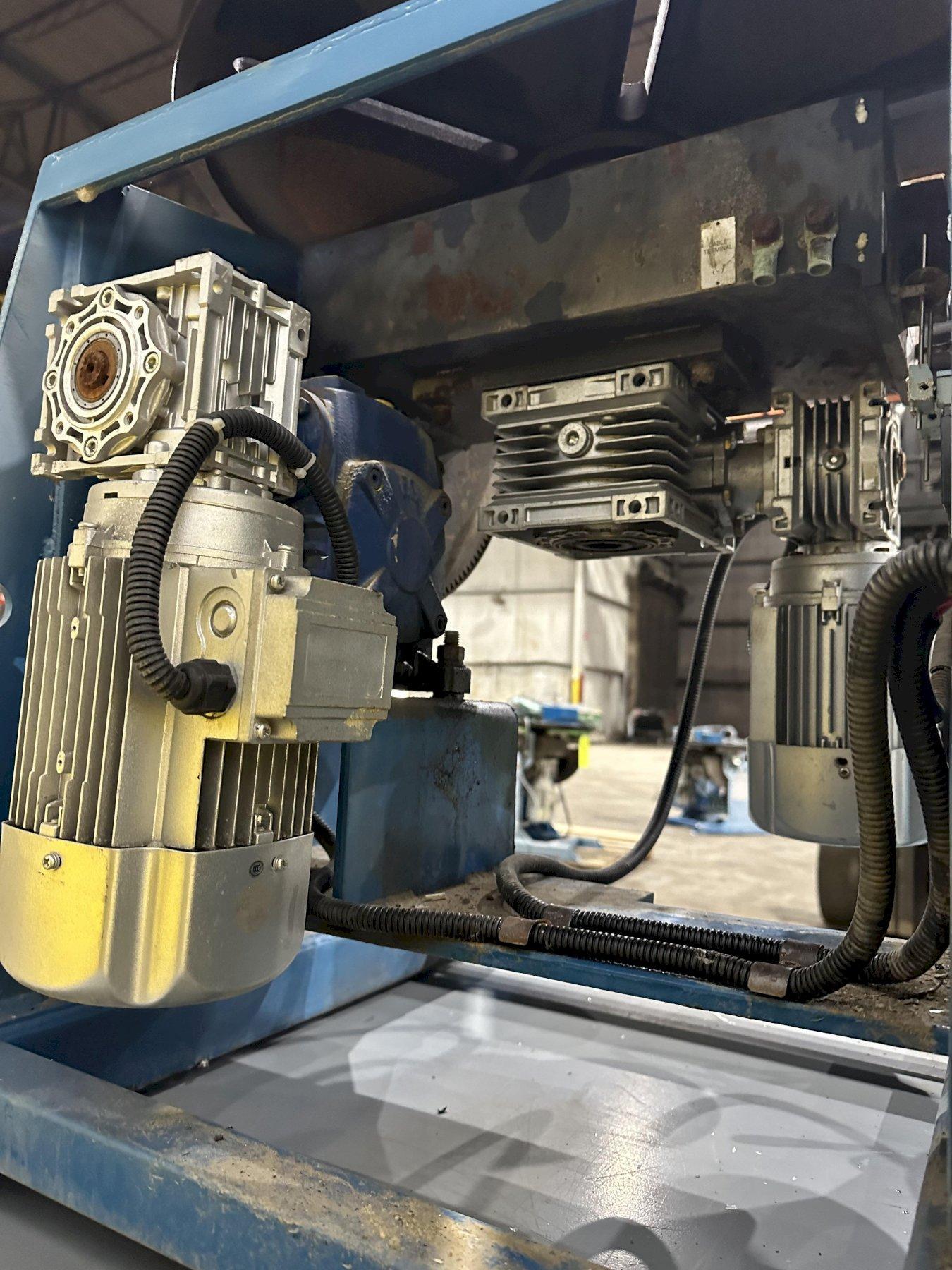

MOTOR POWER ROTATION ............ 0.37 KW
MOTOR POWER TILT ................ 0.55 KW
DISTANCE OF CENTER OF GRAVITY ... 5.9" (150 MM)
LINEAR ECCENTRICITY ............. 5.9" (150 MM)
MAX ROTARY DIAMETER AT 90° ...... 35.43" (900 MM)
Brand
Not Specified
Type
Welding Positioners
Stock No.
18443
 |
419-269-2000 |
Stock #: 18443
MODEL ........................... LAWP 600
SERIAL .......................... 0013
MFG. DATE ....................... JUNE 2015
0° / 90° MAX LOADING CAPACITY ... 1300/650 LBS (600/300 KG)
ROTATION SPEED .................. 0.2 -1.8 RPM
TILT SPEED ...................... 0.37 RPM
WORKIGG TABLE DIMENSION ......... 650 MM
WORKING TABLE TILT RANGE ........ 0-90°
MOTOR POWER ROTATION ............ 0.37 KW
MOTOR POWER TILT ................ 0.55 KW
DISTANCE OF CENTER OF GRAVITY ... 5.9" (150 MM)
LINEAR ECCENTRICITY ............. 5.9" (150 MM)
MAX ROTARY DIAMETER AT 90° ...... 35.43" (900 MM)
