Stock #: 18848

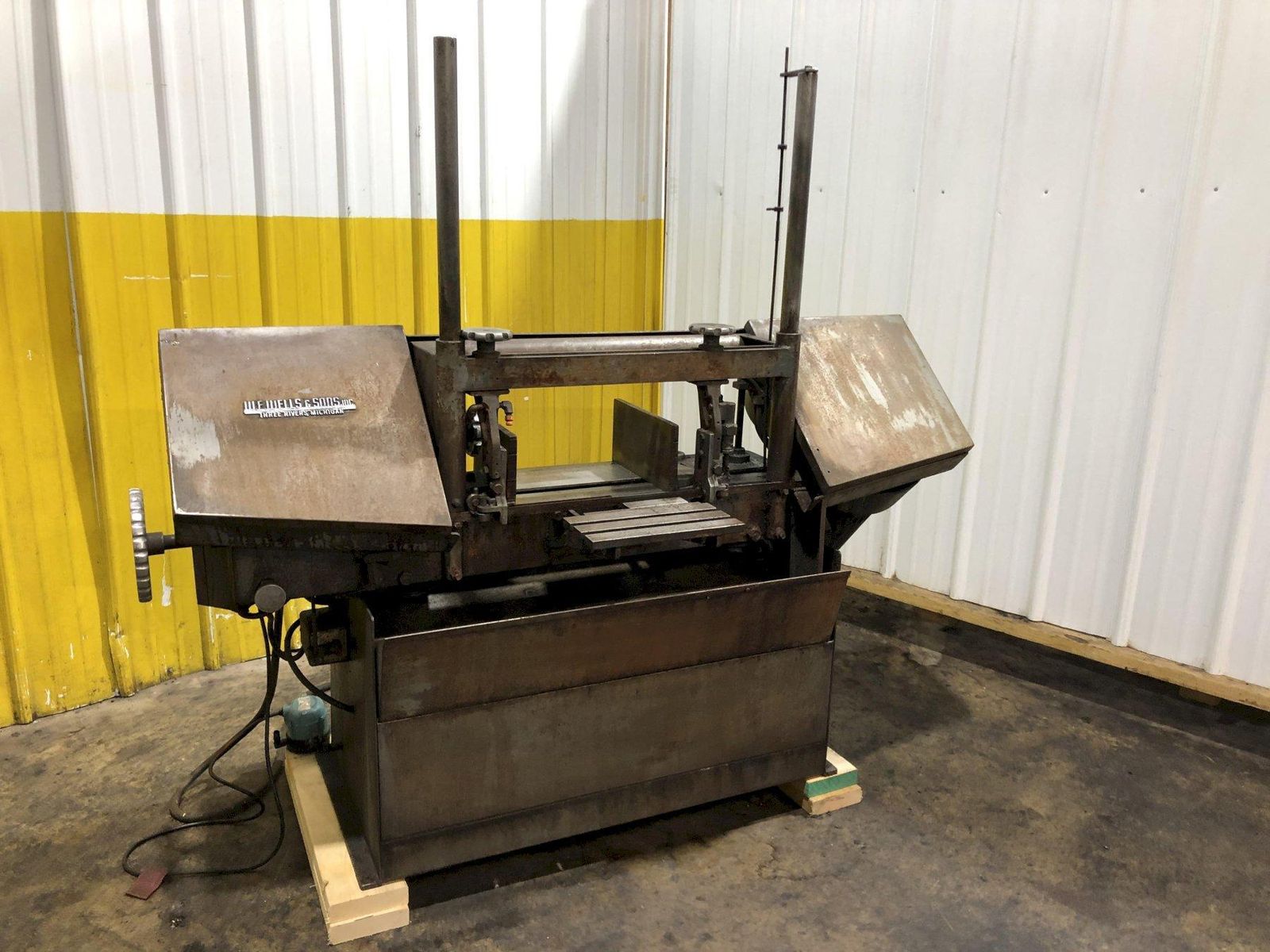

W.F. Wells W-9 Dual Column Horizontal Band Saw 9" x 17"
SPECIFICATIONS:
Capacity:
Rectangle 90 Degrees: 9" x 17"
Round @ 90 Degrees: 9"
Rectangle @ 45 Degrees: 9" x 8"
Round @ 45 Degrees: 8"
Blade Speed (Variable): 70- 380 FPM
Blade Size: 1" x 0.035" x 11' 6"
Sawing Force (Variable): 30- 120 Lbs.
Band Wheel Size: 14.5"
Coolant Capacity: 10 Gallons
Blade Drive: 3 HP
EQUIPPED WITH:
Twin Post Design
Hydraulic Feed
Manual Blade Tension
Manual Vise
Stock # 18848
W.F. Wells W-9 Dual Column Horizontal Band Saw 9" x 17" SPECIFICATIONS: Capacity: Rectangle 90 Degrees: 9" x 17" Round @ 90 Degrees: 9" Rectangle @ 45 Degrees: 9" x 8" Round @ 45 Degrees: 8" Blade Speed (Variable): 70- 380 FPM Blade Size: 1" x 0.035" x 11' 6" Sawing Force (Variable): 30- 120 Lbs. Band Wheel Size: 14.5" Coolant Capacity: 10 Gallons Blade Drive: 3 HP EQUIPPED WITH: Twin Post Design Hydraulic Feed Manual Blade Tension Manual Vise
Specifications | ||
---|---|---|
Dimensions | (L x W x H): 80" x 35" x 62" | |
Weight | 1000 pounds |
