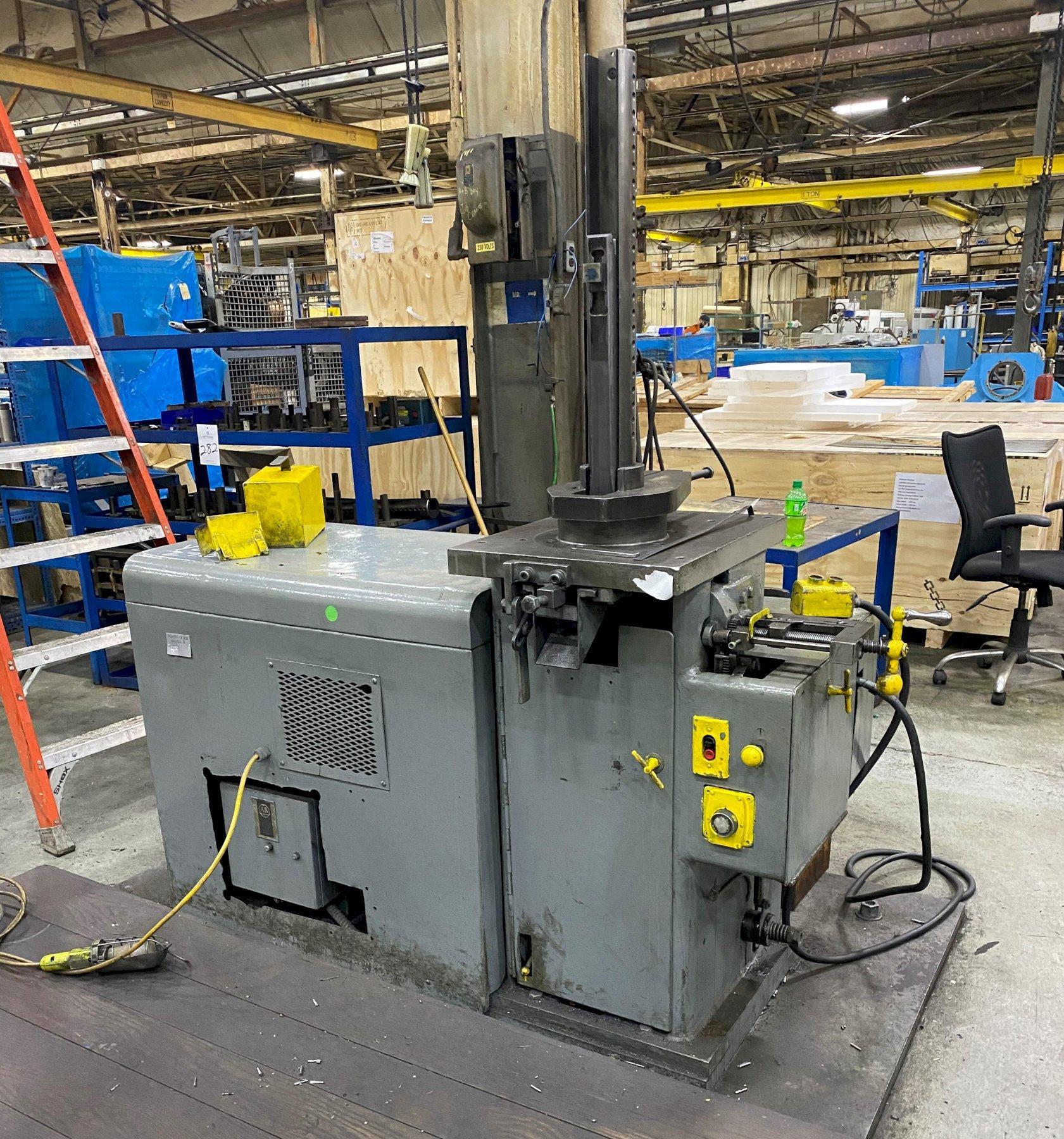

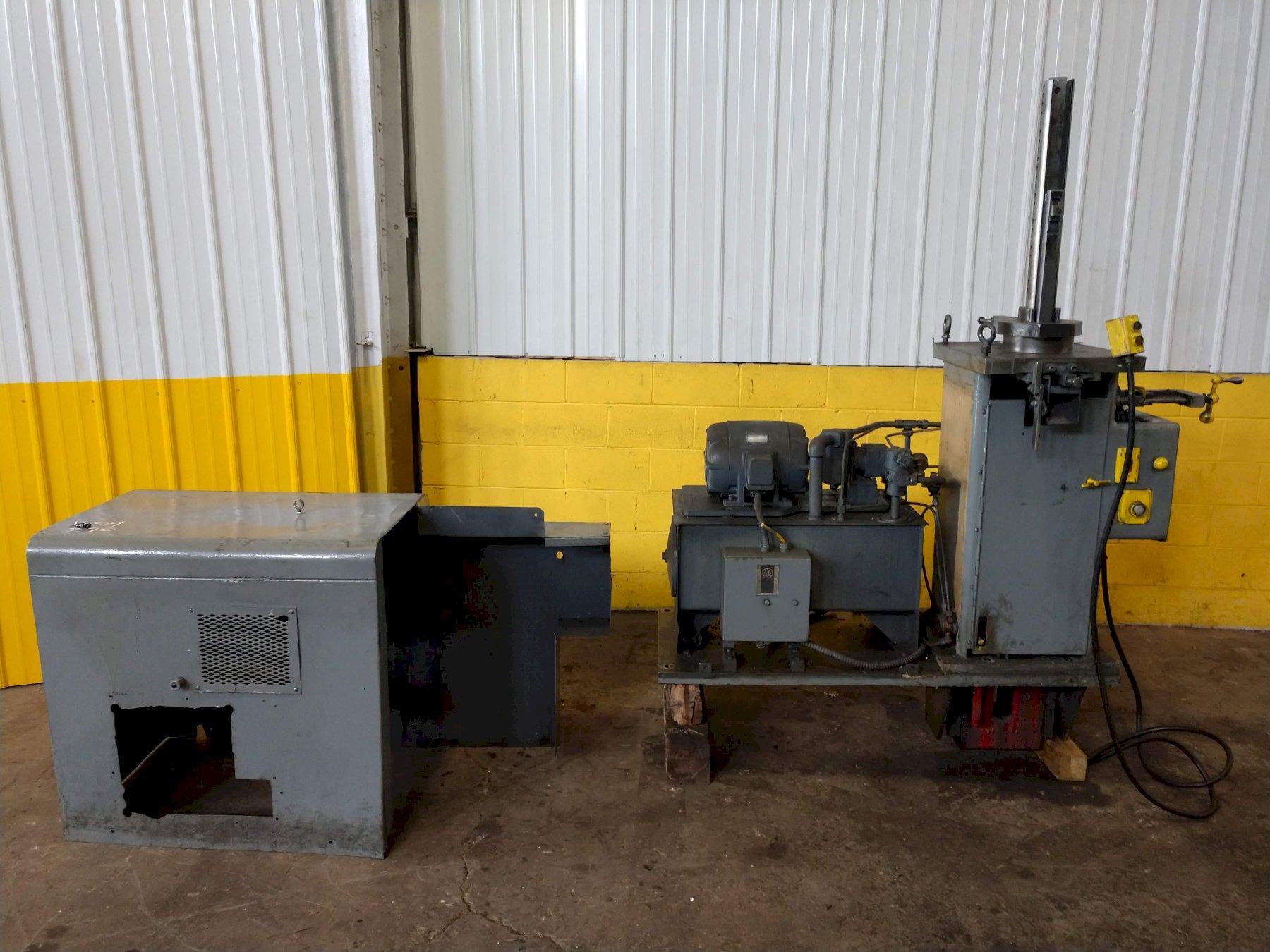

2" X 24" MITTS & MERRILL MODEL 3A HYDRAULIC KEYSEATER: STOCK #14747

Stock #: 14747

Equipped With

SERIAL ........................ 6422
MODEL ......................... 3A
MAXIMUM LENGTH OF STROKE ...... 24"
MAXIMUM KEYWAY WIDTH .......... 2"
LARGEST STANDARD POST ......... 3-3/8"
CUTTING SPEEDS ................ 12.9 TO 21.4 FPM
RETURN SPEEDS ................. 43.7 FPM
TABLE AREA .................... 21" X 18"
HEIGHT FLOOR TO TABLE TOP ..... 40-5/8"
TABLE CAPACITY ................ 5000 LBS
HAND/AUTO FEED ................ YES
VICKERS HYDRAULIC PUMP ........ 7.5 HP

Buy Machines

2" X 24" MITTS & MERRILL MODEL 3A HYDRAULIC KEYSEATER: STOCK #14747

Stock # 14747

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 6422
MODEL ......................... 3A
MAXIMUM LENGTH OF STROKE ...... 24"
MAXIMUM KEYWAY WIDTH .......... 2"
LARGEST STANDARD POST ......... 3-3/8"
CUTTING SPEEDS ................ 12.9 TO 21.4 FPM
RETURN SPEEDS ................. 43.7 FPM
TABLE AREA .................... 21" X 18"
HEIGHT FLOOR TO TABLE TOP ..... 40-5/8"
TABLE CAPACITY ................ 5000 LBS
HAND/AUTO FEED ................ YES
VICKERS HYDRAULIC PUMP ........ 7.5 HP
