Machine Information

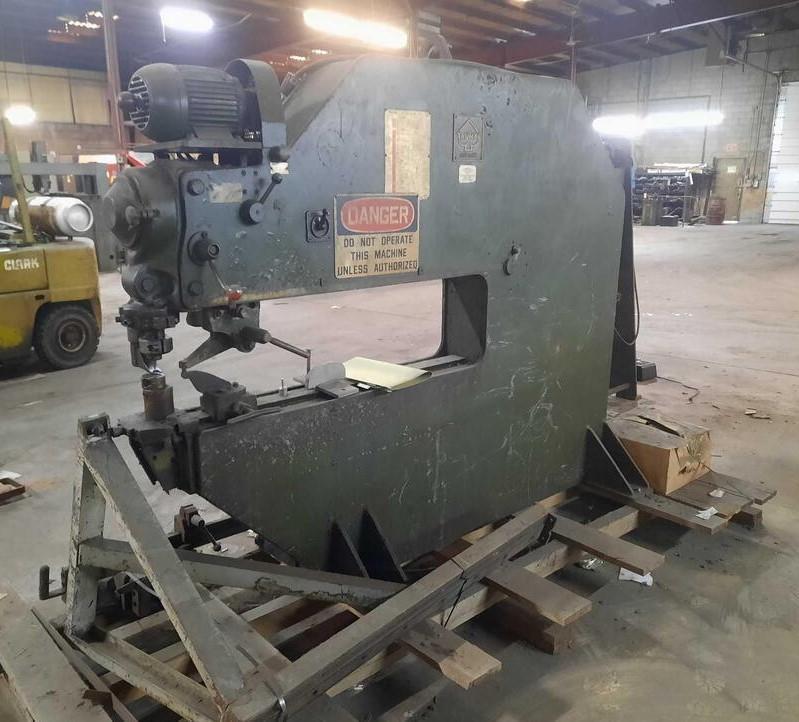

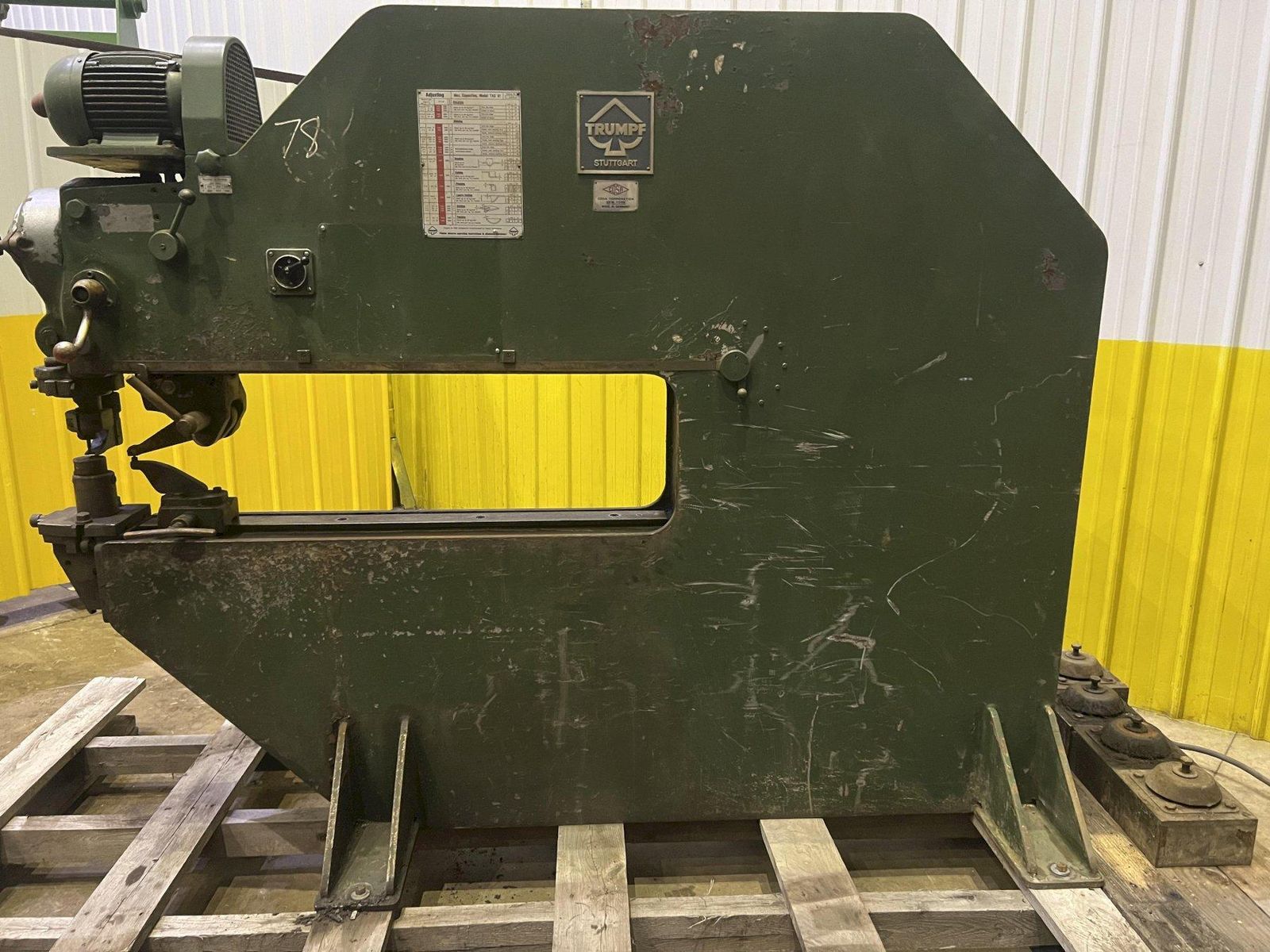

48" TRUMPF MODEL #TAS 81 NIBBLER & CUTTING MACHINE: STOCK #17909

Stock #: 17909

Equipped With

SERIAL ........... 1047
MODEL ............ TAS 81


Details
throat: 49" (1250 mm)
STROKE .04" TO .4" (1 TO 10 MM)
SPEEDS 1000, 1600, & 1900
smallest round blank diameter with inner guide: 56 mm
cutting from the edge / cutting of boards: 8 mm
nibbling with turning tool: 6 mm
slitting: 6 mm
gills: 6 mm
flaring: 4 mm
settling: 3 mm
beading: 1 - 4 mm
bluster: 2 - 6 mm

weight of the machine: 1600 kg
dimensions of the machine: 2300 x 900 x 2100 mm

48" TRUMPF MODEL #TAS 81 NIBBLER & CUTTING MACHINE: STOCK #17909

Stock # 17909

Request a Quote

Share Machine

Print Details

Make an Offer










Download Images

View All Images

Machine Specifications

SERIAL ........... 1047
MODEL ............ TAS 81

Details

throat: 49" (1250 mm)
STROKE .04" TO .4" (1 TO 10 MM)
SPEEDS 1000, 1600, & 1900

smallest round blank diameter with inner guide: 56 mm

cutting from the edge / cutting of boards: 8 mm

nibbling with turning tool: 6 mm

slitting: 6 mm

gills: 6 mm

flaring: 4 mm

settling: 3 mm

beading: 1 - 4 mm

bluster: 2 - 6 mm

weight of the machine: 1600 kg

dimensions of the machine: 2300 x 900 x 2100 mm

Specifications
Dimensions	10"W X 91"L X 72"H
