| Specifications | ||
|---|---|---|
| CNC Control | yes | |
| Type of CNC Control | Fanuc 16i-MB | |
| Pallet-W | 31.5 inches | |
| Pallet-L | 31.5 inches | |
| Pallet Capacity | 5500 pounds | |
| Pallet Indexing (B-Axis) | 1 Degree | |
| X | 53.1 inches | |
| Y | 45.2 inches | |
| Z | 45.2 inches | |
| X-Axis Rapid Feedrate | 944 IPM | |
| Y-Axis Rapid Feedrate | 944 IPM | |
| Spindle Speed | 6000 | |
| Spindle Taper | CAT 50 | |
| Main Motor | 40 HP | |
| # ATC | 60 | |
| Dimensions | 274" x 178" x 165" | |
| Weight | 69800 pounds | |

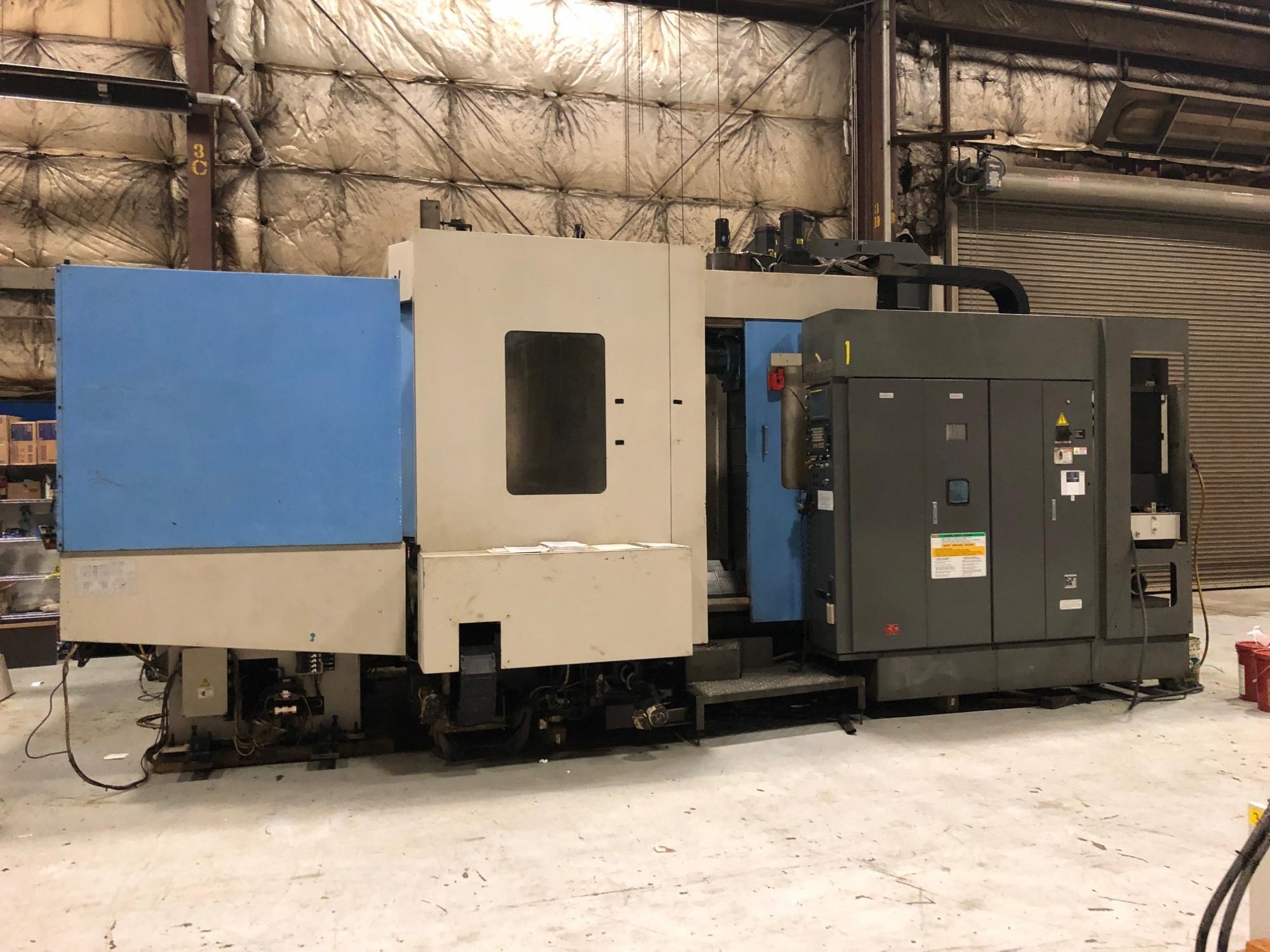

Brand
TOYODA
Type
Machining Centers, Horizontal
Stock No.
10029
 |
419-269-2000 |
Stock #: 10029
Year 2007Control Type Fanuc 16i-MB# Axis 4Pallet Length 31.5"Pallet Width 31.5"Pallet Load Capacity 5,500 ouncesPallet Indexing (B-Axis) 1°X-Axis Travel 53.1"Y-Axis Travel 45.2"Z-Axis Travel 45.2"X-Axis Rapid Feedrate 944Y-Axis Rapid Feedrate 944Z-Axis Rapid Feedrate 944Spindle Taper CAT 50Spindle Speed (RPM) 6,000Spindle Motor (HP) 40 horsepowerTool Changer Capacity 60Coolant Through Spindle yesDimensions 274" x 178" x 165"Weight 69,800 pounds
Coolant Tank & Pump
Chip Conveyor
Coolant Thru Spindle
