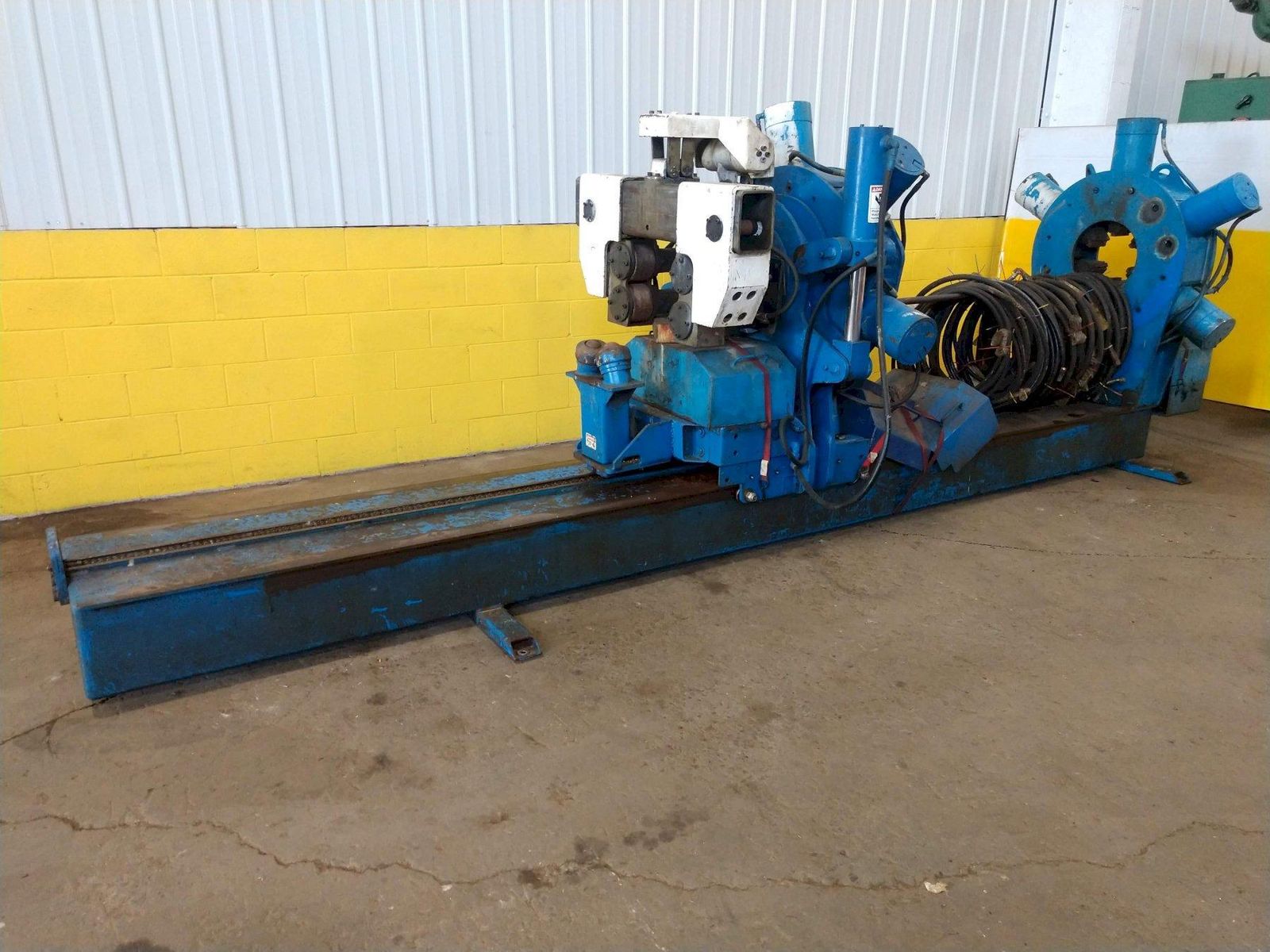

3-1/2" TO 14" TORQUEMASTER MODEL 1689 PIPE MAKEUP & BREAKOUT MACHINE: STOCK #12692

Stock #: 12692

Equipped With

SERIAL ........................ 680
MODEL ......................... 1689
YEAR NEW ...................... 2012
CLAMPING RANGE ................ 3-1/2" TO 14" DIAMETER
CLAMPING CYLINDERS ............ 6, BOTH HEADSTOCK & TAILSTOCK
MAKEUP TORQUE RANGE ........... 4,000 TO 150,000 FT-LB
TORQUE / FORCE ................ VARIABLE
GRIPPING FORCE ................ SYNCHRONIZED
BREAKOUT TORQUE ............... 190,000 FT-LB (MAX)
CONSOLE OPERATING PRESSURE .... 3,200 PSI
CONSOLE NOISE RATING .......... 80 dBA
LEVER CONTROLS ................ CLAMPS, PULL CYLINDER, SPIN JOG
POWER TAILSTOCK TRAVEL ........ YES
PIPE SPINNER .................. YES, HYDRAULIC
PUSH / PULL CYLINDER .......... YES, HYDRAULIC
SUPPORT STANDS ................ YES, HYDRAULIC
LOW & HIGH TORQUE INDICATORS .. YES
EXTENSION BEAM ................ YES
LOGGING SYSTEM ................ YES, WITH SCREEN
MOTOR ......................... 20 HP

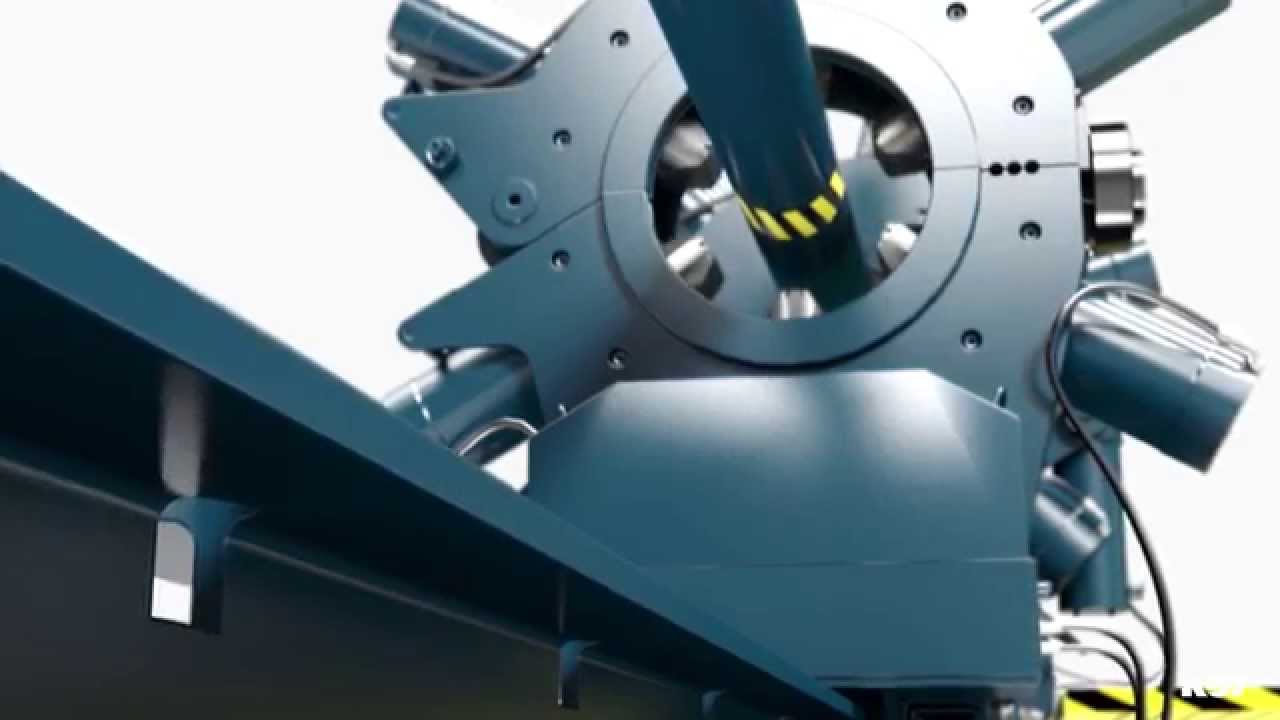

NATIONAL OILWELL VARCO VIDEO:
https://www.youtube.com/watch?v=zVO6wAzKDaA

Buy Machines

3-1/2" TO 14" TORQUEMASTER MODEL 1689 PIPE MAKEUP & BREAKOUT MACHINE: STOCK #12692

Stock # 12692

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 680
MODEL ......................... 1689
YEAR NEW ...................... 2012
CLAMPING RANGE ................ 3-1/2" TO 14" DIAMETER
CLAMPING CYLINDERS ............ 6, BOTH HEADSTOCK & TAILSTOCK
MAKEUP TORQUE RANGE ........... 4,000 TO 150,000 FT-LB
TORQUE / FORCE ................ VARIABLE
GRIPPING FORCE ................ SYNCHRONIZED
BREAKOUT TORQUE ............... 190,000 FT-LB (MAX)
CONSOLE OPERATING PRESSURE .... 3,200 PSI
CONSOLE NOISE RATING .......... 80 dBA
LEVER CONTROLS ................ CLAMPS, PULL CYLINDER, SPIN JOG
POWER TAILSTOCK TRAVEL ........ YES
PIPE SPINNER .................. YES, HYDRAULIC
PUSH / PULL CYLINDER .......... YES, HYDRAULIC
SUPPORT STANDS ................ YES, HYDRAULIC
LOW & HIGH TORQUE INDICATORS .. YES
EXTENSION BEAM ................ YES
LOGGING SYSTEM ................ YES, WITH SCREEN
MOTOR ......................... 20 HP

NATIONAL OILWELL VARCO VIDEO:
https://www.youtube.com/watch?v=zVO6wAzKDaA

Videos
Specifications
Dimensions 150" LONG X 52" WIDE X 71" HIGH
Weight 10500 pounds
