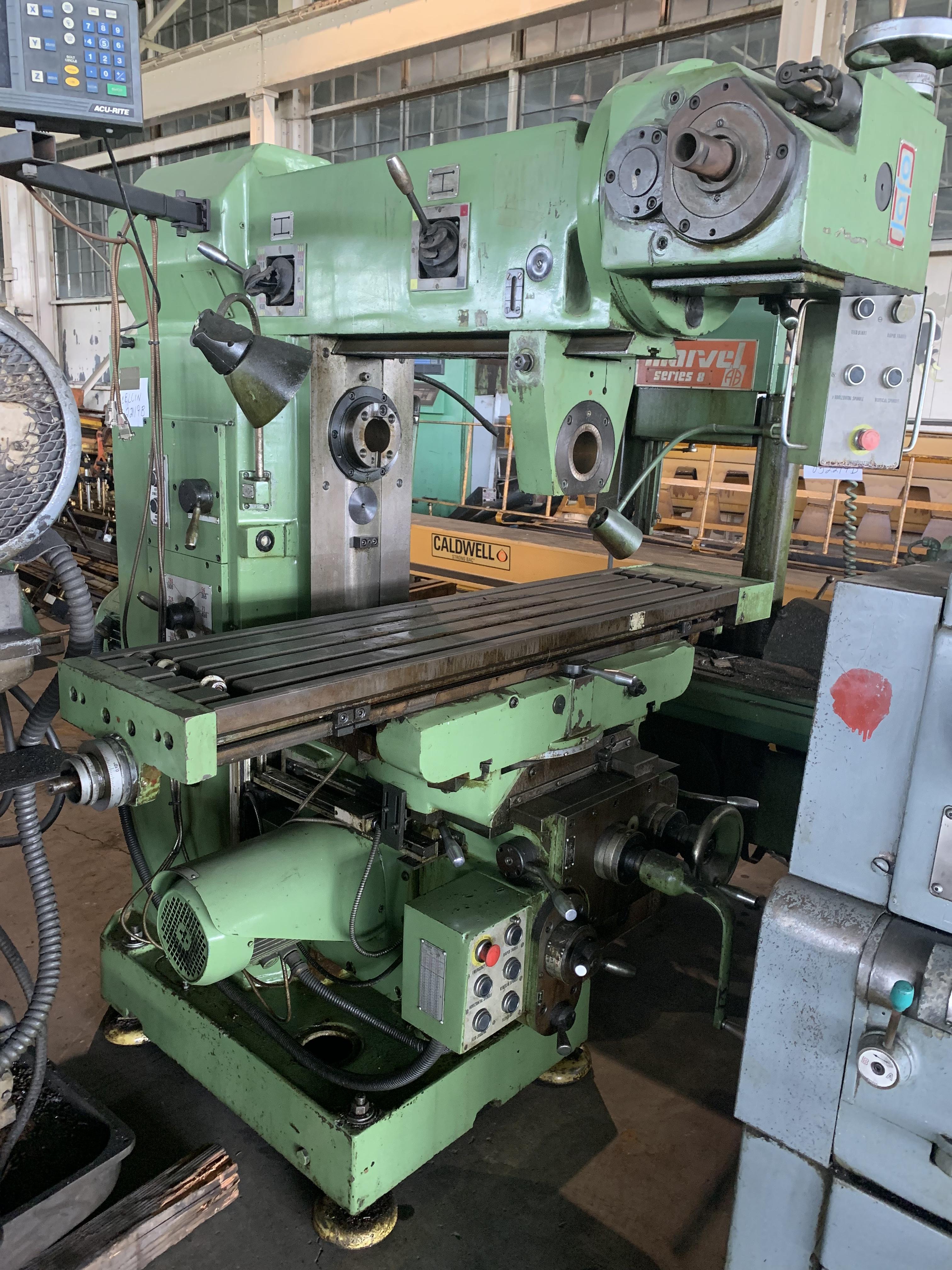

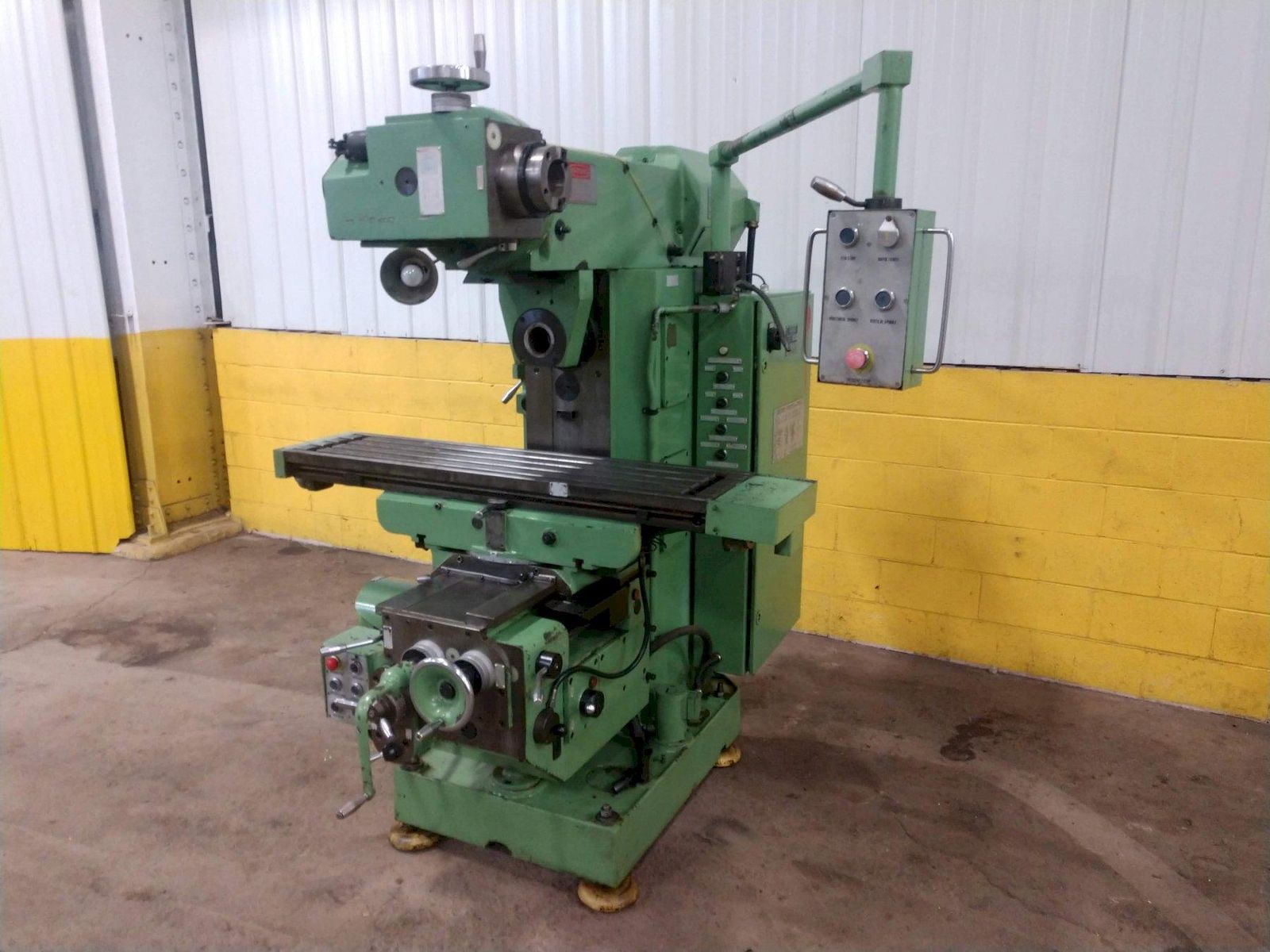

TOOLMEX HORIZONTAL / VERTICAL #BWD321 UNIVERSAL MILL: STOCK #10868

Stock #: 10868

Equipped With

SERIAL ....................... 447
MODEL ........................ BWD321
TABLE SIZE ................... 12-1/2" X 51"
LONGITUDINAL TABLE TRAVEL .... 33.5"
CROSS TABLE TRAVEL ........... 11"
VERTICAL TABLE TRAVEL ........ 17"
TABLE SWIVEL ANGLE ........... +/- 45 DEGREES
(2) OVERARM SUPPORTS ......... YES
UNIVERSAL HEAD ............... YES
HORIZONAL & VERTICAL SPEEDS .. 56 TO 1800 RPM
SPINDLE TAPERS ............... #50
RAPID FEEDS .................. 126 IPM
RAPID MOTOR .................. 2 HP
SPINDLE DRIVE MOTOR .......... 7.5 HP

Buy Machines

TOOLMEX HORIZONTAL / VERTICAL #BWD321 UNIVERSAL MILL: STOCK #10868

Stock # 10868

Share Machine
Print Details

Machine Specifications

SERIAL ....................... 447
MODEL ........................ BWD321
TABLE SIZE ................... 12-1/2" X 51"
LONGITUDINAL TABLE TRAVEL .... 33.5"
CROSS TABLE TRAVEL ........... 11"
VERTICAL TABLE TRAVEL ........ 17"
TABLE SWIVEL ANGLE ........... +/- 45 DEGREES
(2) OVERARM SUPPORTS ......... YES
UNIVERSAL HEAD ............... YES
HORIZONAL & VERTICAL SPEEDS .. 56 TO 1800 RPM
SPINDLE TAPERS ............... #50
RAPID FEEDS .................. 126 IPM
RAPID MOTOR .................. 2 HP
SPINDLE DRIVE MOTOR .......... 7.5 HP

Specifications
Table Size-W 12 inches
Table Size-L 51 inches
Dimensions 77 X 71 X 80
Weight 6400 pounds
