Machine Information

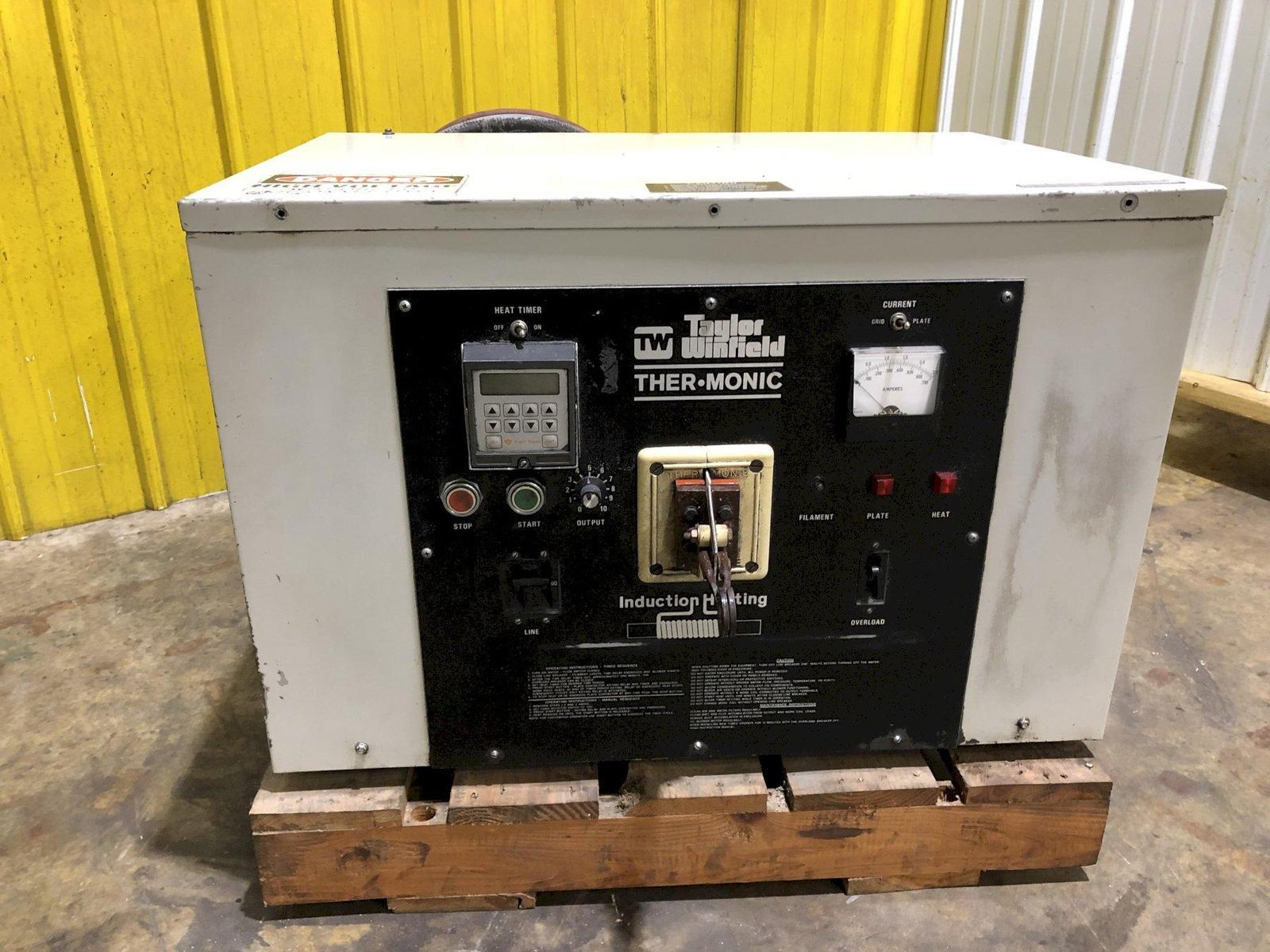

5.0 kW TAYLOR WINFIELD MODEL MKII-5 INDUCTION HEATER & HEAT EXCHANGER: STOCK 17266

Stock #: 17266

Equipped With

BLOWER MOTOR 1BM .............. 1 AMP 150 CFM
BLOWER MOTOR 2BM .............. 0.5 AMP 160 CFM
CABINET DIMS .................. 23" X 33" X 22"
CIRCUIT BREAKER ............... 60 AMP
FILAMENT POWER OSC ............ 36 AMP @ 13 VOLTS
FULL LOAD GRID CURRENT ........ 0.100 AMP
FULL LOAD PLATE CURRENT ....... 1.8 AMP
GENERATOR BTU/MIN ............. 284.5 BTU/MIN
GRID RESISTOR ................. (2) 15K OHM 200W IN PARALLEL 7.5K TOTAL
GROUND WIRE SIZE .............. 8
INPUT KVA ..................... 10.3 KVA
LINE CURRENT .................. 52.8 AMPS
LINE WIRE SIZE ................ 6
LINE SWITCH FUSE .............. 60 AMPS
LINE SWITCH SIZE .............. 60 AMPS
NO LOAD GRID CURRENT .......... 0.200 AMPS
NO LOAD PLATE CURRENT ......... 0.60 AMPS
OSCILLATOR TUBE ............... 345J 682344
OUTPUT RATING KW .............. 5 KW
OUTPUT FREQUENCY .............. 450 KHz
PLATE VOLTAGE DC .............. 5500 DC
WATER FLOW .................... 2.5 GPM @ 50 PSI
ROOM AMBIENT TEMP ............. 105
WATER INLET OUTLET SIZE ....... 1/2" PIPE
WATER SUPPLY/MIN PRESSURE ..... 40 PSI
PRESSURE CAPACITY ............. 80 PSI
DIODE SOLID STATE ............. CNRX 122
SCR CONTROL ................... ROBICON


TAYLOR WATER COOLING UNIT
SERIAL ........................ 79137
MODEL ......................... U-54330
CAPACITY ...................... 4 GAL
PRESSURE ...................... 55 PSI
FLOW .......................... 2.5 GPM
INLET TEMP .................... 135 F
TEMP .......................... 74 F
POWER ......................... 115/208/220
FOR USE ON .................... MK11
