Machine Information

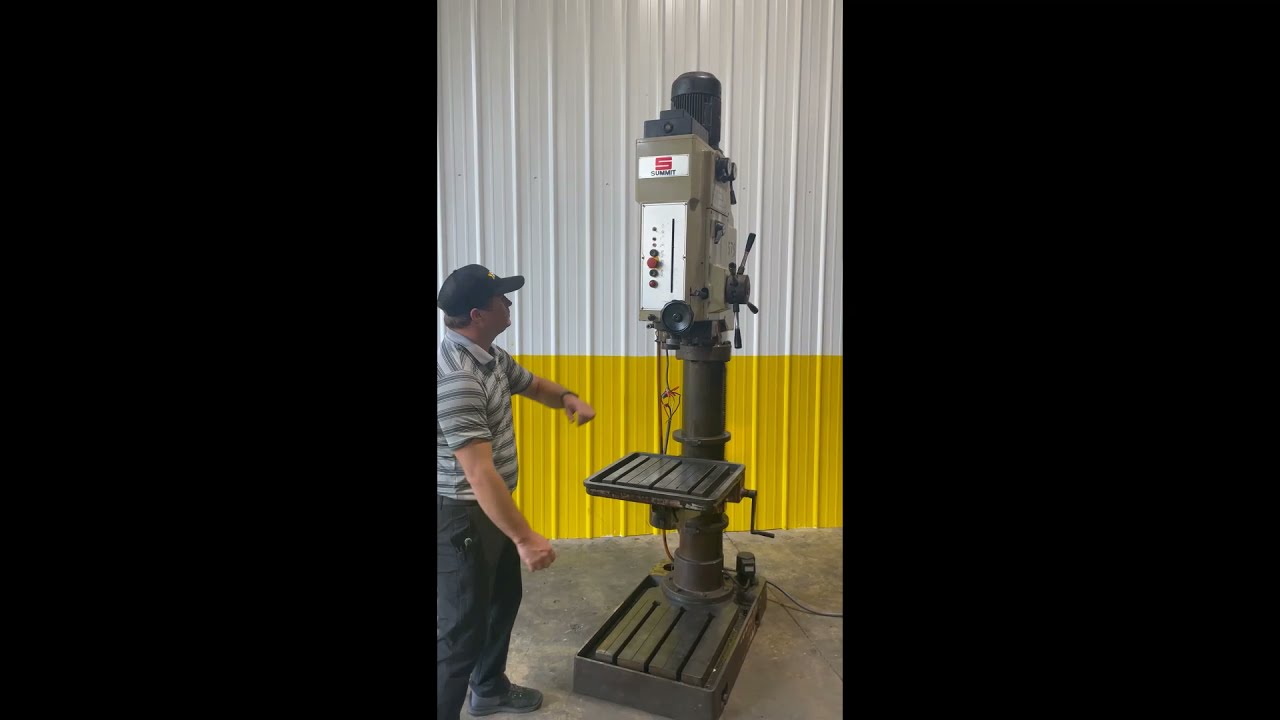

32" X 5MT SUMMIT MODEL #3XHD SINGLE SPINDLE GEARED HEAD DRILL: STOCK #11852

Stock #: 11852

Equipped With

SERIAL ....................... 1316
MODEL ........................ 3XHD
DRILLING  CAPACITY ........... 2-1/8" MILD STEEL
COLUMN DIAMETER .............. 7-7/8"
CENTER OF SPINDLE TO COLUMN .. 16-1/2"
MAX DIAMETER OF WORKPIECE .... 31-1/2"
SPINDLE TRAVEL................ 10"
SPINDLE TAPER ................ 5 MT
SPINDLE SPEEDS ............... (12) 40 TO 1065 RPM
SPINDLE FEEDS ................ (4) .013 TO .013 IPR
ARA OF TABLE ................. 22" X 22"
AREA OF BASE ................. 26" X 25"
TABLE ROTATES ................ 360 DEGREES
TABLE TURNS .................. 360 DEGREES
SPINDLE NOSE TO TABLE ........ 31" MAXIMUM
SPINDLE NOSE TO BASE ......... 50-3/4" MAXIMUM
COOLANT ...................... YES
MAIN MOTOR ................... 5-1/2 HORSEPOWER
