Machine Information

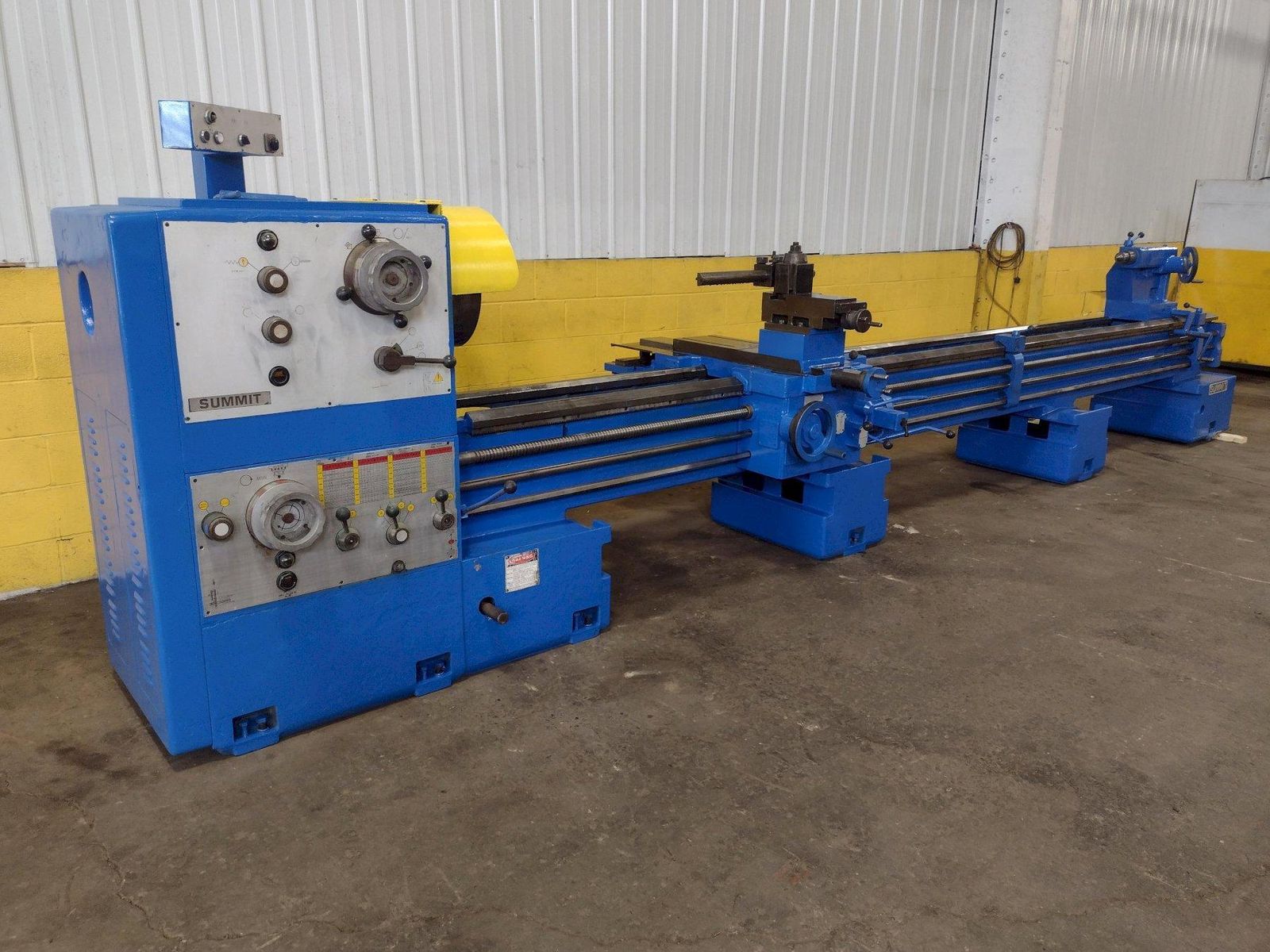

33" x 200" SUMMIT MODEL 30X4-200 ENGINE LATHE: STOCK 15015

Stock #: 15015

Equipped With

SERIAL .................... 810410
MODEL ..................... 30-4 X 200
NEW ....................... 1986
SWING OVER WAYS ........... 33"
SWING OVER CROSS SLIDE .... 23"
SWING IN GAP .............. 40-1/2"
LENGTH OF GAP ............. 19"
DISTANCE BETWEEN CENTERS .. 200"
SPINDLE SPEEDS ............ (16) 14 TO 1010 RPM
DIAMETER OF SPINDLE HOLE .. 4-1/8"
THREADS STANDARD .......... .25 TO 56 TPI
THREADS METRIC ............ .875 TO 32 MM
FEEDS STANDARD ............ .002 TO .032 IPR
FEEDS METRIC .............. .25 TO 14 MMPR
CHUCK ..................... YES
TAPER ..................... YES
STEADY REST ............... 17" 3 POINT
FOLLOW REST ............... YES
RAPID TRAVERSE ............ YES
MOTOR ..................... 15 HORSEPOWER

Buy Machines

33" x 200" SUMMIT MODEL 30X4-200 ENGINE LATHE: STOCK 15015

Stock # 15015

Share Machine
Print Details

Machine Specifications

SERIAL .................... 810410
MODEL ..................... 30-4 X 200
NEW ....................... 1986
SWING OVER WAYS ........... 33"
SWING OVER CROSS SLIDE .... 23"
SWING IN GAP .............. 40-1/2"
LENGTH OF GAP ............. 19"
DISTANCE BETWEEN CENTERS .. 200"
SPINDLE SPEEDS ............ (16) 14 TO 1010 RPM
DIAMETER OF SPINDLE HOLE .. 4-1/8"
THREADS STANDARD .......... .25 TO 56 TPI
THREADS METRIC ............ .875 TO 32 MM
FEEDS STANDARD ............ .002 TO .032 IPR
FEEDS METRIC .............. .25 TO 14 MMPR
CHUCK ..................... YES
TAPER ..................... YES
STEADY REST ............... 17" 3 POINT
FOLLOW REST ............... YES
RAPID TRAVERSE ............ YES
MOTOR ..................... 15 HORSEPOWER

Specifications
Dimensions 280" X 55" X 70" HIGH
