Machine Information

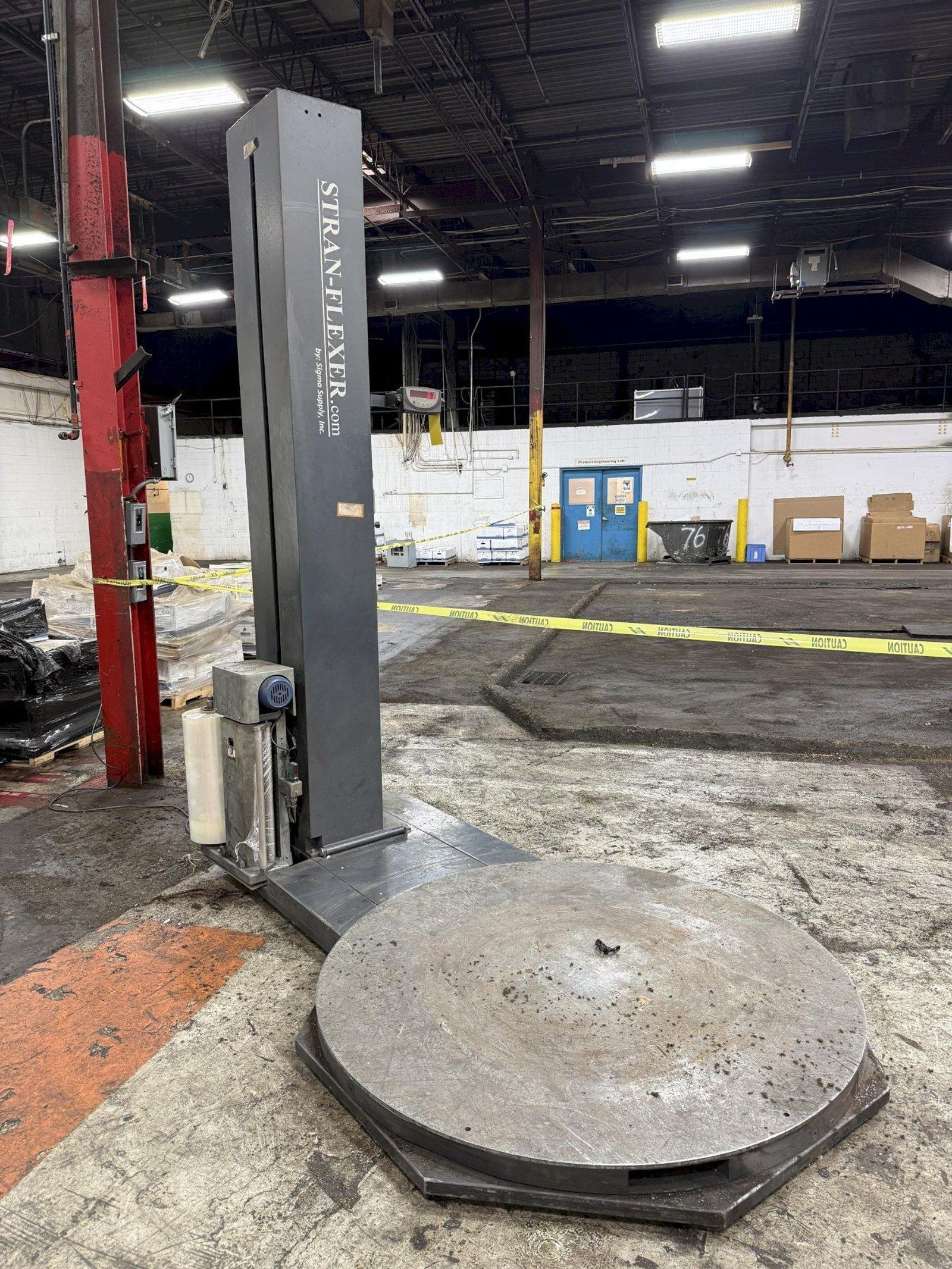

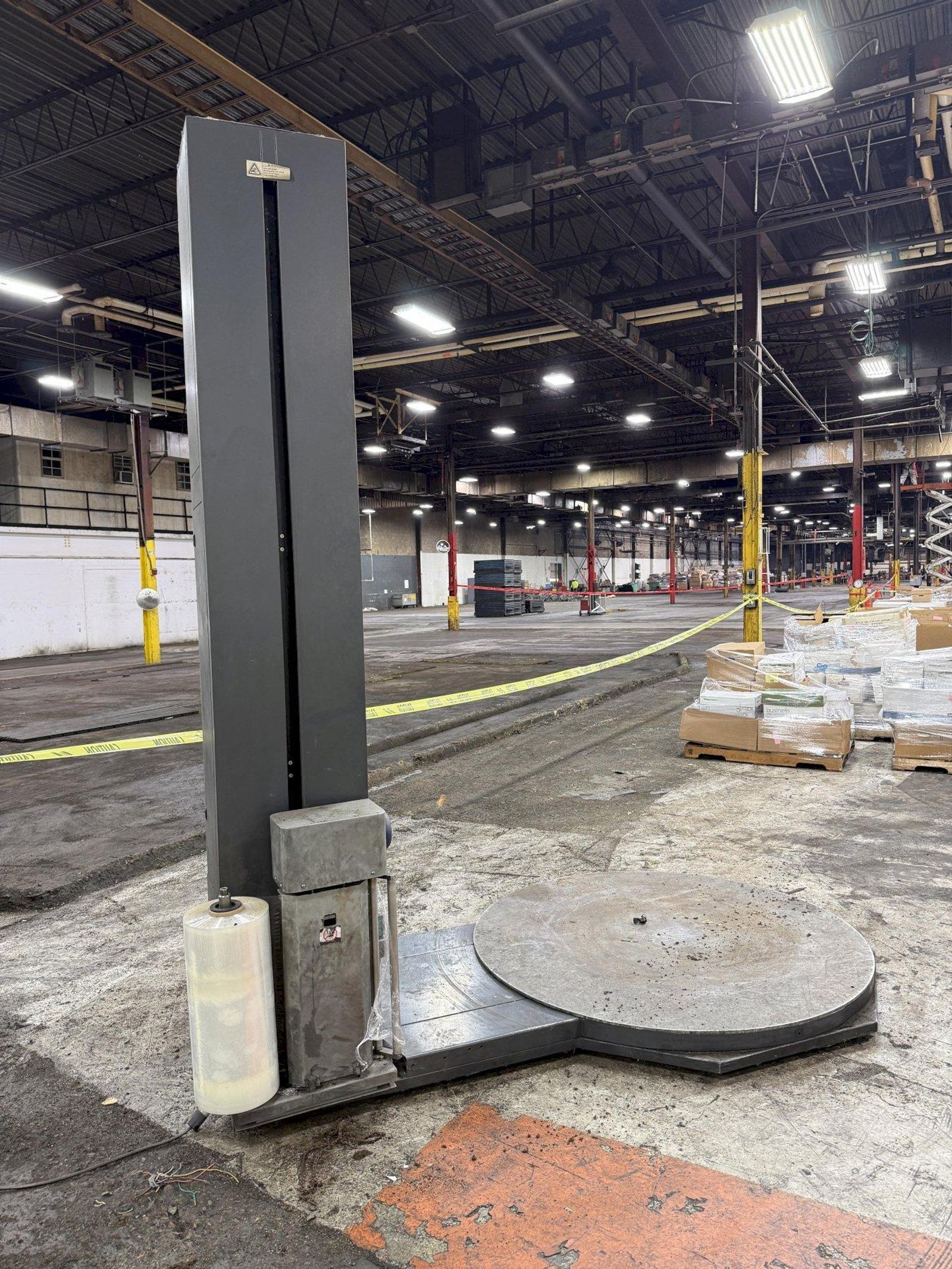

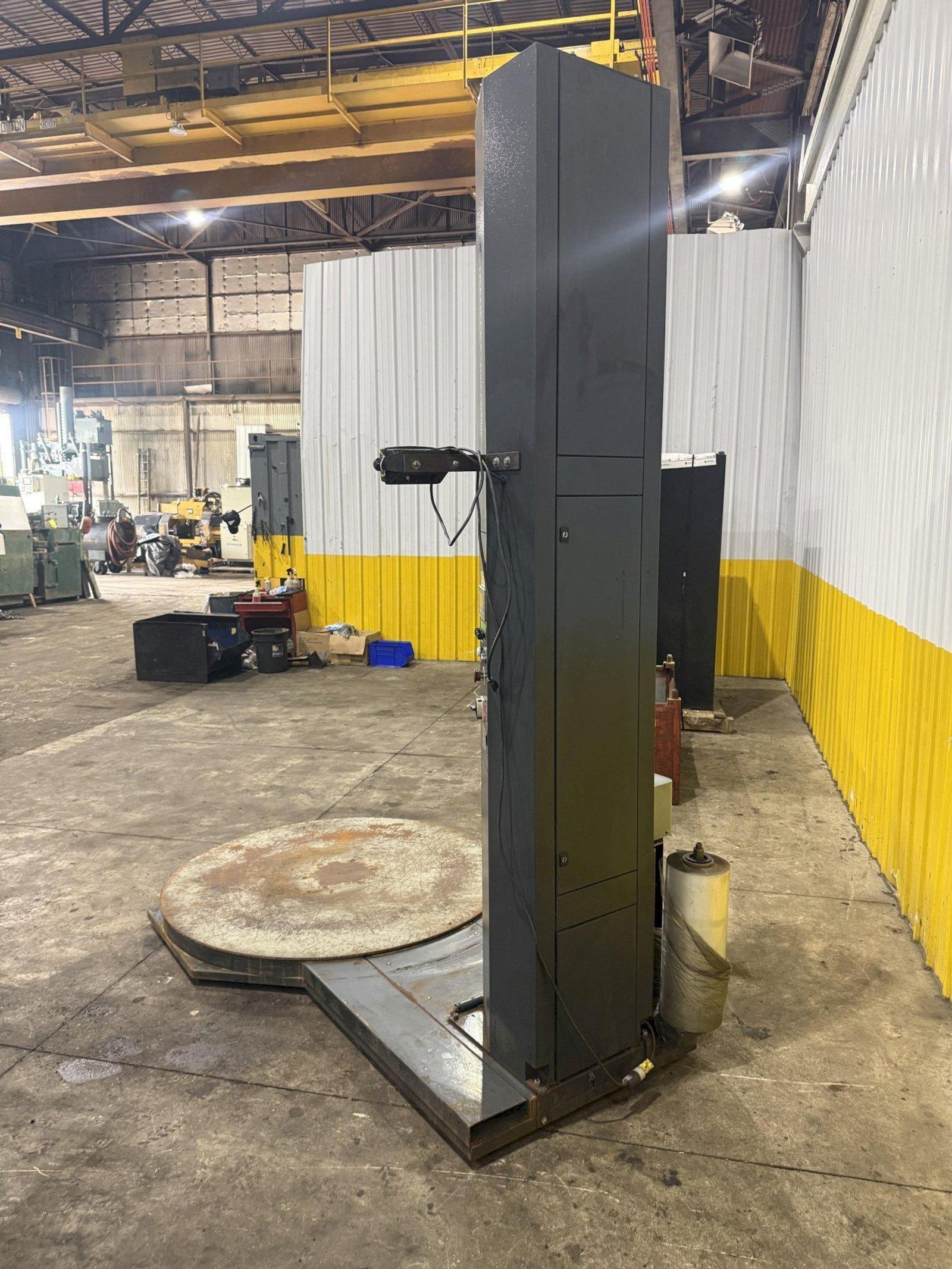

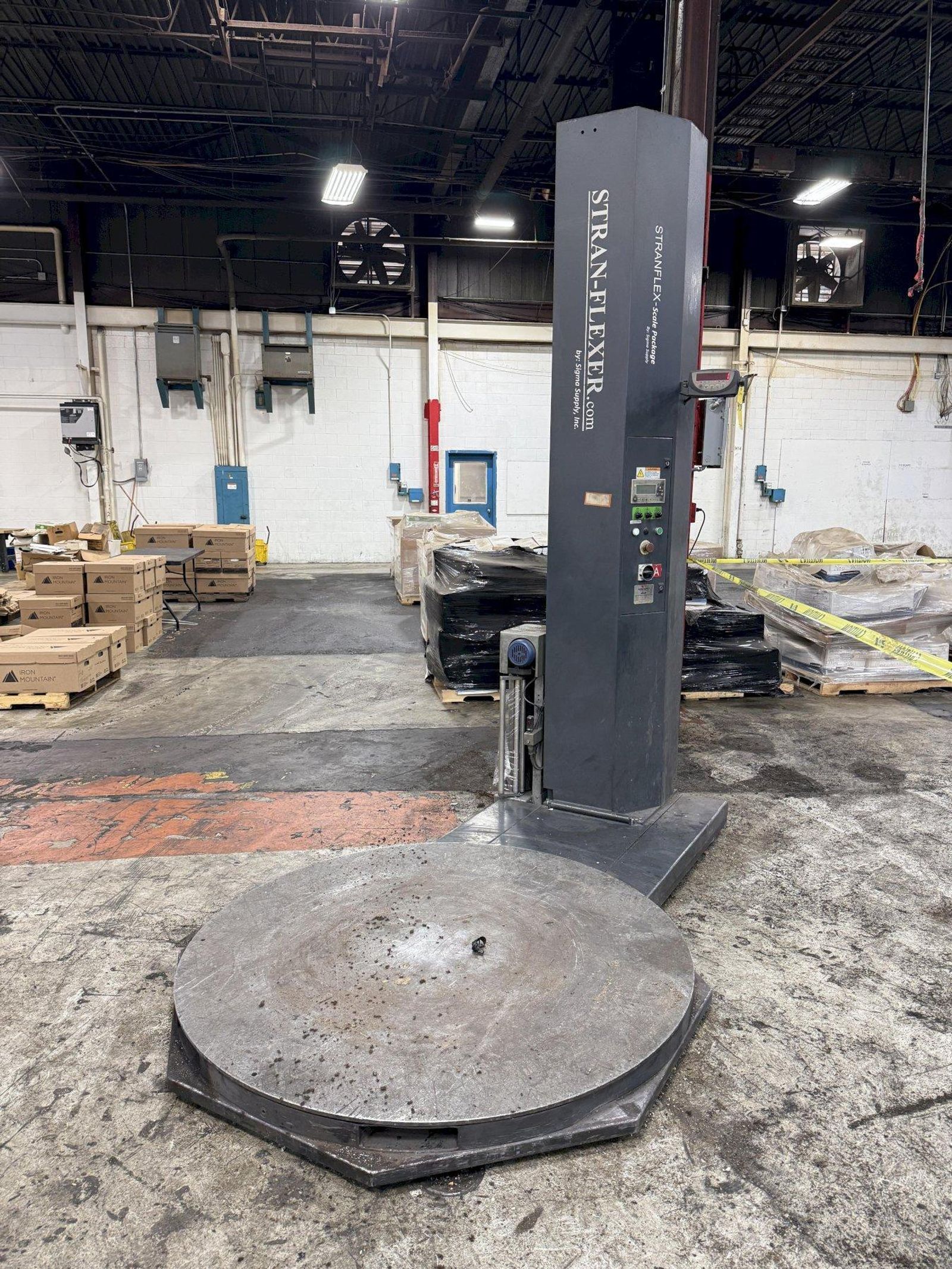

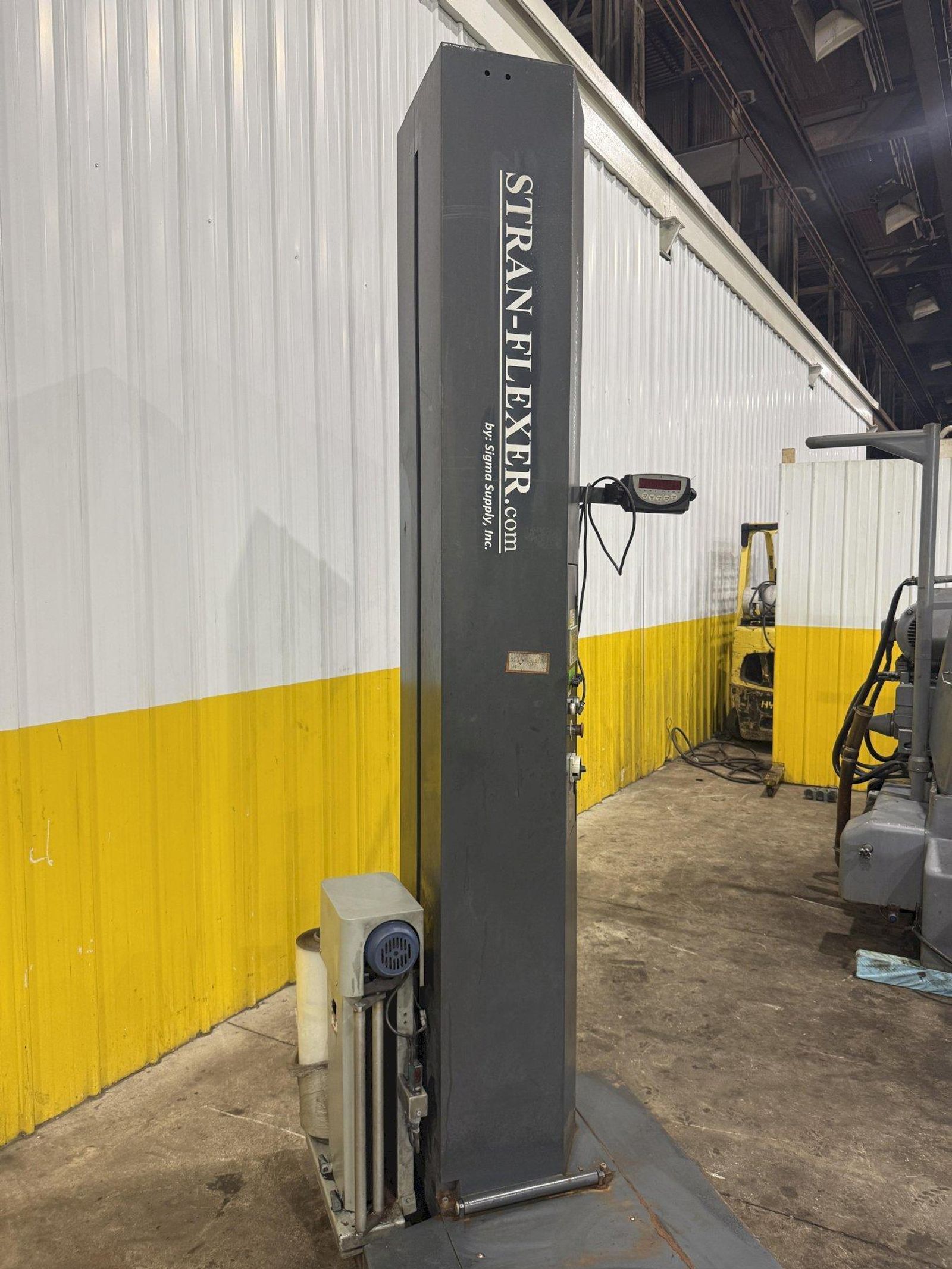

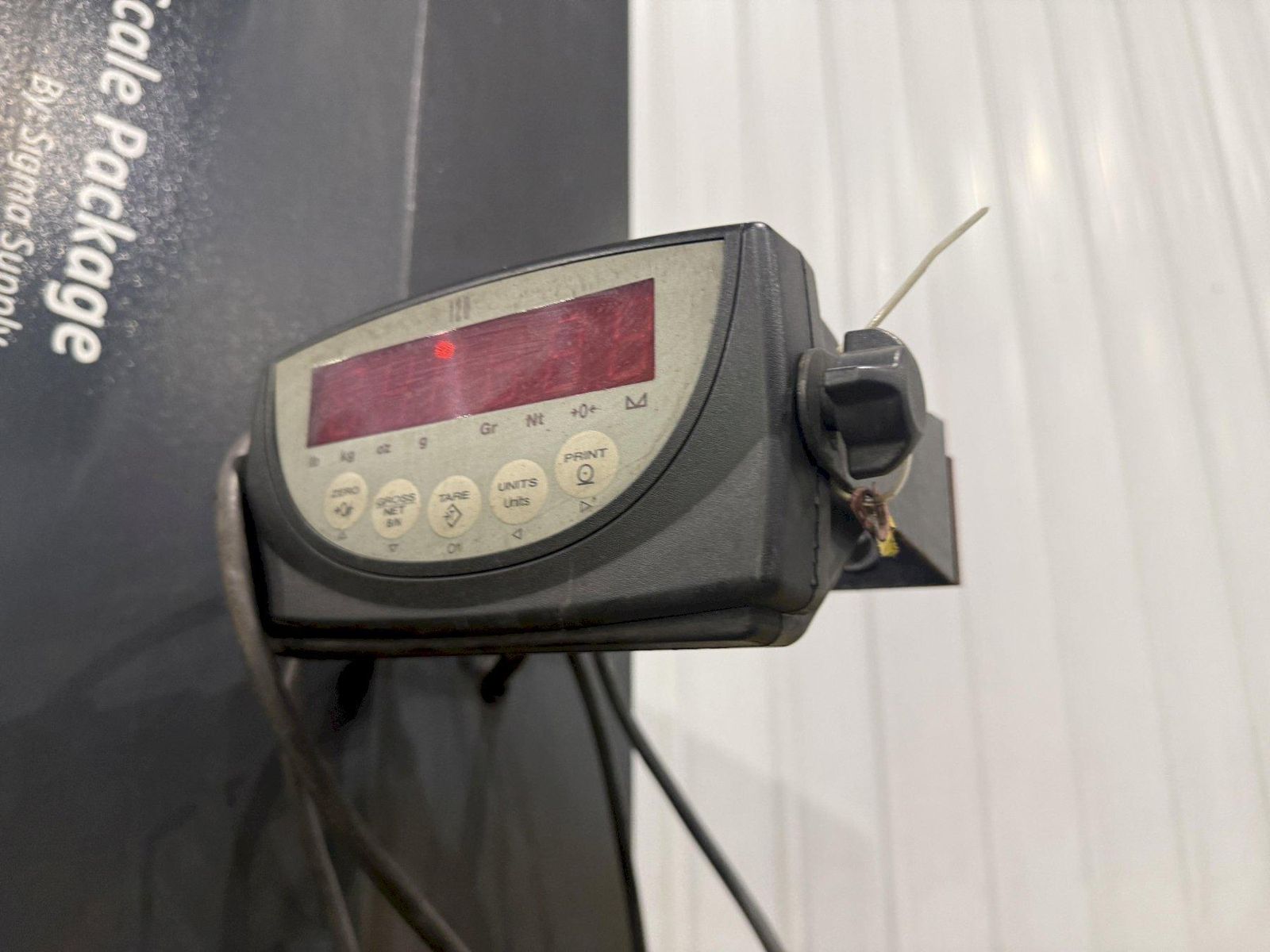

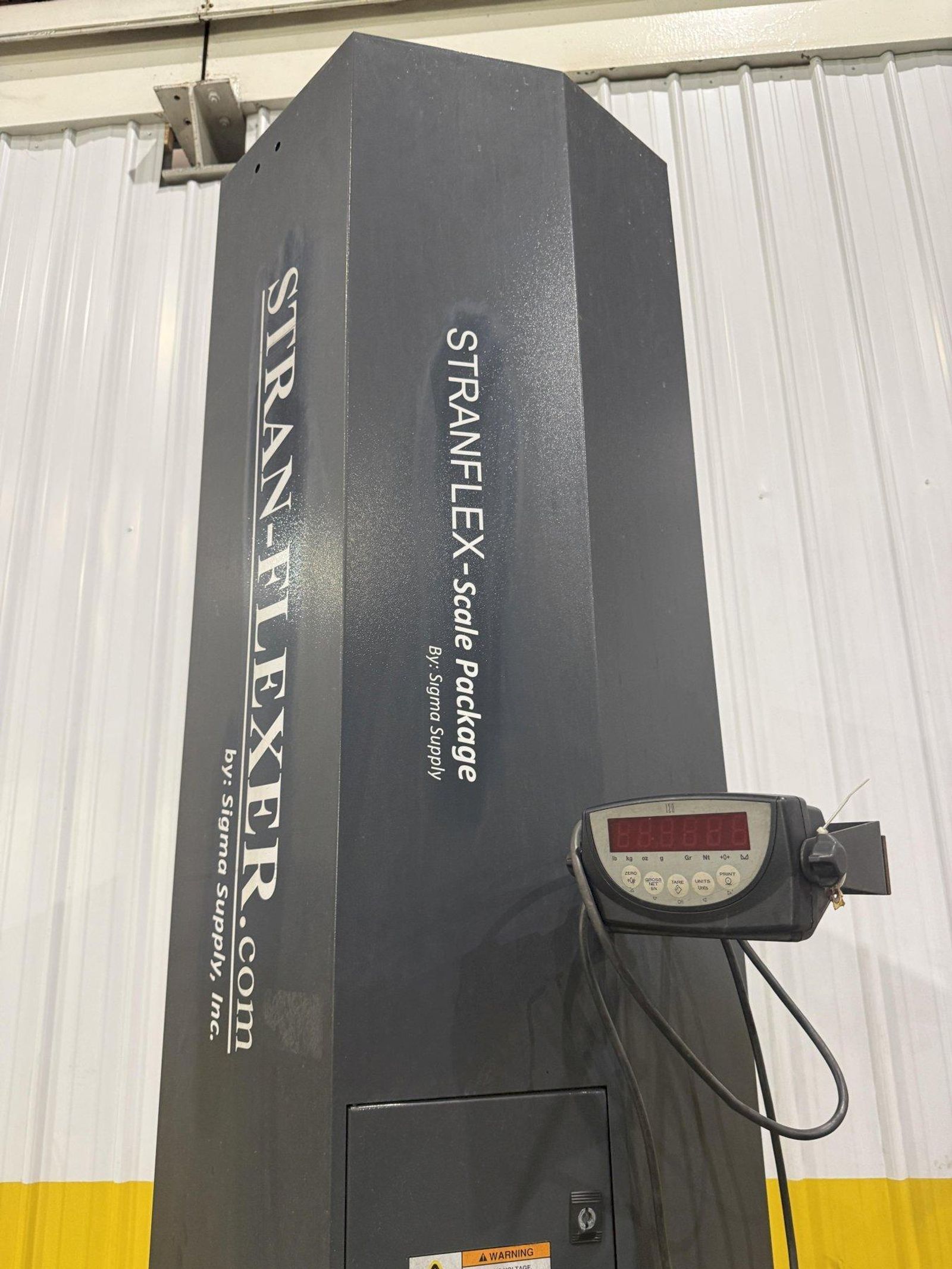

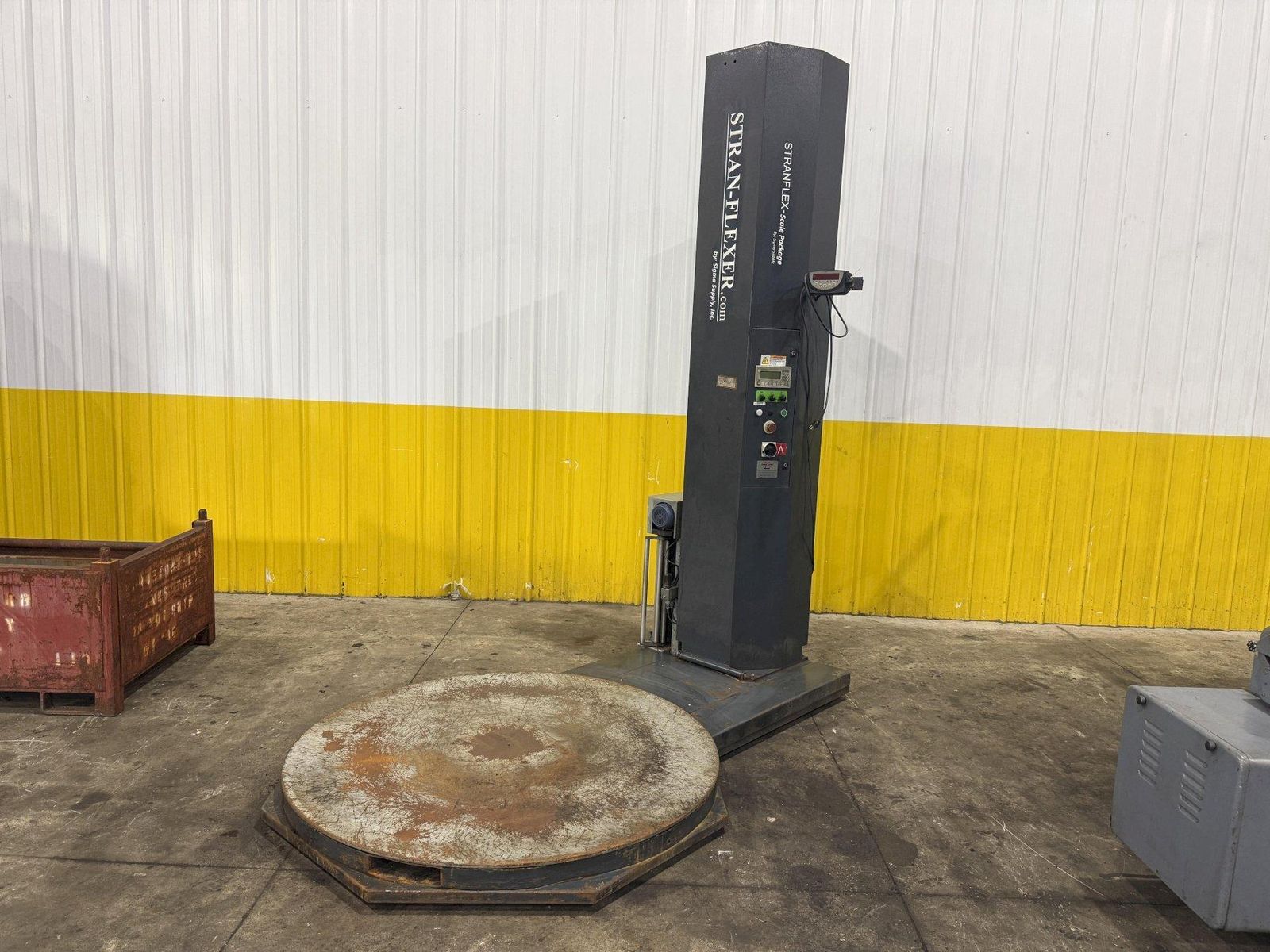

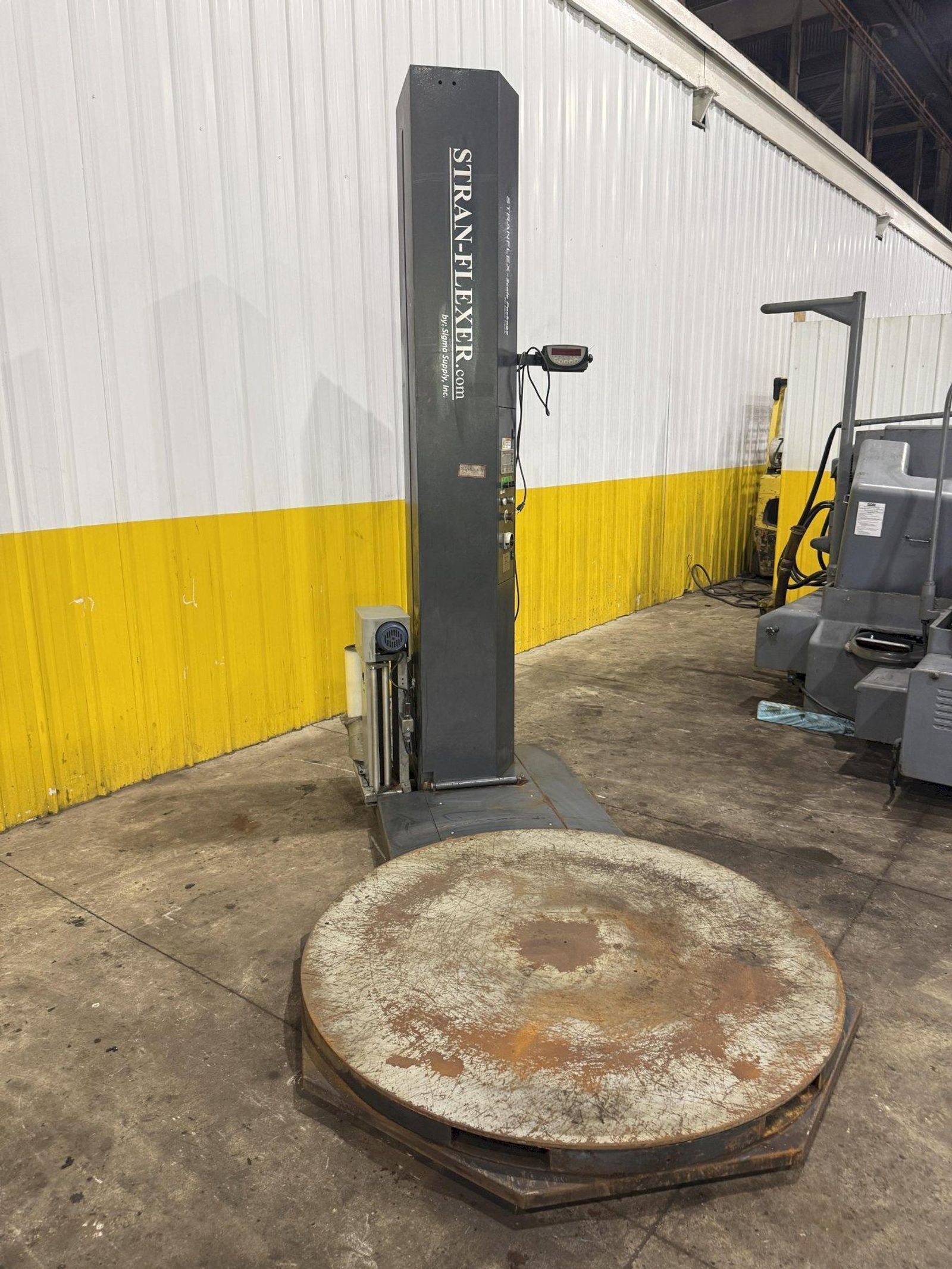

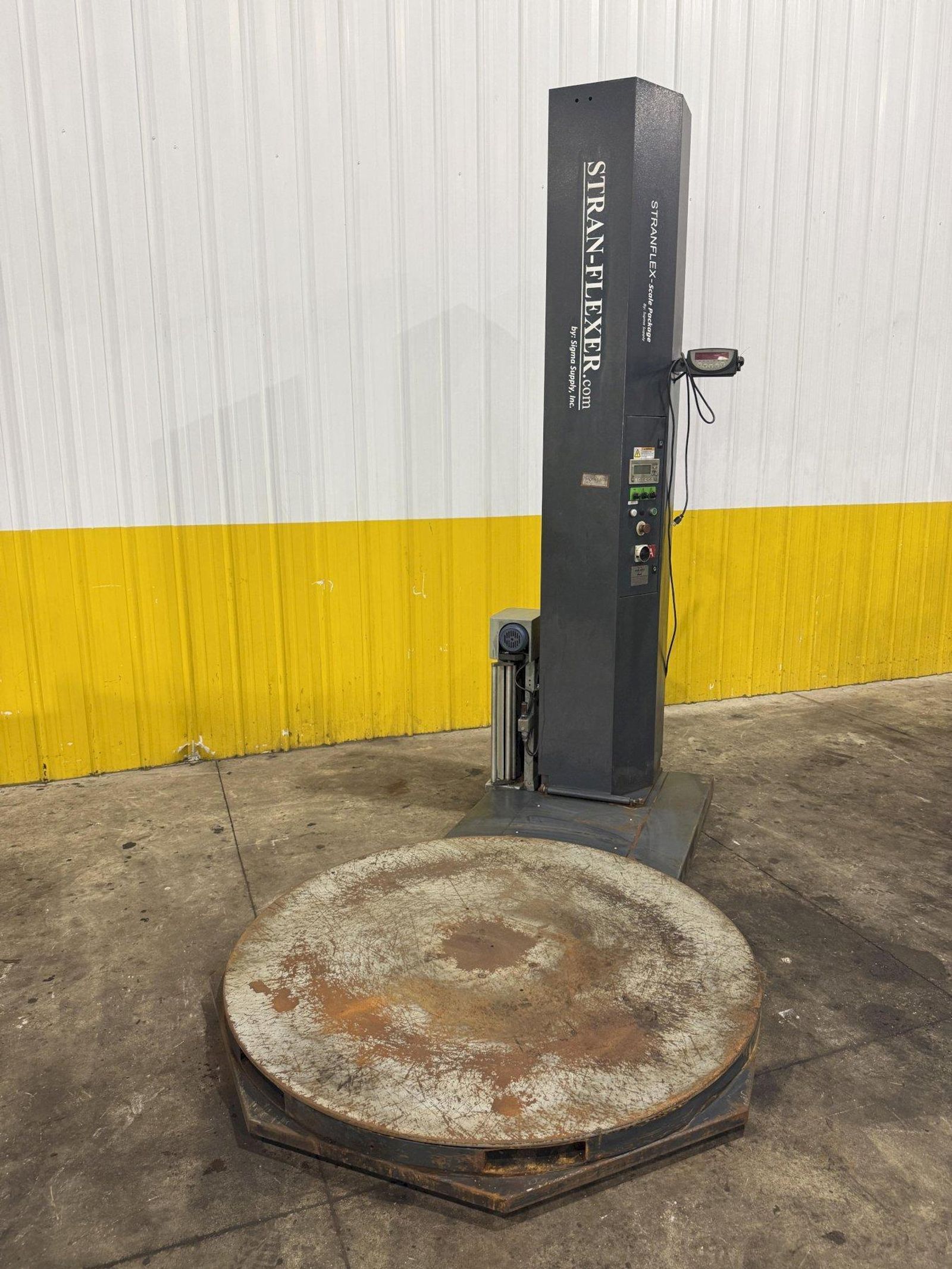

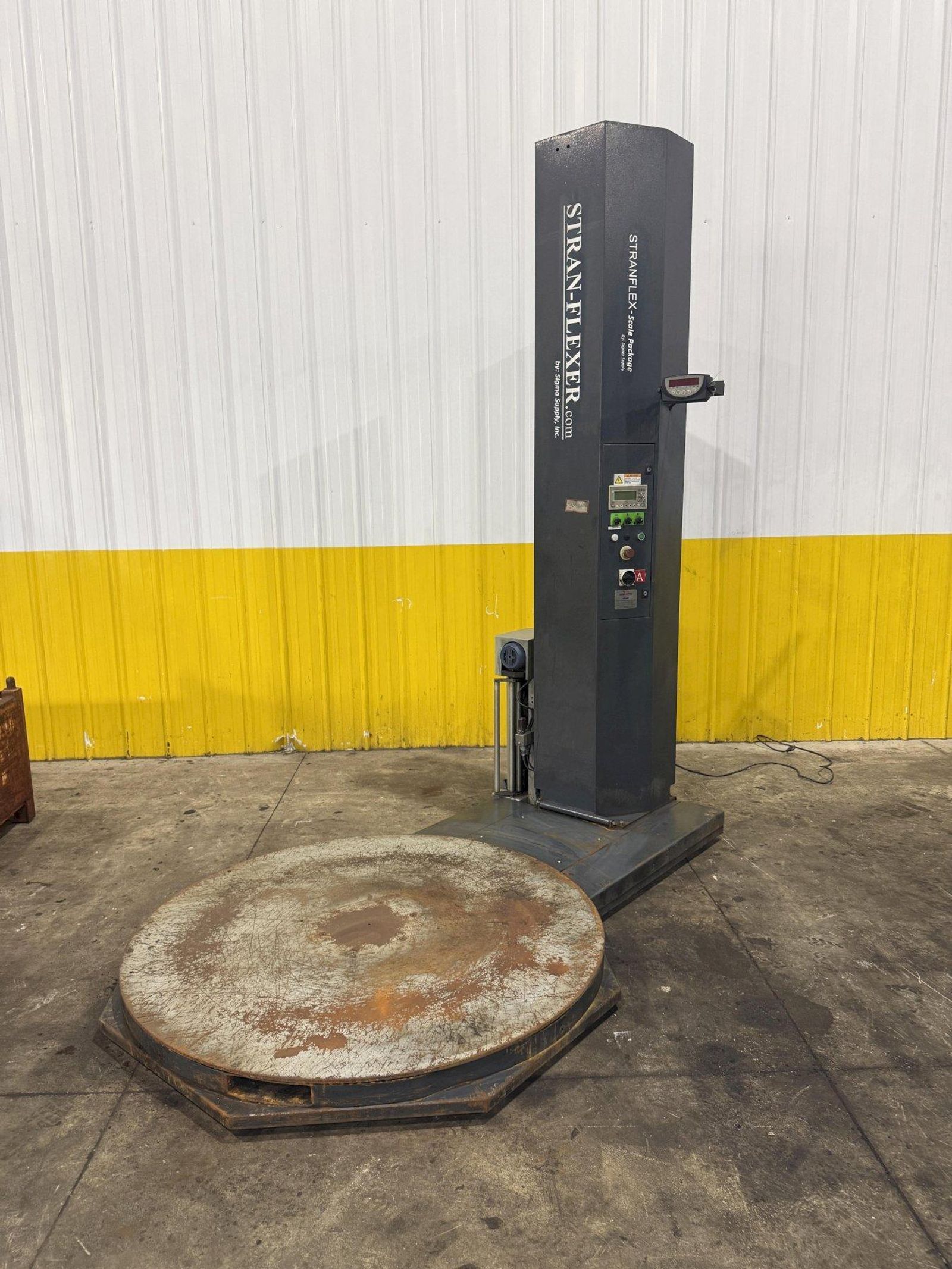

4,000 B X 50" X 50" X 98" H STRAN-FLEXER SCALE PACKAGE PALLET SHRINK WRAPPER: YOBRO #24286

Stock #: 24286

Equipped With

Machine Dimensions:
96.5” L x 59” W x 109.5 H


Approximate Shipping Weight:
1,300 lbs.

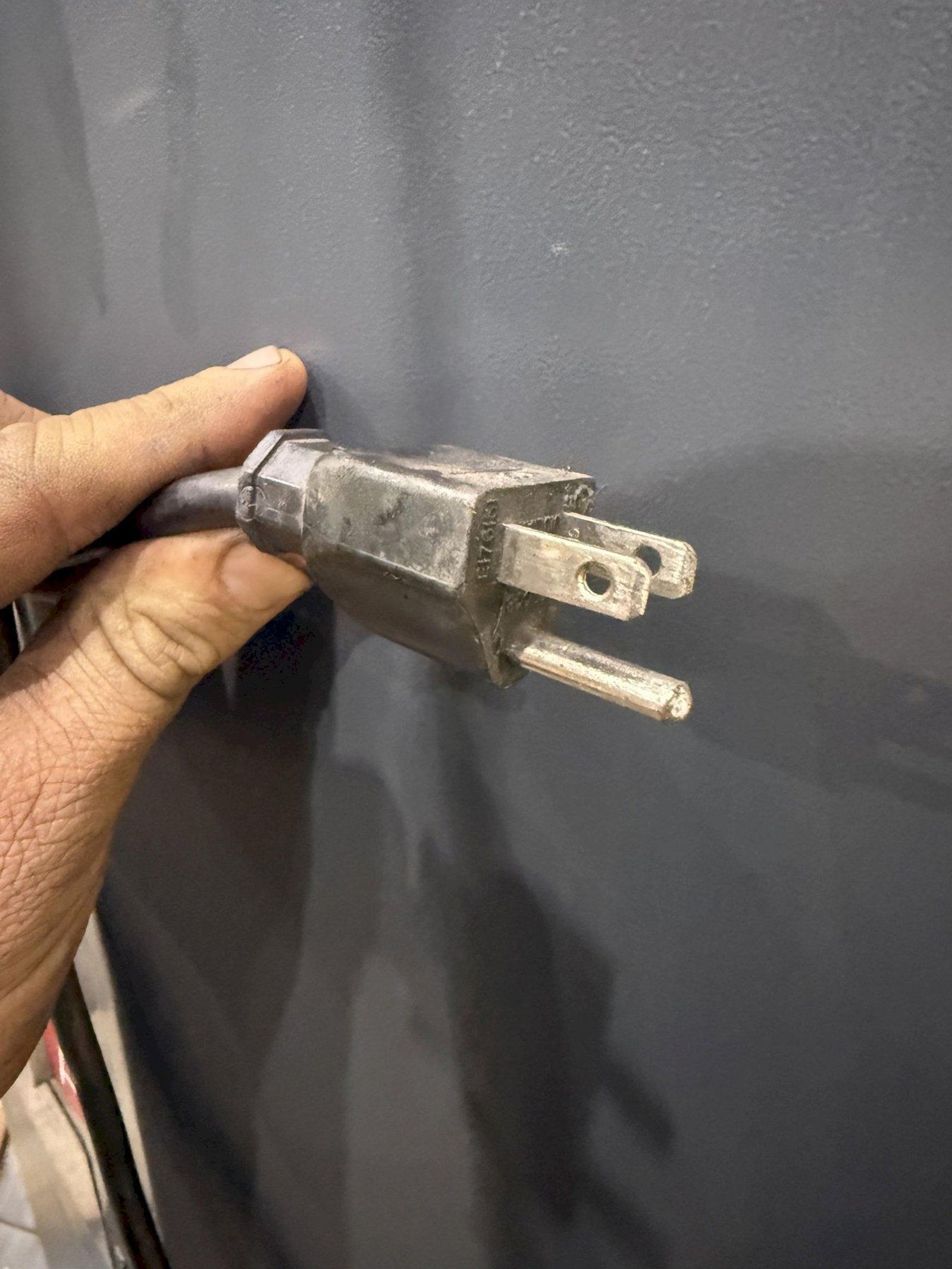

Power Requirements:
120V / 1Ph / 15A Dedicated Service


Maximum Load Size:
50” L x 50” W x 98” H


Maximum Load Weight:
4000 lbs.


Power Requirements:
120V / 1Ph / 15A Dedicated Service

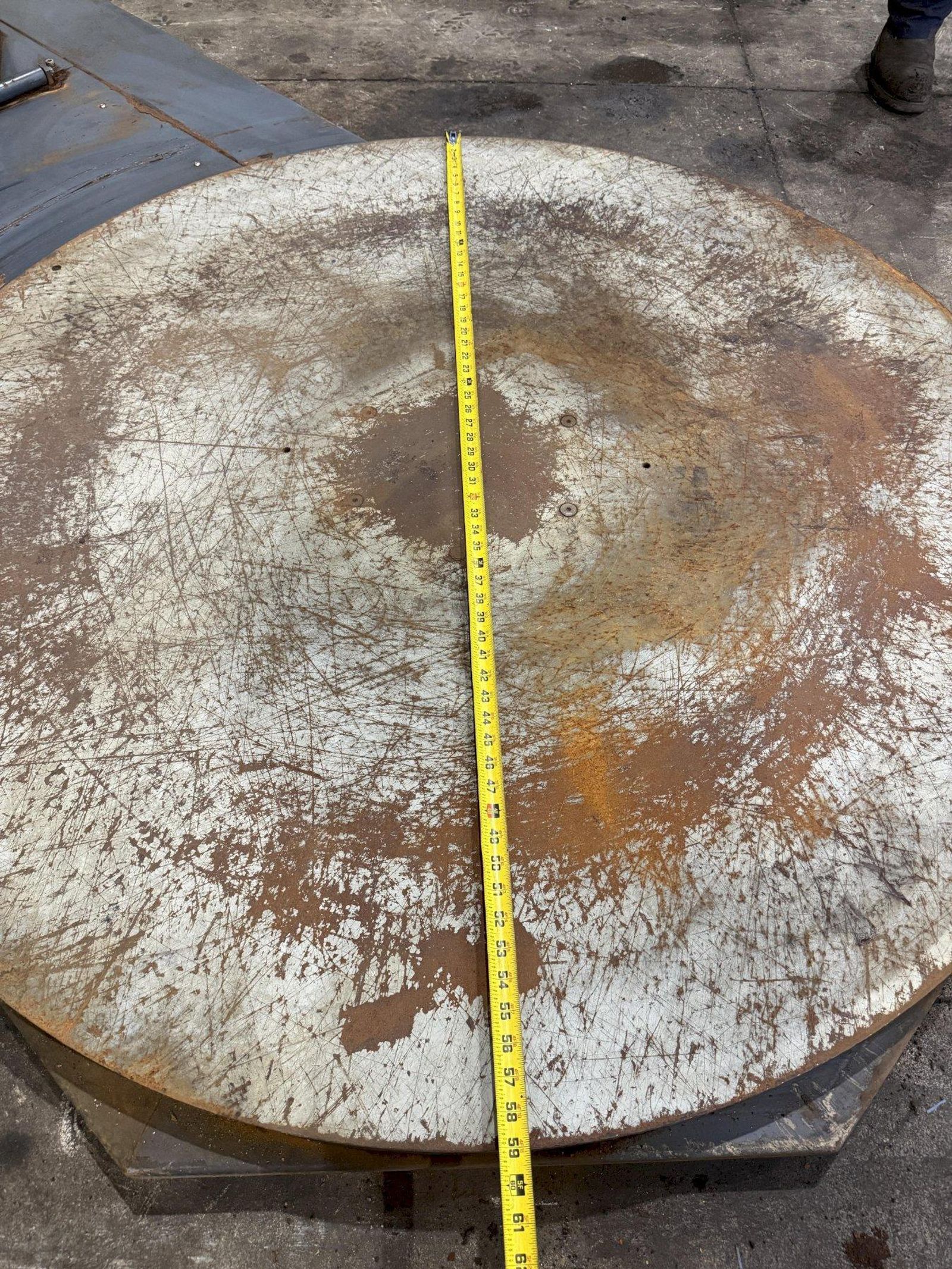

Turntable:


59” diameter laser cut steel plate
16point cam-follower support system
3” turntable height
Safety surround ring encloses turntable
Ramp accessible on all three sides




Turntable Drive:


012 RPM variable speed
1 HP AC motor with variable frequency drive
ANSI 50# direct chain drive with shock dampener

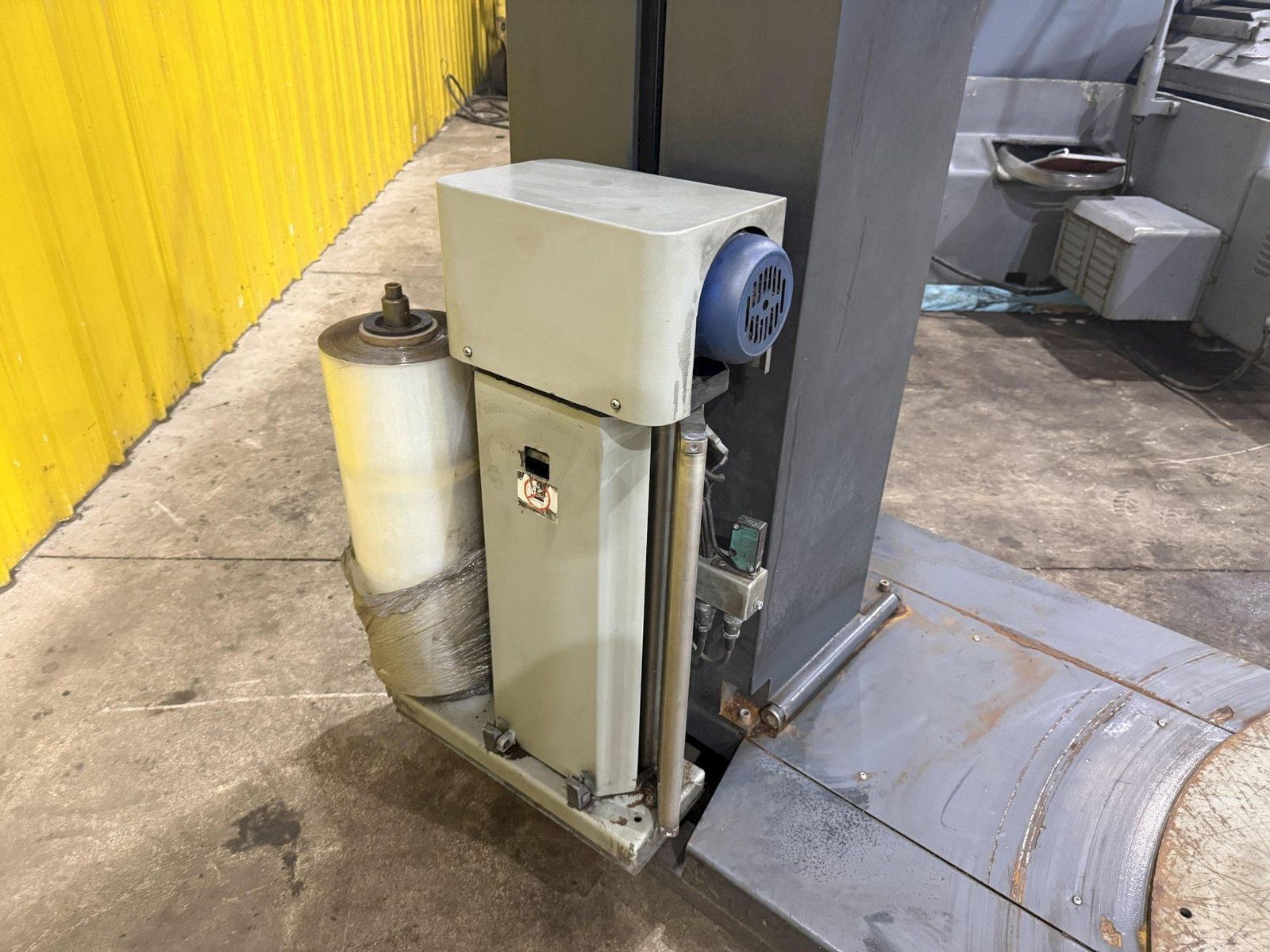

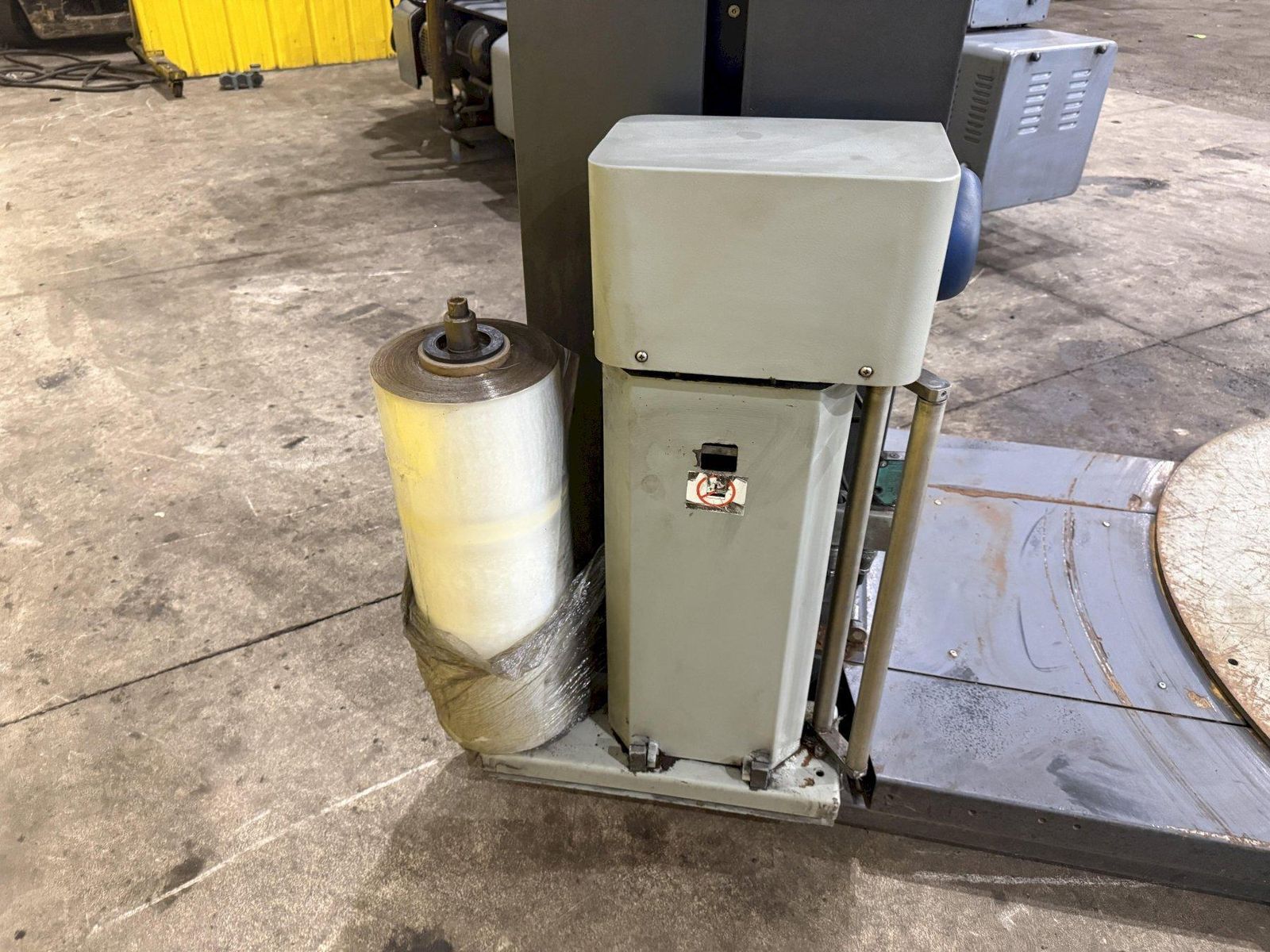

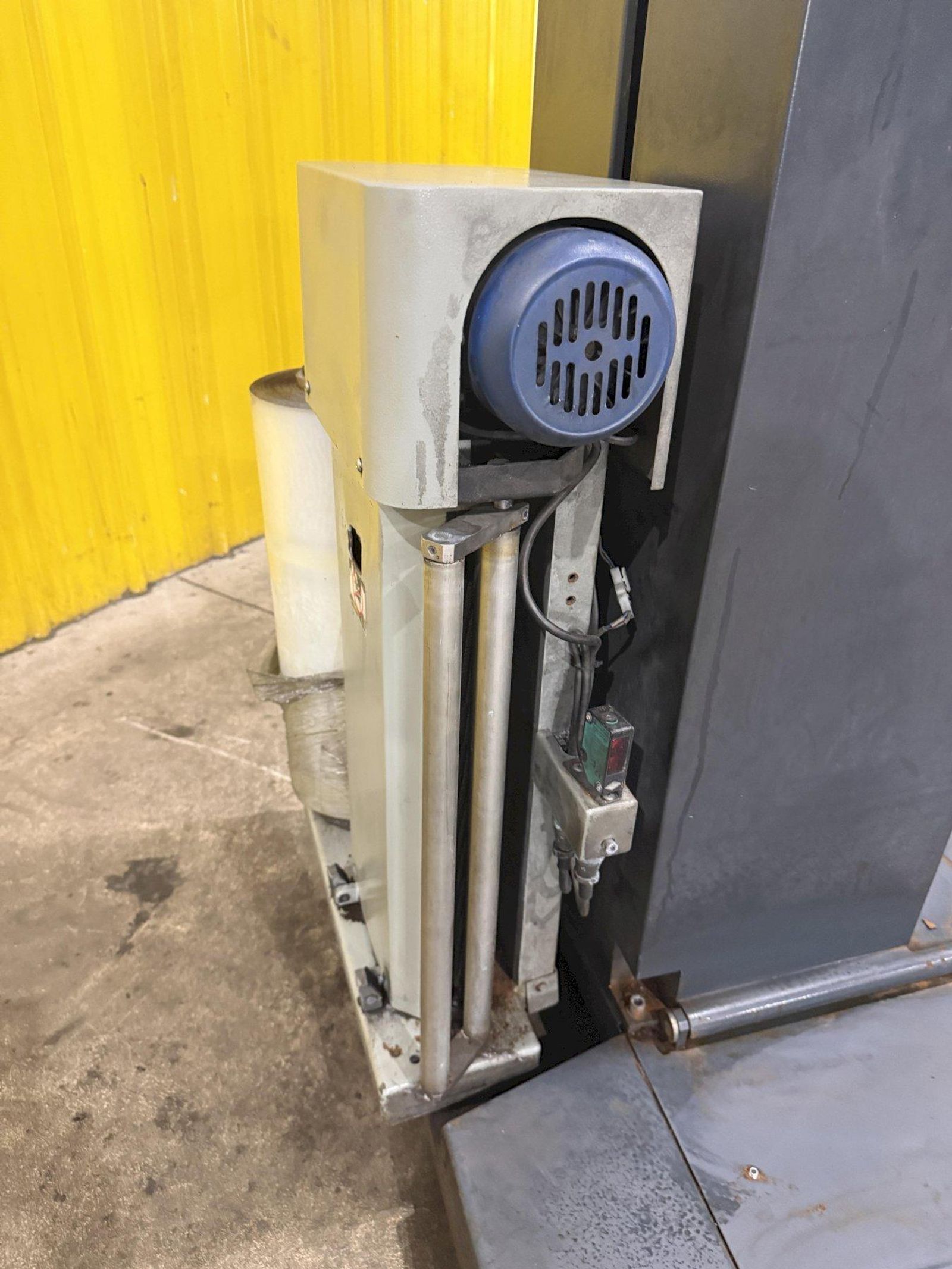

Film Delivery:


Quick thread web tensioning system
200% powered prestretch
Electronic film tension control

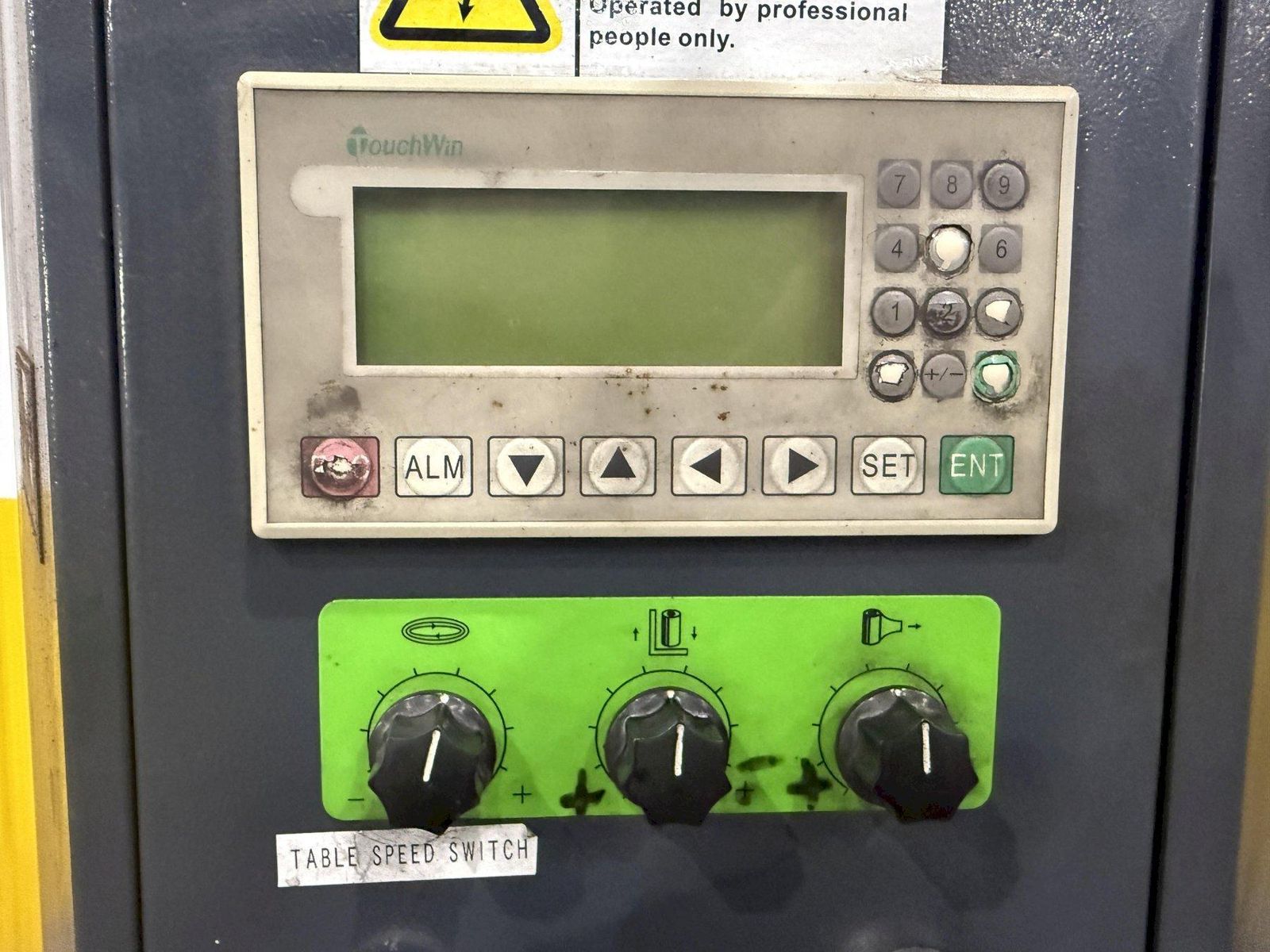

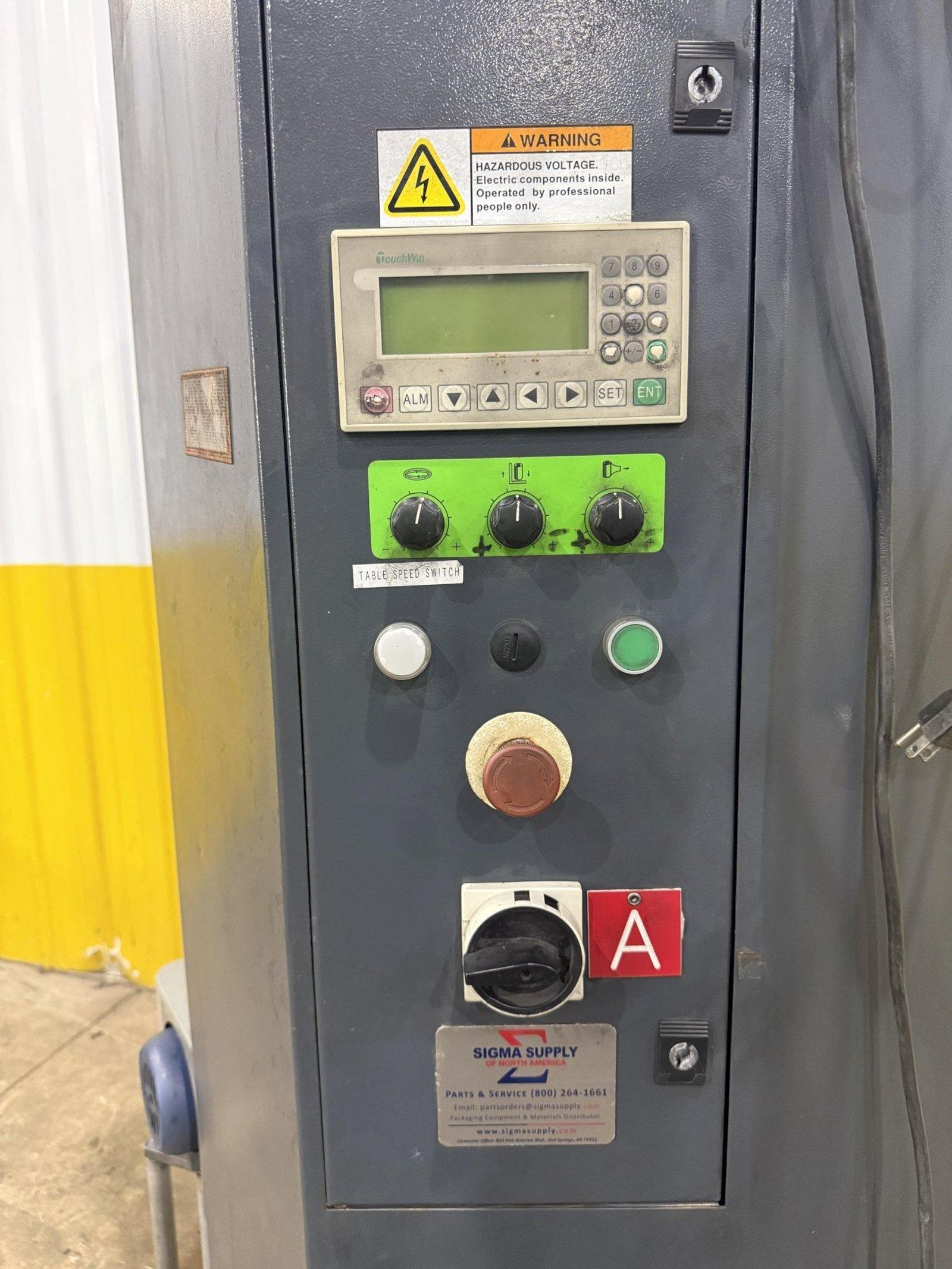

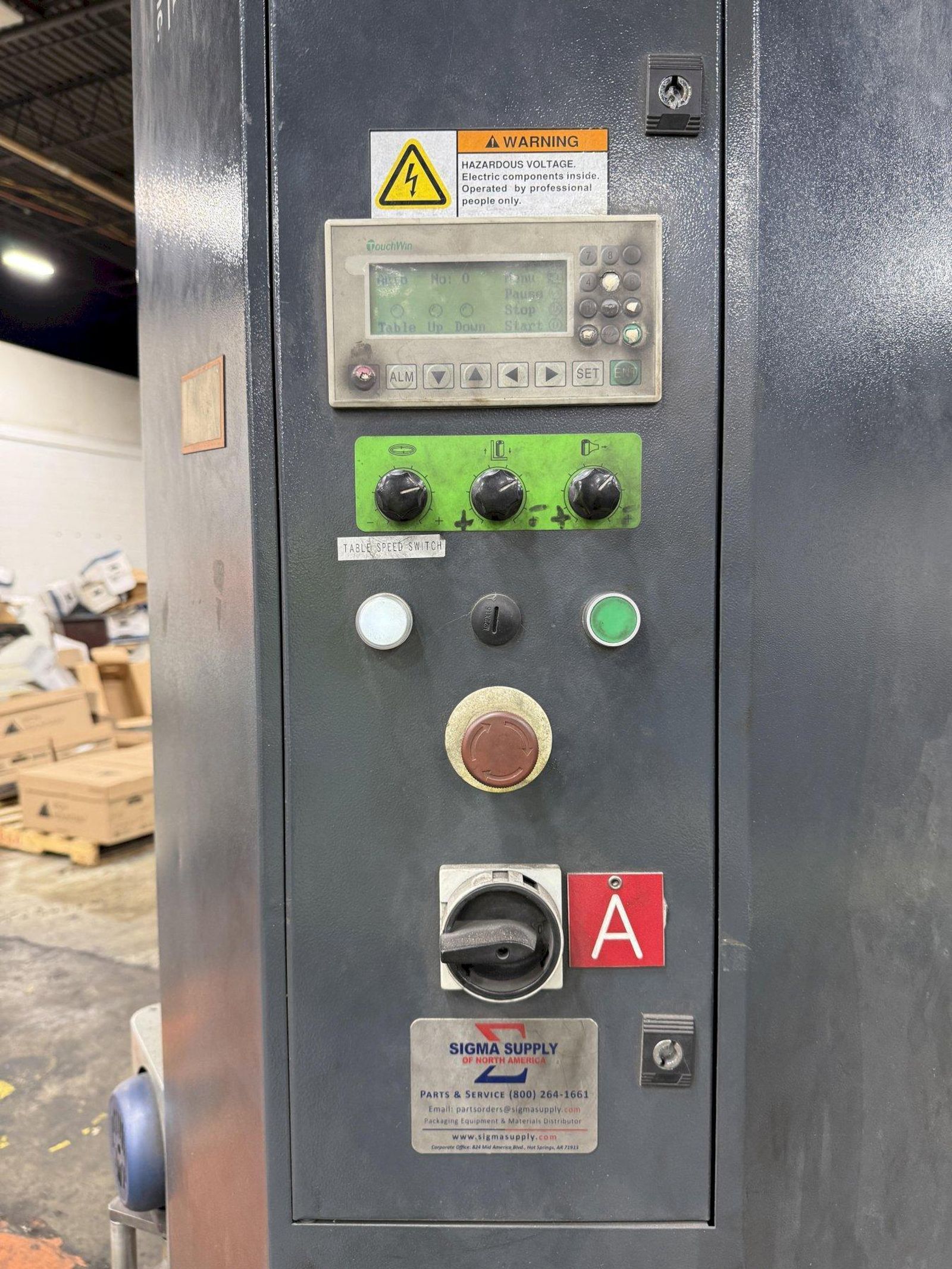

Control Features:


Simple to operate

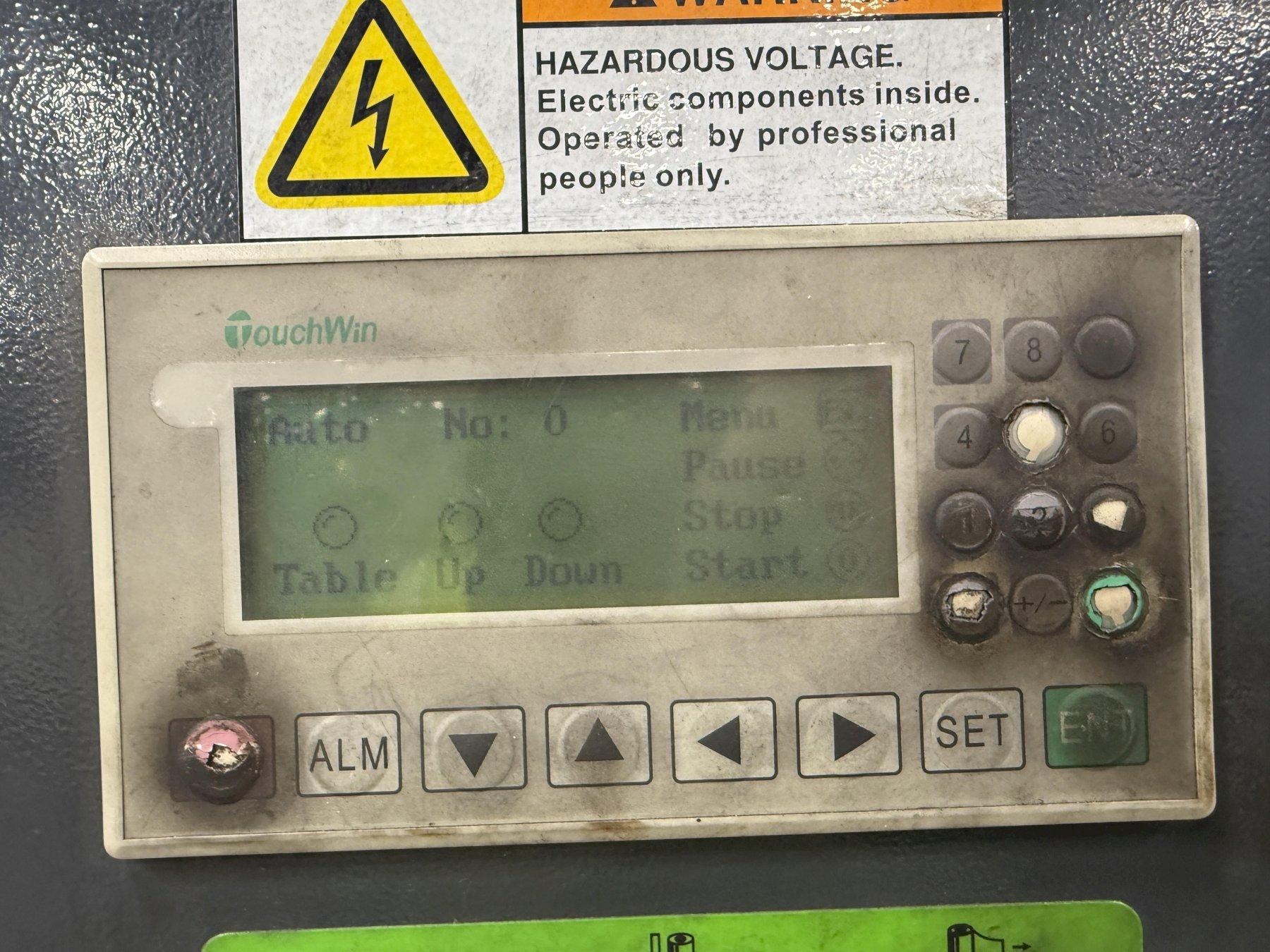

LCD screen and PLC
Programmable wrap pattern
Single button automatic cycle start
Emergency stop button
Variable film carriage speed
Auto load height photoeye
Manual control




Options:
Heavy-duty steel ramp for pallet jack
