Overview

SERIAL ....................... 25089
MODEL ........................ CSF9-30/20J
UPDATED CONTROLLER ........... 2017, MICRO-LOGIX 1400
MATERIAL WIDTH ............... 30"
MATERIAL THICKNESS ........... .030" TO .265"
COIL WEIGHT CAPACITY ......... 20,000 LBS
COIL OUTSIDE DIAMETER ........ 72"
SPEED ........................ VARIABLE, 153 FPM MAX
PEELER TABLE ................. PNEUMATIC
THREADING GUIDE ROLLER ....... PNEUMATIC PRESSURE
ENTRY FEED GUIDE ROLLS ....... PNEUMATIC PRESSURE
FEED ROLL DIAMETER ........... 5"
STRAIGHTENING ROLLS .......... (5) 2 OVER 3
ROLL ADJUSTMENT .............. SCREW DOWN
STRAIGHTENING ROLL DIAMETER .. 4-1/4"
REVERSE LOOP GUIDE ........... YES
CONTROL PANEL ................ YES
MOTOR ........................ 25 HP

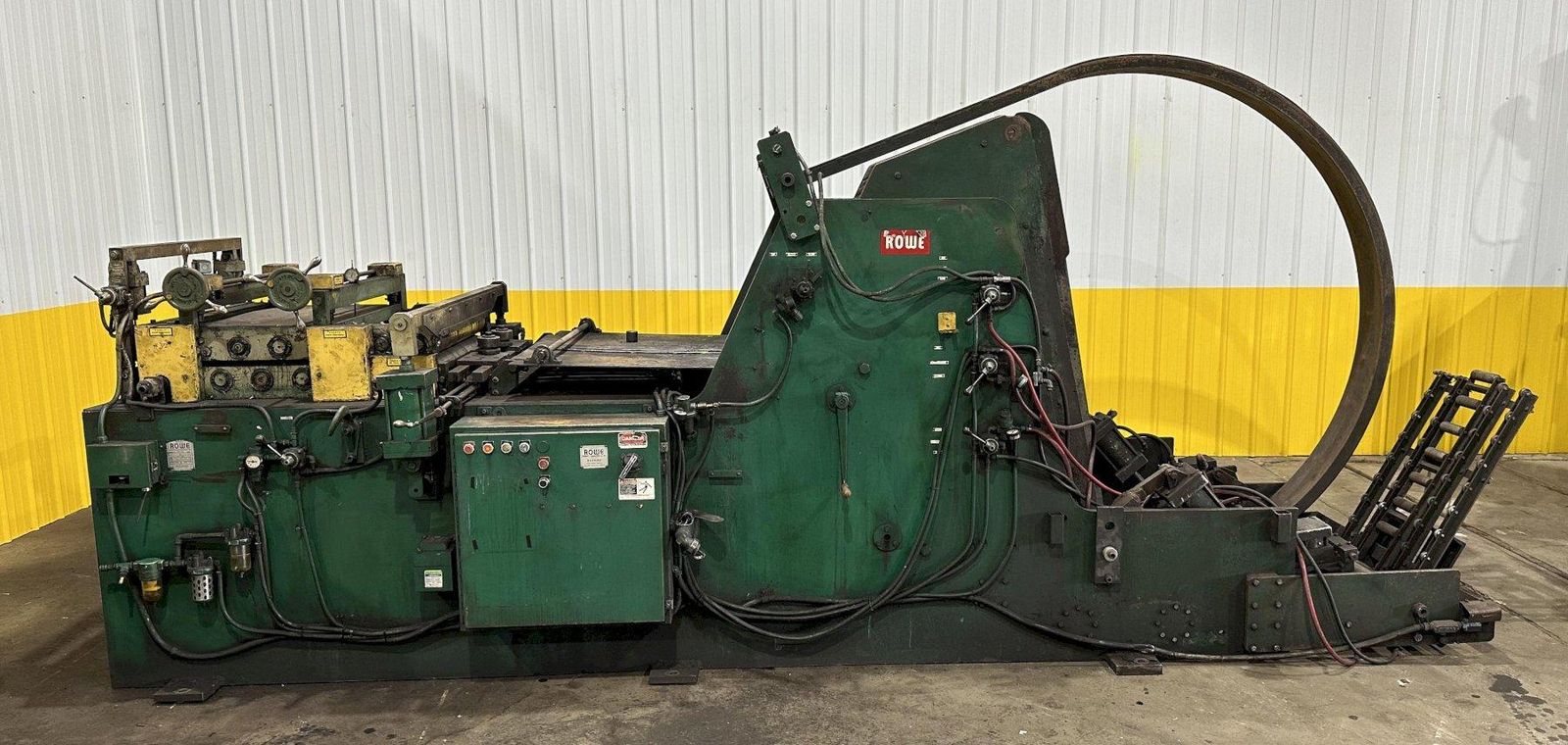

20,000 LB X 30” X .265” ROWE MODEL #CSF-9-30/20J COIL CRADLE & STRAIGHTENER: STOCK #19314

Brand
ROWE

Type
Coil Cradles & Straighteners

Stock No.
19314
