Machine Information

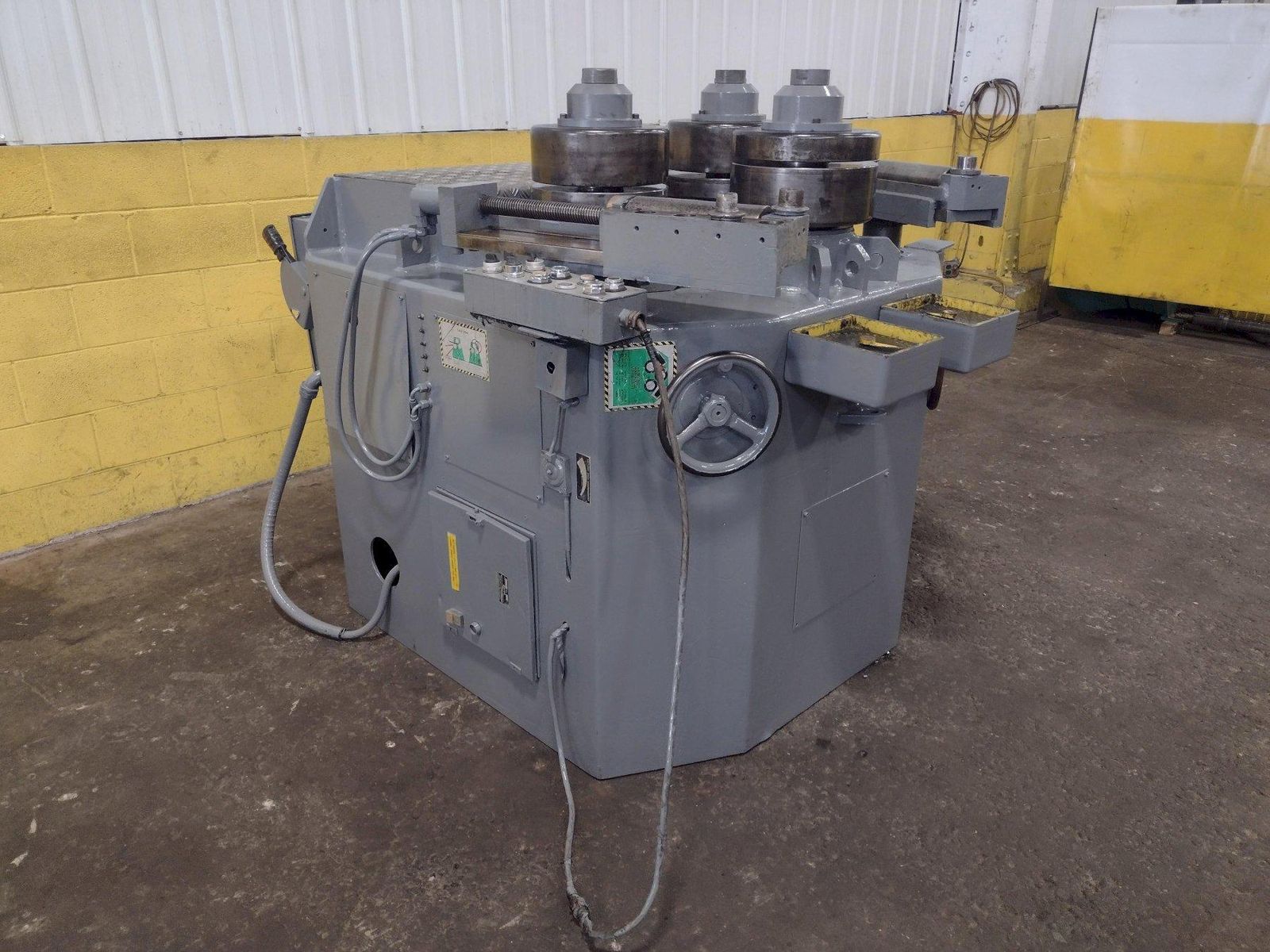

4" X 4" X 1/2" ROUNDO MODEL #R-4-S HYDRAULIC ANGLE BENDING ROLL: STOCK #15391

Stock #: 15391

Equipped With

SERIAL ..................... 843455
MODEL ...................... R-4-S
YEAR NEW ................... 1985
Angle Leg Out ........... 4" x 4" x 1/2"
Angle Leg In ............ 4" x 4" x 3/8"
Schedule 40 Pipe ........ 4"
I Beam & Channel ........ 7"
Square Bar .............. 2-1/2"
Flat Iron ............... 7" x 1-1/2"
Flat Iron On Edge ....... 4" x 1"
Diameter Of Rolls ....... 12-1/4"
Rolling Speeds .......... 0 TO 23 FPM
Lower Roll Speed ........ 0 TO 40 IPM
Main Drive Motor ........ 10 HP

T
OOLING INCLUDED:
- ANGLE TOOLING SET
- 4" & 1-1/4" PIPE SET
- 4-1/2" X 1-5/8" PIPE SET

Buy Machines

4" X 4" X 1/2" ROUNDO MODEL #R-4-S HYDRAULIC ANGLE BENDING ROLL: STOCK #15391

Stock # 15391

Share Machine
Print Details

Machine Specifications

SERIAL ..................... 843455
MODEL ...................... R-4-S
YEAR NEW ................... 1985
Angle Leg Out ........... 4" x 4" x 1/2"
Angle Leg In ............ 4" x 4" x 3/8"
Schedule 40 Pipe ........ 4"
I Beam & Channel ........ 7"
Square Bar .............. 2-1/2"
Flat Iron ............... 7" x 1-1/2"
Flat Iron On Edge ....... 4" x 1"
Diameter Of Rolls ....... 12-1/4"
Rolling Speeds .......... 0 TO 23 FPM
Lower Roll Speed ........ 0 TO 40 IPM
Main Drive Motor ........ 10 HP

T
OOLING INCLUDED:
- ANGLE TOOLING SET
- 4" & 1-1/4" PIPE SET
- 4-1/2" X 1-5/8" PIPE SET

Specifications
Weight 6100 pounds
