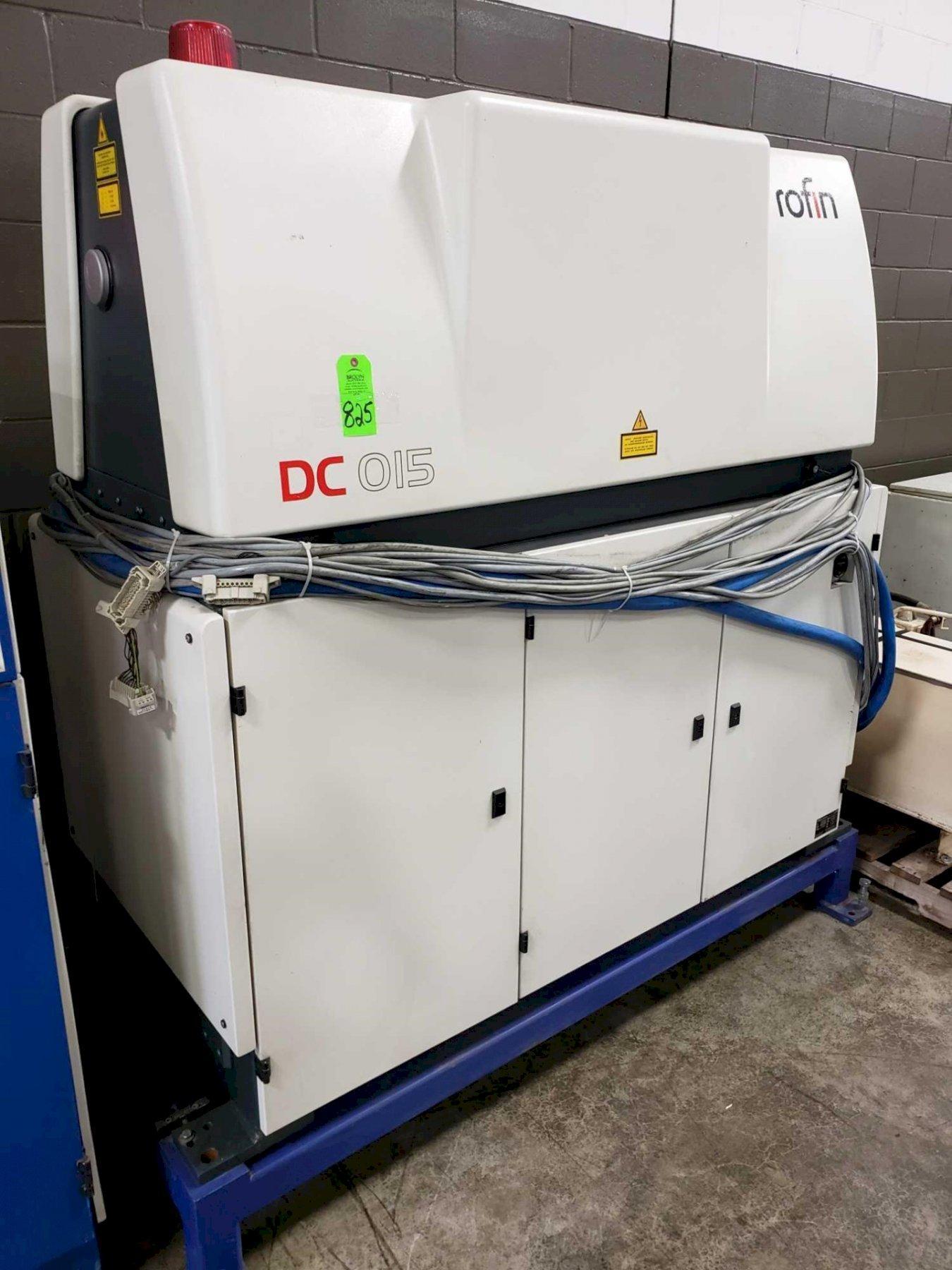

ROFIN 1500 WATT MODEL DC-015 HIGH POWER CO-2 SLAB LASER POWER SUPPLY: STOCK #11199

Stock #: 11199

Equipped With

MODEL ........................................... DC015
INSTALLED NEW ................................... 2014
POWER SUPPLY .................................... 400V / 3PH
NOMINAL POWER ................................... 1000W
POWER RANGE ..................................... 10-100
Laser Beam Quality ISO 11146, deviation +/-5% ISO 11146, deviation +/-5% ... K (M²) = 0.95 (1.05)
Power Stability (%) Cooling water ^/-T </+ ± 1 K ... +/-2

Pointing stability(mrad)ISO 11145 ............... </-0.15
Pulse Frequency Range  .......................... CW or 2-5000 Hz
Beam diameter (mm) .............................. 18 +/- 3*
Polarization .................................... linear, 45° parallel to base
Wavelength ...................................... 10.6 μm (MICROMETER)
Excitation ...................................... RF

ELECTRICAL RATINGS:

VOLTAGE:
3 x 230/400V/+/-10%/3x255/440V/+/-10% or 3x277/480V/+/-10%/50/60Hz/3Ph/PE
CONNECTED LOAD .................................. 22
Effective Power at Nominal Power (KW) ........... 21
Max. Current Consumption at 400 V (A) ........... <35
Fuses Type NH (A) ............................... 50

COOLING:
Recommended Cooling Capacity (KW) ............... >/-21
Flow rate laser head (l/h) ...................... >/-4000
Flow rate laser Compact (l/h) ................... /-4500
Flow rate laser cabinet (l/h) ................... >/-500
Temperature (°C) Θ** ............................ 20 to 27 (above dew point)
Temperature Tolerance Range (°C) ................ +/-1

LASER GAS:
TYPE ............................................ ROFIN-SINAR Premix
Consumption (Nl/h) .............................. < 0.06
Change interval (h) ............................. 168

DIMENSIONS & WEIGHTS:
Standard Laser head ............................. 1685L x 800W x 850H (MM)
WEIGHT .......................................... 520 KG
Control cabinet ................................. 1200W x 689D x 2062H (MM)
WEIGHT........................................... 575 KG
Compact Laser ................................... 1880L x 881W x 1863H (MM)
WEIGHT .......................................... 1310 KG

AMBIENT TEMPERATURE (°C)......................... 5-40
HUMIDITY  (°C) .................................. DEW POINT BELOW THE COOLING WATER

*TAKEN DIRECTLY FROM SERVICE *
REPLACEMENT COST 142K
