Machine Information

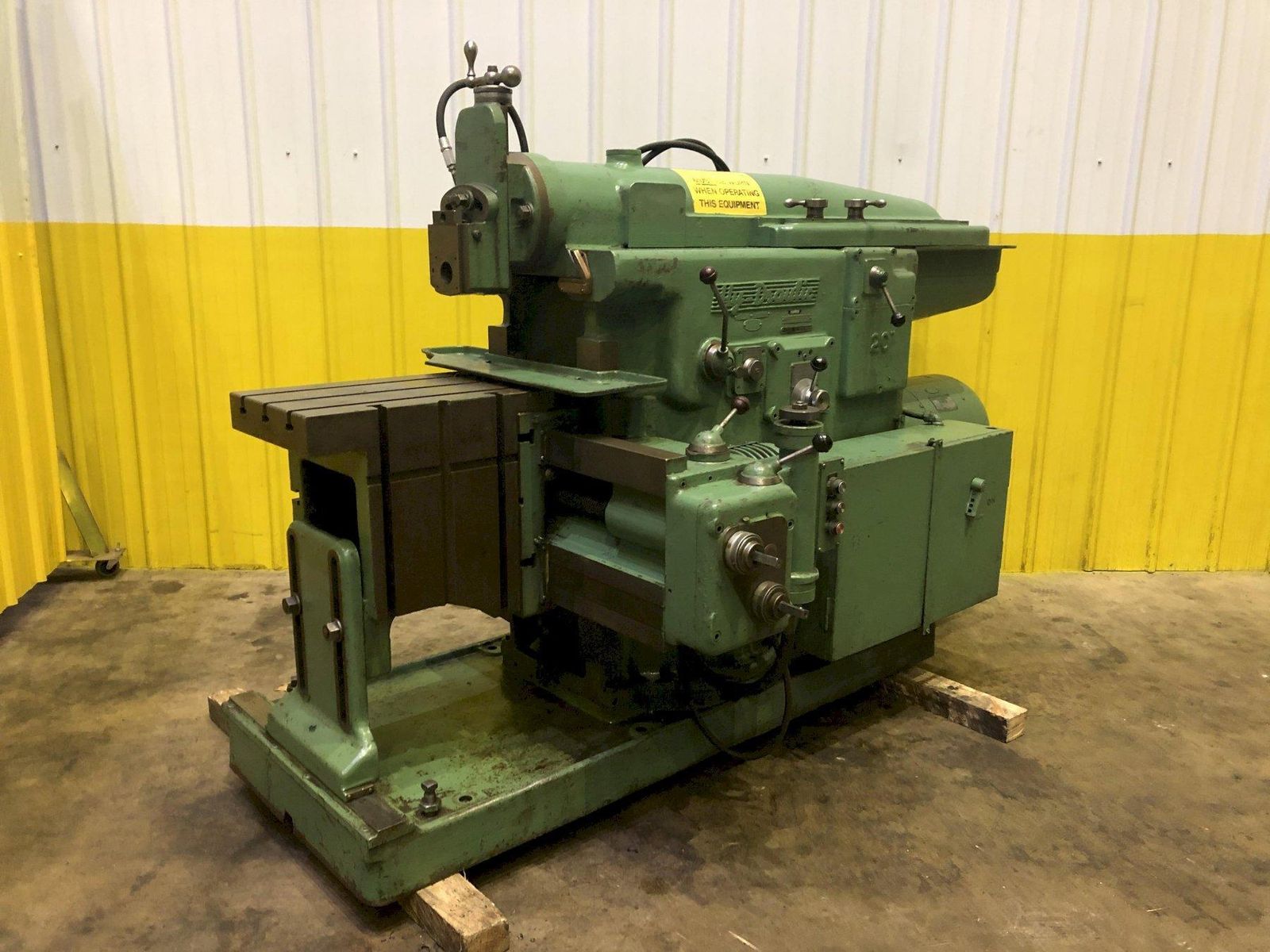

20" ROCKFORD MODEL #20 HYDRAULIC SHAPER: STOCK 15730

Stock #: 15730

Equipped With

SERIAL ................................. 93 HB 83
MAXIMUM LENGTH OF STROKE ............... 22"
HORIZONTAL TRAVEL OF TABLE ............. 20"
VERTICAL TRAVEL OF TABLE ............... 10.5"
DISTANCE PLAIN TABLE TO RAM ............ 4" MIN, 15" MAX
DISTANCE UNIVERSAL TABLE TO RAM ........ 3-1/8" MIN, 14-1/8" MAX
VERTICAL HEAD ADJUSTMENT ............... 7"
POWER DOWN FEED RANGE (VARIABLE) ....... .000" TO .018"
TABLE FEEDS ............................ .000" TO .100"
CUTTING SPEED RANGE .................... 10 TO 140 FPM
RAPID TRAVERSE ......................... YES
AREA OF TABLE .......................... 13" X 20"
MOTOR, HORSEPOWER ...................... 7-1/2


Buy Machines

20" ROCKFORD MODEL #20 HYDRAULIC SHAPER: STOCK 15730

Stock # 15730

Share Machine
Print Details

Machine Specifications

SERIAL ................................. 93 HB 83
MAXIMUM LENGTH OF STROKE ............... 22"
HORIZONTAL TRAVEL OF TABLE ............. 20"
VERTICAL TRAVEL OF TABLE ............... 10.5"
DISTANCE PLAIN TABLE TO RAM ............ 4" MIN, 15" MAX
DISTANCE UNIVERSAL TABLE TO RAM ........ 3-1/8" MIN, 14-1/8" MAX
VERTICAL HEAD ADJUSTMENT ............... 7"
POWER DOWN FEED RANGE (VARIABLE) ....... .000" TO .018"
TABLE FEEDS ............................ .000" TO .100"
CUTTING SPEED RANGE .................... 10 TO 140 FPM
RAPID TRAVERSE ......................... YES
AREA OF TABLE .......................... 13" X 20"
MOTOR, HORSEPOWER ...................... 7-1/2


Specifications
Weight 5525 pounds
