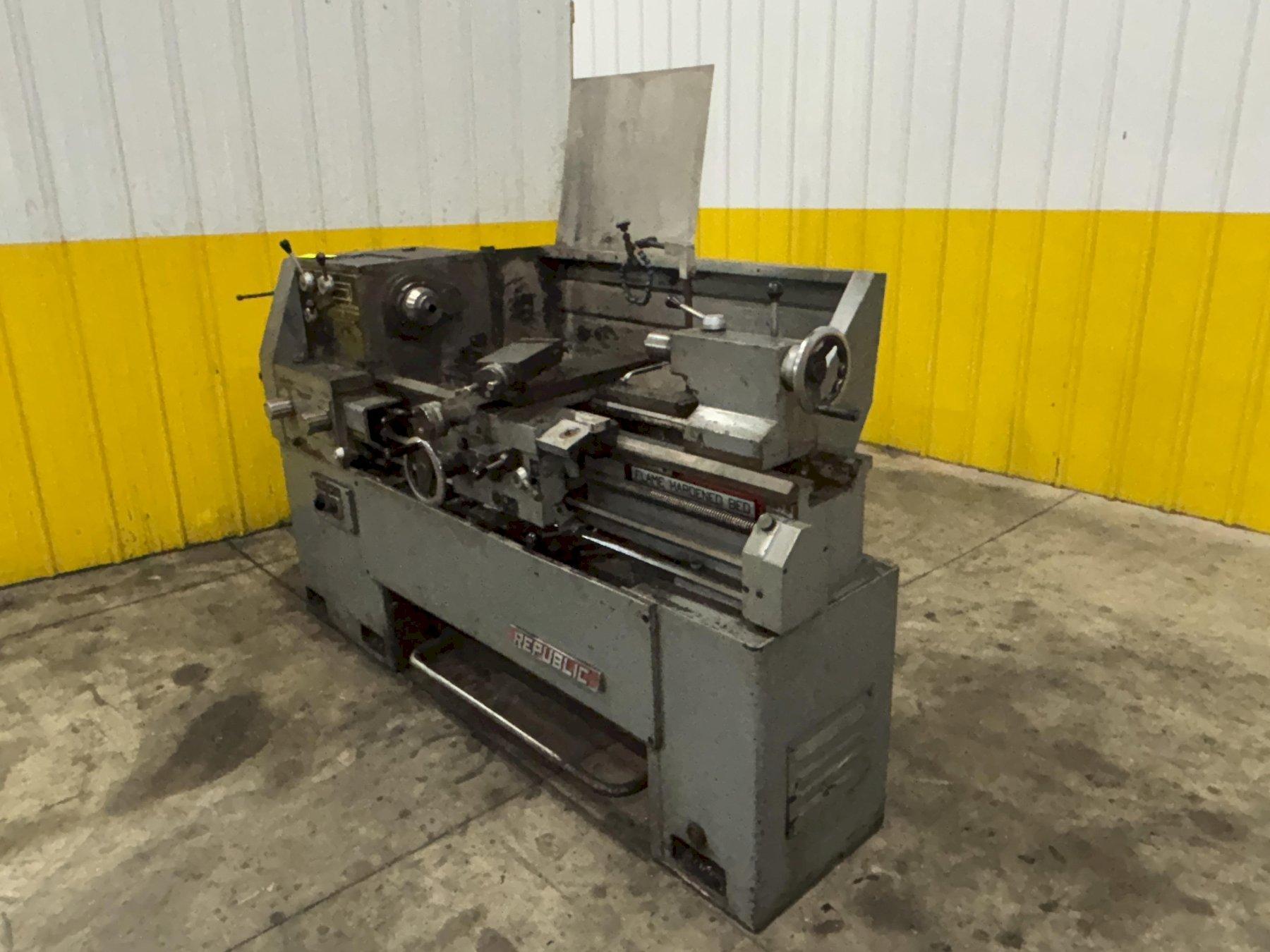

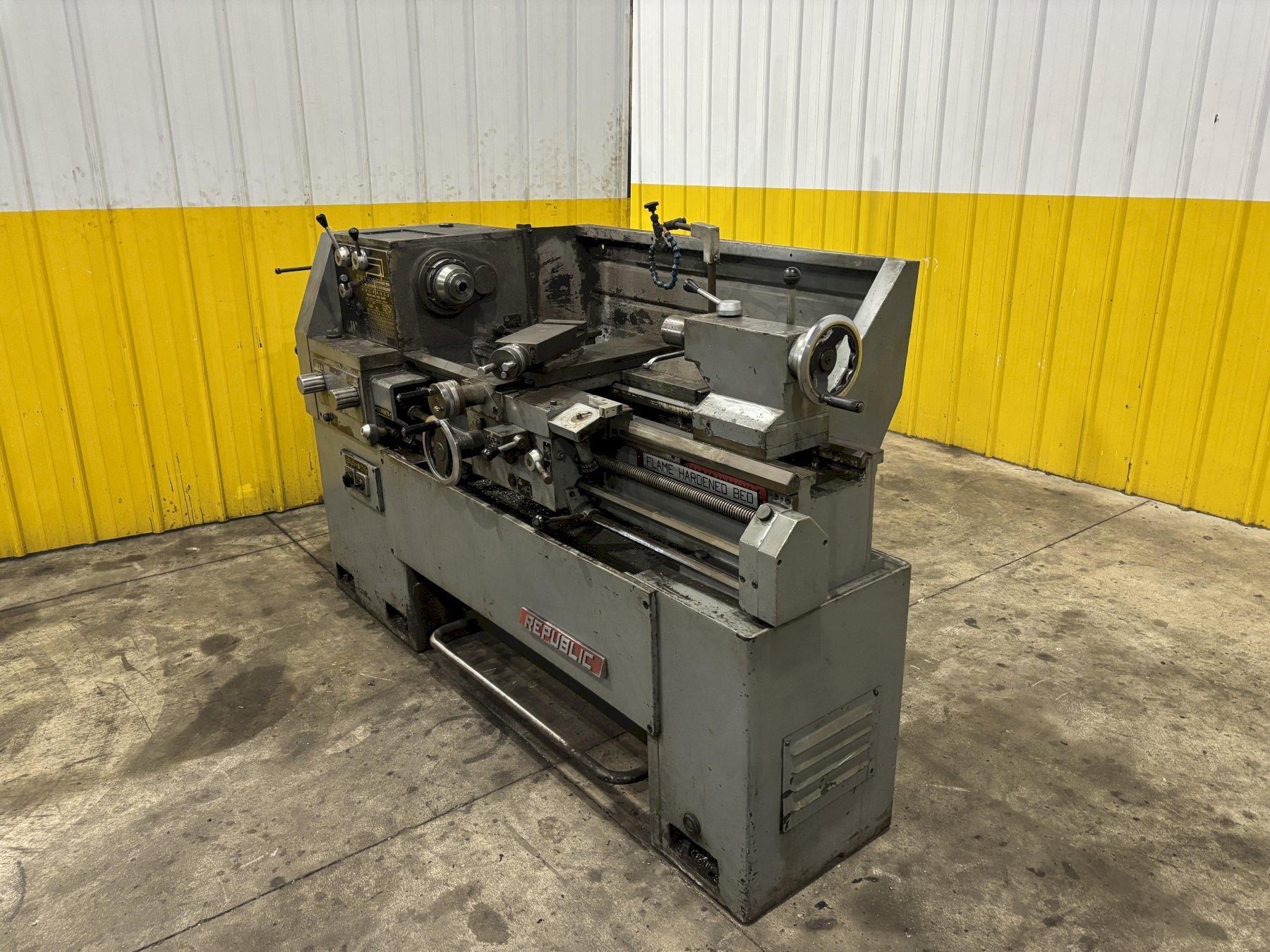

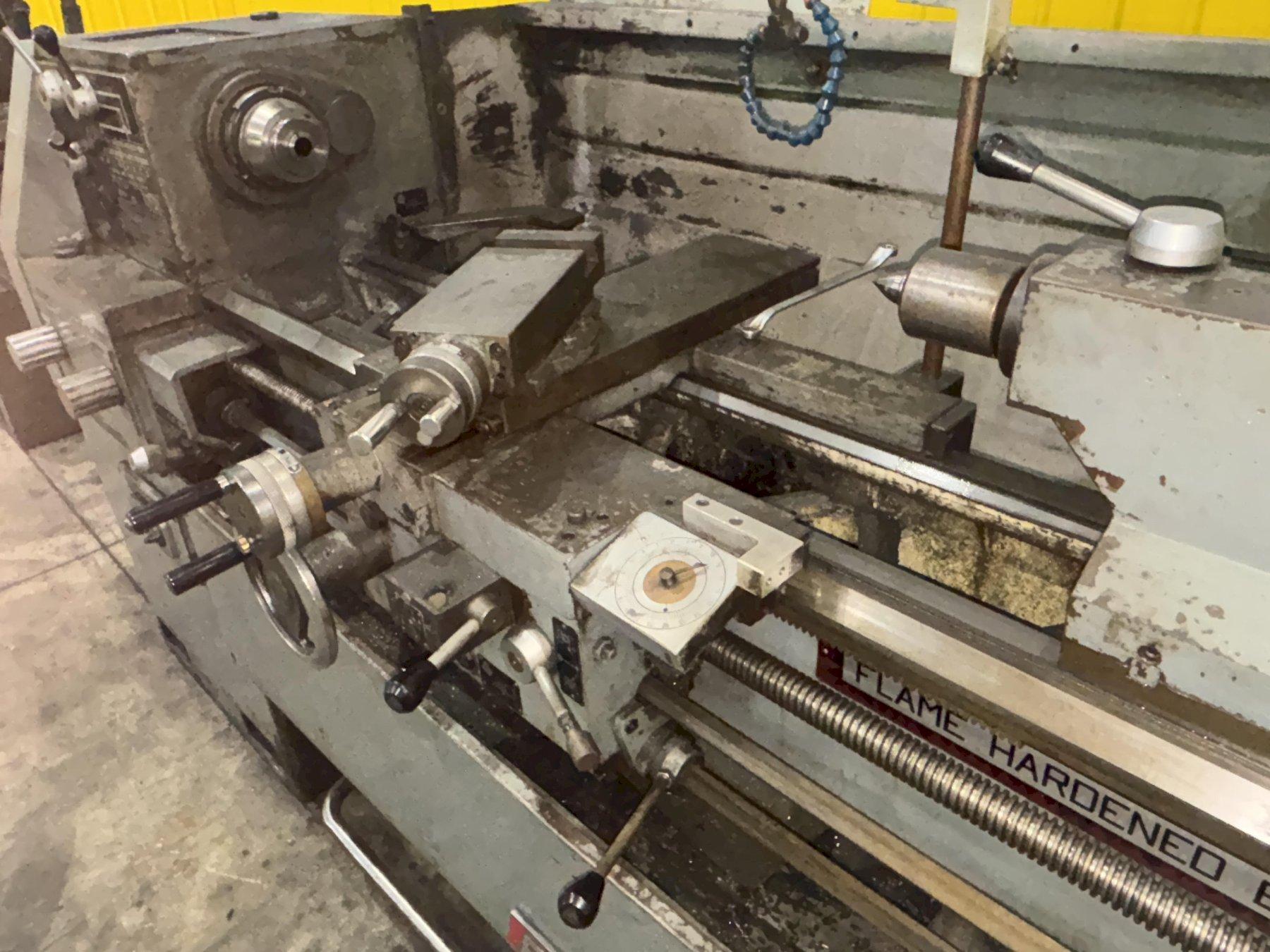

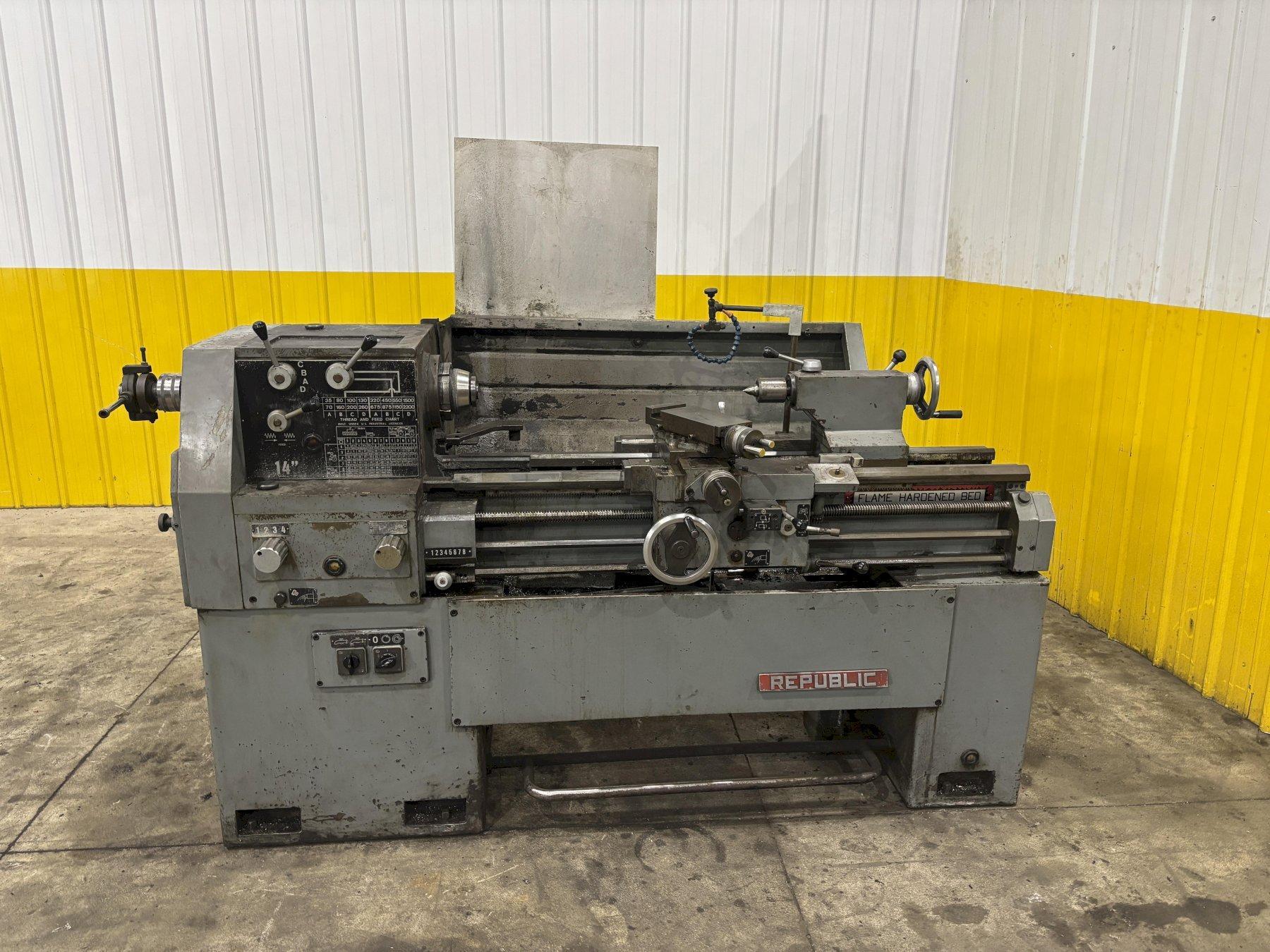

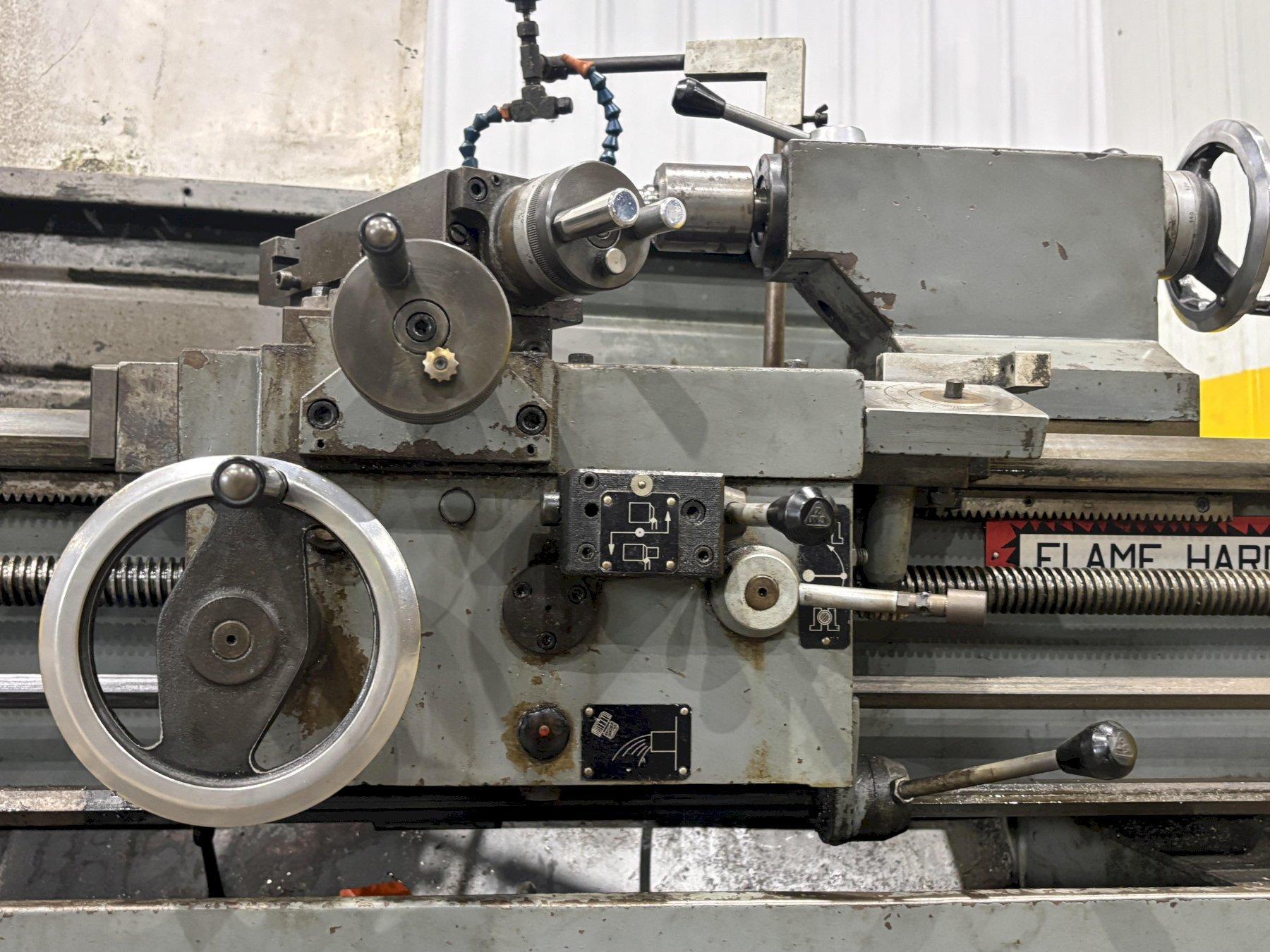

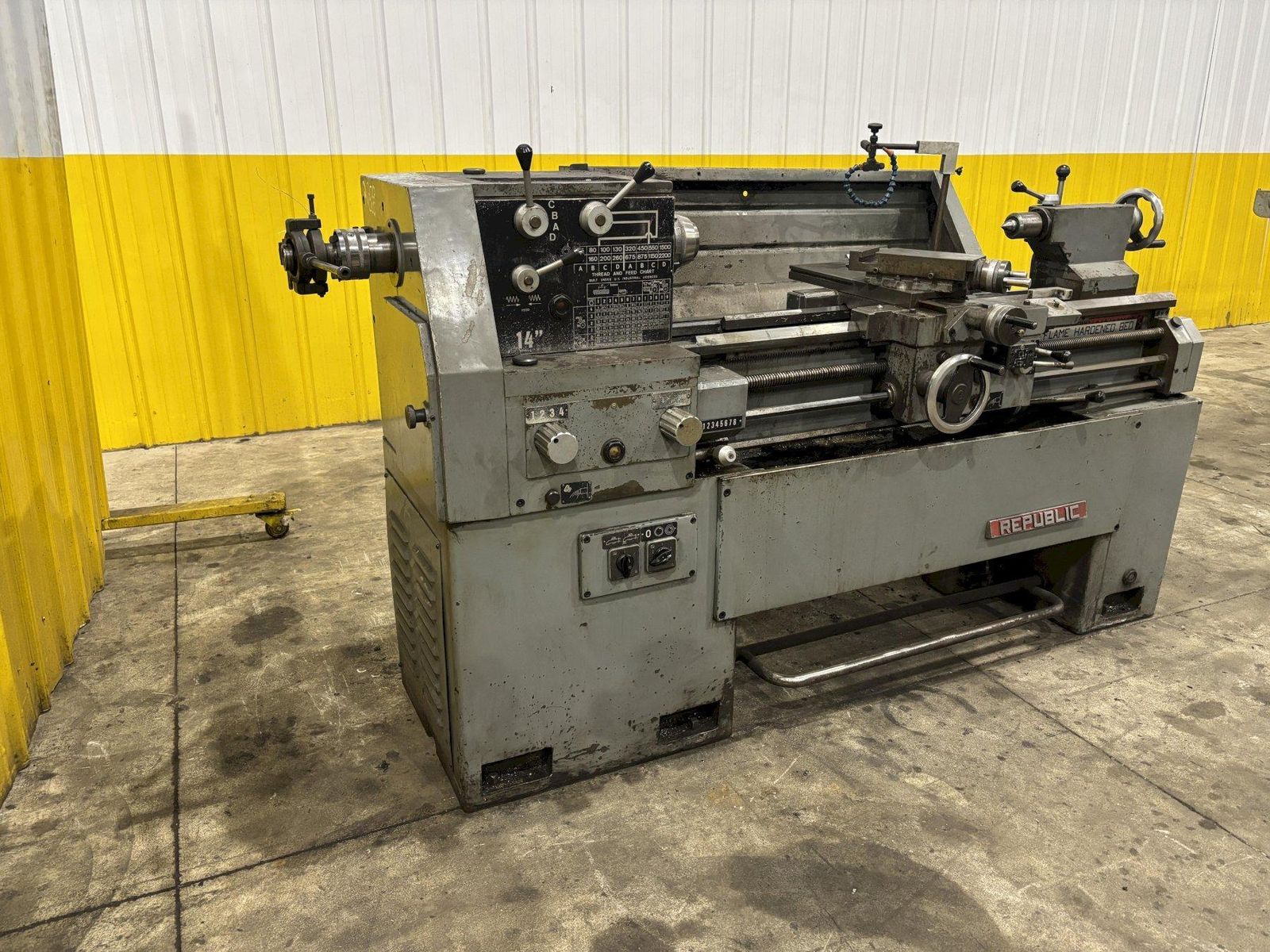

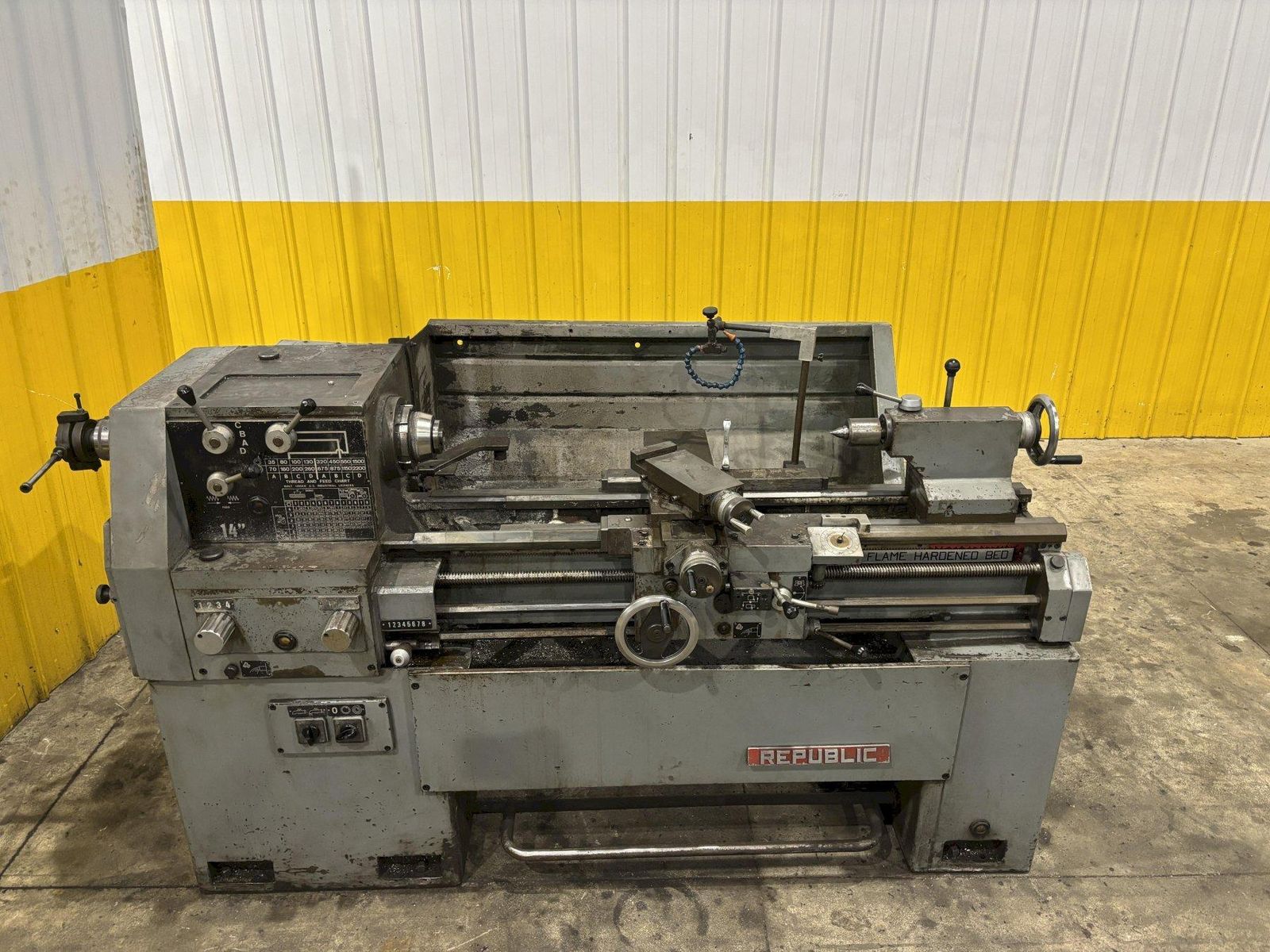

14" X 40" REPUBLIC MODEL #14 ENGINE LATHE WITH METRIC & 2" HOLE: STOCK #23667

Overview

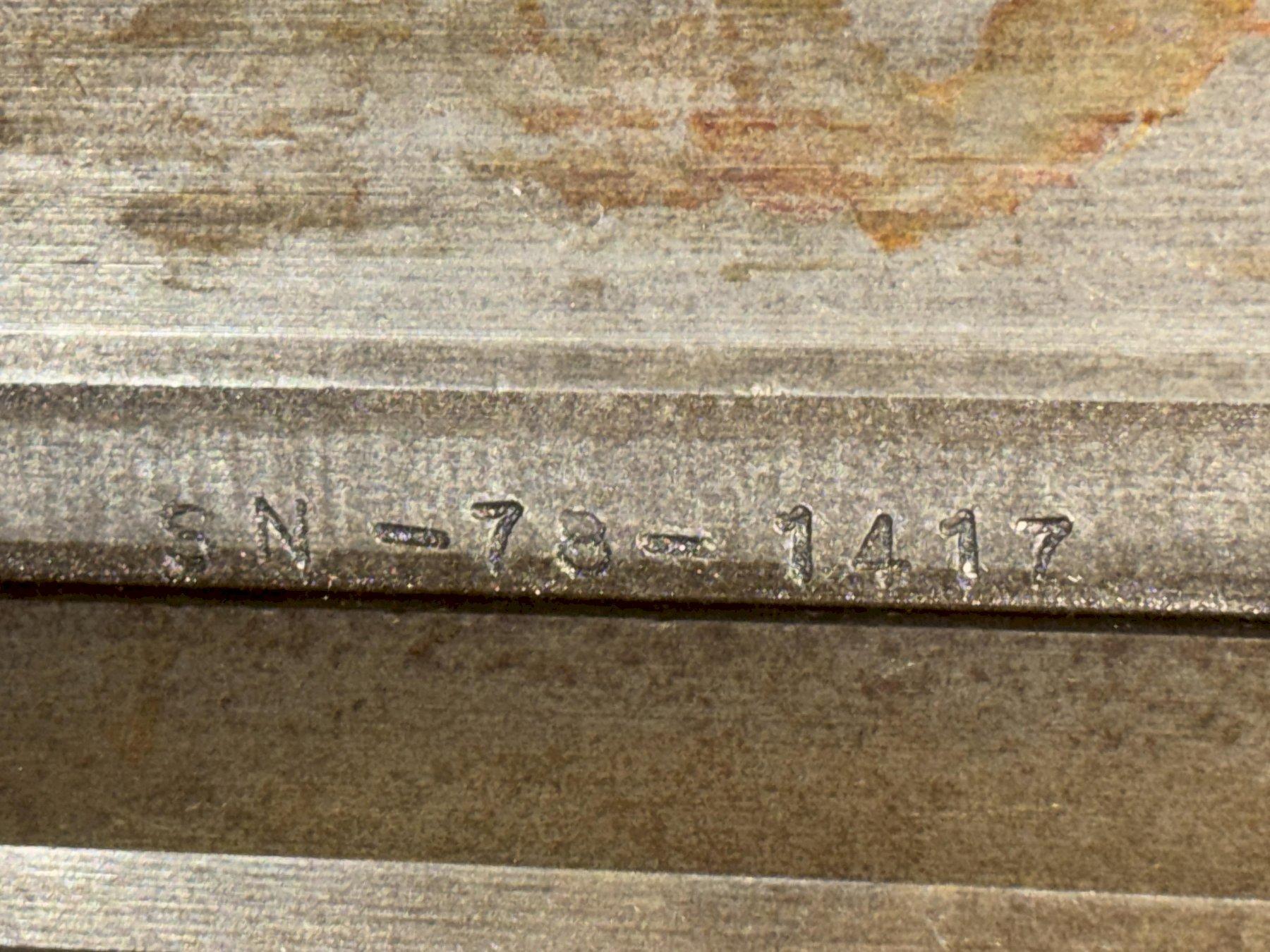

SERIAL ........................... 78-1417
MODEL ............................ #14

Swing over bed ................... 14"

Swing over cross slide ........... 8-1/2"

Distance between centers ......... 40"

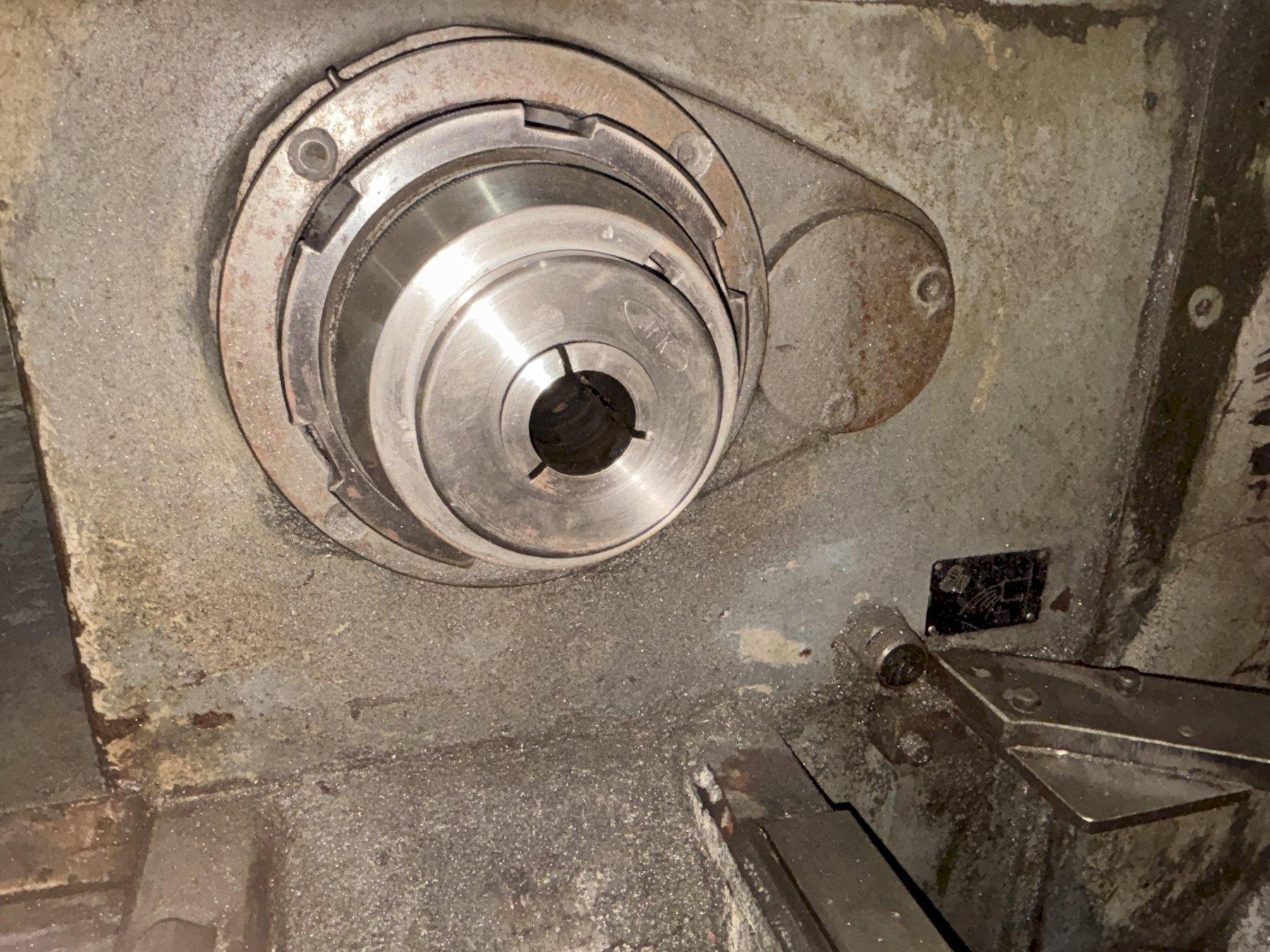

Spindle nose ..................... D1-6 camlock

Spindle bore diameter ............ 2"

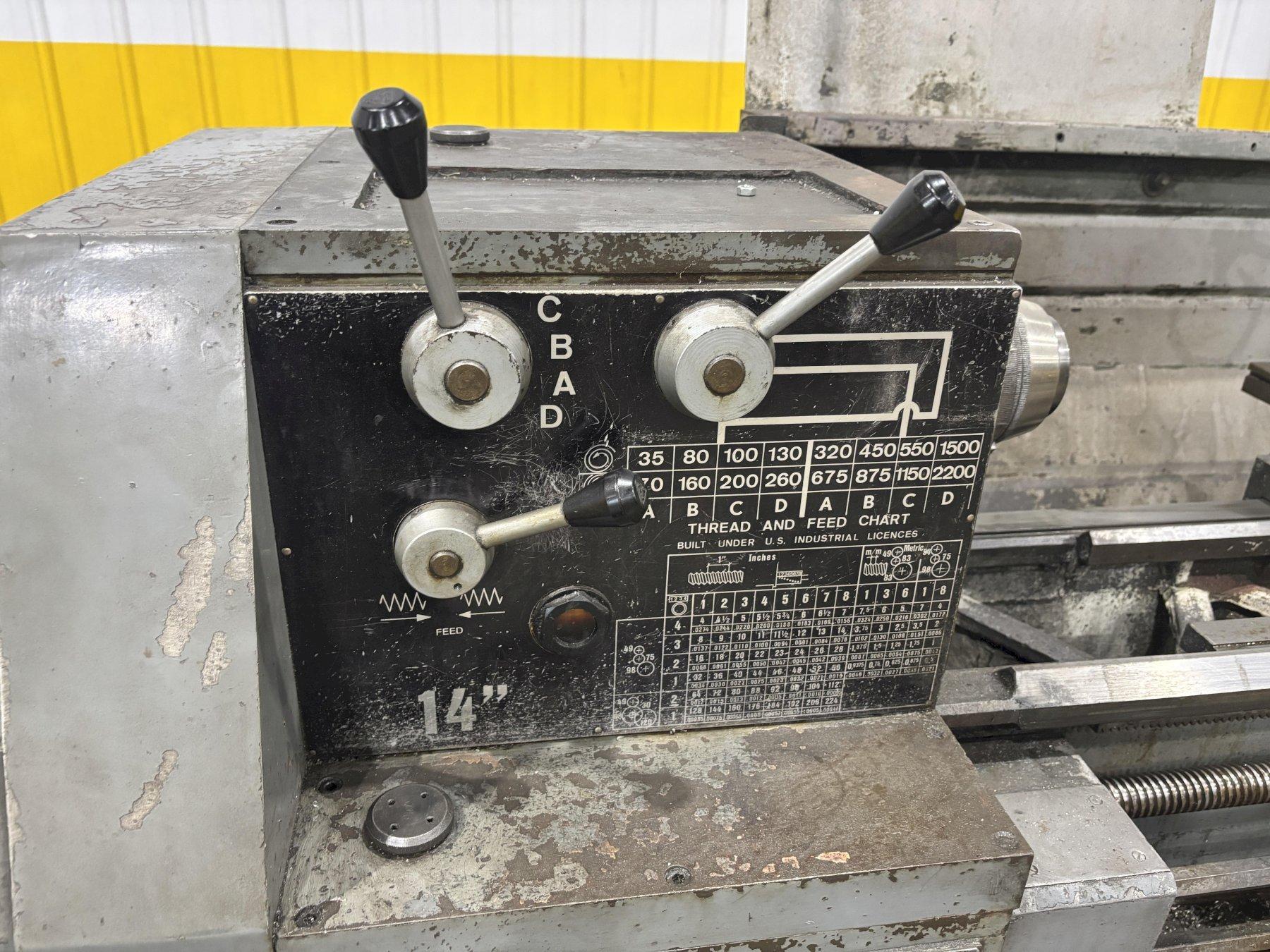

Spindle speeds (16) .............. 35 TO 2,200

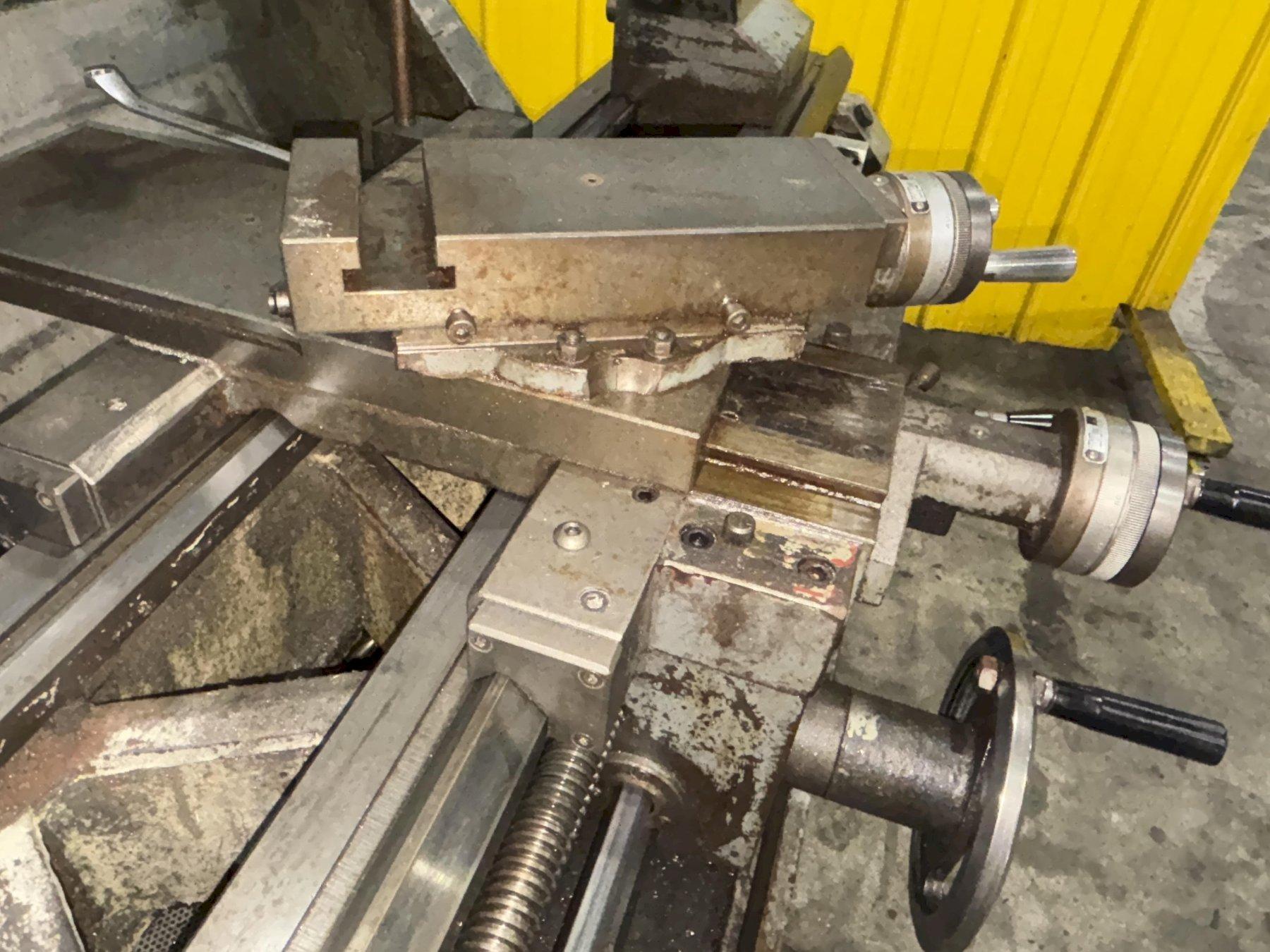

Cross slide travel ............... 9"

Compound slide travel ............ 5"

Longitudinal feeds ............... 0.002 to 0.066

Cross feeds ...................... 0.001 to 0.033

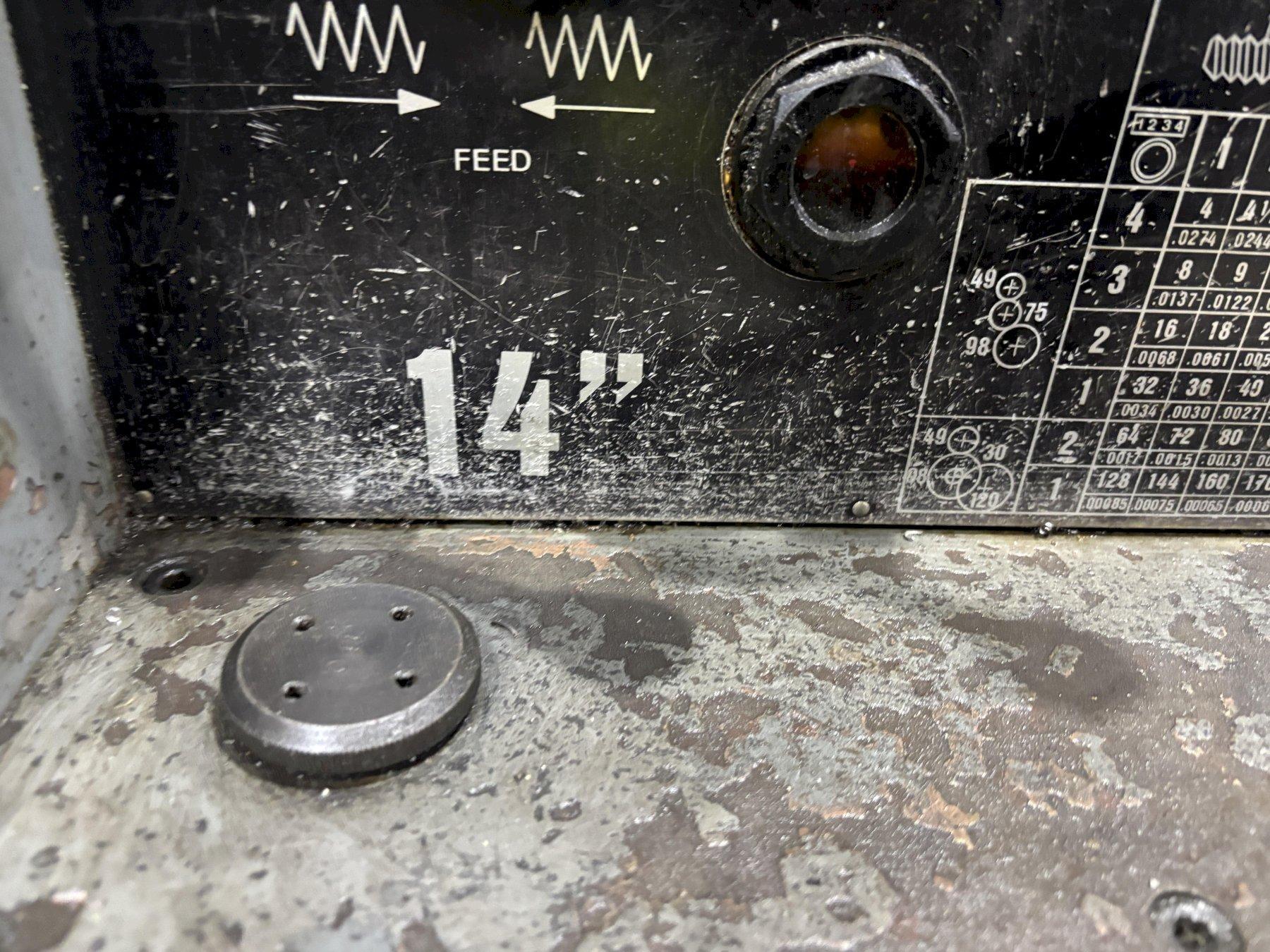

Inch threads ..................... 2 to 72 TPI (45)

Metric threads ................... 2 to 14 MM (39)

Module Threads ................... 0.3 to 3.5 (18)

Diametral threads ................ 8 to 44 (21)

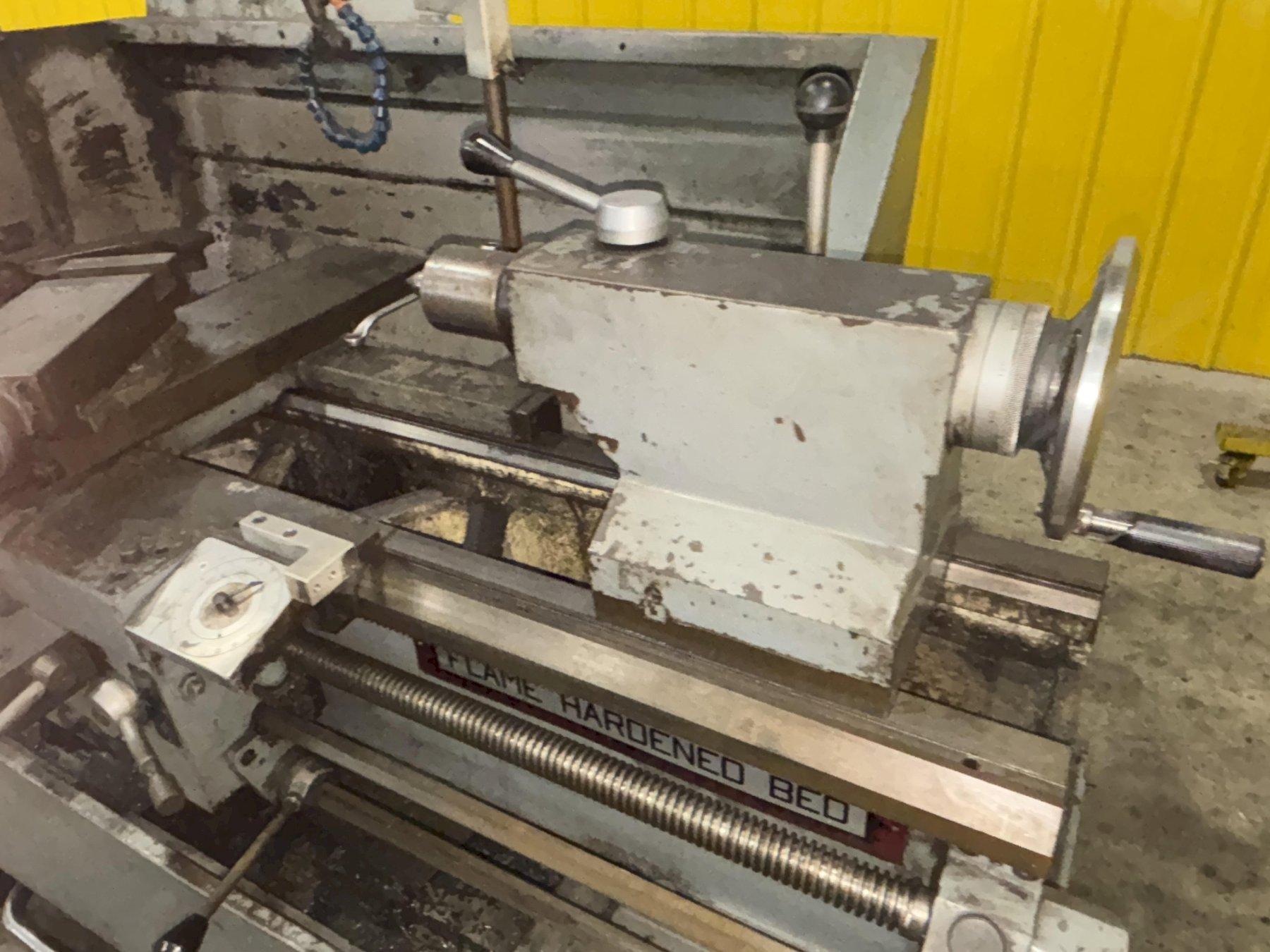

Tailstock quill diameter ......... 2"

Tailstock quill travel ........... 5-1/2"

Tailstock quill taper ............ #4 MT

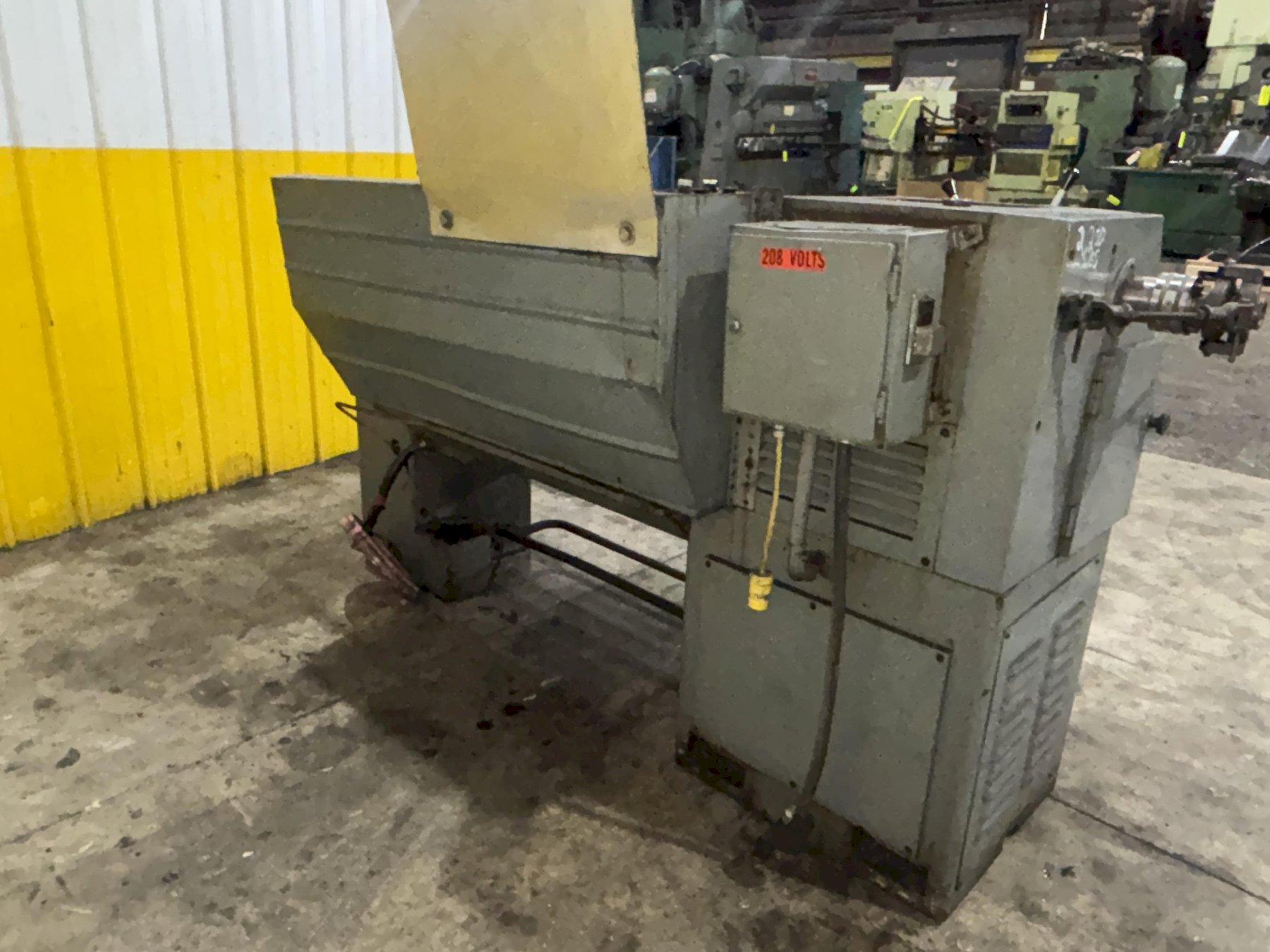

Motor ............................ 5 HP

14" X 40" REPUBLIC MODEL #14 ENGINE LATHE WITH METRIC & 2" HOLE: STOCK #23667

Brand

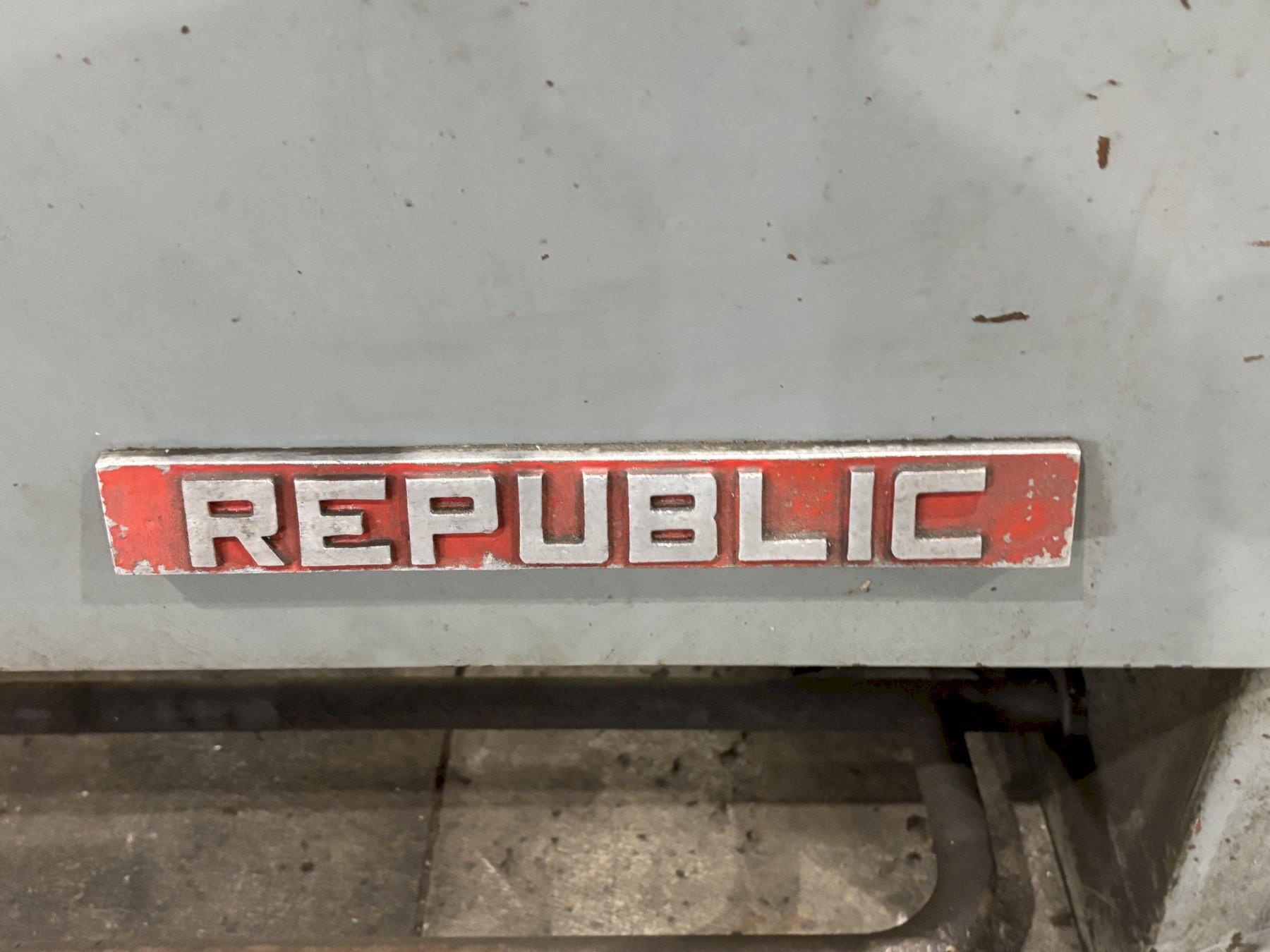

REPUBLIC

Type
Lathes, Engine

Stock No.
23667

Buy Now

Price: $3950.00

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
870 Curtis Street
Toledo, OH 43609

Machine Information

14" X 40" REPUBLIC MODEL #14 ENGINE LATHE WITH METRIC & 2" HOLE: STOCK #23667

Stock #: 23667

Equipped With

SERIAL ........................... 78-1417
MODEL ............................ #14
Swing over bed ................... 14"
Swing over cross slide ........... 8-1/2"
Distance between centers ......... 40"
Spindle nose ..................... D1-6 camlock
Spindle bore diameter ............ 2"
Spindle speeds (16) .............. 35 TO 2,200
Cross slide travel ............... 9"
Compound slide travel ............ 5"
Longitudinal feeds ............... 0.002 to 0.066
Cross feeds ...................... 0.001 to 0.033
Inch threads ..................... 2 to 72 TPI (45)
Metric threads ................... 2 to 14 MM (39)
Module Threads ................... 0.3 to 3.5 (18)
Diametral threads ................ 8 to 44 (21)
Tailstock quill diameter ......... 2"
Tailstock quill travel ........... 5-1/2"
Tailstock quill taper ............ #4 MT
Motor ............................ 5 HP
