Machine Information

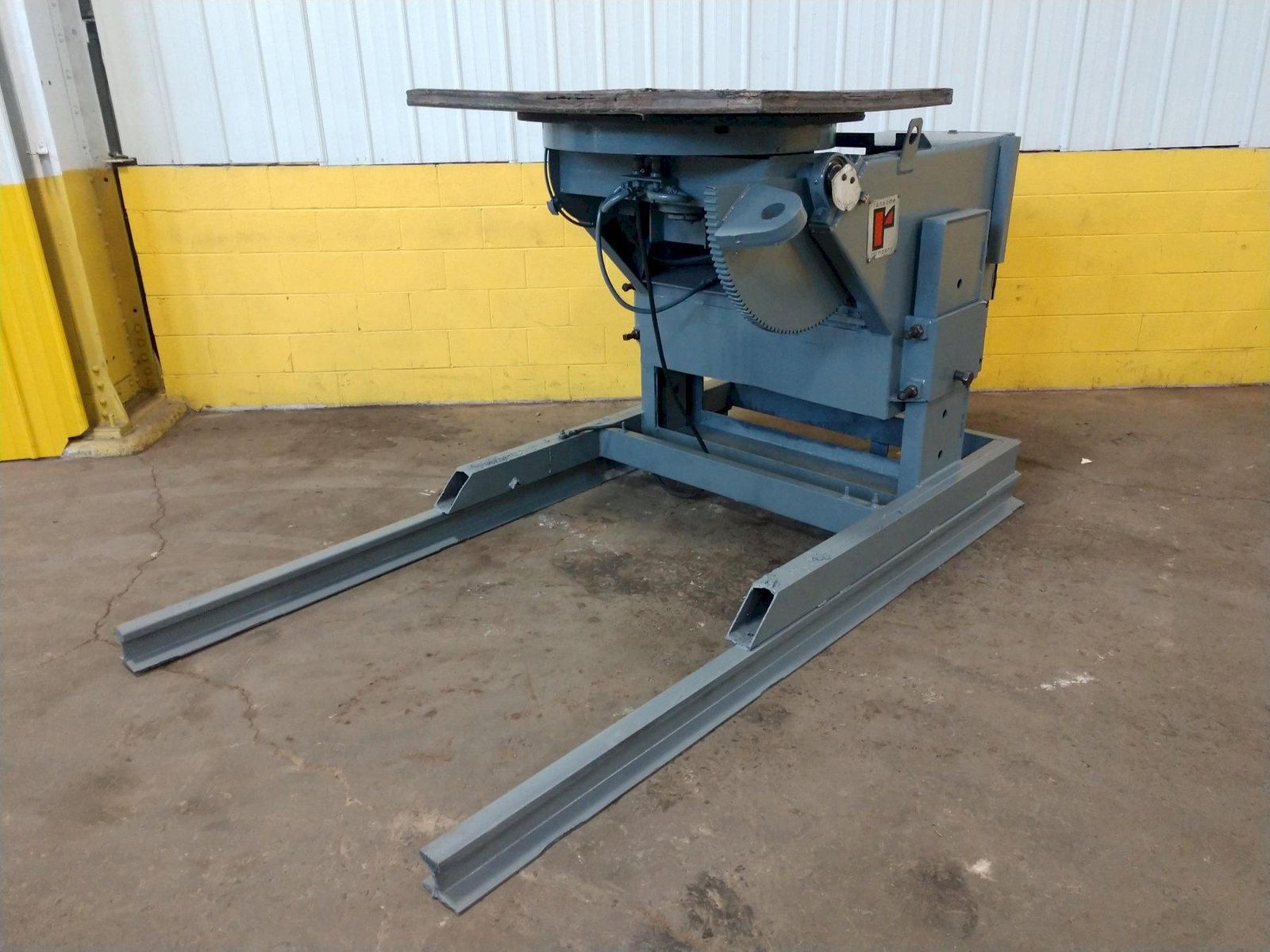

5,000 LB RANSOME 42" POWERED WELDING POSITIONER: STOCK #11257

Stock #: 11257

Equipped With

SERIAL ................................... 1913000
MODEL .................................... 50P
CAPACITY ................................. 5,000 LBS @ 6" CENTER
AREA OF TABLE ............................ 42" X 42"
ROTATION SPEED, INFINITELY VARIABLE ...... .031 TO 1.24 RPM
TABLE TILTS .............................. 135 DEGREES
TABLE HEIGHT (ABOVE FLOOR) ............... 42" MIN TO 66" MAX
ROTATIONAL TORQUE ........................ 30,000"/LBS
TILT TORQUE .............................. 65,000"/LBS
RAPID TRAVERSE (ROTATION) ................ YES
PENDANT CONTROL .......................... YES
VERTICAL ADJUSTMENT ...................... 6" INCREMENTS
ROTATION MOTOR, HORSEPOWER ............... 1
TILTING MOTOR, HORSEPOWER ................ 1
